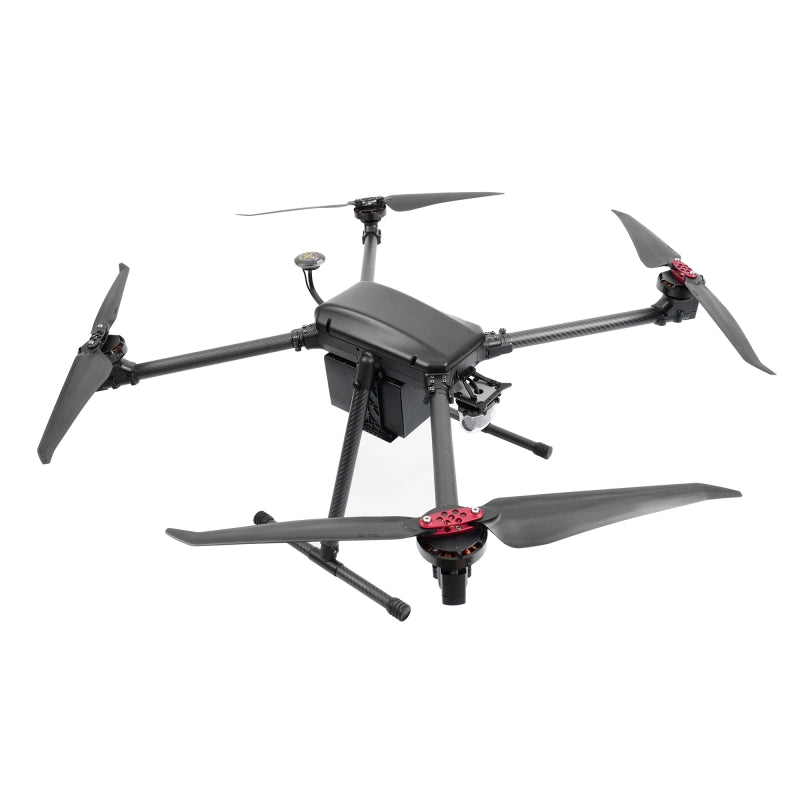

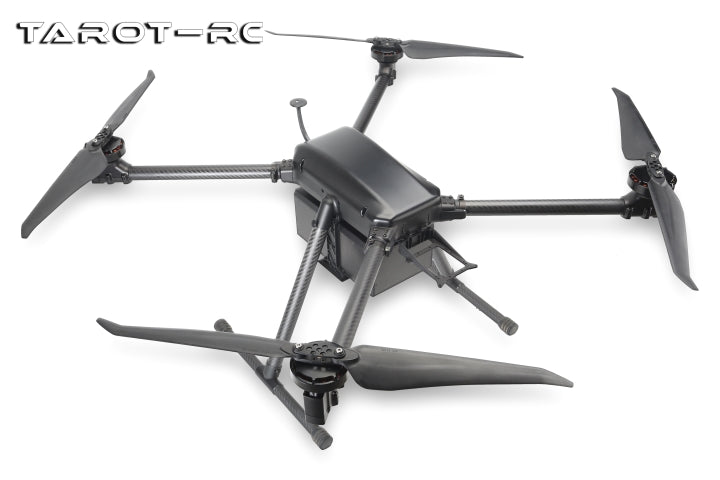

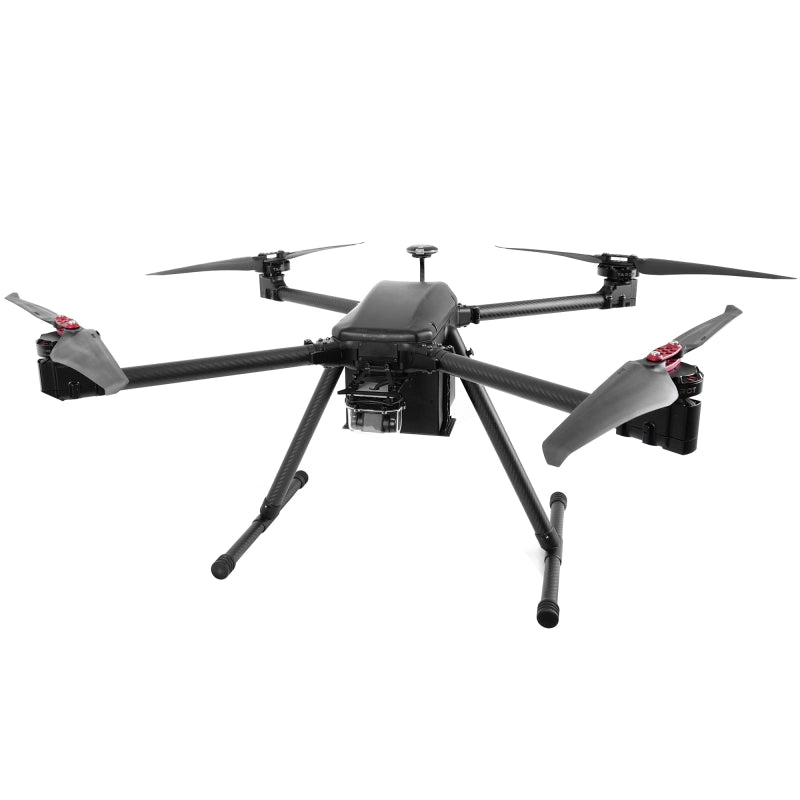

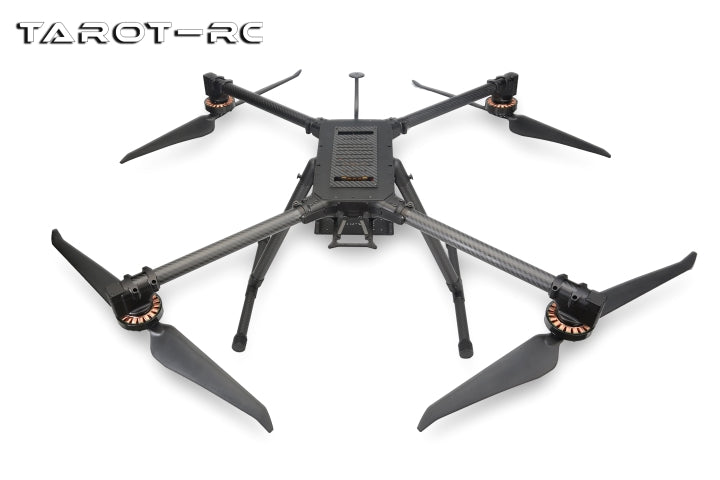

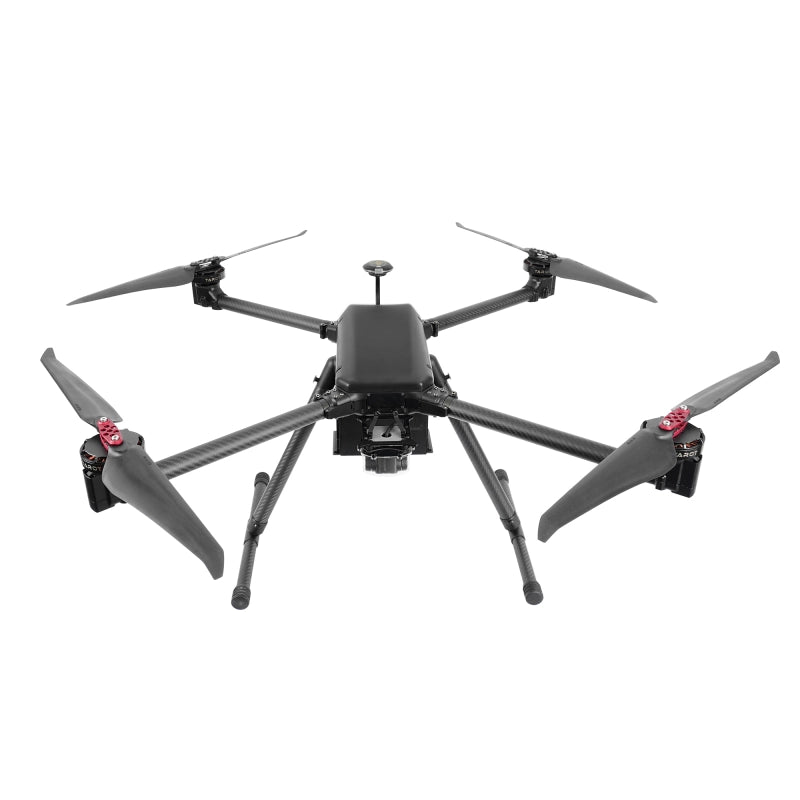

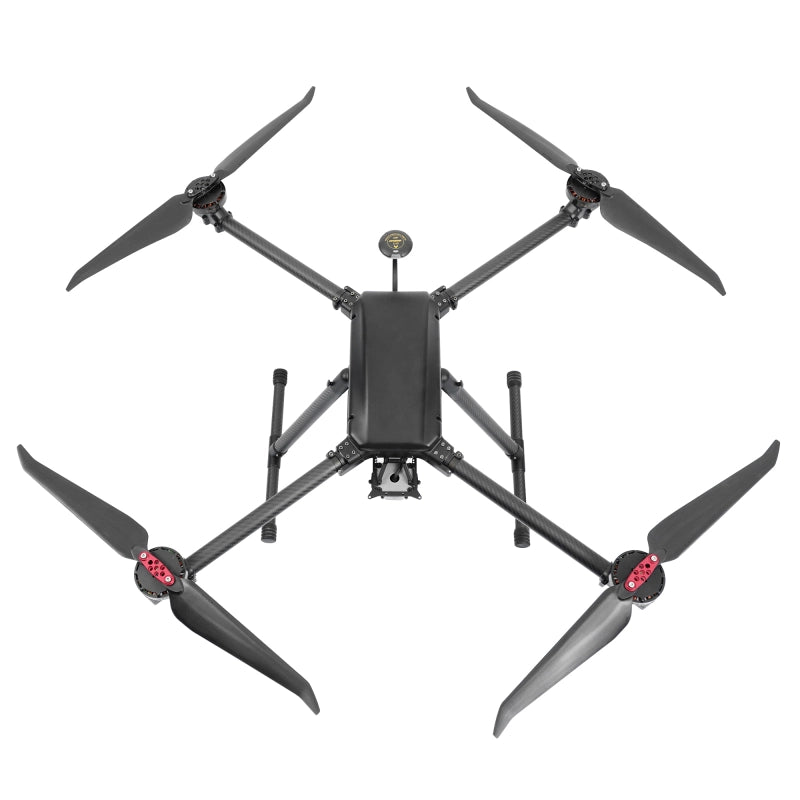

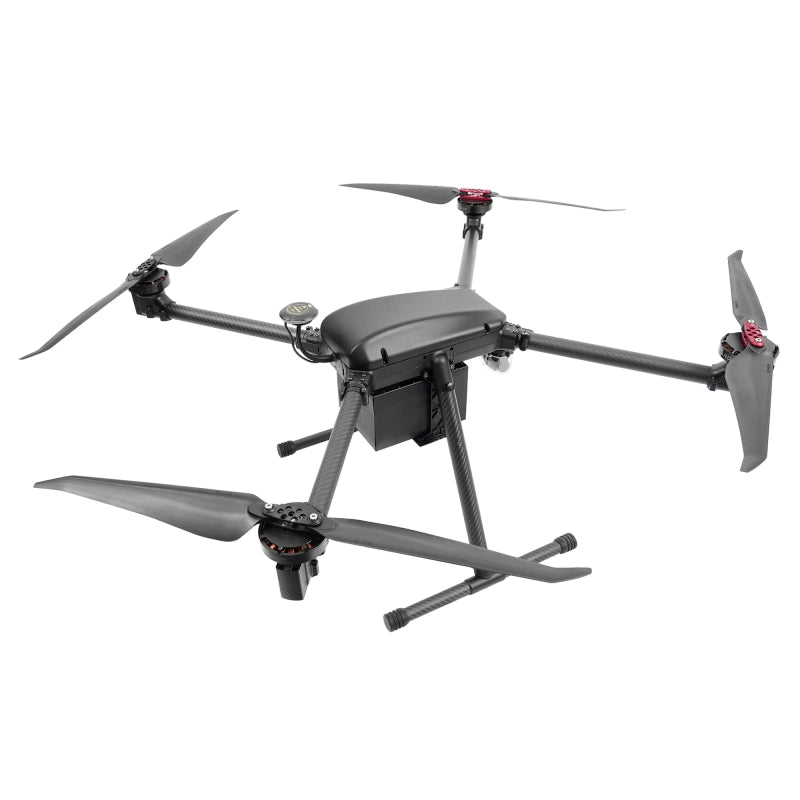

Tarot M860 Drone Overview
The Tarot M860 is a professional-grade quadcopter designed for industrial applications, including aerial photography, surveying, and mapping. Built for users who require long endurance and high payload capacity, the M860 offers outstanding performance with a 3KG payload capacity, 860mm wheelbase, and powerful 12S/6009/130KV motors. With 65 minutes of unloaded flight time, it is ideal for extended missions and complex aerial tasks in industries such as energy, agriculture, and infrastructure inspection.
Tarot M860 Key Features:
- High Payload Capacity: With an empty takeoff weight of 6.26KG and a maximum payload of 3KG, this drone is capable of carrying DSLR cameras, LiDAR systems, or other professional-grade equipment.

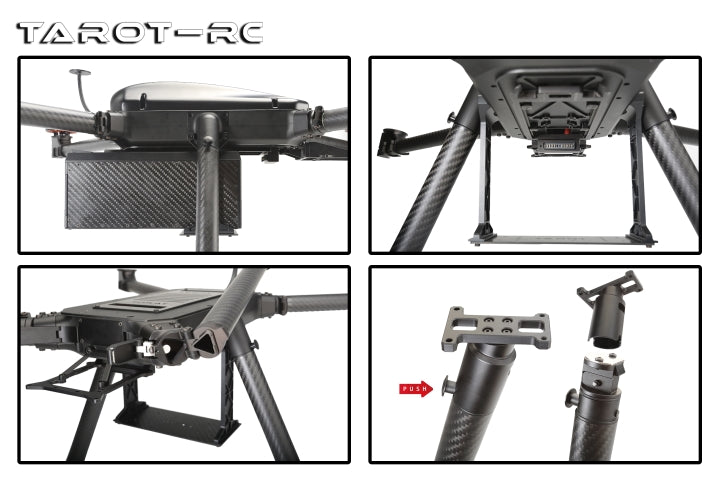

- Aluminum Alloy Frame: The all-aluminum one-piece center compartment offers a lightweight yet durable construction, making the drone easy to transport and highly resistant to environmental stress.

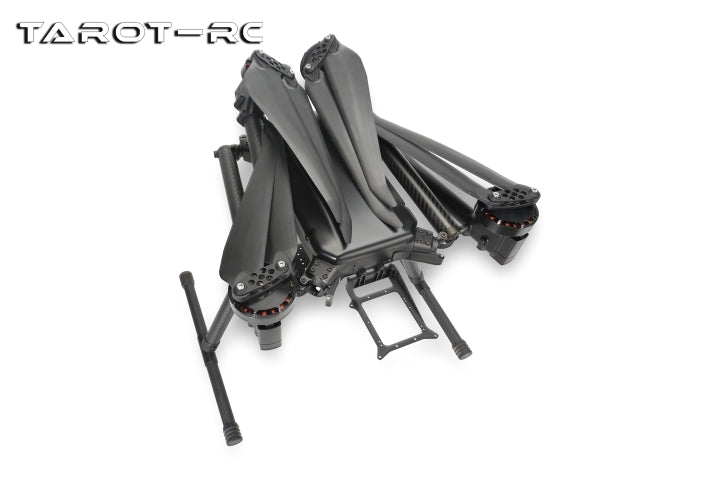

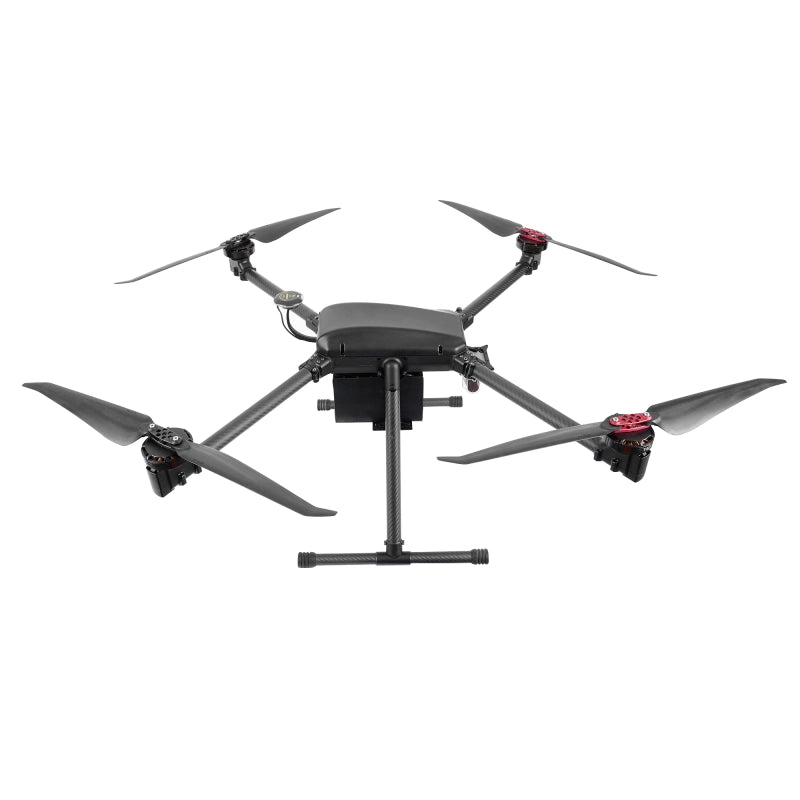

- Foldable and Portable: The novel quick-detachable T-shaped landing gear and foldable arms allow the M860B to be easily packed and transported, saving time during setup and takedown.
- Long-Endurance Flight: The M860B offers up to 65 minutes of unloaded flight time and up to 50 minutes when carrying a 1KG payload, ensuring long operational duration for extensive projects.
- Powerful Motors and ESCs: Equipped with Tarot 6009/130KV motors and FLYCOLOR 12S/60A ESCs, the M860B delivers efficient power management and high stability during flight, even under heavy loads.
- Customizable and Upgradable: The drone’s configuration can be upgraded to improve flight endurance and adapt to different industrial tasks, providing flexibility for growing operational needs.
Tarot M860 Specifications:
Parameter Name | Value |
---|---|
Empty Aircraft Weight | 3KG |
Battery Weight | 3.26KG (Two 12000mAh batteries) |
Takeoff Weight | 6.26KG |
Max Payload | 3KG |
Max Wind Resistance | Force 6 Wind |
Flight Distance | 4000m |
Max Flight Altitude | 3000m |
Flight Time (Unloaded) | 65 minutes at 13A |
Flight Time (Loaded) | 50 minutes with 1KG, 40 minutes with 2KG, 35 minutes with 3KG |

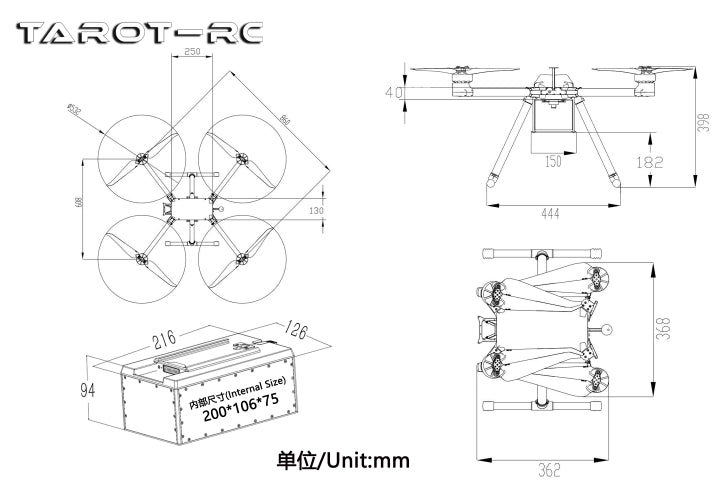

Wheelbase | 860mm |
Folding Wheelbase | 368×362mm |
Center Compartment Size | 250×130×40mm |
Battery Compartment Size | 216×126×94mm |
Test Environment | Sunny, 35°C, Wind Force 2 |
Industrial Applications:
- Aerial Photography and Cinematography: Capable of carrying DSLR cameras or other professional equipment for high-resolution imaging, making it ideal for filmmakers and photographers.
- Surveying and Mapping: With a high payload capacity and long flight time, the M860B can cover large areas for construction surveys, environmental monitoring, or precision agriculture.
- Inspection and Monitoring: The M860B is suitable for inspecting power lines, pipelines, wind turbines, and other industrial structures, reducing the need for manual inspections and enhancing safety.
- Search and Rescue: The drone’s long endurance and stability make it perfect for use in emergency response situations, helping to cover vast areas in search and rescue missions.
What’s Included:
1) Frame Combo:
- M860 Frame ×1
- Tarot 6009/130KV Motors ×4
- FLYCOLOR 12S/60A ESCs ×4
- Tarot 2110 Folding Propellers ×4

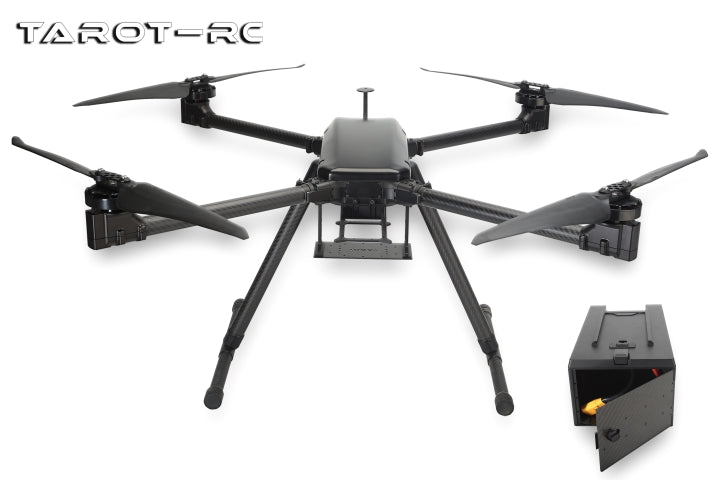

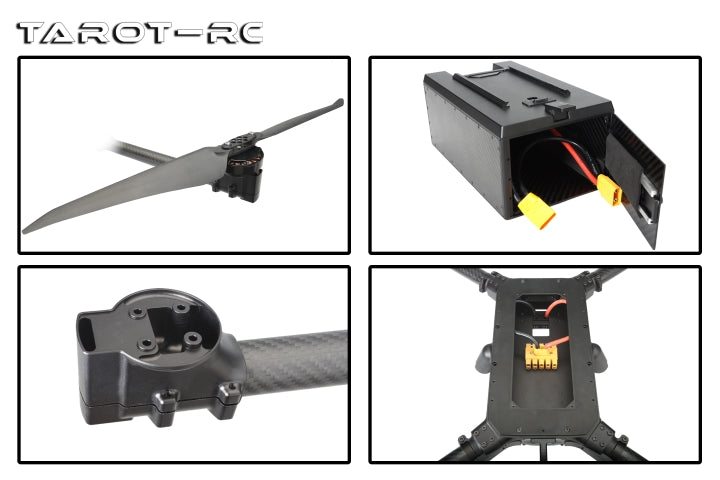

- Quick Release Battery Compartment ×1
- Portable Aluminum Box (49×37×46cm) ×1
2) RTF Combo (Ready to Fly):
- Frame Combo with Flight Controller GPS ×1
- SIYI MK15 Industrial Radio ×1
- SIYI A2 Mini Gimbal Camera ×1
- 12S 15000mAh Battery ×1
- Battery Charger ×1
Tarot M860 Industrial Drone with a durable design and high-quality camera for industrial inspections and surveillance.
