Product Description:
The Tarot Peeper I is a long-endurance industrial drone designed to meet high technical standards for professional applications. With a diameter of 750mm and a net weight of approximately 1.28kg, this UAV features a mechanical exposed skeleton aesthetic, combining dynamic red and black metal colors for a striking chassis design. Prioritizing extended flight time, the Peeper I supports 6S / 22.2V / 10000mAh–15000mAh batteries, offering quick startup, easy disassembly for portability, and stable high-speed flight. Its innovative design and powerful features make it ideal for demanding tasks such as urban security, road monitoring, firefighting support, forest search and rescue, and power line inspections.
Configurations:
- TL750S1: Standard configuration without the T10X Brushless Gimbal.
- TL750S2: Standard configuration with the T10X Brushless Gimbal.
Key Features:
- High Stability and Reliability: Engineered for long-endurance flights with superior stability.
- Innovative Folding Design: Patented tool-free folding arm mechanism allows for rapid setup and compact storage.
- Lightweight and Durable Construction: Weighs only 1.28kg (without battery) for easy handling without compromising performance.
- Extended Flight Time: Supports high-capacity batteries (6S / 22.2V / 10000mAh–15000mAh) for prolonged missions.
- Intelligent Power Management: Includes safety lock and automatic shutdown to prevent over-discharge of batteries.
Key Parameters:
Parameter | Specification |
---|---|
Diameter | 750mm |
Frame Height | 258mm |
Main Blade Length | 210mm |
Main Blade Diameter | 440mm |
Net Weight (without battery) | Approx. 1.28kg |
Package Size | 60cm × 25cm × 14cm |
Weight (with package box) | 1.88kg |
Battery Compatibility | 6S / 22.2V / 10000mAh–15000mAh |
Battery Compartment Size | Length 180mm × Width 65mm |
ESC (Electronic Speed Controller) | 40A |
Motor Type | Martin Long-Endurance Brushless Motor |
Package Contents:
- Peeper I Drone Body
- 17.5-inch Martin Folding Carbon Fiber Propellers TL2948 × 2
- Martin Long-Endurance Brushless Motors
- 40A Brushless Electronic Speed Controllers × 4
- Power Distributor
- Power Manager × 1
- Chinese and English Manual × 1
- Tarot Peeper T10X Burshless Gimbal with Zoom Camera x 1 (Optional)
Intelligent Features:
- Multi-Function Control Panel: After connecting the power battery, touch the power button to unlock. The control panel displays current battery capacity (compatible with 4S batteries).
- Convenient Battery Replacement: Side-mounted battery compartment supports batteries ranging from 10000mAh to 15000mAh. Checking the drone's center of gravity before flight maximizes endurance.
- Patented Quick-Folding Mechanism: Features a tool-free folding arm design that reduces carrying volume and enhances portability.
- Lightweight Folding Tripod: Weighs only 15 grams per set, combining simplicity with superior durability.
- Industrial-Grade Arm Tubes: Made from T6 aluminum alloy with an oval design for reduced wind resistance and vibration.
- Built-In 40A High-Speed ESCs: Integrated with a wind cooling design and high-strength plastic motor mounts with damping functions.
- High-Efficiency Motors and Propellers: The Martin series brushless motors and folding rotors offer high efficiency and low temperature, providing superior power output.
- Intelligent Power Management System: Distributes power and signals to all systems with a safety lock to prevent accidental starts. Automatically shuts down after 30 minutes of inactivity to avoid battery over-discharge.
Applications:
- Urban Security Surveillance
- Road Monitoring
- Firefighting Support
- Forest Search and Rescue Operations
- Power Line Inspection
Optional Accessory (TL750S2 Configuration):

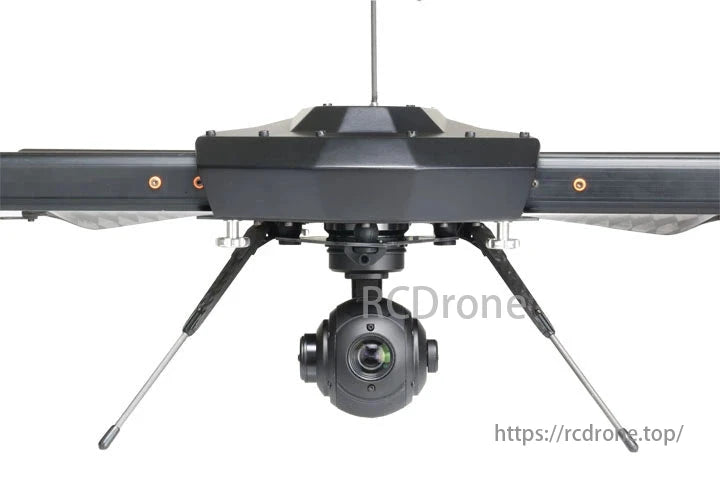

- T10X Brushless Gimbal: Provides stable and smooth gimbal control for professional aerial photography and videography, enhancing the drone's capabilities for industrial applications.
Note: Before flight, ensure to check the drone's center of gravity to achieve the longest possible flight time when unloaded.
Conclusion:
The Tarot Peeper I Long Endurance Industrial Drone is the ideal solution for professionals seeking a reliable UAV with extended flight times, portability, and high-performance features. Whether you choose the TL750S1 configuration without the gimbal or the TL750S2 with the T10X Brushless Gimbal, the Peeper I delivers exceptional capabilities suited for a wide range of industrial applications. Its innovative design and intelligent features provide comprehensive support for all your aerial missions, ensuring efficiency, safety, and superior performance.
Peeper unmanned aerial vehicle is a technical standard for long voyage unmanned aerial vehicles to decrypt. This series has mechanical exposed skeleton aesthetics design features to the movement of red and black metal primary color combination of the chassis. The long flight time as the primary goal of design, both fast start, easy to carry disassembly, high-speed stable movement of the flight. Applications include urban security, road, fire, forest search and rescue, power lines and so on. | Multi-function control panel has a power button, plug in the power battery, touch the button to unlock power, and through the control panel battery indicator to understand the current battery capacity (in the case of 4S) |
Power battery replacement is convenient. The battery can be used 6S / 22.2V / 10000MAH-15000MAH between (with the battery compartment size: length 180MM / width 65MM, side-mounted battery) before departure, check the body gravity reference position to achieve the longest time left blank. | The same patented design of the arm rapid folding mechanism, tool-free folding arm can be fast arm of the arm design, all the arm tube folded back, effectively reducing the UAV carrying volume |
Light weight of the rapid folding tripod, the state intellectual property rights have been granted TAROT model Co., Ltd. This product patents. Its structural design is simple and light weight, a single group of 15 grams net weight, but also has superior durability. | T6 aluminum alloy oval design of the industrial-grade arm pipe, with a light wind resistance is small, effectively reduce the body vibration, positioning and other advantages of positioning, while built-in 40A high-speed electronic governor, perfect with wind cooling design, with Damping function of high-strength plastic motor mount. |
The standard Martin series brushless motor and light Martin folding rotor, inherited the TAROT long-endurance UAV's core technology. After a long period of testing and tuning, with high efficiency and low temperature characteristics, power output performance is superior. TAROT to sophisticated CNC milling machining technology, high standard manufacturing this motor, single motor weighs only 71 grams. | Intelligent power management system, multi-axis unmanned aerial vehicles will be the power and signal distribution to the motor, flight control, PTZ, image transmission systems. Increase the safety lock function when starting to avoid accidental operation caused by accidents. When the UAV is not running in 30 minutes, the current is below 3A, it will automatically shut down, so as to avoid over-discharge of lithium batteries. |
