SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

Quantity: 1 pcs

Origin: Mainland China

Model Number: T30X-NET

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: aerops

Description:

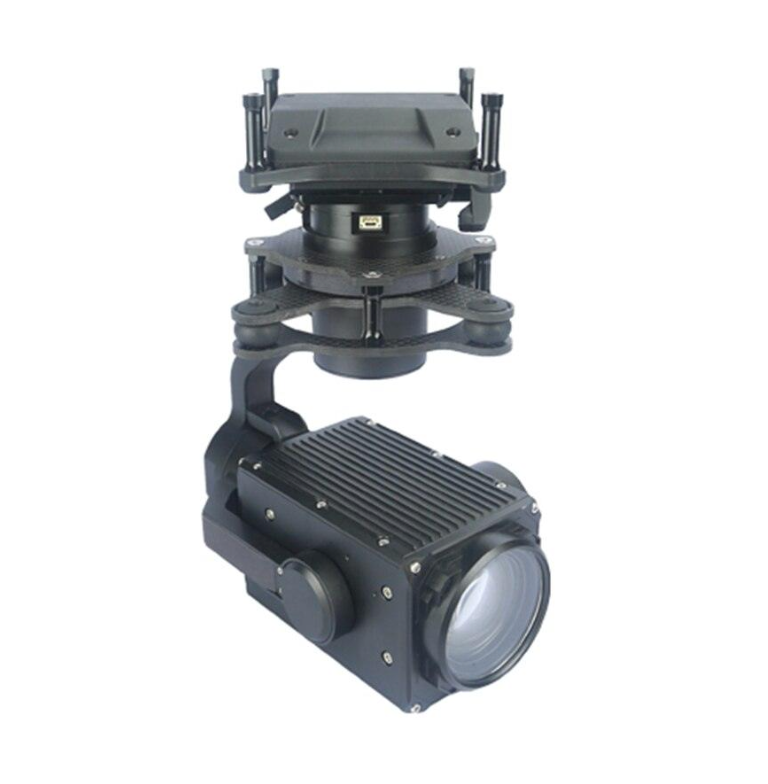

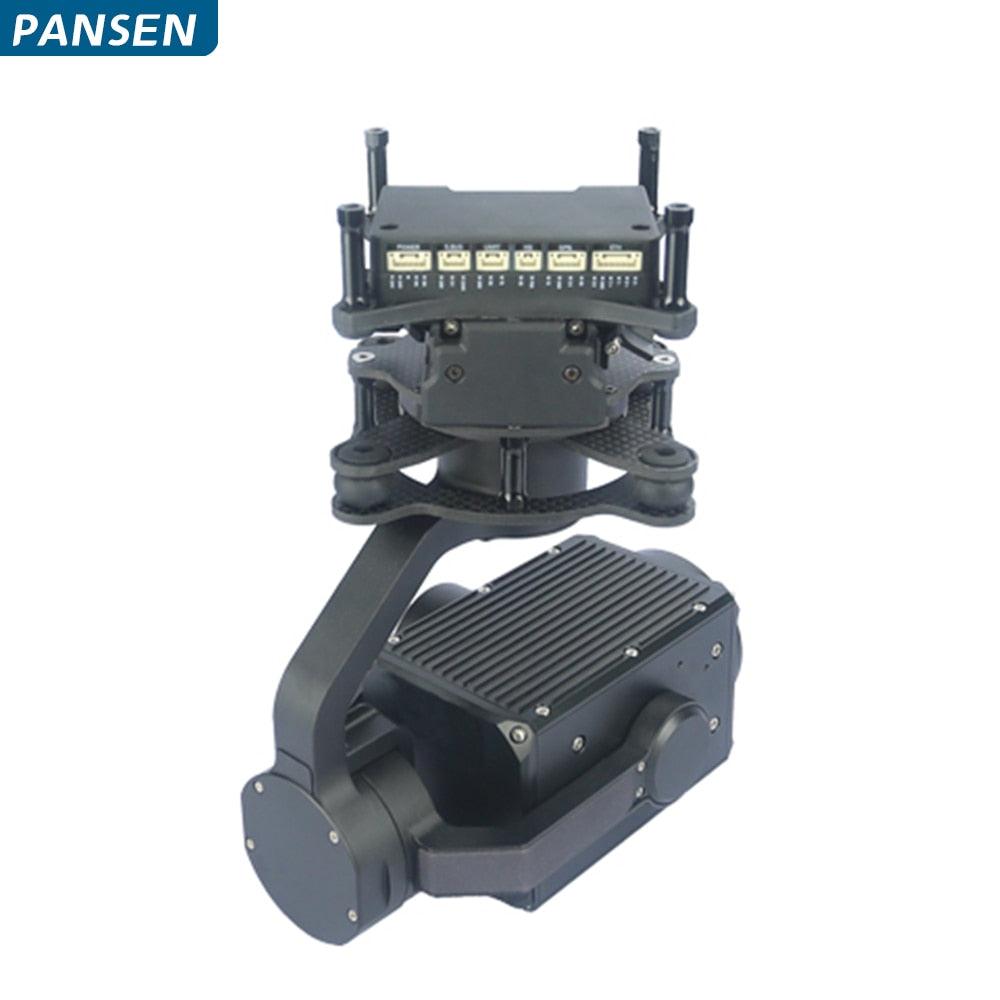

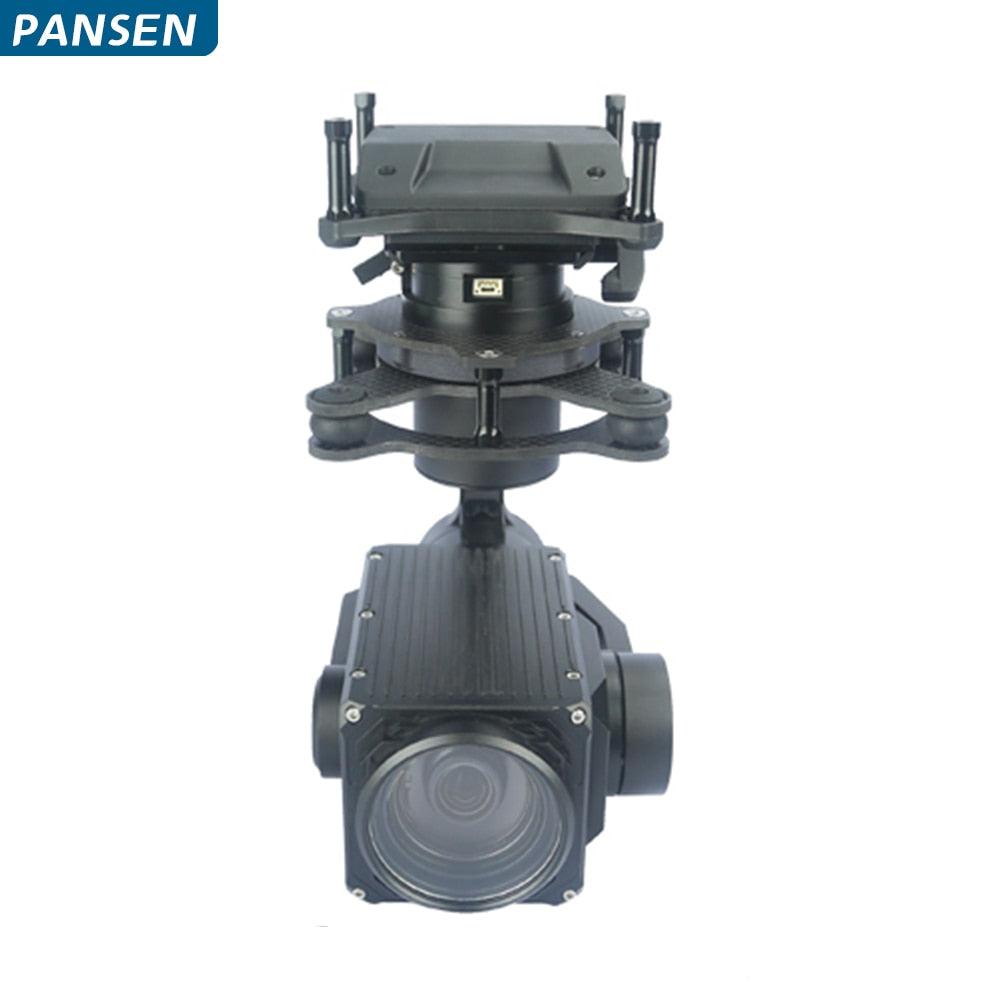

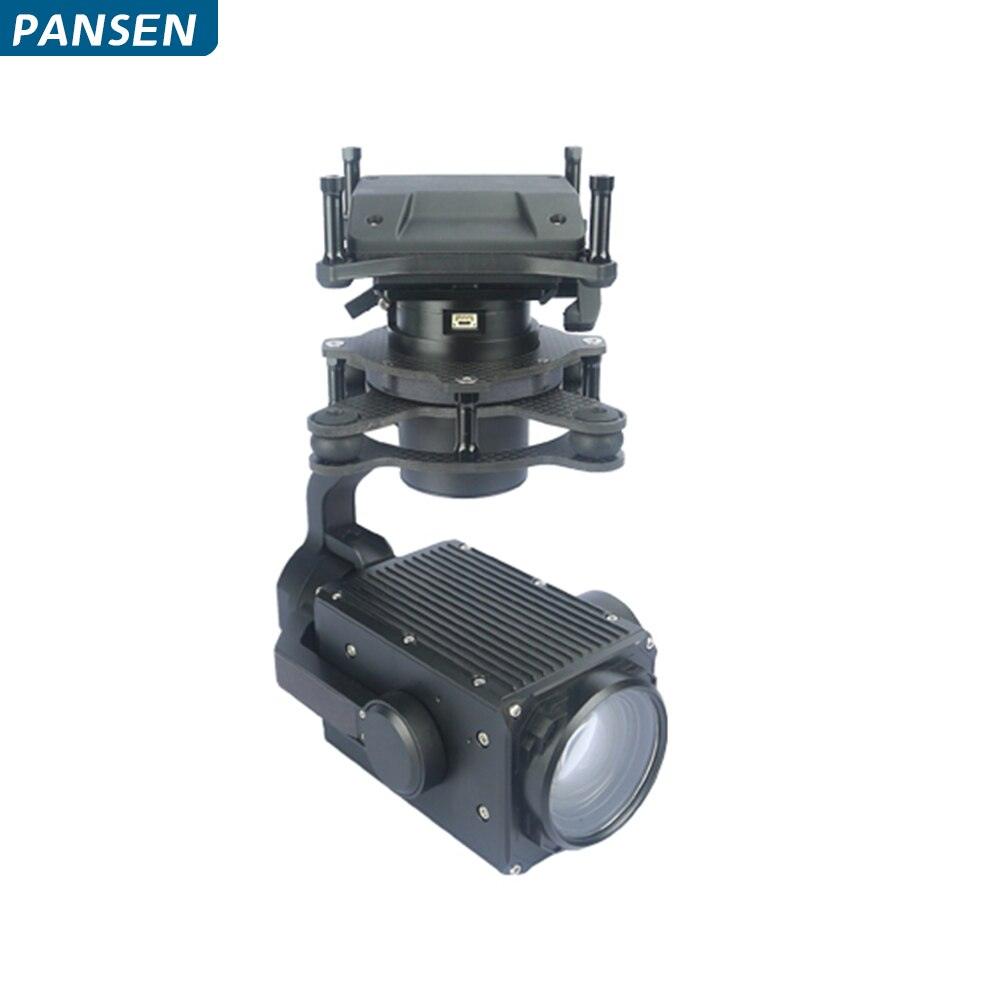

It is a three-axis zoom camera gimbal specially developed for industrial applications. It supports 30X optical zoom, 4X digital zoom, and 120X hybrid zoom, with a total pixel of 2.07 million, which can clearly present the scene from hundreds of meters away; support starlight-level night vision function, you can catch clear images even at low light nights. The pod adopts professional three-axis mechanical stabilization technology, and the image stabilization accuracy reaches ±0.01°. It supports connection with unmanned aerial vehicles through the quick release interface, and can be used in many industries such as fire protection, forest public security, public security monitoring, search and rescue, and environmental protection law enforcement.

Features:
- The optical zoom camera supports 30X optical zoom, the field of view range is 60°～2.3°, and the optical zoom range is f: 4.7～141mm;
- 4X digital zoom and 120X mixed zoom;
- Video resolution 1080P at 30fps; photo resolution 1920*1080;
- The minimum illuminance of color mode can reach 0.05Lux/F1.6; the minimum illuminance of black and white mode can reach 0.005Lux/F1.6;
- Highly optimized servo motor vector control algorithm;
- Mechanical three-axis image stabilization and ±0.01° image stabilization accuracy;
- Aluminum alloy structure design, light and strong, good heat dissipation performance;
- Support tracking function;

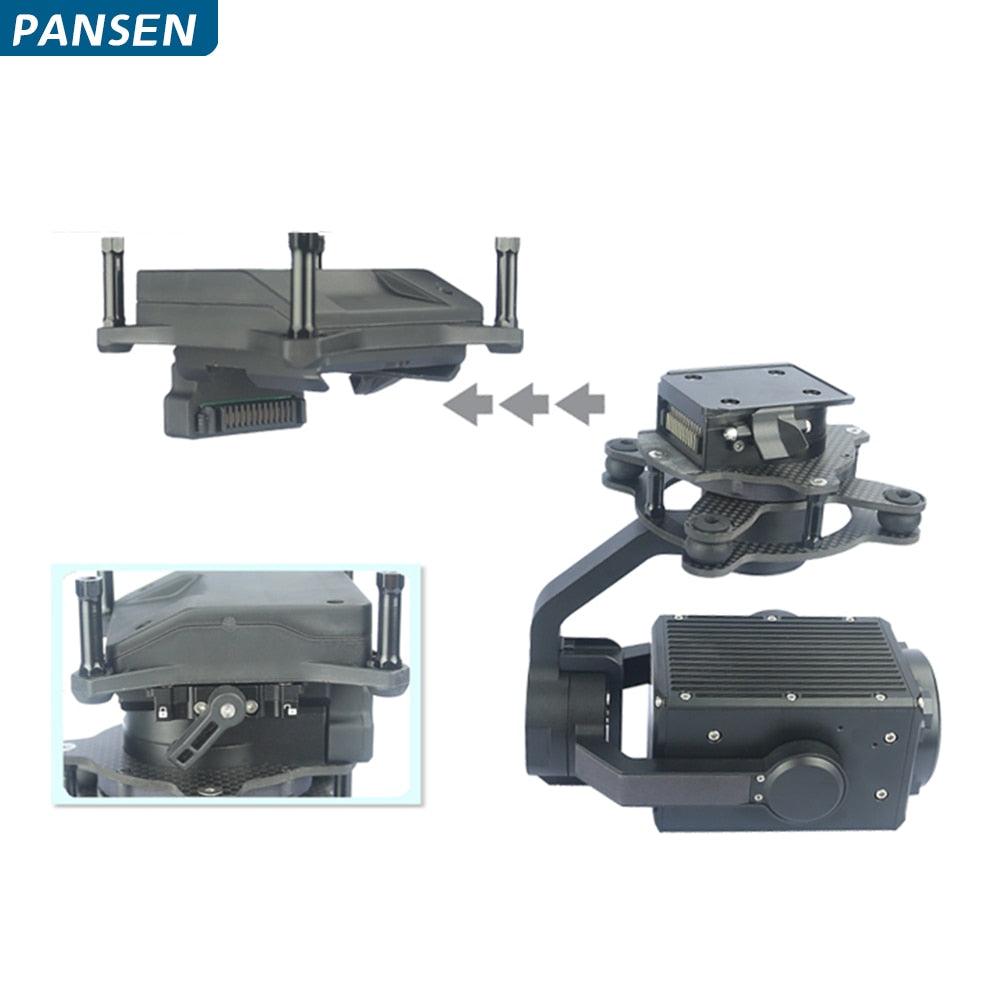

- Support connection with UAV through quick release interface.

Specifications:
Functional indicators:
- Video output: HDMI (1080P 30FPS)
- Support control type: UART (ttl level); S.Bus
- Advanced Features: Smart Tracking

Camera Specifications:
- Sensor size: 1/2.8" CMOS
- Total pixels: 2.07 million
- Video resolution: 1080P at 30fps
- Photo resolution: 1920*1080
- Optical zoom: f:4.7~141mm
- Field of view (horizontal): 60° ~ 2.3°
- Optical zoom: 30X
- Digital zoom: 4X
- Minimum illumination: Color: 0.05Lux F1.6; Black and white: 0.005Lux/F1.6
- Signal-to-noise ratio (S/N): ≥ 55d (AGC Off, Weight ON)
- Video compression mode: H.265/H.264/H.264H
- Storage function: TF card (maximum 256G)
- Network Protocol: for ONVIF, GB/T28181, HTTP, RTSP, TCP, UDP, and RTP

PTZ technical indicators:
- Image stabilization accuracy: ±0.01°
- Maximum controllable speed: Direction of rotation (PAN): ±200°/s; Tilt direction (TILT) : ±200°/s
- Controllable rotation range: Direction of rotation (PAN): ±360° continuous; Tilt direction (TILT) : -120° to +30°

Overall technical indicators:
- Working environment temperature: -20 to 60℃
- Storage environment temperature: -20 to 70℃
- Working environment humidity: ≤ 85%RH (non-condensing)

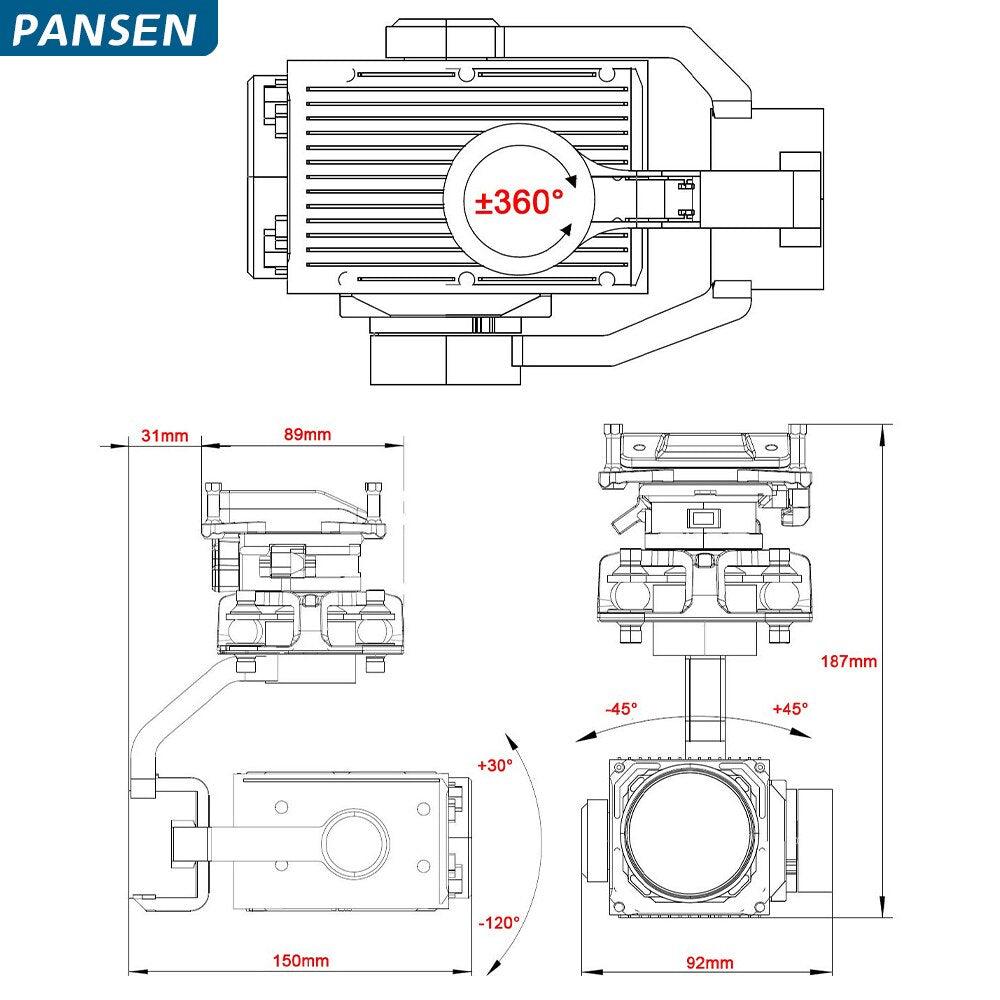

- Dimensions (LxWxH): 150 x 92 x 187mm/5.9 x 3.6 x 7.4"
- Working voltage: 20~52V
- Average power consumption: 6.0W

Package Included:
- 1 x Gimbal body

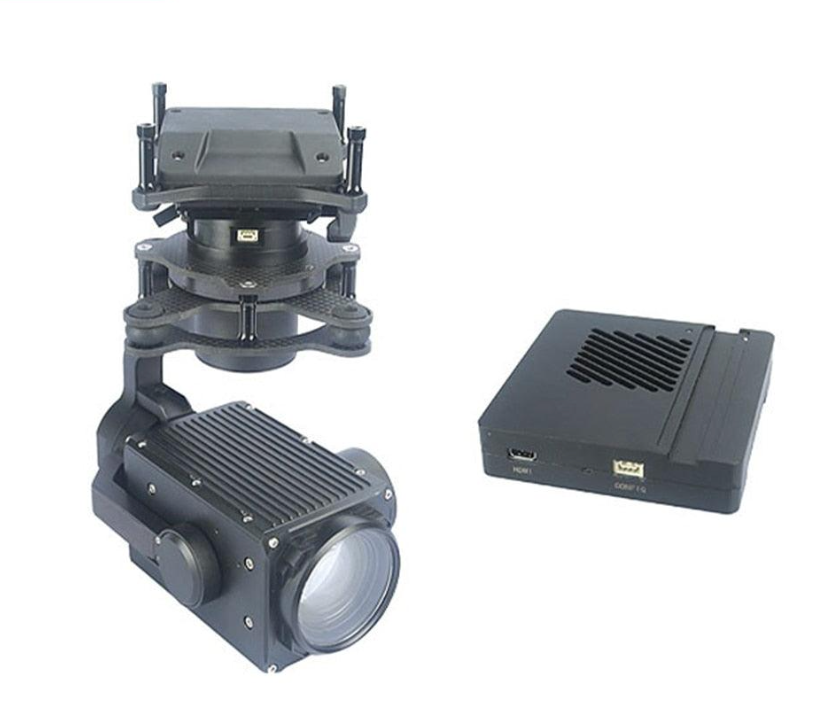

- 1 x PTZ parameter adjustment module
- 1 x Gimbal power cord/4P
- 1 x S.Bus receiver cable
- 1 x Serial cable/3P
- 1 x Micro-USB cable
- 1 x Micro-SD memory card/32Gb
- 1 x Network output and debugging line/4P
- 1 x Rj45 female seat
