Tarot-RC TL3D01 Gopro T4-3D 3-axis brushless gimbal Gopro series Action camera brushless gimbal for fixed-wing / multi-aircraft

Products include:
Three-axis brushless gimbal×1
PTZ main control module×1
Gimbal main control and gimbal main body connection line×1
5V output, receiver and video cable×1
USB module×1
Flight control cable×1
Packing box×1

Product Features:
Support computer operation interface setting
Point to follow mode (PF)
First person mode (FPV)
Built-in independent IMU module
Tarot gimbal dedicated servo drive module
AV output interface
Wide range voltage input support
Support conventional receiver/S-Bus receiver/DSM receiver
peripheral equipment:
Support camera types: Gopro Hero3/Hero4 and cameras of the same size and weight
Input power: 2S~6S LiPo battery
Mechanical/electronic characteristics:
Angle control accuracy: ±0.02°
Maximum controllable speed:
Pitch direction (TILT): ±200°/s
Controllable rotation range
Tilt direction (TILT): -120° to +15°
Working current: 30mA (@25V) 50mA (@12V)
Stall current: 350mA (@25V) 700mA (@12V)
Working environment temperature: -20°C ~50°C
Weight: 178g
Size: 99mm×88.5mm×105.6mm

Assistant software installation requirements:
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)

Product manual:

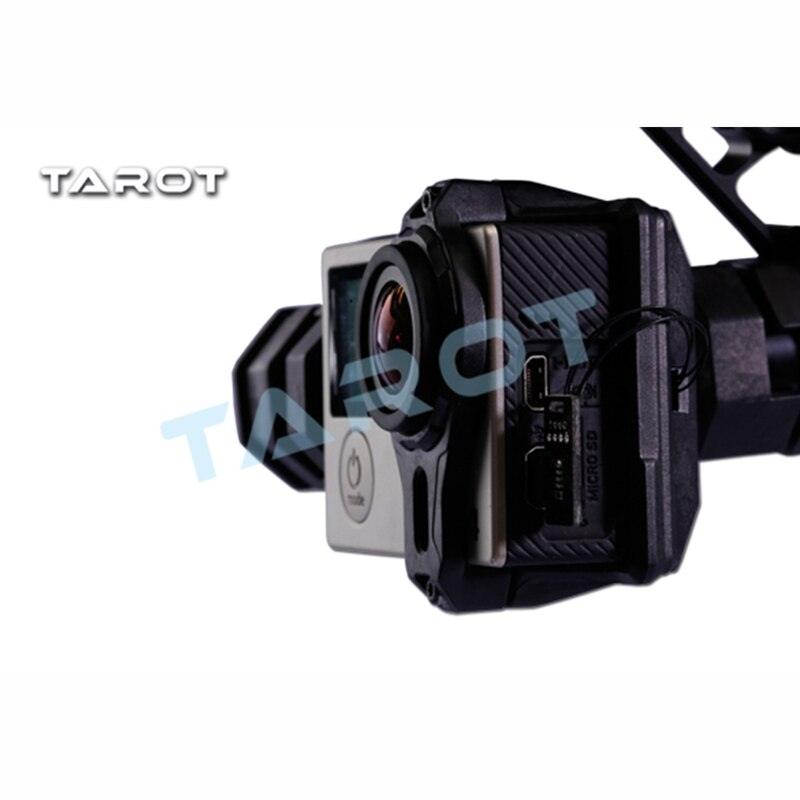

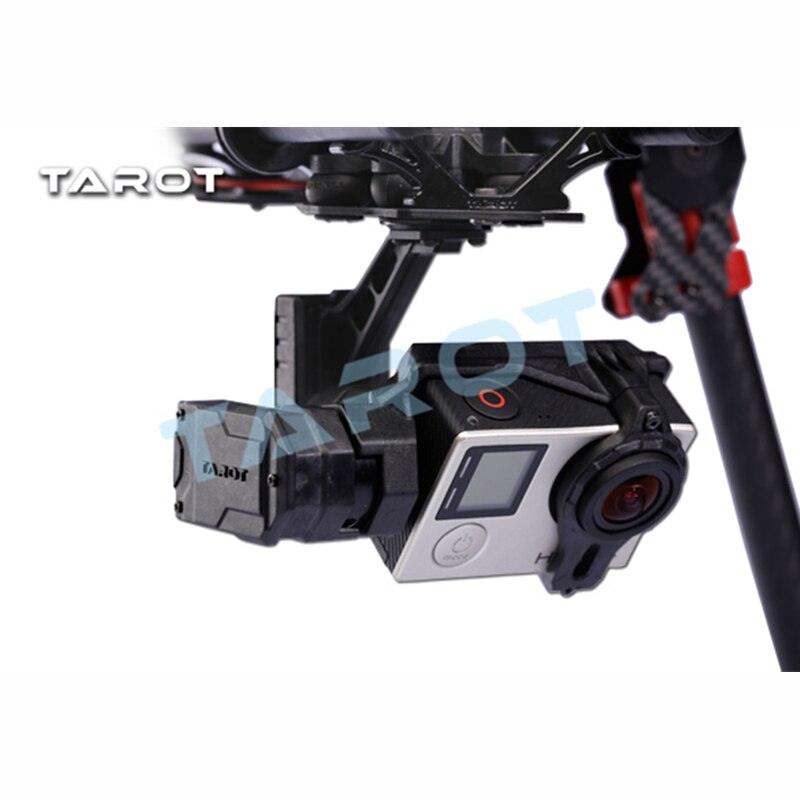

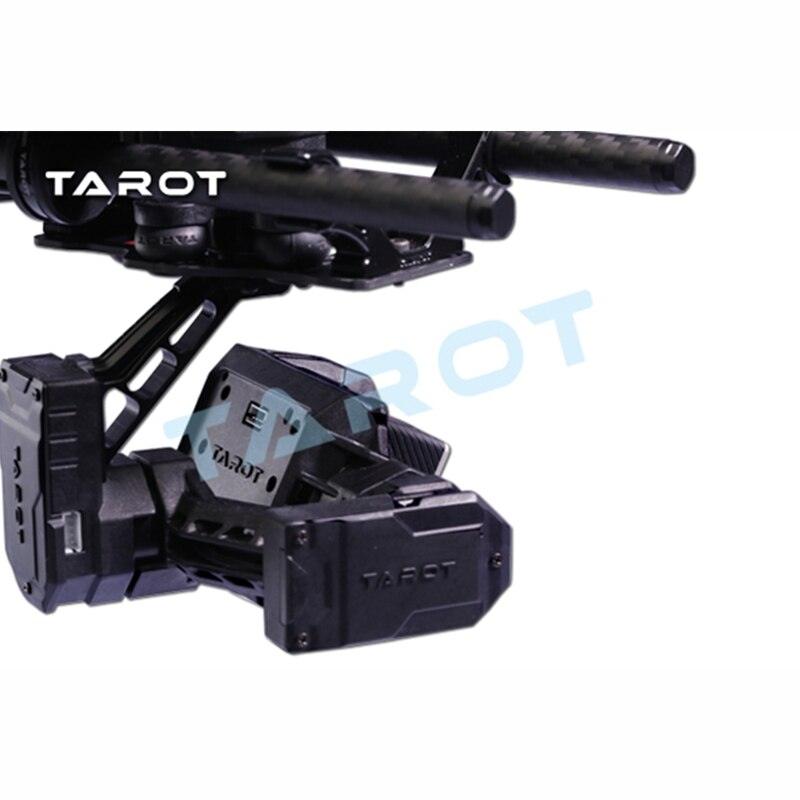

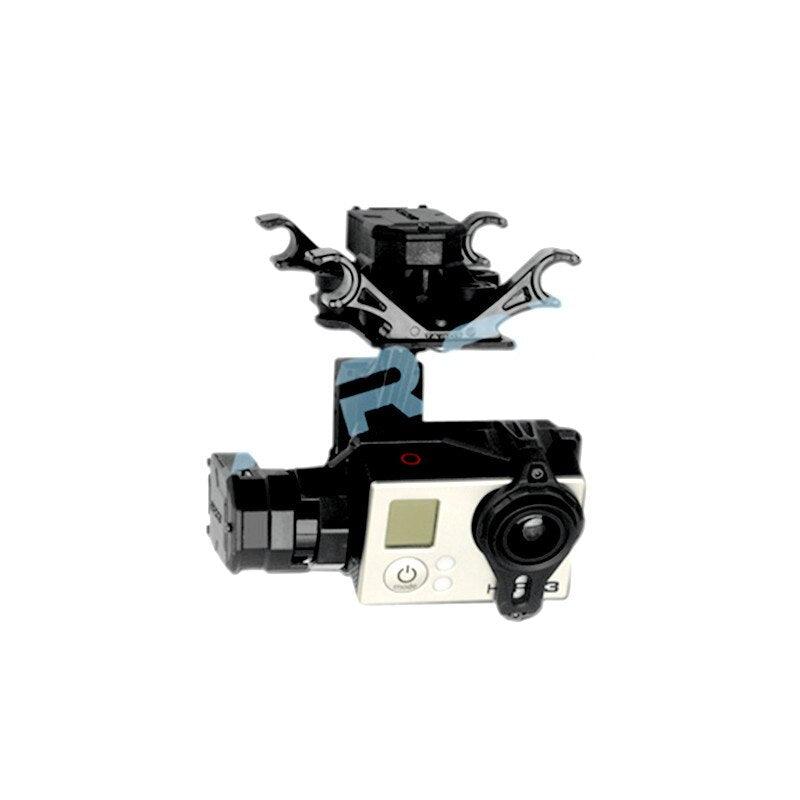

Tarot T4-3D three-axis self-stabilizing gimbal is specially customized for Gopro Hero3/Hero4 and cameras of the same size and weight. It uses a combination of aluminum alloy and engineering plastics to bring light weight and strongest stability, even in harsh conditions. In extreme environments, it can accurately lock the camera to maintain high stability and output exquisite industrial-grade images with the ultimate experience. It is the best choice for professional film and television photography and aerial photography enthusiasts.

Tarot T4-3D three-axis self-stabilizing gimbal adopts advanced gimbal control algorithm, built-in independent IMU to precisely control gimbal posture, integrated gimbal and servo drive module. It supports two working modes: Pointing Follow (PF) and First Person (FPV). All power and signal lines are cleverly embedded in the PTZ structure. The rotation speed of the pitch axis is controllable. The amount of the joystick corresponds to the rotation speed of the pitch axis. The larger the amount of the stick, the faster the rotation speed.

Product description:
1. Integrate all the high-end technology of Tarot series gimbal. The combined structure of aluminum alloy and engineering plastics brings light weight and strongest stability. Even in harsh and extreme environments, it can accurately lock the camera to maintain high stability and output exquisite industrial-grade pictures with the ultimate experience. The best choice for professional film and television photography and aerial photography lovers.

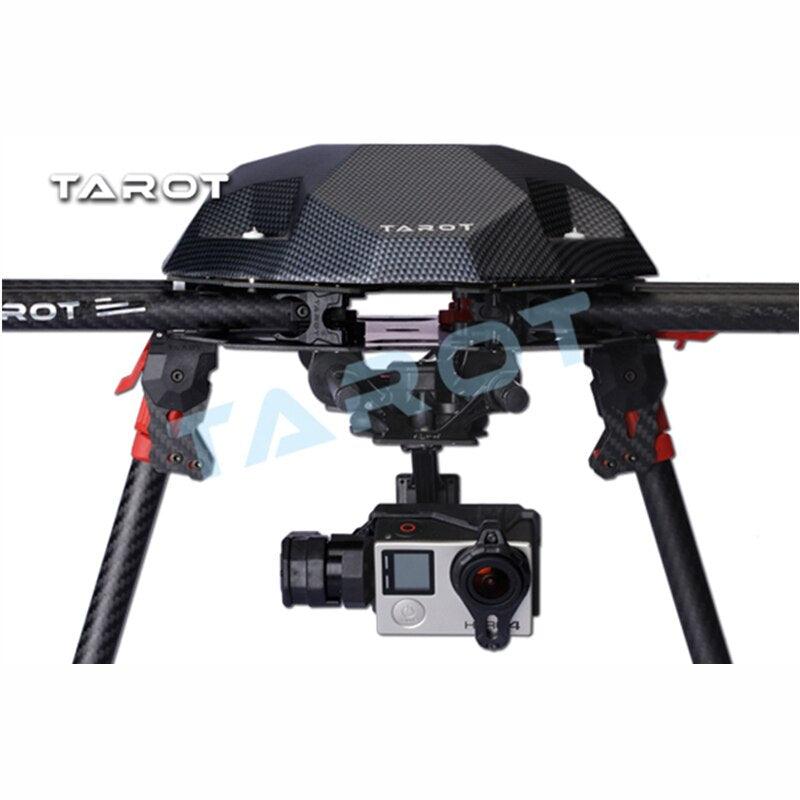

2. Tarot Gopro T4-3D three-axis brushless pan/tilt is suitable for Gopro4/Gopro3+/Gopro3 sports cameras or other sports cameras with similar sizes. It is a high-precision, lightweight three-axis airborne gimbal, perfectly adapted to multi-rotor aircraft, fixed wing, helicopters and other carriers.
3. T4-3D three-axis self-stabilizing pan/tilt adopts advanced pan/tilt control algorithm, built-in independent IMU to precisely control pan/tilt posture, and integrates pan/tilt and servo drive modules. It supports two working modes: Pointing Follow (PF) and First Person (FPV).
4.2S-6S lithium polymer battery (7.4-22.2V) input, pitch direction (TILT): ±200°/s, pitch direction (TILT): -120° to +15°. The rotation speed of the pitch axis is controllable. The amount of the joystick corresponds to the rotation speed of the pitch axis. The larger the amount of the stick, the faster the rotation speed.
5. Built-in wiring design without restriction, all power and signal lines are cleverly embedded in the pan-tilt structure, no cumbersome debugging is required, and it can be powered on and fly with one button.
6. Support computer operation parameter interface setting, and provide long-term system free upgrade service.
