SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 9

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 18+

RC Parts & Accs: Principal Axis

Quantity: 1 pcs

Origin: Mainland China

Model Number: TL3T02

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Color: Black

Certification: CE,RoHS

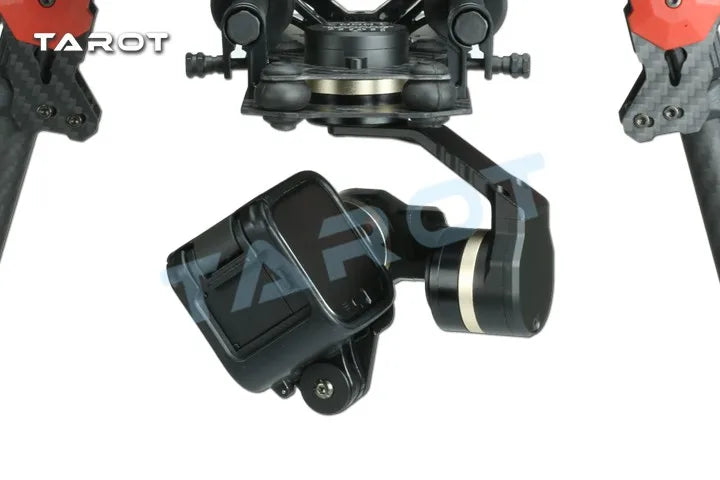

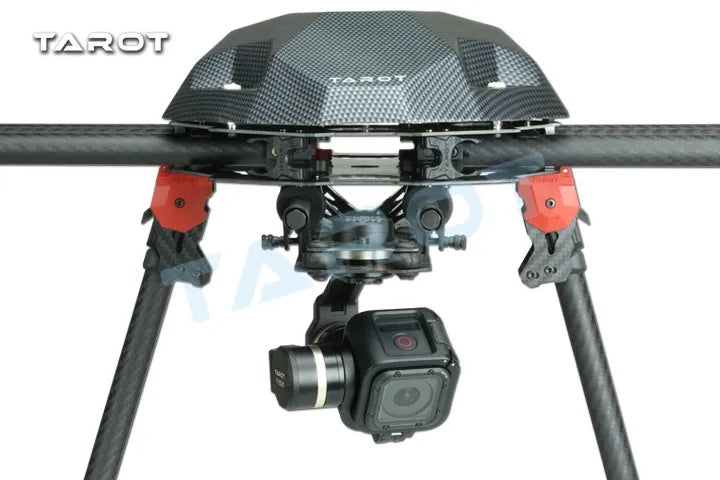

Tarot-Rc TL3T02 T-3D IV 3-Axis Hero4 Session GoPro Camera Gimbal PTZ For FPV Quadcopter Multicopter Frame / Rc Racing Drone



Product specifications:

Metal three-axis gimbal 153 g × 1

PTZ master control module (36 × 25 × 11MM) × 1

8P PTZ master and PTZ main body connection line ×1

5V output, receiver cable ×1

USB module (27 × 21 × 7MM) × 1

Flight control cable ×1

Foam sponge × 1

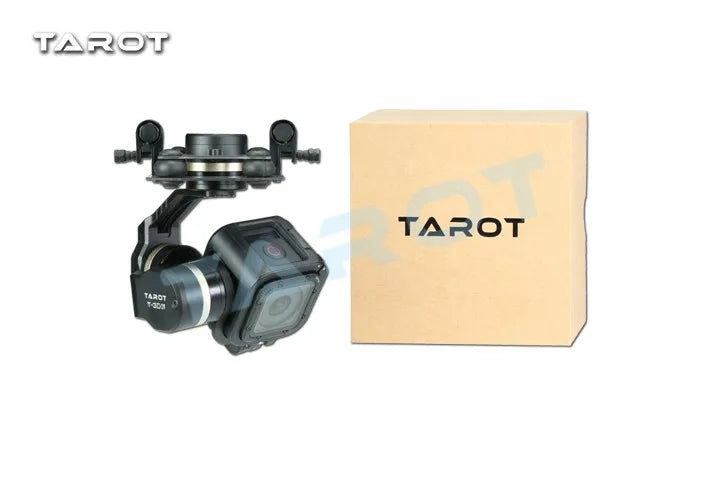

Packing box × 1



Product manual:

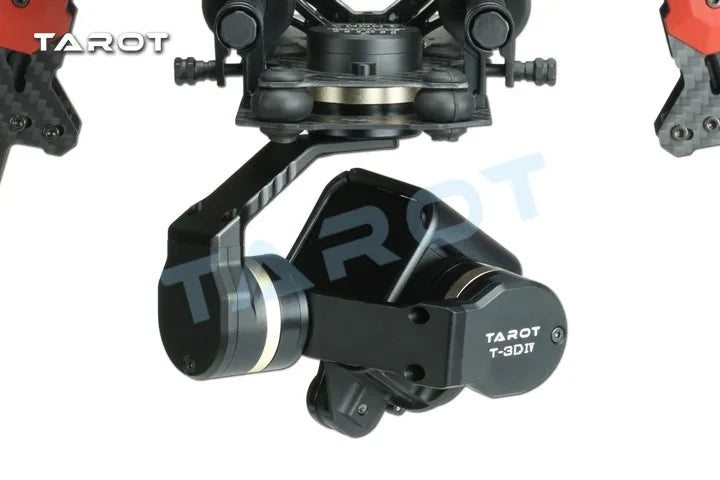

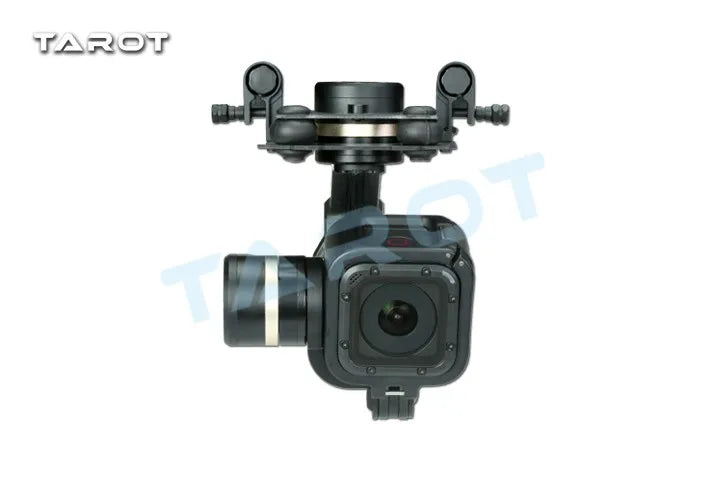

The Tarot GOPRO T-3D IV metal three-axis pan/tilt is specially designed for the GOPRO HERO4 SESSION camera. It integrates all the high-end technologies of the TAROT series PTZ, and adopts the all-CNC overall ribbed structural industrial design to bring lightness and strength. Stability. Even in demanding extreme environments, it accurately locks the camera to maintain high stability and delivers the ultimate picture of the ultimate experience. Tarot GOPRO T-3D IV metal three-axis pan/tilt head with superior calculus control system, built-in independent IMU precise control of gimbal attitude, integrated pan/tilt and servo drive module, support for attitude locking, pointing following and first viewing angle Operating mode.



Mechanical/electronic characteristics

Applicable camera type: GOPRO HERO4 SESSION

Input power: 3S-6S Li (11V-26V)

Operating current: 30mA (@25V) / 50mA (@12V)

Stall current: 350mA (@25V) / 700mA (@12V)

Attitude control accuracy: ±0.02 degrees

Maximum controllable speed

Direction of rotation (PAN): ±200°/s

Tilt direction (TILT): ±200°/s

Roll direction (ROLL): ±200°/s

Controllable range of rotation

Direction of rotation (PAN): ±125°

Tilt direction (TILT): -120° to +80°

Roll direction (ROLL): ±50°



S-Bus/PPM/DSM receiver support

Working environment temperature: -20 ° C ~ +50 ° C

Maximum dimensions (length, width and height): 80mm*90mm*120mm

Assistant software installation requirements

Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)

National Intellectual Property has granted TAROT Models Co., Ltd. a patent for this product. Any unit or individual that manufactures, counterfeits, uses, or sells this product without the license of the holder will face patent infringement lawsuits.

The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units or individual without the license holder manufacture, copy, use and sale the product will be patent lawsuit.

Patent number patent number : 2014201546579
