Tarot TL3T05 for Gopro SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Tires

Tool Supplies: Battery

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,18+

RC Parts & Accs: AXLE

Quantity: 1 pcs

Origin: Mainland China

Model Number: Tarot TL3T05

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

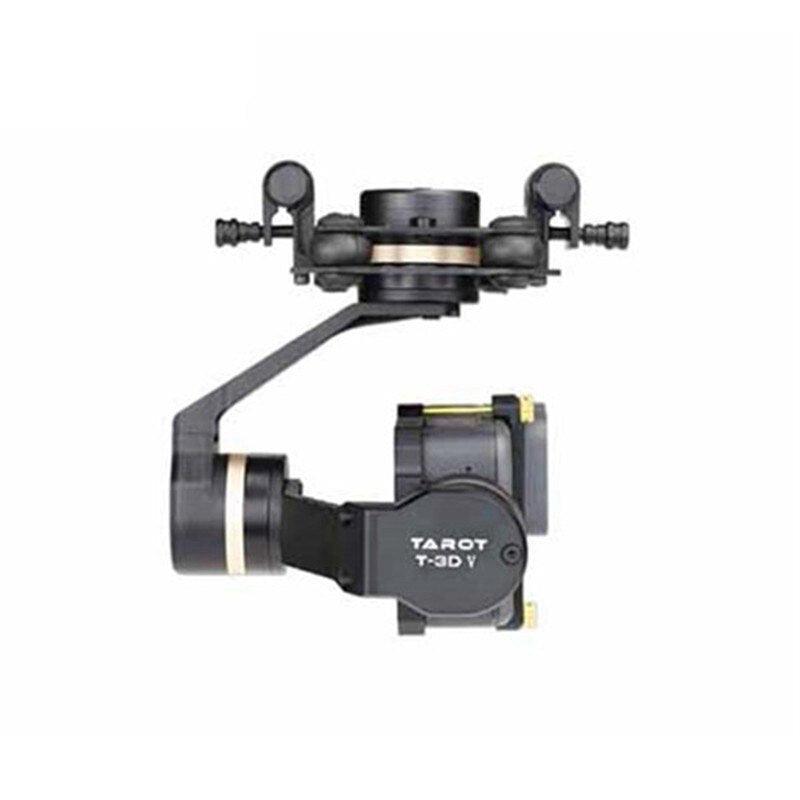

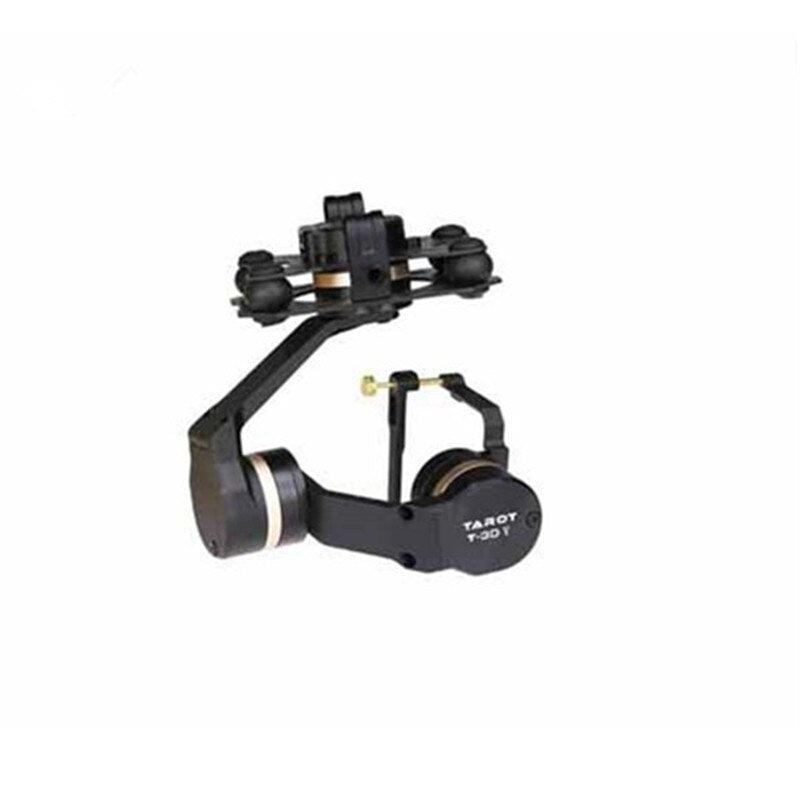

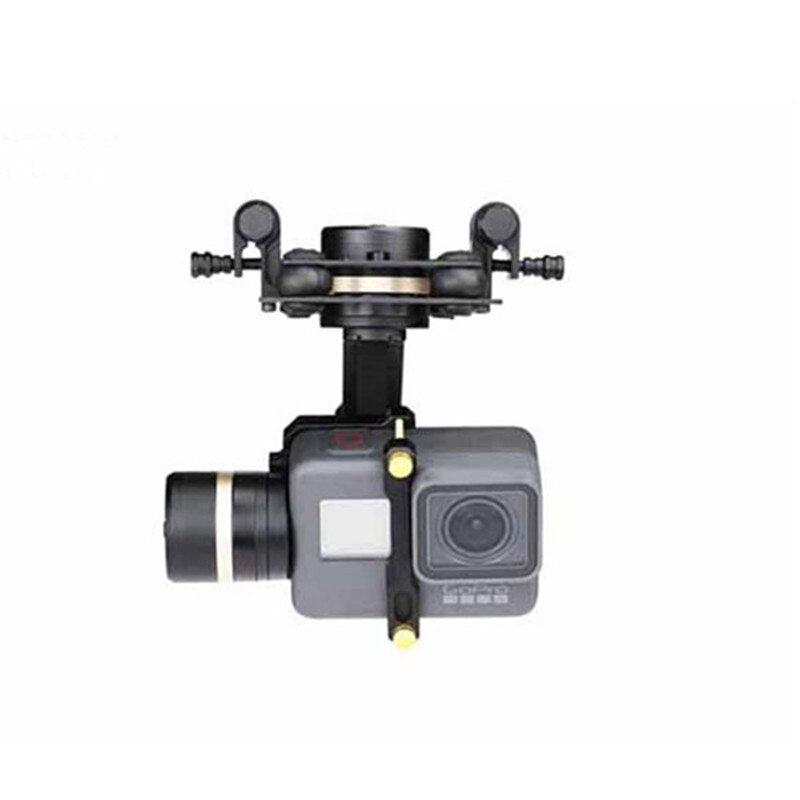

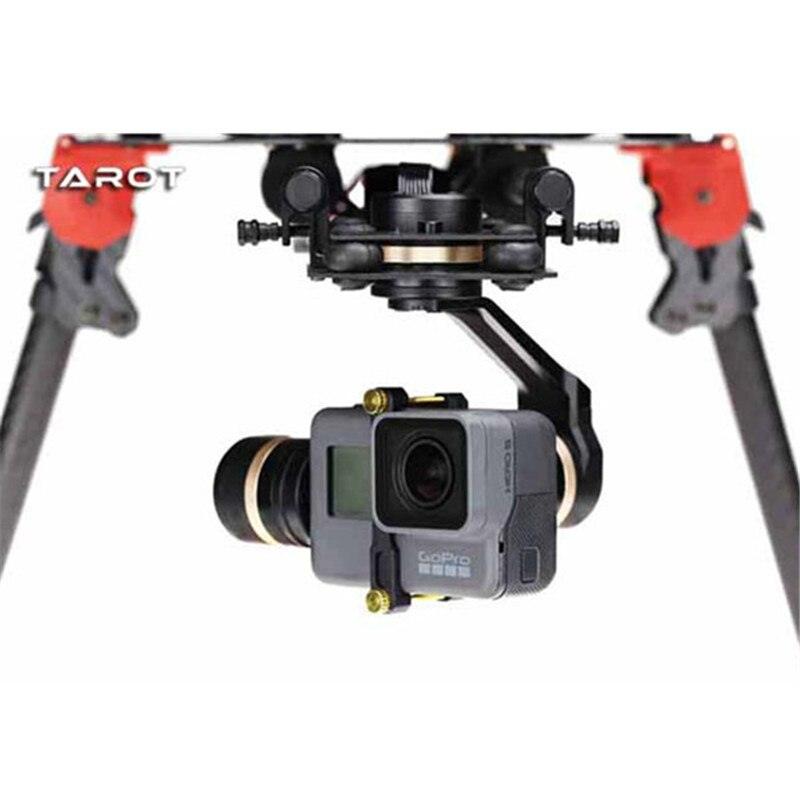

 New Tarot TL3T05 for Gopro 3DIV Metal 3-Axis Brushless Gimbal PTZ for Gopro Hero 5 for FPV System Action Sport Camera



Package included:

Metal gimbal 3-Axis 160g × 1

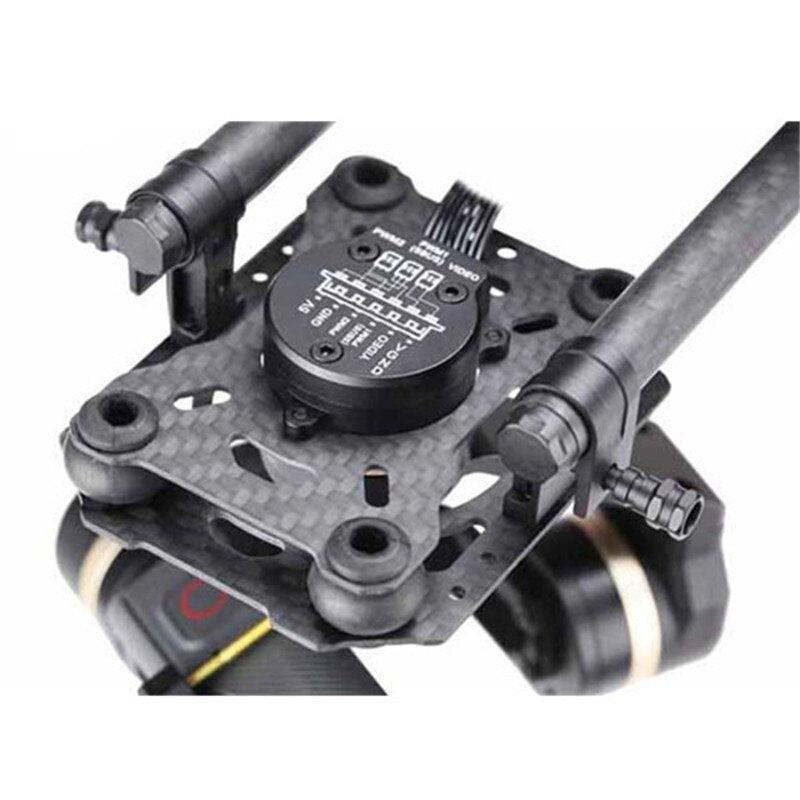

PTZ master module (36 × 25 × 11MM) × 1

8P PTZ control and PTZ main cable × 1

5V output, receiver and video cable × 1

USB module (27 × 21 × 7MM) × 1

Flight control cable × 1

Manual × 1

Packing box × 1
Remark: not include the camera



Specification:

Input power: 3S-6S Li (11V-26V)

Operating current: 30mA (@ 25V) / 50mA (@ 12V)

Stall current: 350mA (@ 25V) / 700mA (@ 12V)

Attitude control accuracy: ± 0.02 degrees

Maximum controllable speed:

Rotation direction (PAN): ± 200 ° / s

Tilt direction (TILT): ± 200 ° / s

Rolling direction (ROLL): ± 200 ° / s

Controllable rotation range:

Rotation direction (PAN): ± 330 °

Tilt direction (TILT): -135 ° to + 45 °

Rolling direction (ROLL): ± 48 °

S-Bus / PPM / DSM receiver support

Working environment temperature: -20 ℃ ~ +50 ℃
Weight: 160g (only the gimbal)

Maximum for dimensions (LWH): 60 mm * 75 mm * 100mm

Applicable Camera Type: for GOPRO HERO 5



The requirements of adjusting the software installation:

Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
