Tarot TL3T21 3-Axis Brushless Gimbal 640*512 Thermal Imaging Camera & Visible Light Camera 3-6S Input S-Bus PWM Receiver

Tarot TL3T21 3-Axis Brushless Gimbal 640*512 Thermal Imaging Camera & Visible Light Camera 3-6S Input S-Bus PWM Receiver

Tarot

Regular price $3,206.71 USD
Regular price $4,489.39 USD Sale price $3,206.71 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

1 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Arm

Tool Supplies: Grinded

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

Quantity: 1 pcs

Origin: Mainland China

Model Number: TL3T21

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Tarot TL3T21 3-Axis Gimbal Camera 640 Thermal Imaging Camera & Visible Light Camera for Drone

Description:

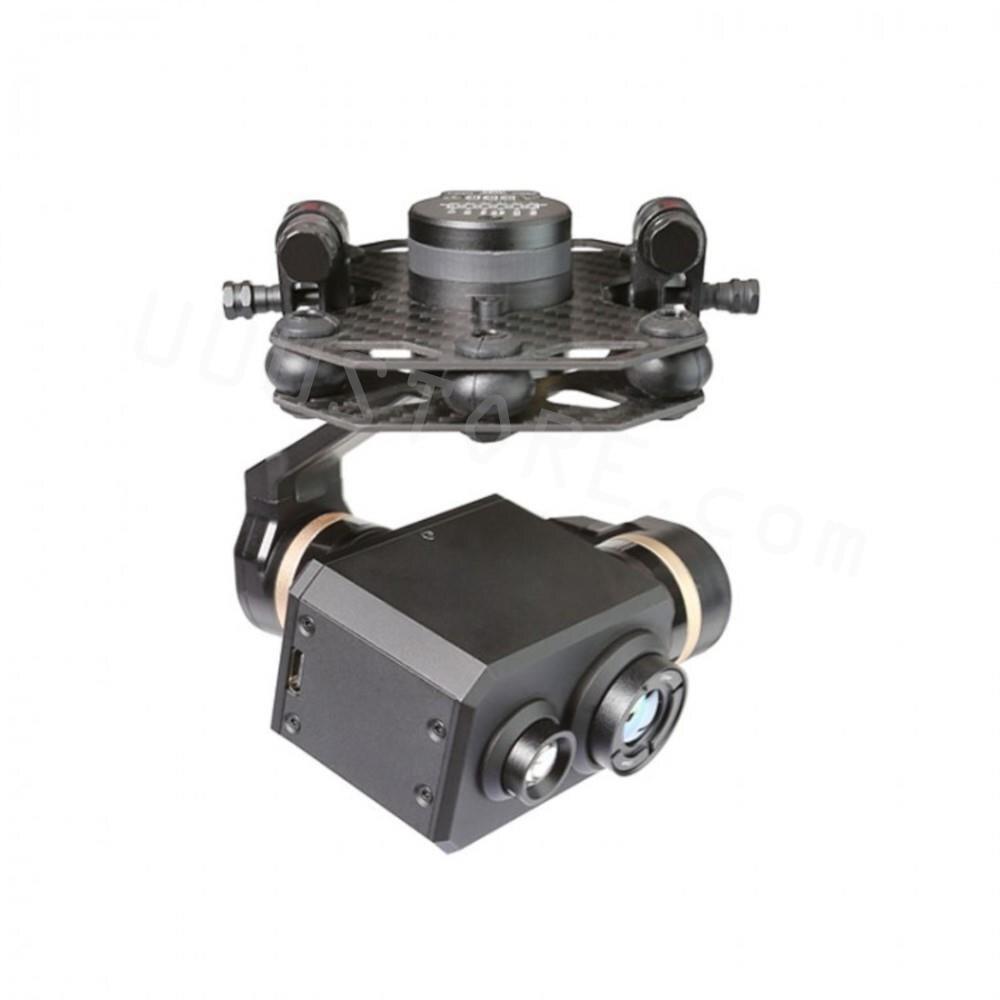

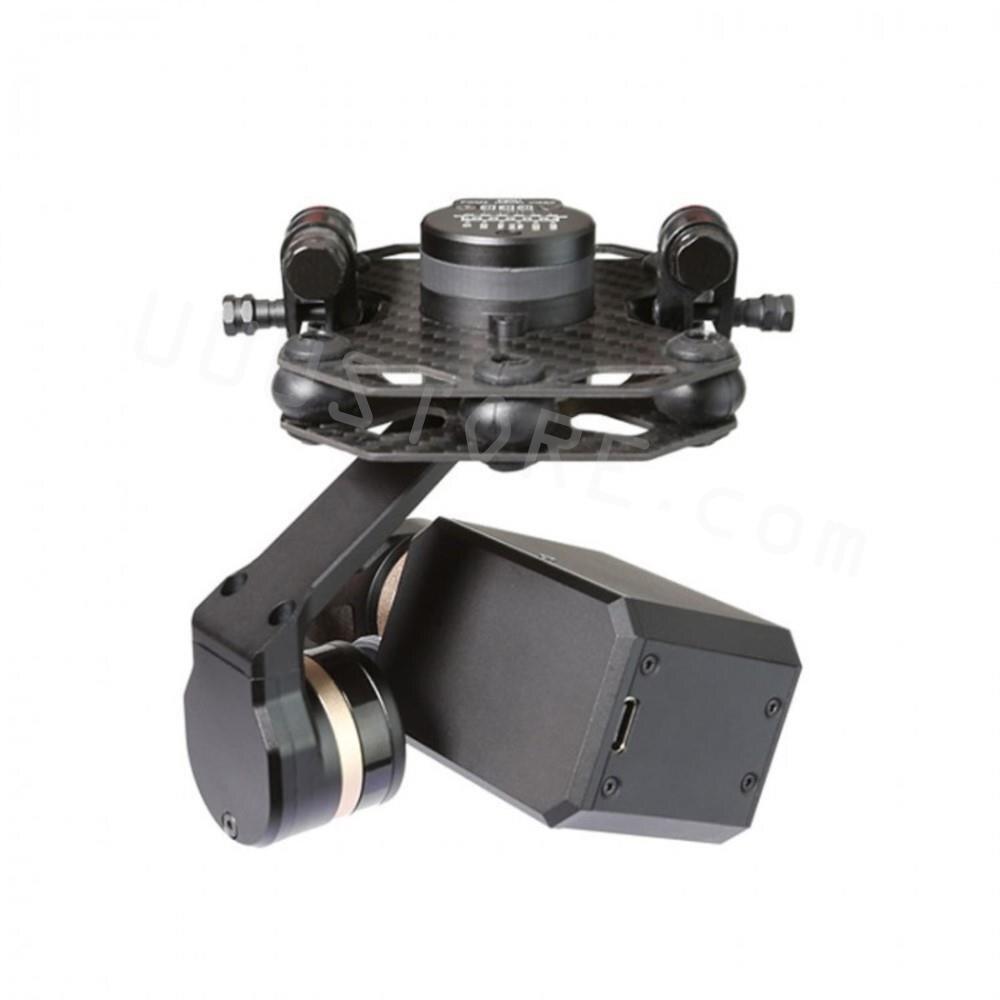

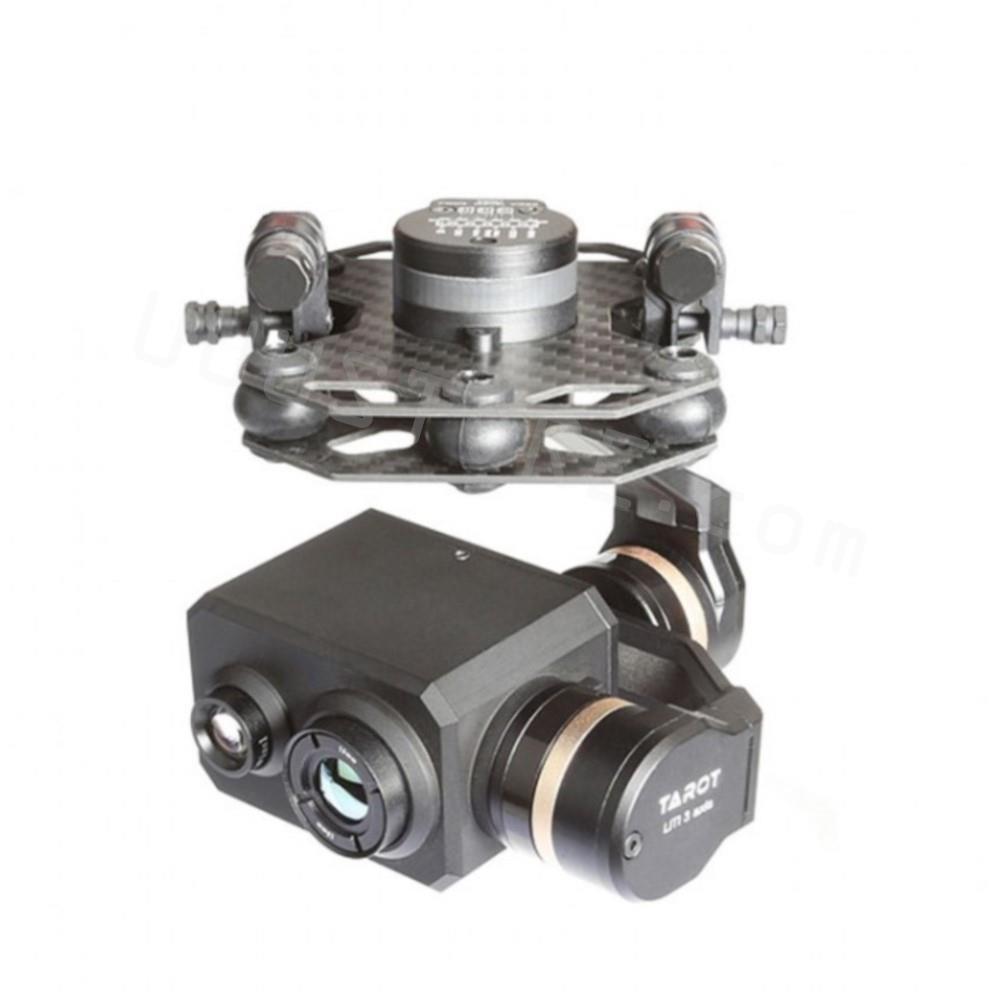

Tarot TL3T21 is a three-axis gimbal camera with a built-in 640 thermal imaging movement and a visible light movement. As a professional-grade thermal imaging gimbal, it can be applied to many industries such as power inspection and fire protection.

It adopts CNC integral ribbed structure, built-in independent IMU to accurately control PTZ attitude and integrated PTZ special servo drive module. It supports pointing and following, and FPV first view working modes.

Equipped with professional-grade 640 thermal imaging and 720P visible light camera, it can be widely used in industries such as firefighting, forest public security, public security monitoring, search and rescue and environmental protection law enforcement.

Features:
1. PTZ supports 3-6S input;
2. Mechanical three-axis image stabilization, with image stabilization accuracy of ± 0.01°;
3. Aluminum alloy structure: light and strong, with good heat dissipation performance;
4. Highly optimized servo motor vector control algorithm;
5. Fast AV signal video output mode;
6. Controllable angle of rotation (PAN): ±125°;
7. Tilt controllable angle: -120° to +80°;

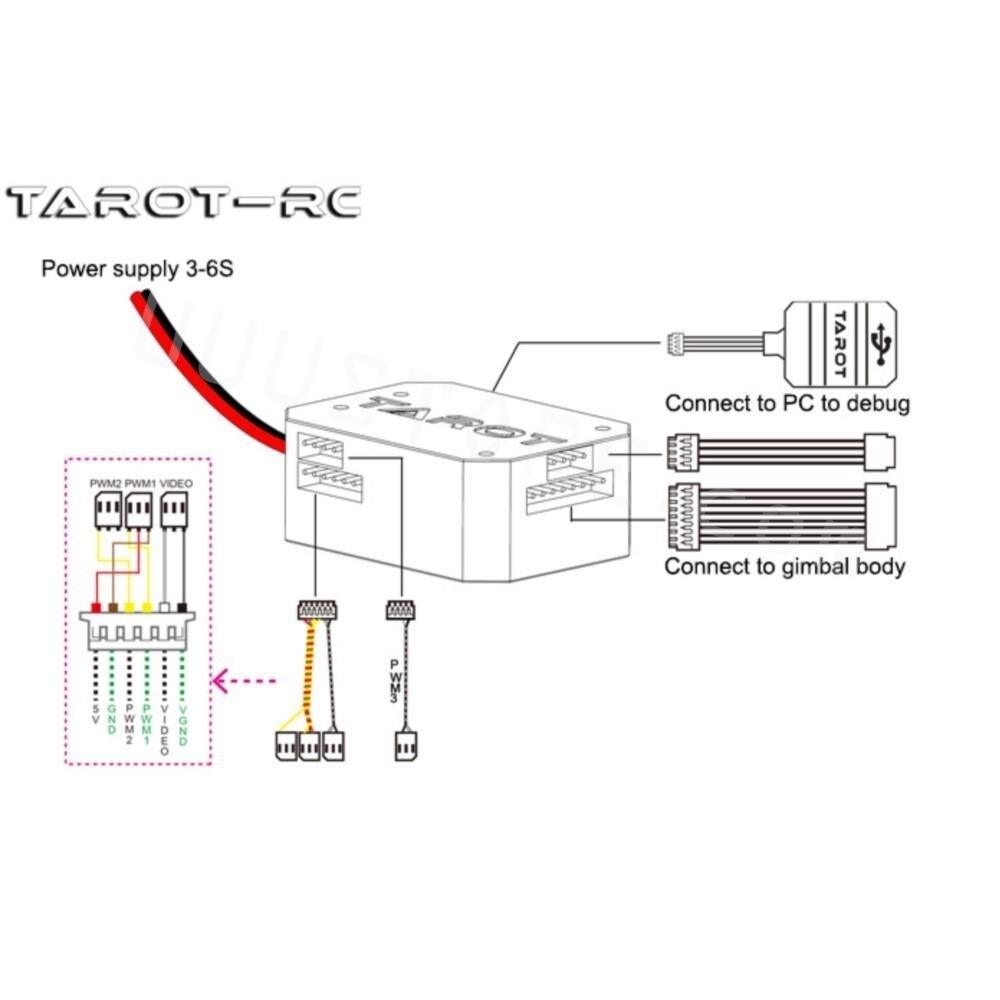

8. PWM receiver support, control PTZ tilt/point, and two-way video switching;
9. Movement thermal imaging output resolution 640*512 and visible light output 1280*720;
10. Multi-mode available on the movement debugging software (computer side);
11. Weight 287g/0.6lb.

Specifications:
Functional Indicators:
- Video output: AV output, PAL format (internal recording of the system not supported)
- Support control type (gimbal): PWM

Gimbal:
- Input power supply: 3S-6S Lipo (11V-26V)
- Working current: 30mA (at 25V); 50mA (at 12V)
- Stall current: 350mA (at 25V); 700mA (at 12V)
- Temperature of working environment: -20°C to +50°C
- Weight: 278g/0.6lb

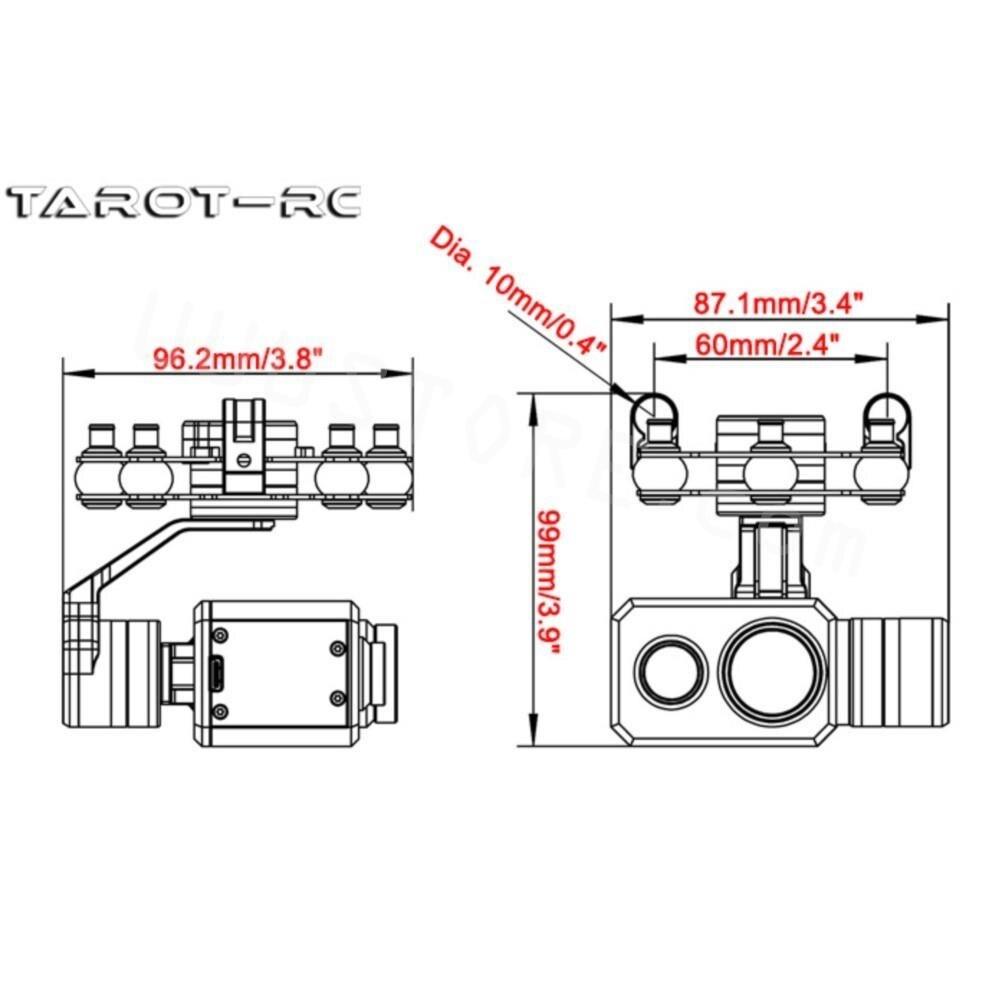

- Maximum dimensions (LxWxH): 96 x 80 x 99mm/3.8 x 3.1 x 3.9"
- Maximum speed: pitch: ± 200 degrees/second; Roll: ± 200 degrees/second; Pointing: ± 200 degrees/second
- Controllable rotation range: pitch: -120 degrees to +80 degrees; Point: -125 degrees to +125 degrees
- Attitude control accuracy: ±0.02 degrees
- Assembled camera model: 640 thermal imaging camera

Thermal Imaging Camera:
- Array size: 640*512
- Lens type: 13mm F1.2
- Focus type: No heat
- Field of view (H x V): 33° x 26°
- Instantaneous field of view: 0.95 mrad
- Minimum distance between adjacent picture elements: 12μm
- Detector frame rate: 50Hz
- Response band: 8-14μm
- Noise equivalent temperature difference: ≤50mK at 25°C, F#1.0 (≤40mK optional)
- TEC: None
- Brightness, contrast adjustment: manual mode/automatic mode/linear mode
- Polarity: Black hot/white hot
- Pseudo-color: Yes
- Cross-hairs: Show/blank/move
- Image processing: ShutterlessI, non-uniformity correction, digital filtering noise reduction and digital detail enhancement
- Image mirroring: left-right/up-down/diagonal
- Camera debugging interface: Type-c
- Camera Debugging Software: PC (for Win 10 and above, no drive)

Visible Light Camera:
- Program device: 1/3" CMOS
- Effective pixels: 1280(H)*720(V)
- Minimum illumination: 0.05Lux/F1.2
- Horizontal definition: 1000TVL
- White balance: Automatic
- Automatic gain: Automatic
- Backlight compensation: Automatic

Package Included:
- 1 x Thermal Imaging and Visible Light Camera Gimbal

Note:
- Internal recording of the system is not supported.


1 x Thermal Imaging and Visible Light Camera Gimbal included . internal recording of

Multi-mode available on the movement debugging software (computer side);

it supports pointing and following, and FPV first view working modes

adopts CNC integral ribbed structure, built-in independent IMU to accurately control P
