Tarot TL5D001 5D3 3-Axis Self-stabilizing Gimbal Camera Mount IMU Support S-Bus/PPM/DSM for Canon EOS 5D Mark III PF Mode

Tarot TL5D001 5D3 3-Axis Self-stabilizing Gimbal Camera Mount IMU Support S-Bus/PPM/DSM for Canon EOS 5D Mark III PF Mode

Tarot

Regular price $730.68 USD
Regular price $1,022.96 USD Sale price $730.68 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

13 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

RC Parts & Accs: AXLE

Quantity: 1 pcs

Origin: Mainland China

Model Number: Tarot TL5D001

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Tarot TL5D001 5D3 3-Axis Self-stabilizing Gimbal Camera Mount for Tarot X6 Hexcopter Fpv Canon EOS 5D Mark III PF Mode



Introduction:
The Tarot 5D3 3-Axis self-stabilizing gimbal is specifically designed to carry the Canon 5D Mark III and 5D Mark II camera and perfectly match with Tarot X6 Hexacopter. Its CNC processing with thin-walled structure gives you a stable footage and precise control even in the most difficult flight conditions.

The Tarot 5D3 is based on gimbal system with optimal algorithm. Built-in independent IMU module gives you precise and effortless control. Three working modes are supported, orientation locked, Non orientation locked and FPV. Built-in slip ring simplifies the cabling. The command stick controls gimbal rotation velocity.

Tarot 5D3 3-Axis self-stabilizing gimbal can be converted into handheld gimbal with quick release handle (the handle needs to be purchased additionally). Tarot 5D3 3-Axis self-stabilizing gimbal is your best choice.

Features:
- Working modes
Orientation-locked control
Non orientation-locked control
FPV mode
- Bulit-in independent IMU module
- Tarot gimbal special servos drive module
- AV output port
- Camera shutter control supported
- Wide range voltage input supported
- S-Bus/PPM/DSM receiver supported

Peripheral
- Supported Camera: CANON EOS 5D MARK III & 5D Mark II only
- Supported Lens Currently: CANON EF 17-40mm f/4L USM
- GCU Input Power: 3S~6S LiPo
- Control Requirement: At least four spare receiver channels
- Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

Mechanical & Electrical Characteristics
- Working Current: 120mA (@25V) 180mA 3S-6S Li (11V-26V)
- Operating Temperature: -20°C ~ 50°C
- Weight: 1.51KG
- Dimensions: 215mm*240mm*246mm

Working Performance
- Controlled Angle Accuracy: ±0.02°
- Maximum Controlled Rotation Speed:
- Pan axis: ±200°/s
- Tilt axis: ±200°/s
-Roll aixs: ±200°/s
- Rotation:
- Pan axis control: ±360° continuous rotation
- Tilt axis control: -135°-+45°
- Roll axis control: ±48°

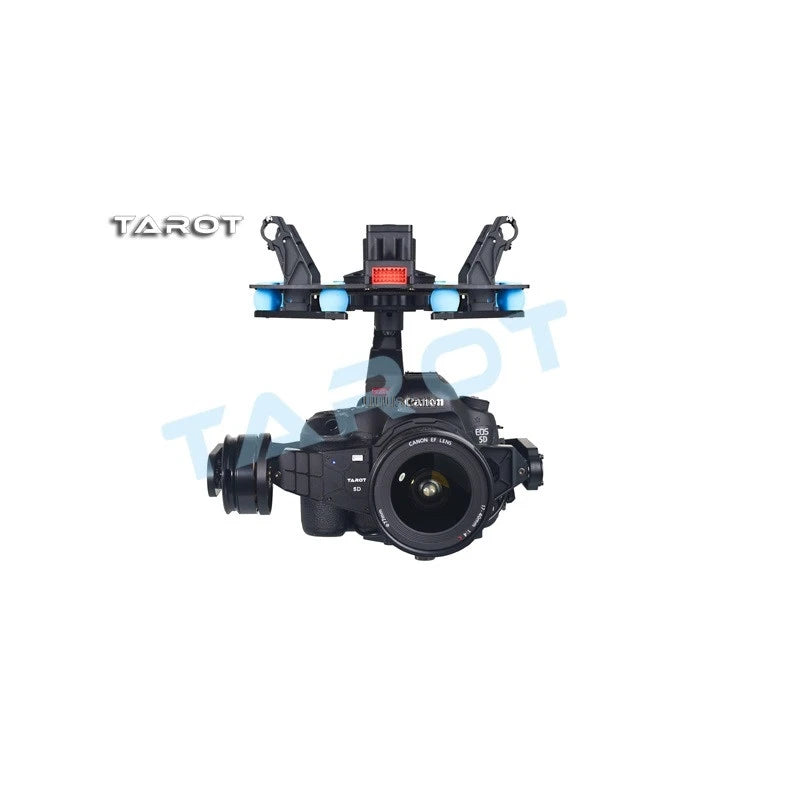

Tarot 5D3 is based on gimbal system with optimal algorithm

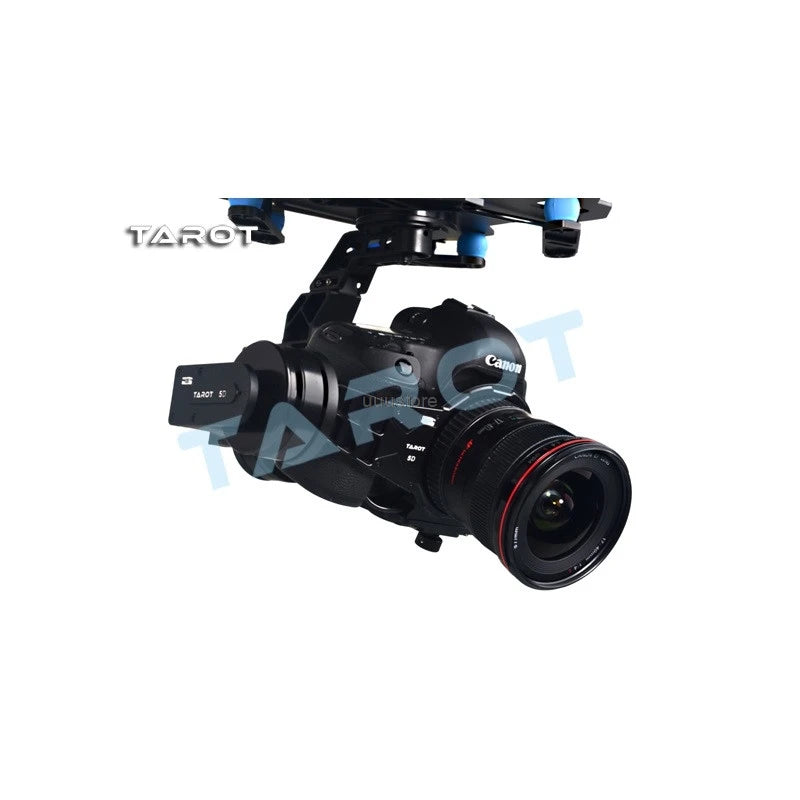

three working modes are supported, orientation locked, Non orientation locked and FPV

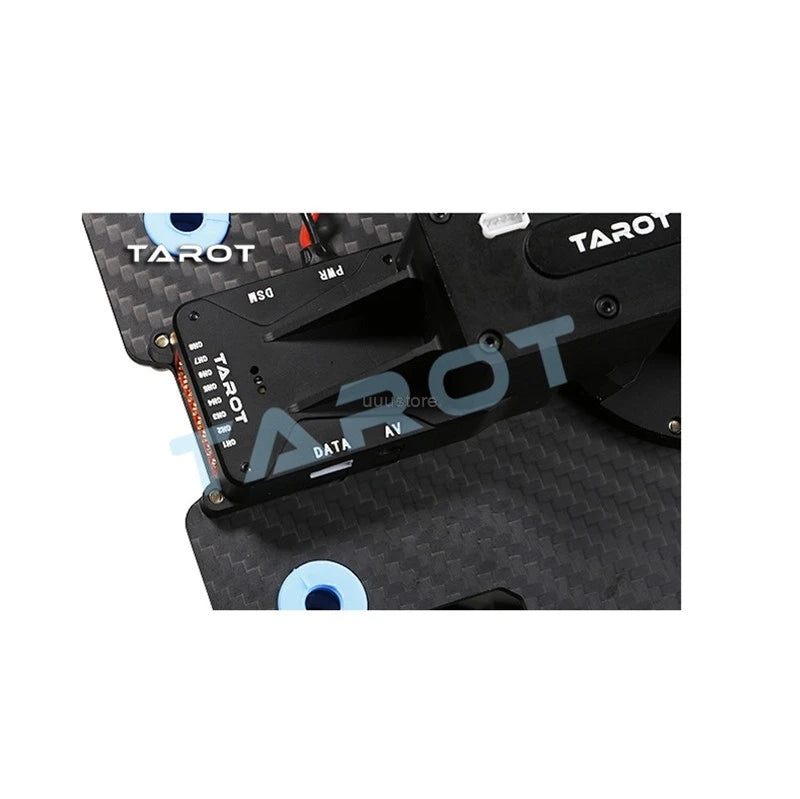

three working modes are supported, orientation locked, Non orientation locked and FPV

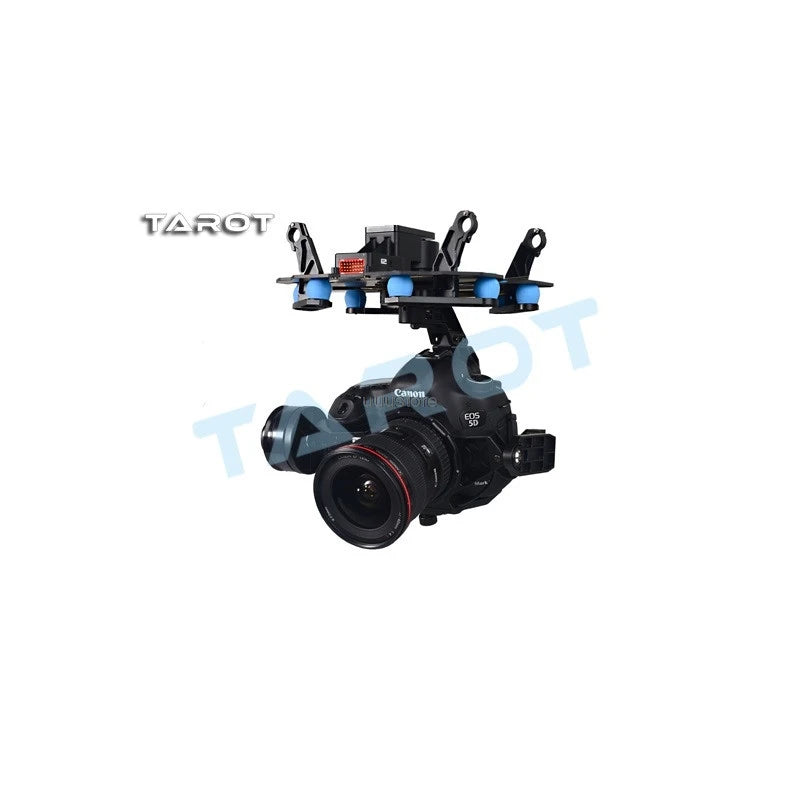

built-in slip ring simplifies the cabling

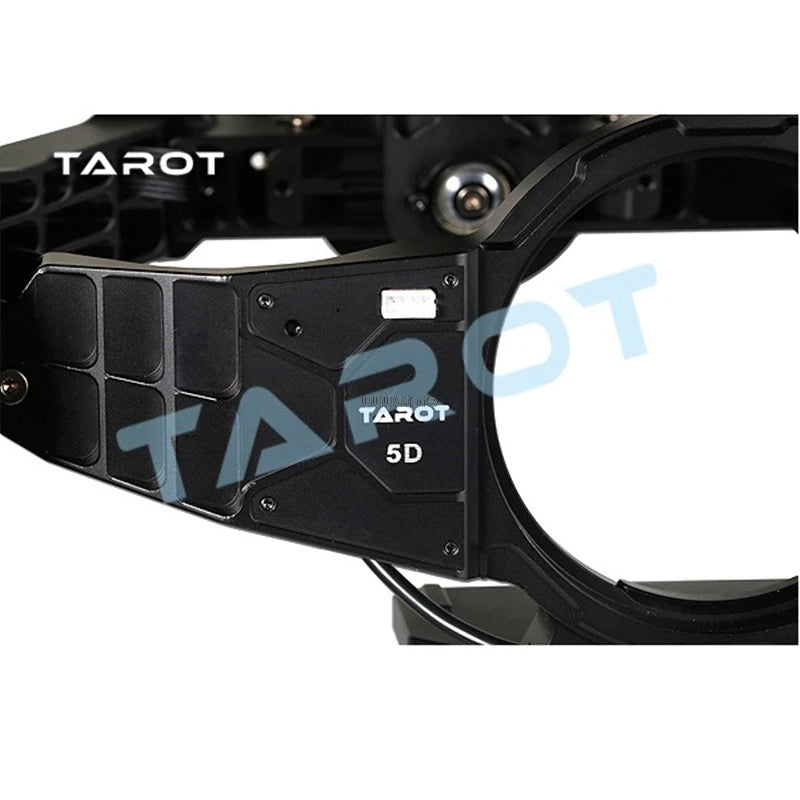

Tarot 5D3 is based on gimbal system with optimal algorithm

TaROT utuspI Tlodoi 4asse

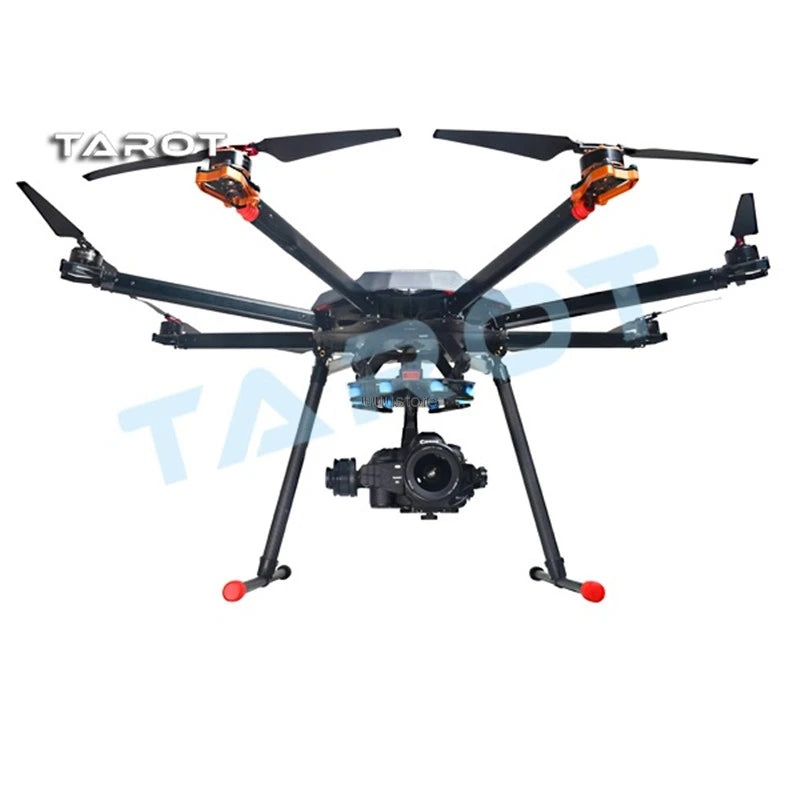

the command stick controls gimbal rotation velocity
