TBS Crossfire Sixty9

TBS

$69.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Type TBS Crossfire 915MHz AIO TBS Tracer 2.4GHz AIO

Quantity

View full details

SPECIFICATIONS

CRSF	V3 ready
Weight	4.1g (board only)
Antenna ports	1x video transmitter, 1x R/C receiver
Size	24mm x 24mm
Input voltage	6V - 25V (2-6S)
Requires	Firmware V4.62 and above
VTX Table	VTX Table for Betaflight

INCLUDES

1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T antenna
1x u.FL to SMA mount (for VTx)

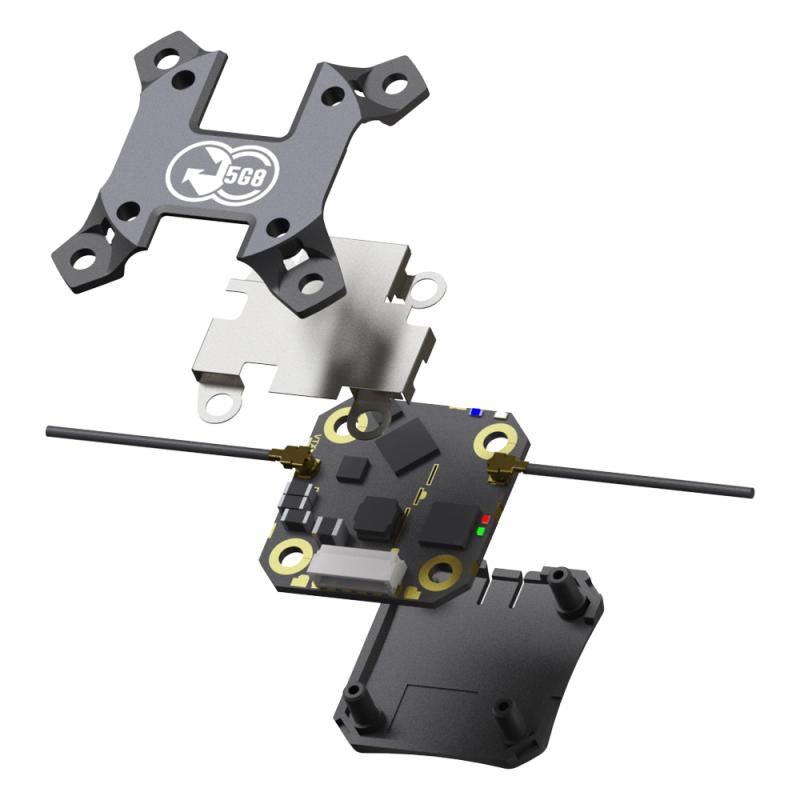

1x 30x30 heatsink / case

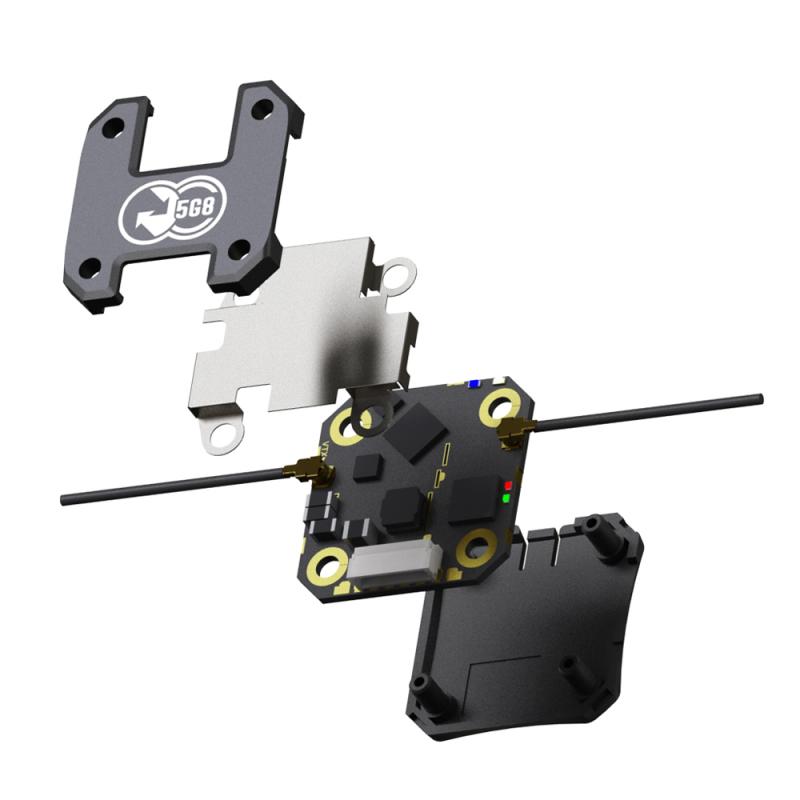

1x 20x20 heatsink / case
1x optional tin-shield (for added low-noise tolerance)
1x JST-SH x 9 connector

UPdate:

Video Transmission Power up to 1W – Available in CROSSFIRE 915MHz and TRACER 2.4GHz Versions

⚠️ Please Note:

When using the Sixty9 AIO, the RF module firmware must be upgraded to v6.07 or newer.
The VTX supports adjustable power output up to 1W.

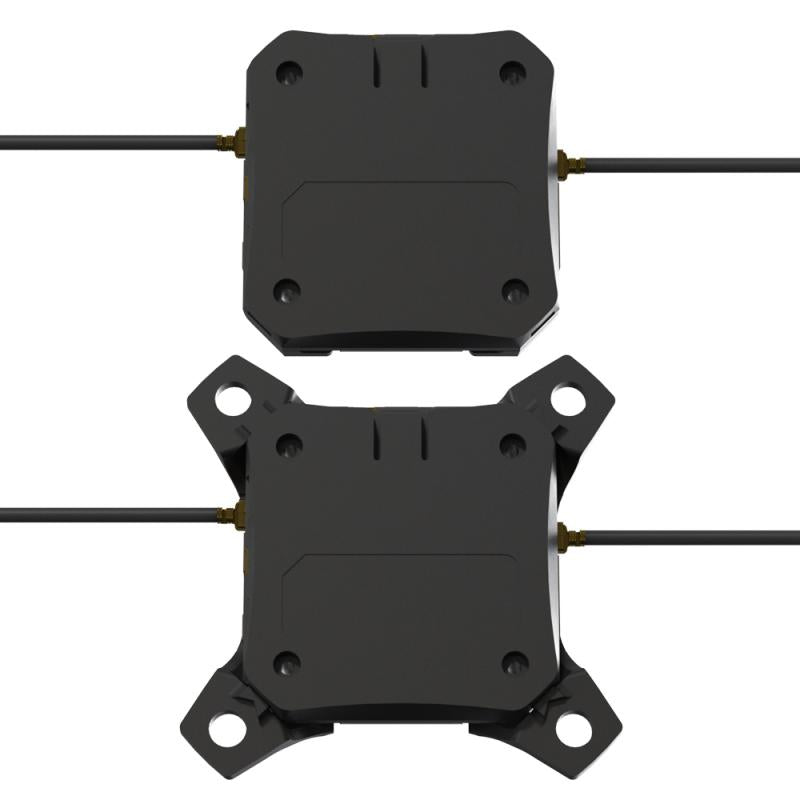

Mounting holes are compatible with both 20x20mm and 30x30mm configurations (both mounting kits included).

🔧 CROSSFIRE 915MHz Version Includes:

1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T Antenna
1x u.FL to SMA Adapter Cable (for VTX)
1x 30x30 Heatsink / Mounting Case
1x 20x20 Heatsink / Mounting Case
1x Optional Tin Shield (for enhanced noise reduction)
1x JST-SH 9-Pin Connector

🔧 TRACER 2.4GHz Version Includes:

1x TBS Tracer Sixty9
1x TBS Tracer Immortal-T Antenna
1x u.FL to SMA Adapter Cable (for VTX)
1x 30x30 Heatsink / Mounting Case
1x 20x20 Heatsink / Mounting Case
1x Optional Tin Shield (for enhanced noise reduction)
1x JST-SH 9-Pin Connector

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

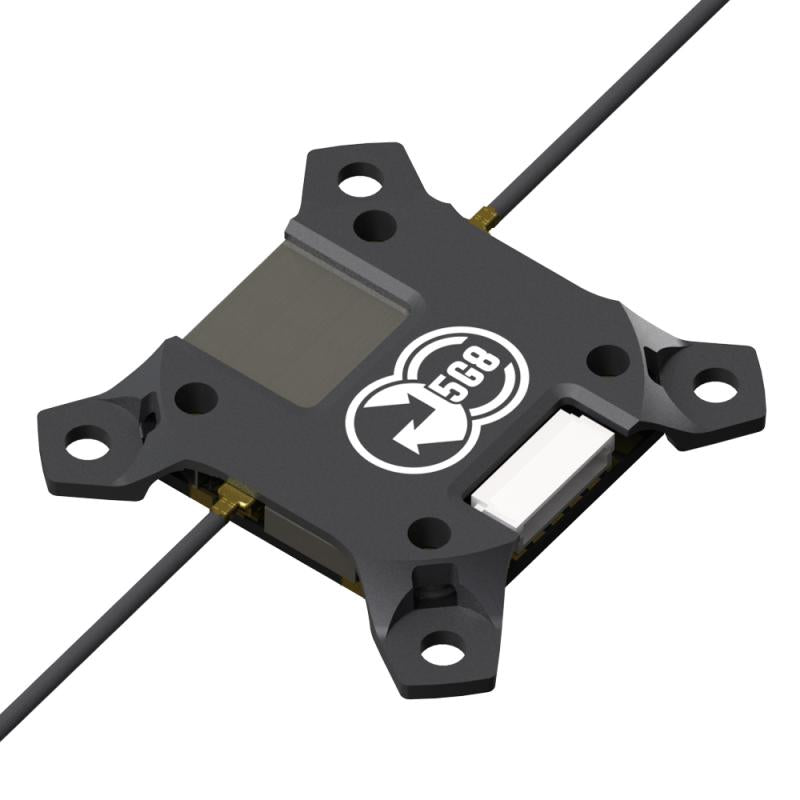

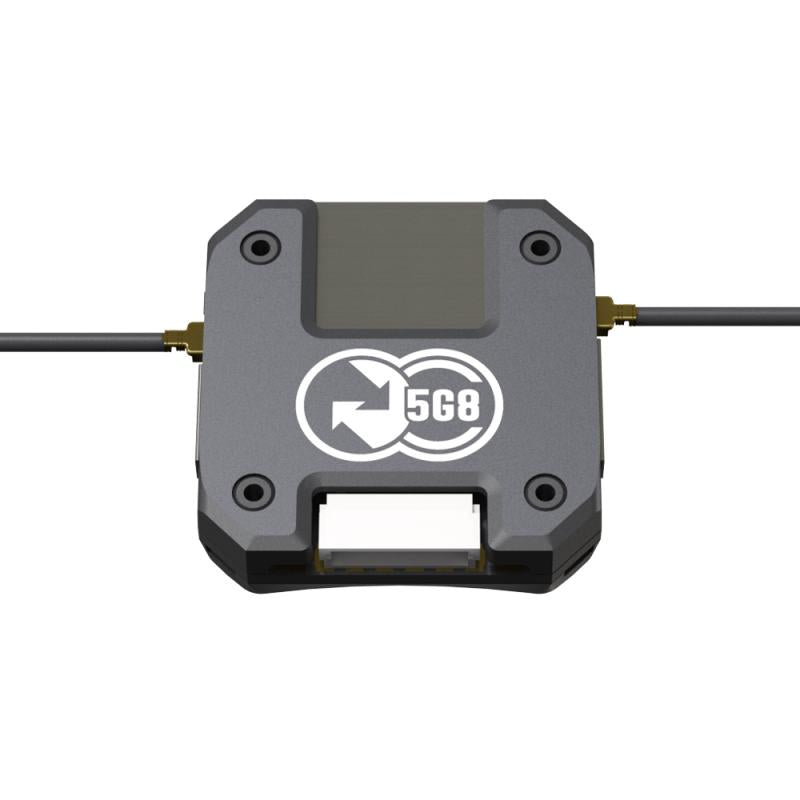

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
