SPECIFICATIONS
Warranty: 1 MONTH
Warning: Children must be accompanied by an adult to take off
Video Capture Resolution: Other
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 200m
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Operating Instructions
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Expert
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Motor: Brushless Motor
Model Number: Metsaema
Material: Carbon Fiber
Indoor/Outdoor Use: Outdoor
Flight Time: 5min
Features: App-Controlled
Dimensions: 5inc
Controller Mode: MODE2
Controller Battery: Buy it yourself
Control Channels: 3 Channels
Charging Voltage: 3.7V
Charging Time: 5h
Certification: CE
Camera Mount Type: Other
Brand Name: TCMMRC
Barcode: No
Aerial Photography: No

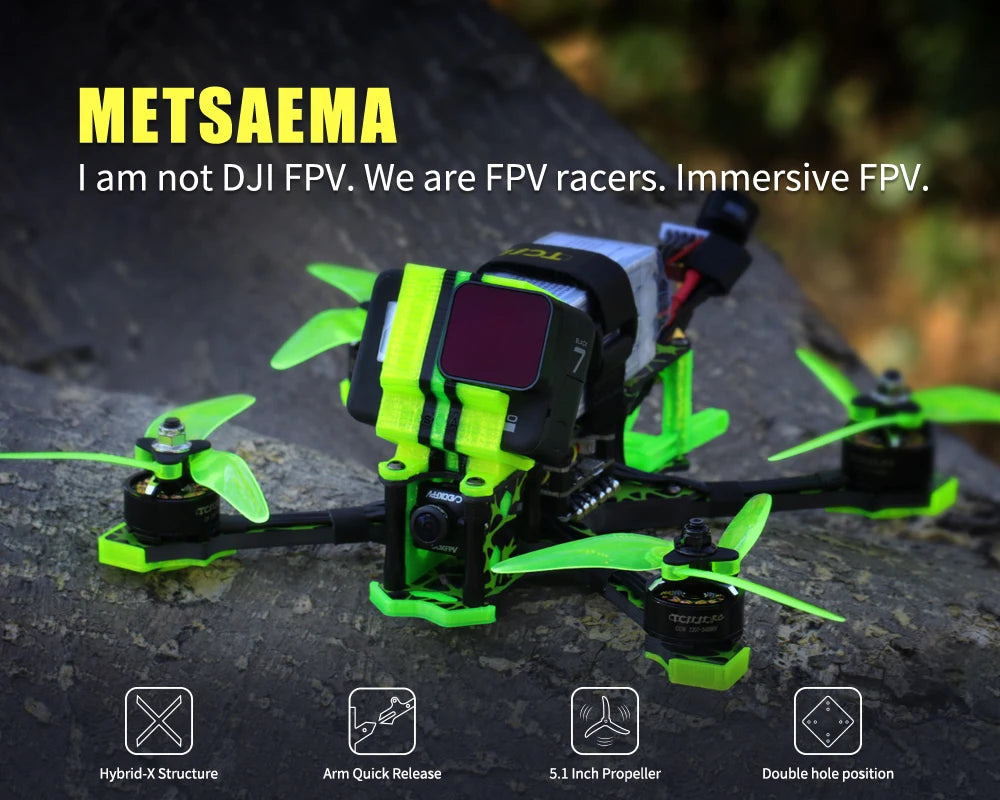

Jungle Warrior: Eyes in the jungle
1. Full camouflage painting, glasses in the jungle
2. The center of gravity of the whole machine is stable, and the fancy shuttle is stress-free
3. The arm supports quick release
4. The camera can be adjusted in multiple angles
5. With a full range of prints, super compatibility
6. Lightweight, flexible, and highly maneuverable. 360 aerial photography without dead ends
Note: Since the battery is a dangerous item, this link does not include the battery and 3s camera. Buyers are advised to buy 4S1500-2000mAh batteries

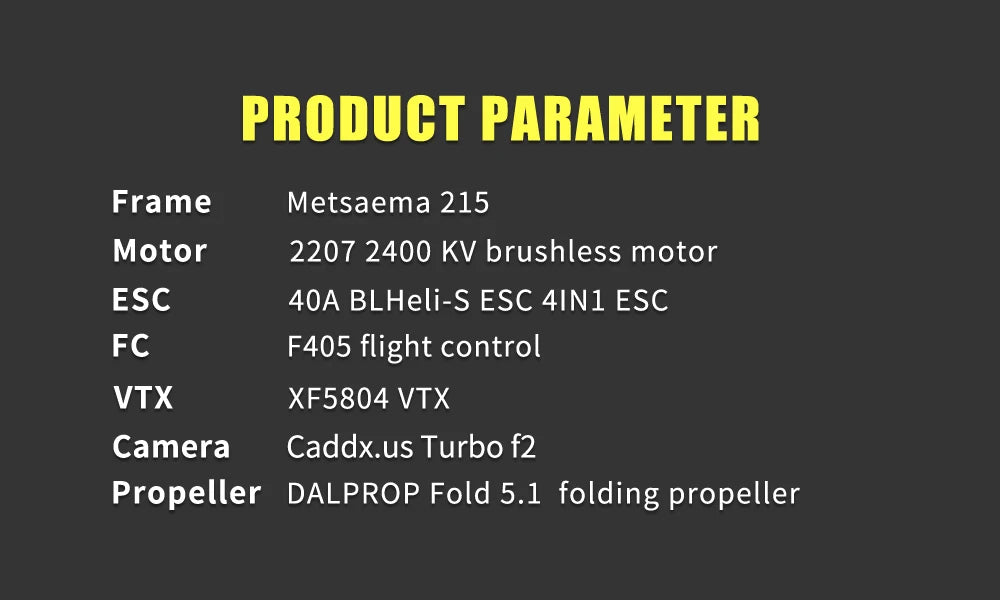

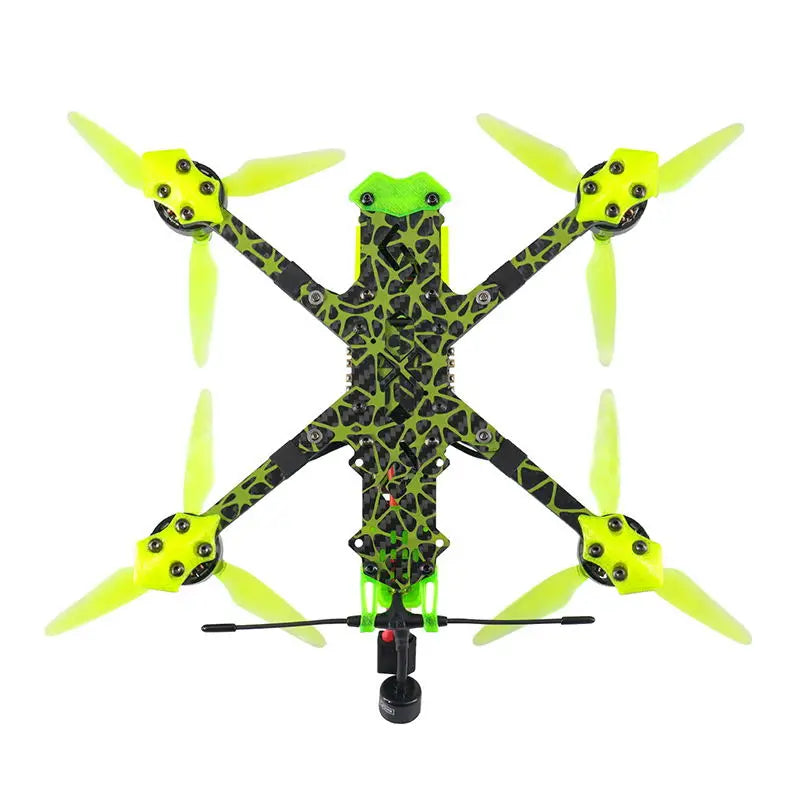

Frame:Metsaema 215
Motor:22072400 KV brushless motor
ESC:40A BLHeli-S ESC 4IN1 ESC
FC:F405 flight control
VTX:XF5804 VTX
Camera:Caddx.us Turbo f2
Propeller:DALPROP Fold 5.1 folding propeller

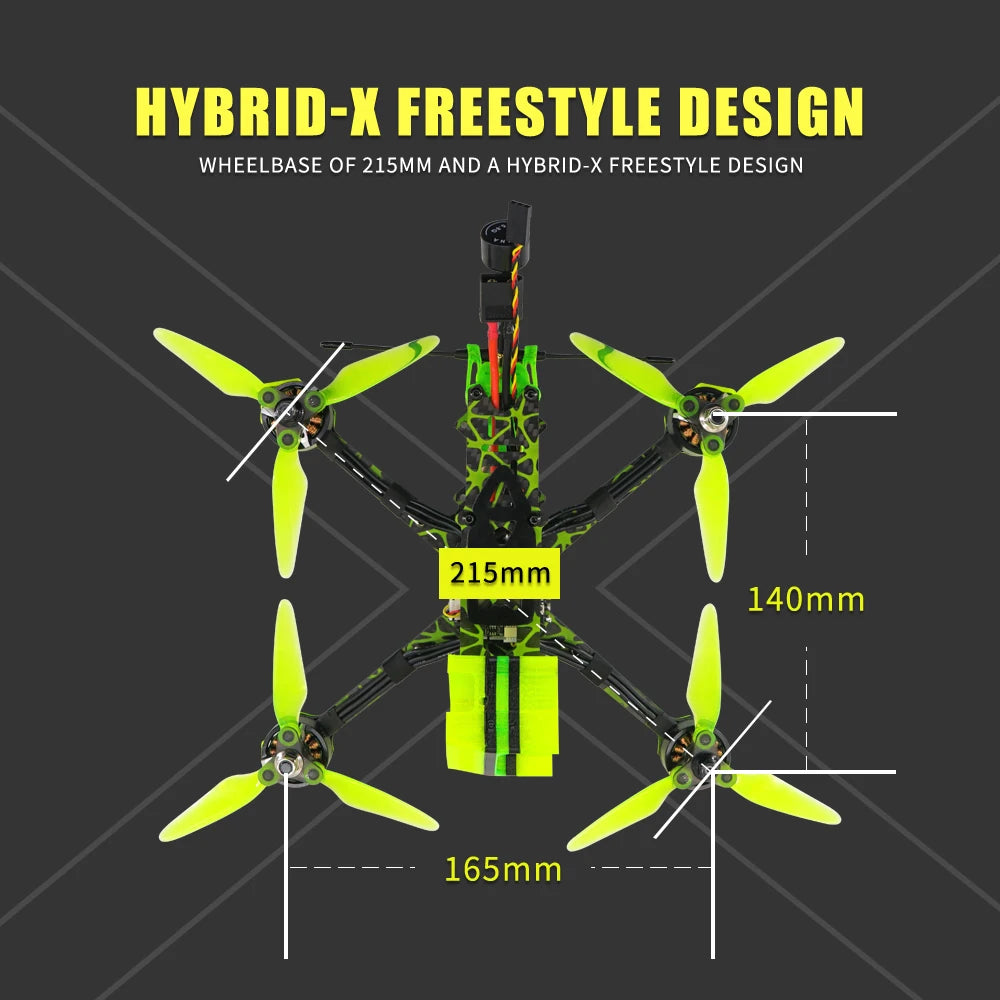

1. Split board outdoor traversing machine, wheelbase 215mm, support up to 5.1 inch blades;
2. Frame Hybrid-X flat X structure design, the whole machine center of gravity is balanced, suitable for fancy flying;
3. Exclusive 3D printing design: a. Support Gopro Hero 7 installation and fixed printing, b. Antenna printing support 915 antenna and 2.4G antenna and receiver fixing, c. Side plate printing is 22mm to 19mm camera Conversion accessories, d. All racks are equipped with arm protection foot pad prints and bottom plate protection prints;
4. Adopting the design of flight control hole position, double hole position and double tower position, compatible with M2*20*20/M3*30.5*30.5

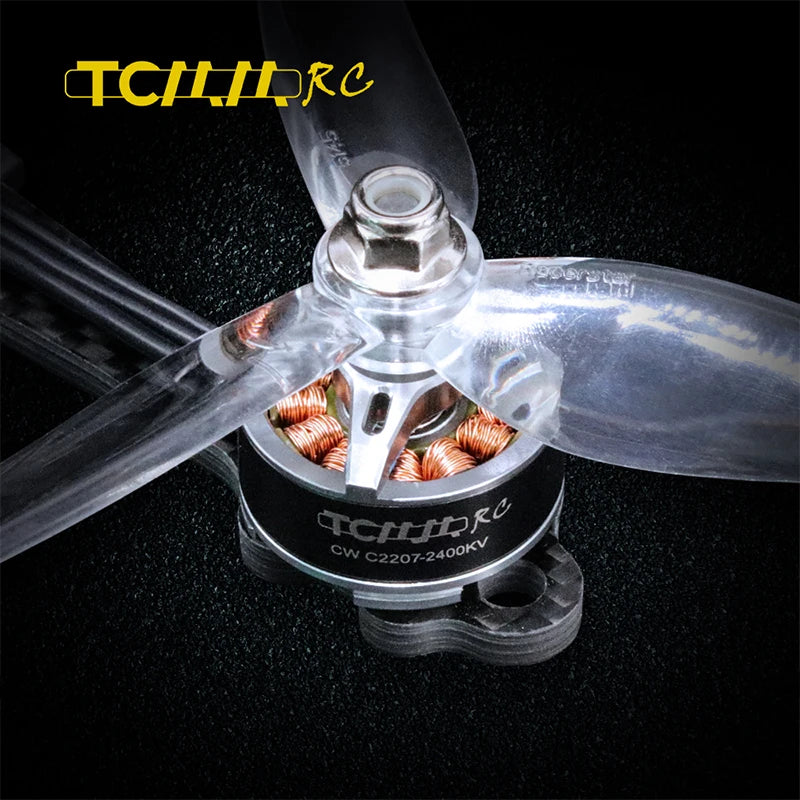

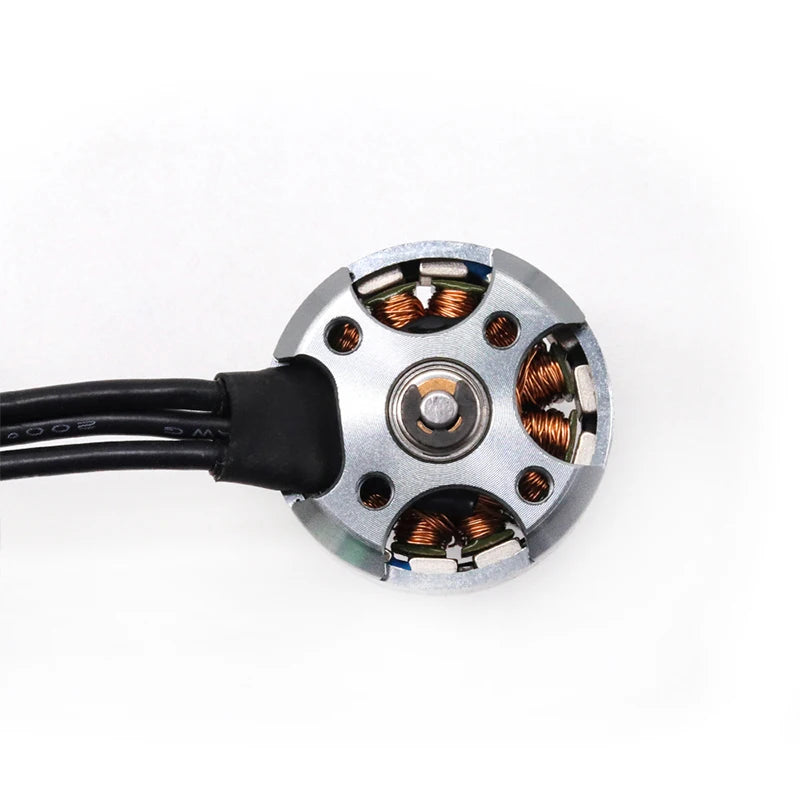

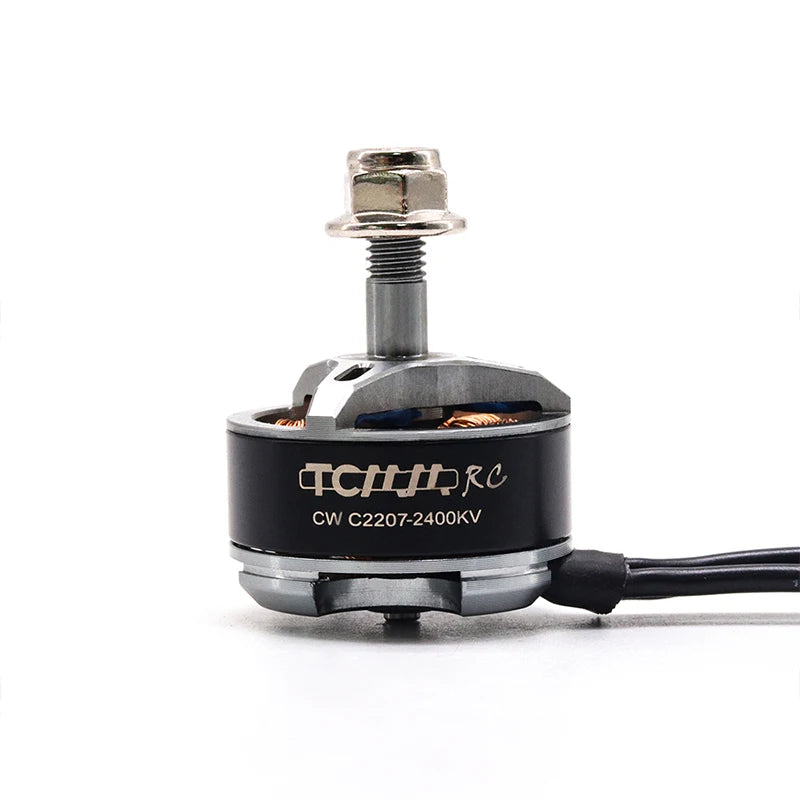

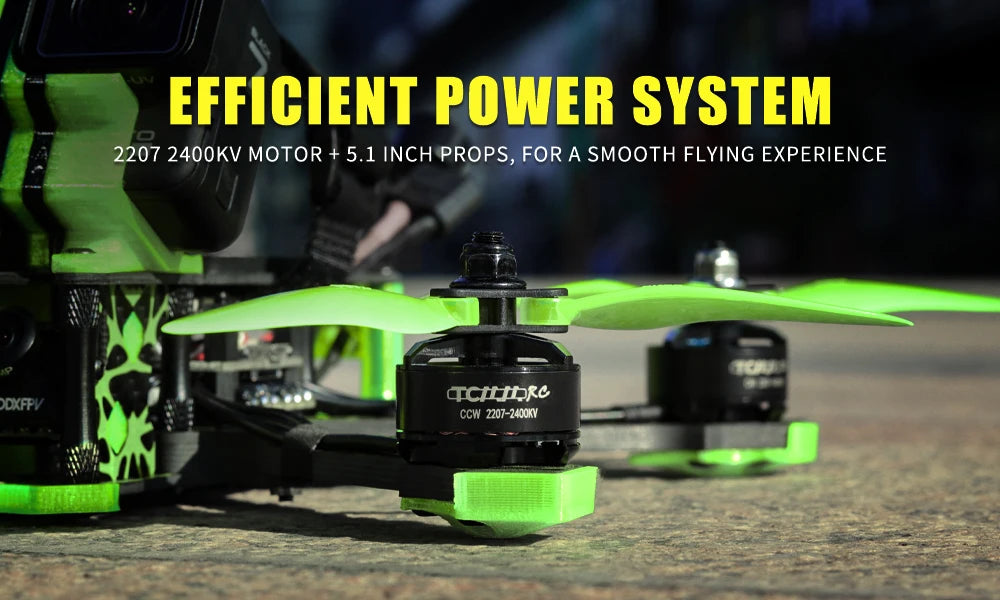

2207 2400KV Brushless Motors:
Specification:
Brand Name: TCMMRC
Model: 2207 2400KV
Item Name: 2207 2400KV 3-5S Brushless Motor
Motor KV: 2400KV
Idle Current (Io / 10V): 1.48A
Lipo Cell: 3-5S
Max Continuous Current: 41A
Max Continuous Power: 820W
Max thrust: 1368g (4S / 5 ")
Configu-ration: 12N / 14P
Motor Resistance (RM): 0.0381 Ω
Stator Diameter: 22mm
Stator Thickness: 7mm
Motor Diameter: 27.7mm
Motor Body Length: 19.7mm
Overall Shaft Length: 34.7mm
Prop adapter shaft: M5
Bolt holes spacing: 16 / 19mm
Bolt thread: M3
Propeller: 5 ”(4-5S) / 6” (3-4S)

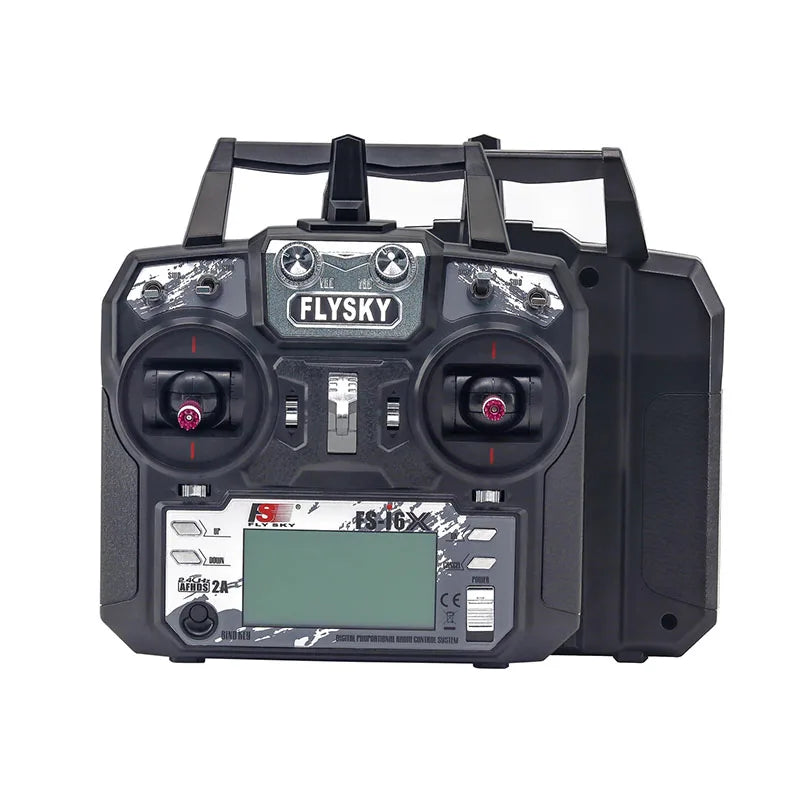

FlySky FS-i6X remote control:
Specifications:
Channel: 6-10 (Default 6, you could choose 7-10ch in setting)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64
Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes

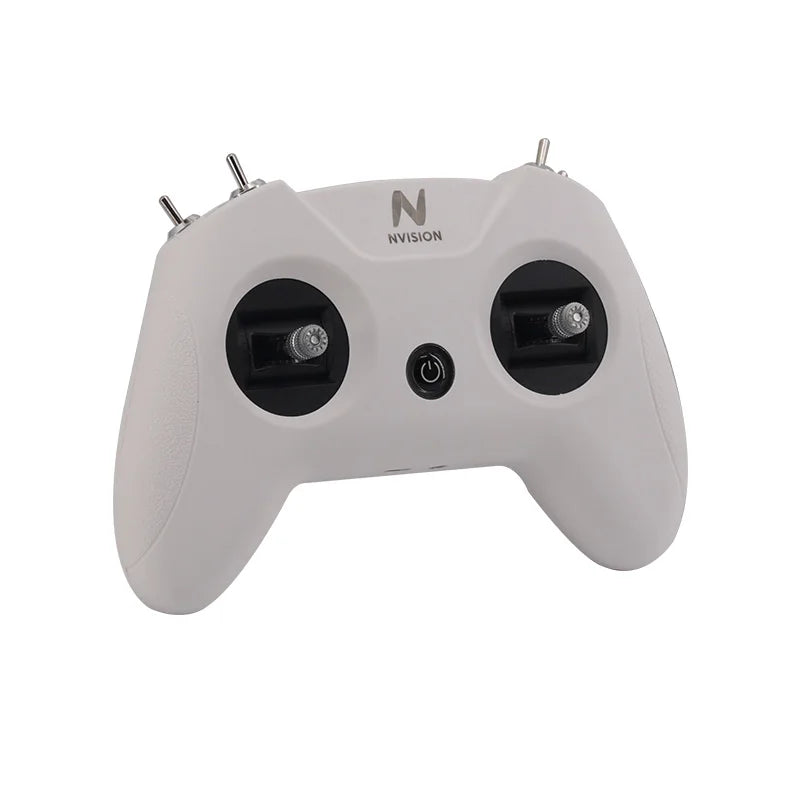

TM89VQ remote control:
Specification:
Frequency Range: 2.4G (2403MHz-2447MHz)
2.4G System: NRF24L01 and CC2500
Channel: 8
System: Bayang Protocol / Frsky Protocol
Power: ≤80mw
Model Type: Multi-rotor
Support USB Charging
Support FPV Simulator Connected
Output: PPM, support Student Radio Mode
LED Light: Green-Power On / Red-Warning /
Blue-Normal
Battery: 1 * 350mAh 2S Battery(Removable)
Weight: 227.4g (with battery)
How to switch the protocol (D16/D8 Version)
Press and hold the bind button, then press the
power button until the purple light is flashing.
The flashing LED indicates different protocol the
LiteRadio works on.
LED Status Protocol Version
Flash Once Frsky D16 FCC
Flash Twice Frsky D16 LBT
Flash Three Times Frsky D8
This kit includes various components such as switches (A, B, and D), an LED button, pitch/roll stick, throttle/yaw stick, and a ring for controlling your FPV racing drone.

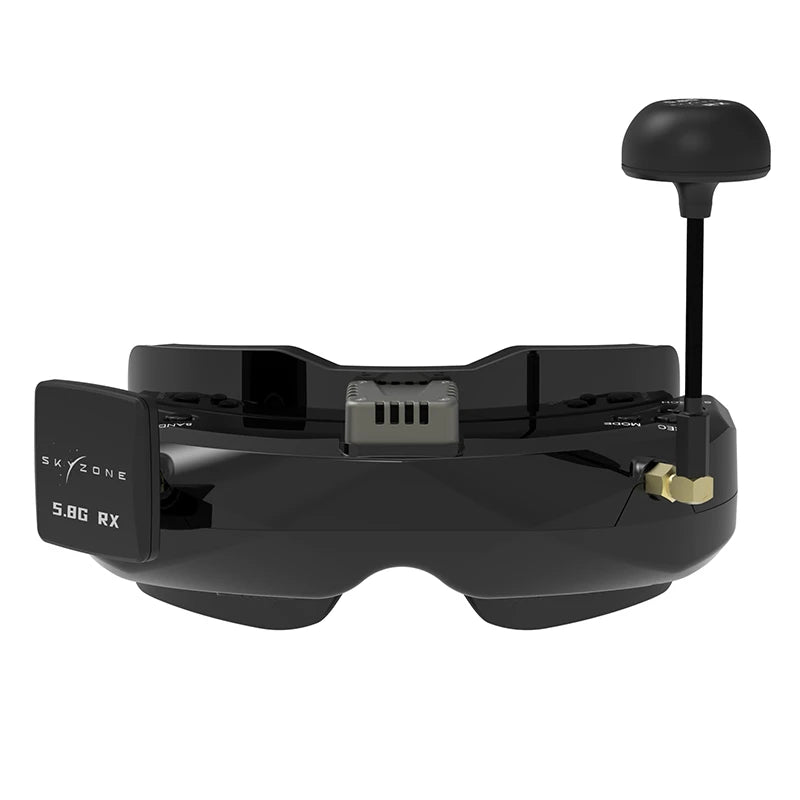

SKY02O FPV goggles
Features
SteadyView Receiver,merge 2 signal into 1, make image more stable and clear in challenging condition
Intuitive interface, colorful UI with 2 languages
640*400 OLED screen, high contrast ratio
Support 4 preset screem settings and 3 customized settings for different condition of flight
Easy to access, with IO port on the bottom
Compatible with Fatshark diopter lens
Specification
Model : SKY02O
Screen: OLED
Resolution : 640*400
FOV: 29°
IPD: 59-69mm
Aspect Ratio : 16:10
Receiver : 5.8Ghz 48CH SteadyView Receiver Built-in
DVR: MJPEG 30FPS
Head Tracker : 3-axis Accelerometer, 3-axis gyroscop
Voltage Input Range : 2-6S LiPo
Language : Chinese/English
Dimentions : 167*70*79mm
Weight : 210g
Package Included
1 x SKY02O FPV Goggles Set
1 x Patch antenna
1x Ommi antenna

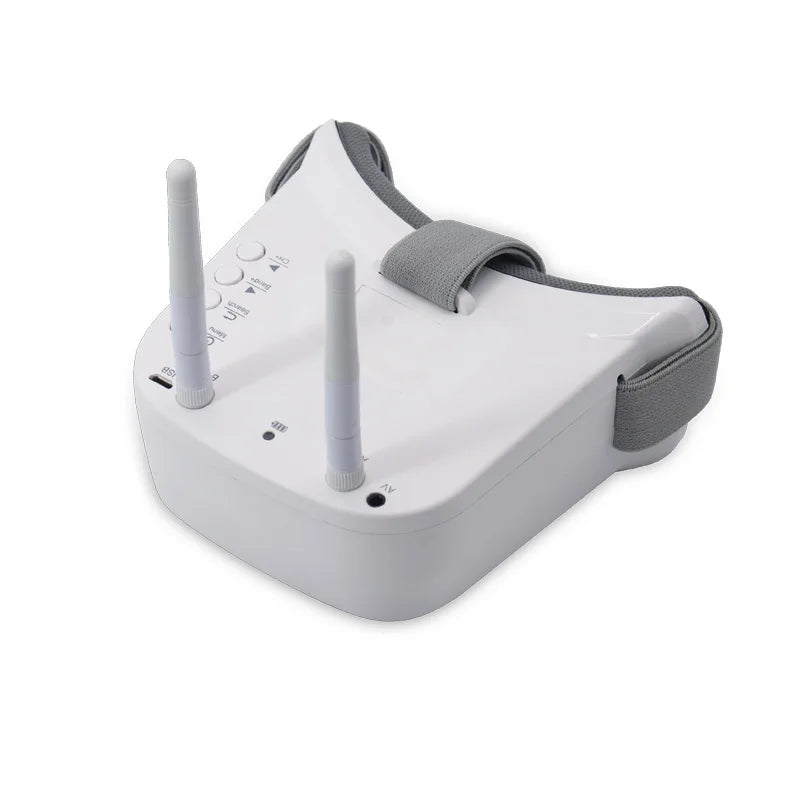

VR009 FPV Goggles :
Specification:
Functions: Video
FPV Goggles
Resolution: 480 x 320
TV System: NTSC / PAL Switchable
Screen size: 3 inch
Battery: 3.7V 1200mAh Li-ion polymer battery
Working Time: 2.5 hours
Charge time: 2 hours
Main Features:
● Portable, small size and light weight
● Low power consumption, working current: 300 - 330mA
● Double antenna reception to make the signal more stable
● One key auto-searching function, fast and accurate
● 3 inch 480 x 320 high brightness LCD screen
● Built-in super sensitiveness 5.8GHz 40CH receiver, especially with RaceBand
● Built-in 3.7V 1200mAh high-capacity Li-ion polymer battery for long time using
● Universal USB charging interface
● Very low time-delay real-time video return ( 10 - 20ms )
● Bilingual menu, support Chinese and English
● Support external Audio video signal input
● Support AV signal output ( connect external DVR )
