TCMMRC X220S FPV Racing Drone - 220mm Omnibus F4 5.8G 40CH 30A Dshot600 800TVL 2206 2300kv Quadcopter Dron freestyle

TCMMRC X220S FPV Racing Drone - 220mm Omnibus F4 5.8G 40CH 30A Dshot600 800TVL 2206 2300kv Quadcopter Dron freestyle

TCMMRC

Regular price $286.61 USD
Regular price $345.25 USD Sale price $286.61 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

43 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Video Capture Resolution: 720P HD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 0-3km

Remote Control: Yes

Recommend Age: 12+y

Plugs Type: XT60

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Expert

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Model Number: X220S

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 5-10 min

Features: Integrated Camera

Features: Auto Return

Features: FPV Capable

Features: GPS

Features: Other

Dimensions: 11cm-30cm

Controller Mode: MODE1

Controller Mode: MODE2

Control Channels: 8 Channels

Certification: CE

Camera Mount Type: Fixed Camera Mount

CE: Certificate

Brand Name: TCMMRC

Aerial Photography: No


Description:

Item

Specification

X220S


Wheelbase: 220mm
Frame arm: 4mm light material

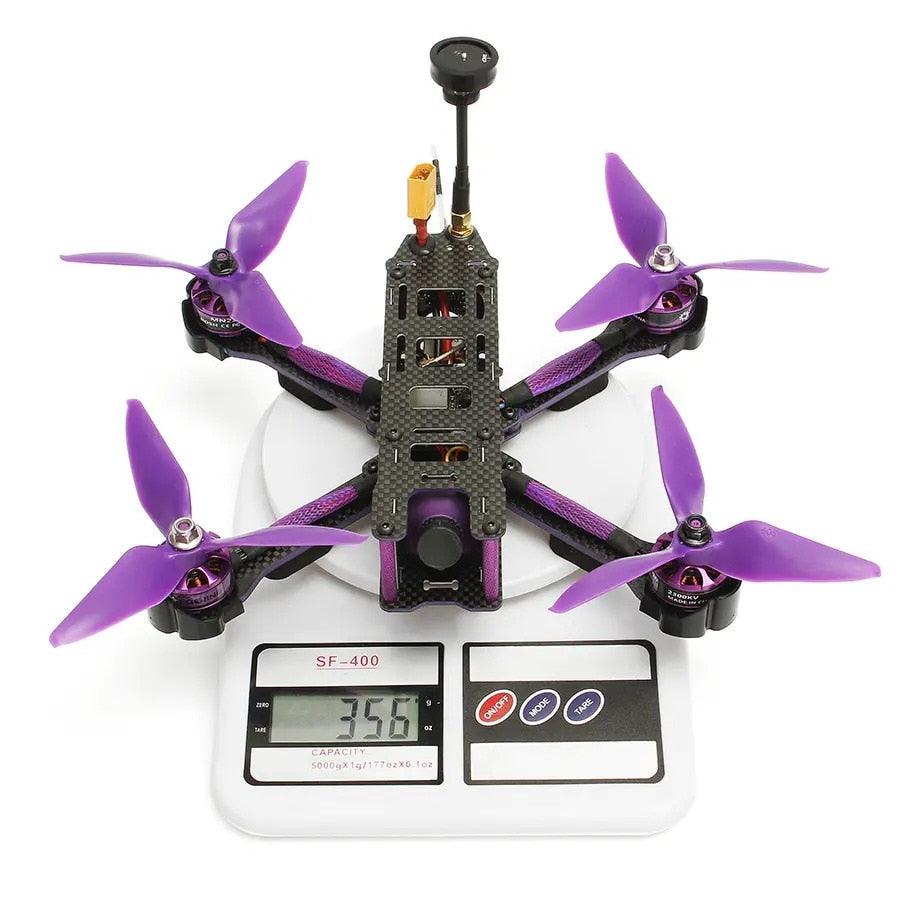

Weigh: 356g (without battery and camera mount)
Take off weigh: 561g
Package weigh: 1728g
Use light composite material.
4mm thickness and 15mm width frame arms, the width is 5mm less than Eachine Wizard X220.
Frame kit with camera angle scale and 30° camera mount for Runcam 3 Gopro session.
Anti-vibration sponges to protect the racer frome crashing.

MN2206 2300KV motor


KV: 2300
Max thrust: 1100G
Length: 35MM
NO.OF cell: 3-5S
Diameter: 28MM
Framework: 12N14P
Shaft: 3MM
Propeller: 5 inch
Weight: 28g

30A BLHELI_S  4 in 1 ESC


Con. current: 30A
Peak current (10S): 35A
Input  voltage: 2-5S
BEC: No
Programming: YES
Firmware: blheli_s
Weight: 28g
Size: 36*36MM

1179 800TVL CCD camera


Color: purple
Sensor: CCD
Resolution(horizontal center): 800TVL
Shell size: 25mm*25mm
Weight: 11g
Resolution: PAL: 1980H×1080 (2MP) NTSC: 1980H×1080V (2MP)
Format: PAL/NTSC switchable
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55dB.
AWB: ON/OFF
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: internal synchronization
Lens: standard 2.8mm lens
Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V)
Workig current: 70mA (low power consumption)
Workig temperature: -20℃--60℃
Humidity: 0%~98%
Strong backlighting effect

5.8G 72CH 25MW 200mw 600MW
switchable transmitter


Video Format  : NTSC/PAL
Channel: 72CH
Operating Temperature : -10~85℃
Connector: SMA Female (Inner hole)
Antenna Connector:  RP-SMA male (Inner needle)



BF3.1.5 Omnibus F4 V2 flight controller


Size: 35x35mm
Mounting hole: 30.5x30.5mm
Firmware: betaflight_3.1.5_OMNIBUSF4SD
Input voltage: 2-6S
SCM: STM32 F405 MCU
Sensor: SPI Sensor MPU6000
Berometer: BMP280
Slot: standard SD card slot
BEC: 5V/3A
STM32 F405 MCU, Runs betaflight_3.1.5_OMNIBUSF4SD, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
Built-in 5V/3A BEC.
Built-in galvanometer.
With LC filter.

5051 3-blade propeller


Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm

TCMMRC X220S FPV Racing Drone - 220mmTCMMRC X220S FPV Racing Drone, Rubber protector 75C 1500mAh battery Pagoda antenna Camera mount 308 for Runcam

Rubber protector 75C 1500mAh battery Pagoda antenna Camera mount 308 for Runcam Gopro session 2206 2300KV brushless motor 4mm frame arm light material Anti-vibration motor pad 5051 3 blade propeller Anti vibration sponge Camera angle scale HS1179 800TVL CCD camera HS

TCMMRC X220S FPV Racing Drone, Switchable VTX 72CH Omnibus F4 30A TCMMRC X220S FPV Racing Drone, Frame kit with camera angle scale and 30° camera mount for Runcam 3 Gopro sessionTCMMRC X220S FPV Racing Drone - 220mmTCMMRC X220S FPV Racing Drone, anti-vibration sponges to protect the racer frome crashingTCMMRC X220S FPV Racing Drone, Frequency modulation button DisplayTCMMRC X220S FPV Racing Drone - 220mmTCMMRC X220S FPV Racing Drone, BF3.1.5 Omnibus F4 V2 flight controller Size: 35x35mm Mount
