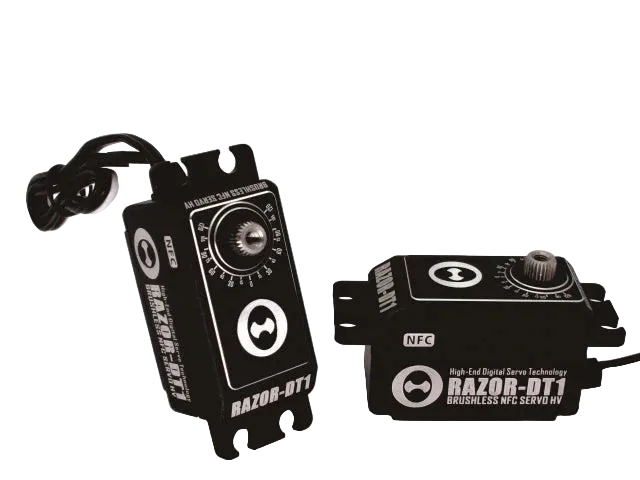

• THETA Razor-DT1 low profile brushless tail servo with NFC label, metal output spline and lead wire

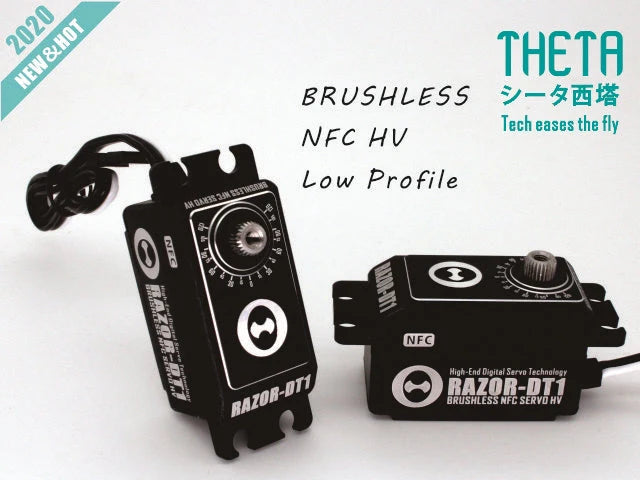

  • THETA Razor-DT1 low profile brushless HV tail servo with NFC label, shown in two mounting orientations

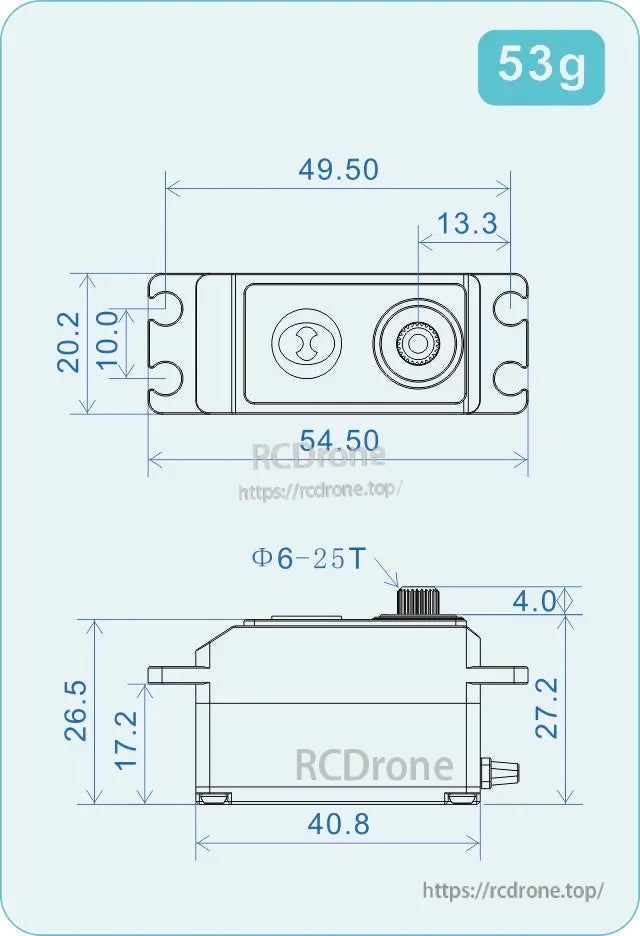

  • Dimension drawing of THETA Razor-DT1 low profile tail servo showing 54.5 mm length, 20.2 mm height, 53 g weight
1 3

THETA Razor-DT1 NFC HV Low Profile Brushless Tail Servo for 500–600 Size Helis, Android NFC Programmable

THETA Razor-DT1 NFC HV Low Profile Brushless Tail Servo for 500–600 Size Helis, Android NFC Programmable

THETA

$156.00 USD
$156.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

THETA Razor-DT1 is a high-voltage, high-torque, low-profile brushless tail servo designed for smaller helicopters (500–600 size) where a standard-size servo with reduced weight is preferred. It supports NFC programming via an Android NFC-enabled smartphone for parameter adjustments including center point, refresh rate, acceleration, and PID control loop.

Key Features

  • High voltage
  • High speed
  • Excellent centering
  • Compatible with Futaba type horns/arms
  • Fully programmable via NFC-enabled Android smartphones
  • Light weight

Specifications

Voltage (V) Current (A) Speed (s/60°) Torque (kg*cm)
5.0 3.0 0.087 10
6.0 3.0 0.072 11
7.4 3.0 0.064 12
8.4 3.0 0.056 13
5.0 5.0 0.079 12
6.0 5.0 0.065 13.5
7.4 5.0 0.058 15
8.4 5.0 0.051 16

Applications

  • Tail servo use on smaller helicopters (500–600 size)

For setup and product support, contact https://rcdrone.top/ or email support@rcdrone.top.
