TLIBOT FCS-CO Robot Motor, 50/80/100 Ratio, 5.7-8.2 Nm, 8500 r/min Max Input, Harmonic Drive

TLIBOT FCS-CO Robot Motor, 50/80/100 Ratio, 5.7-8.2 Nm, 8500 r/min Max Input, Harmonic Drive

TLIBOT

$165.00 USD
$165.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
Reduction Ratio
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

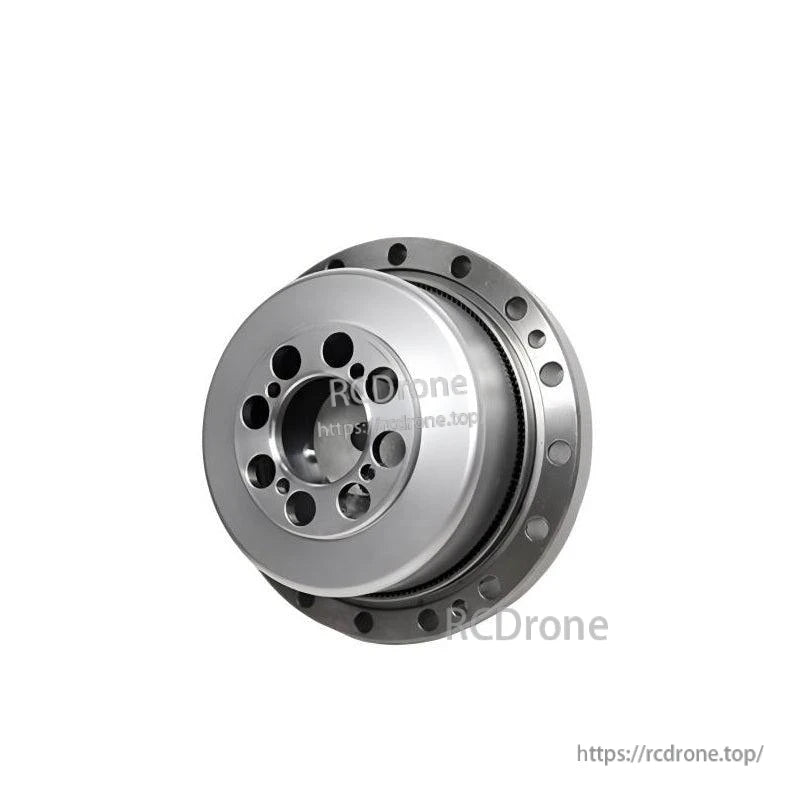

The TLIBOT FCS-CO Model 14 Robot Motor is a precision actuation unit designed for robotics, integrating harmonic-drive reduction options for high torque density and smooth motion. Three reduction ratios (50, 80, 100) are supported with clearly defined torque and speed limits for reliable design and sizing.

Key Features

  • Model 14 size with harmonic reduction options: 50, 80, 100
  • Rated output torque at 2000 r/min input: up to 8.2 Nm (0.8 kgfm)
  • Peak start/stop torque: up to 29 Nm (3.0 kgfm); instantaneous max: up to 56 Nm (5.7 kgfm)
  • Maximum allowable input speed: 8500 r/min; allowable average input speed: 3500 r/min
  • Moment of inertia references: I x 10^-4 kgm^2 = 0.033; J x 10^-5 kgm^2 = 0.034

For configuration support, CAD requests, or bulk inquiries, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Parameter 50 80 100
Model 14 14 14
Rated Torque at 2000r/min Input (Nm) 5.7 8.2 8.2
Rated Torque at 2000r/min Input (kgfm) 0.6 0.8 0.8
Allowable Peak Torque at Start and Stop (Nm) 18.7 23.9 29
Allowable Peak Torque at Start and Stop (kgfm) 1.9 2.4 3.0
Allowable Maximum Value of Average Load Torque (Nm) 7.2 11.6 11.6
Allowable Maximum Value of Average Load Torque (kgfm) 0.7 1.2 1.2
Instantaneous Maximum Allowable Torque (Nm) 36 49 56
Instantaneous Maximum Allowable Torque (kgfm) 3.7 5.0 5.7
Maximum Allowable Input Speed (r/min) 8500 8500 8500
Allowable Average Input Speed (r/min) 3500 3500 3500
Moment of Inertia (I x 10^-4 kgm^2) 0.033 0.033 0.033
Moment of Inertia (J x 10^-5 kgm^2) 0.034 0.034 0.034

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots

Manuals

Details

TLIBOT FCS-CO Model 14 Robot Motor, TLIBOT offers precision harmonic reducers with 15 years of expertise, 3–100 models, full customization, and comprehensive service for diverse drone applications.

TLIBOT Harmonic Reducer, precision transmission, 15 years expertise, 3-100 models, full customization, comprehensive service.

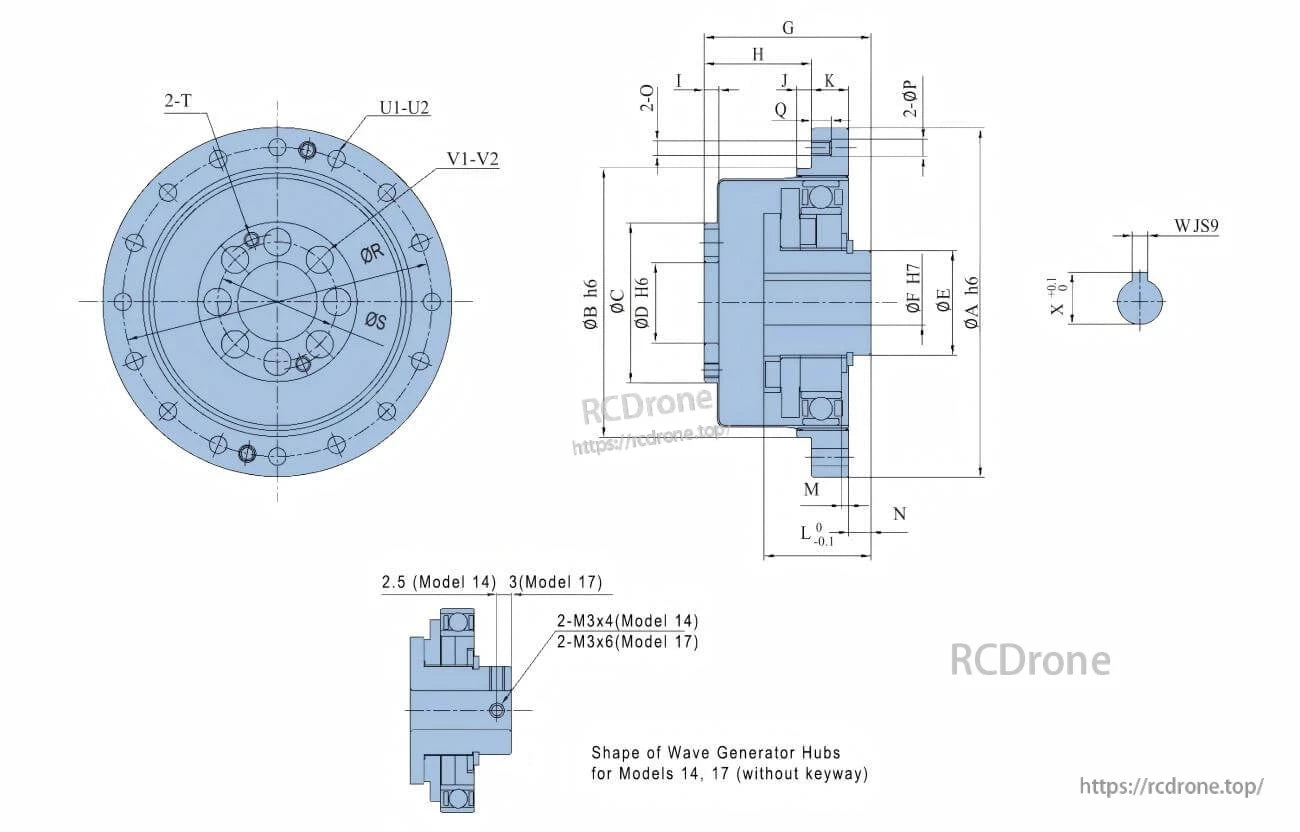

Technical drawing of TLIBOT FCS-CO Model 14 robot motor, including dimensions, wave generator hubs, and specs for Models 14 and 17 without keyway.

TLIBOT FCS-CO Model 14 Robot Motor technical drawing with dimensions, wave generator hubs, and specifications for Models 14 and 17 without keyway.

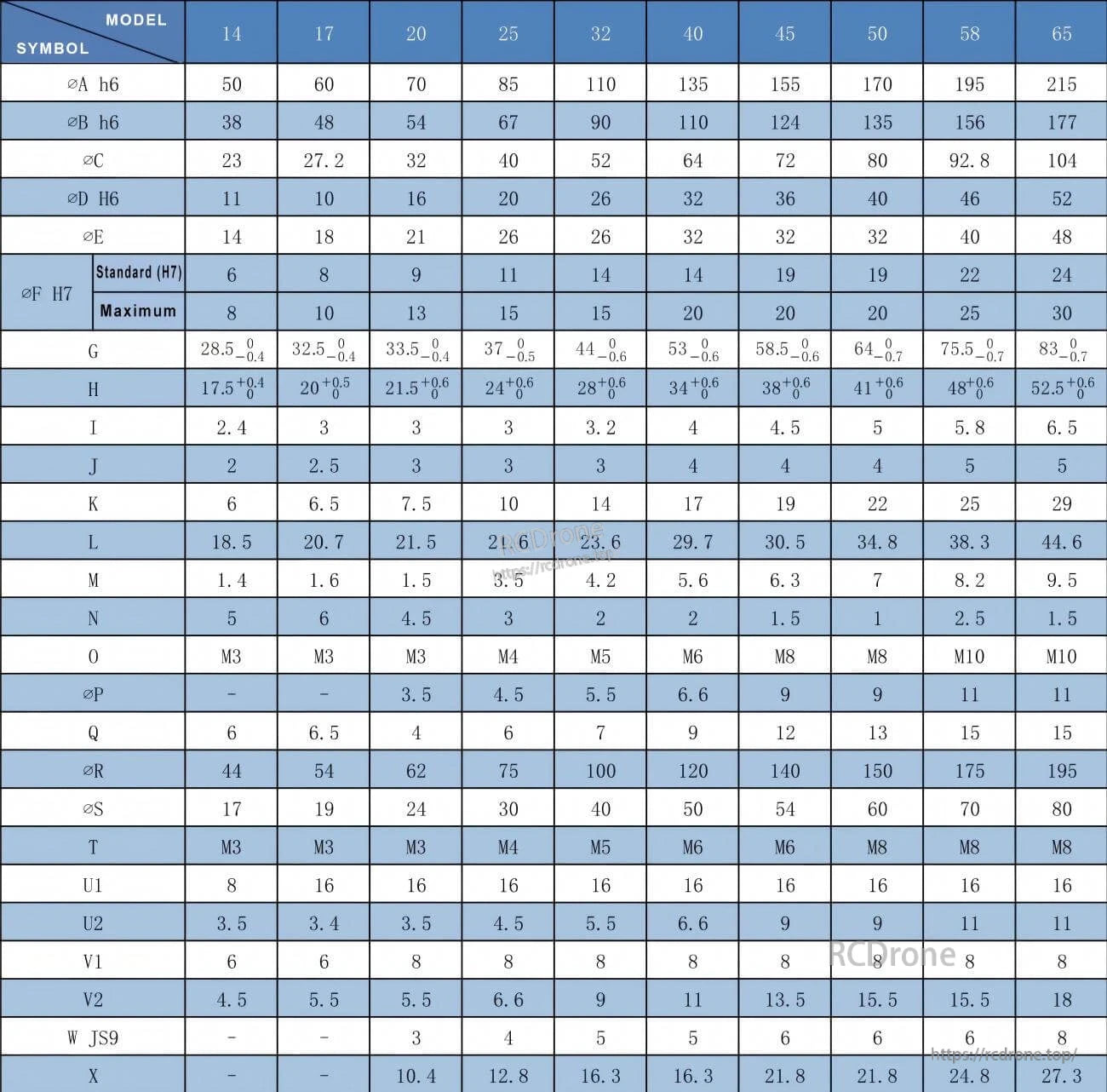

TLIBOT FCS-CO Model 14 Robot Motor, TLIBOT FCS-CO Model 14–65 motor specs: dimensions, tolerances, shaft sizes, clearances, and mechanical parameters for precision engineering use.

Technical specifications for TLIBOT FCS-CO Model 14 robot motor, including dimensions, tolerances, and component values across various models from 14 to 65. Data covers shaft sizes, clearances, and mechanical parameters for precise engineering applications.

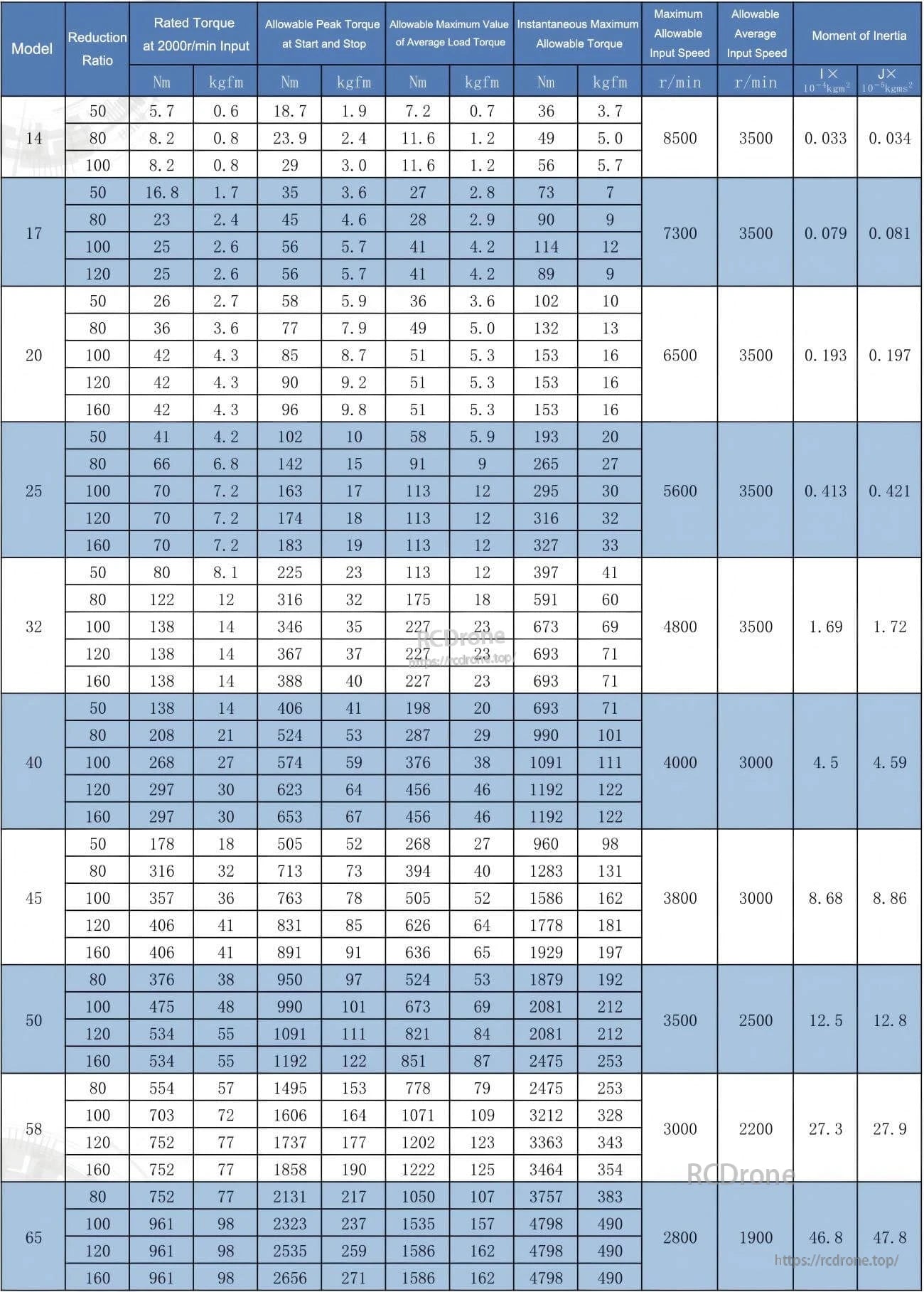

TLIBOT FCS-CO Model 14 Robot Motor, TLIBOT FCS-CO robot motors (models 14–65) specs: reduction ratios, torque, speed limits, and inertia under various operating conditions.

Technical specs for TLIBOT FCS-CO robot motors (models 14–65), including reduction ratios, torque, speed limits, and inertia across operating conditions.

TLIBOT FCS-CO Model 14 Robot Motor, Available models: 3–100; reduction ratios: 30–320. Various gear motor designs shown.

Available models: 3, 5, 8, 11, 14, 17, 20, 25, 32, 40, 45, 50, 58, 65, 100. Reduction ratios: 30, 50, 80, 100, 120, 160, 320. Various gear motor designs displayed.
