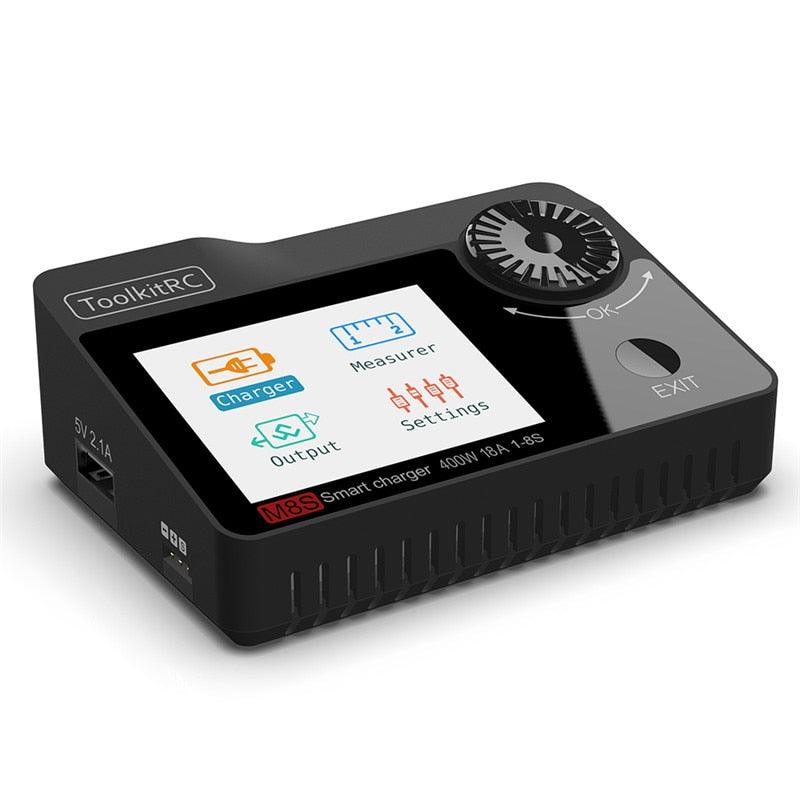

ToolkitRC M8S Charger - 400W 18A 2.4 TFT inch Color LCD Screen Balance Charger Discharger for 2S - 8S Lipo For Rc racing drone battery charger

New ToolkitRC M8S 400W 18A 2.4 TFT inch Color LCD Screen Balance Charger Discharger for 2S - 8S Lipo For Rc racing drone battery

Packaging included:

1X ToolkitRC M8S Charger

Features:

2.4" Color Screen

Battery Charger

Cell Checke

Servo Tester

PWM,PPM.SBUS Input/output Receiver & Flight control tester

Viable AMp/volt DC Power supply (Required external DC input)

Specification:

Input: 7-30V @MAX18A

Battery Type: LiPo LiHV LiFe Lio @ 1-8S NiMh @1-20S Pb @1-12S

Bal Current: 800mA @2-8S

Accuracy: ±0.01V

Charging Power: 0.1-18A @ 400W

Discharging Power: 0.1-18A @ 400W

Recycle Mode: 0.1-5A @ 20W Normal Mode

USB: 2.1A @ 5.0V upgrade

Size: 98mm*68mm*35mm

Weight: 170g

Measuring:

PWM 880us-2200us @20-400Hz

PPM 880us-2200us*8Ch @20-50hz

SBUS 880us-2200us*16ch @20-100Hz

Voltage 1.0V-5.0V @1-8S

IR 1-100mR @1-8S

Output:

PWM 500us-2500us @20-1000Hz

PPM 880us-2200us*8ch @50hz

SBUS 880us-2200us*16ch @74Hz

Power 1-18A @ 1-30V Mode: CC+CV

Display:LCD TFT 2.4 inch 320*240 resolution

M8S SPCS € B18 2 1 4 43 BF 3 9 3 6 M 9 (JoolkitRC ToolkitRC Bf2 25 0 MA rer crarded Laet D Hop 010Q 46 6968 Qutpte Seting: Outou: Setings EXT Hcnten Harie Exit 6a 5 Black White Charger Measurer Output Input 7-30V@MAXIBA PWM 880us-2200us@20-

ToolkitRC M8S True Color 65,535-Color 24-bit TFT LCD Screen Balance Charger Discharger for 2S to 8S Lipo Batteries in RC Racing Drone Applications. Features include: * Smart charger with easy-to-use interface * Output settings: EXIT, Start, and Mode (Manual or Auto) * Charge measurer with width setting of 1,500 microseconds per cycle * Cycle duration: 20 milliseconds per cycle * Throttle range: 0 to 98% * Battery type support: PWM, PPM, SBUS, ESC, and Power
