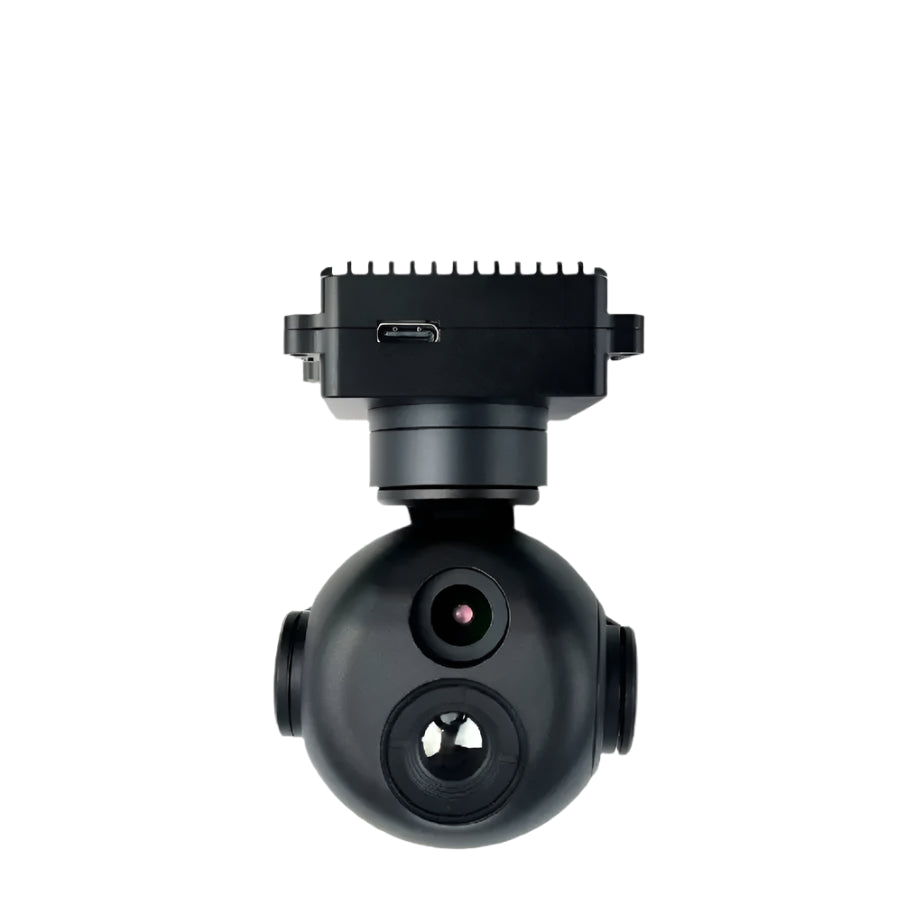

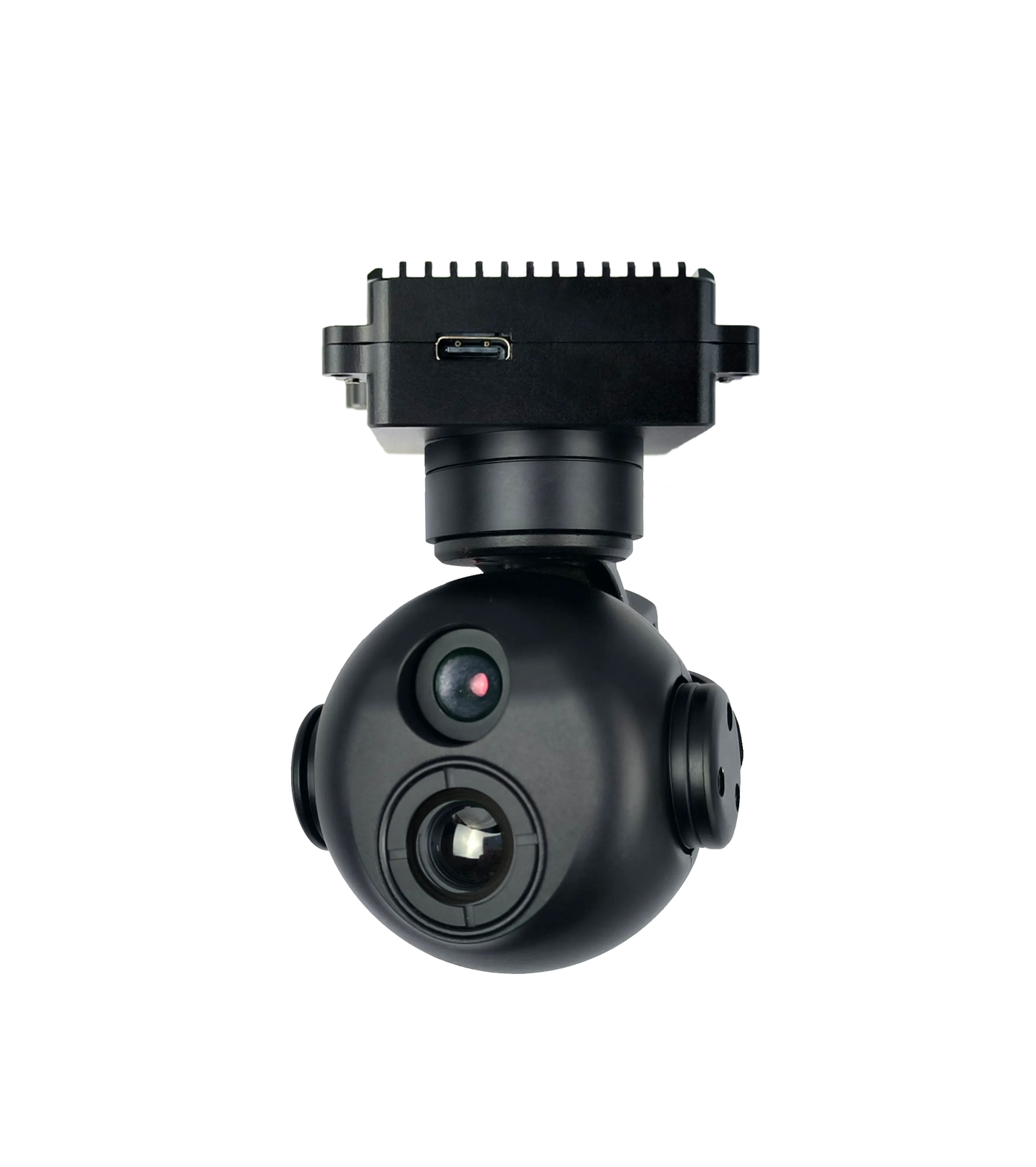

TOPOTEK DHU290G609 Drone Gimbal Camera - 1080P Fixed Focus + 640×512 Thermal Imaging IP HDMI Dual Output

Overview

The TOPOTEK DHU290G609 is a dual-sensor gimbal camera designed for professional drone applications. It features a 1080P fixed-focus visible light camera with a 2MP CMOS sensor and a 640×512 thermal imaging module with a 12μm uncooled focal plane microbolometer. The three-axis stabilized gimbal provides precise control with ±0.02° angle jitter, ensuring stable footage. It supports IP and HDMI dual output, allowing real-time video transmission. The system is controlled via serial port, S.BUS, and network IP, with support for local TF dual-channel video recording. Its compact size and low power consumption (5.5W) make it suitable for security, inspection, and search-and-rescue applications.

Key Features

• 1080P fixed-focus visible light camera with a 2MP wide dynamic range CMOS sensor
• 640×512 thermal imaging sensor with 12μm pixel size and 8~14μm wavelength coverage
• Three-axis stabilization gimbal with ±0.02° angle jitter
• 9× digital zoom for enhanced visibility
• AI object recognition and tracking, supporting human and vehicle detection
• Network IP and HDMI dual output for flexible real-time transmission
• Local TF storage with dual-channel video recording
• Compact design with low power consumption (5.5W)
• Multiple control methods: Serial port, S.BUS, network IP
• One-click automatic return function for precise repositioning

Technical Specifications

Gimbal Specifications

Feature	Specification
Voltage	DC 12V-26.2V
Power Consumption	5.5W
Pitch Angle Range	-40° to +100°
Yaw Angle Range	-140° to +140°
Roll Angle Range	-45° to +45°
Angle Jitter (Pitch & Roll)	±0.02°
Horizontal Angle Jitter	±0.03°
Control Methods	Serial Port, S.BUS, Network IP
One-Click Return	Yes

Visible Light Camera

Feature	Specification
Sensor	1/2.8-inch 2MP Wide Dynamic Range CMOS
Digital Zoom	9×
Focus Time	<1s
Field of View (FOV)	60° × 43°
Video Output	1080P RTSP Network HD, Local TF Storage

Thermal Imaging Camera

Feature	Specification
Resolution	640×512
Pixel Size	12μm
Type	Uncooled focal plane microbolometer
Wavelength Coverage	8~14μm
NETD (Thermal Sensitivity)	≤50mK @ F1.0
Field of View (FOV)	45.76° × 37.31°
Temperature Measurement	Global & optional full pixel temperature saving

Tracking & Recognition

Feature	Specification
Min Tracking Target Size	16×16 pixels
Max Tracking Target Size	256×256 pixels
Memory Time	2 seconds
Tracking Speed	50 Pixels/Frame max
Simultaneous Targets	Up to 100
Recognized Categories	Human, Vehicle
Min Detection Target Size	32×32 pixels

Connectivity & Interface

Feature	Specification
Network Support	1080P 30fps
HDMI Output	Micro-D HDMI 1080P 60fps
Storage	TF Card Slot
Interface Types	Serial Port, S.BUS, Network IP

Physical Dimensions

Feature	Specification
Weight	190g
Dimensions	93.5mmx120mm

Applications

• Public safety and security – Aerial surveillance and monitoring
• Search and rescue – Thermal imaging for locating missing persons
• Infrastructure inspection – Power lines, pipelines, and industrial sites
• Wildlife and environmental monitoring – Tracking and studying wildlife movements
• Agriculture and forestry – Crop health assessment and forest fire detection

Package Includes

• DHU290G609 gimbal camera
• Network and power cables
• HDMI output cable
• User manual



Details

DHU290G609 IP Output Gimbal Camera features DC 12V-26.2V voltage, 5.5W power, pitch/yaw/roll angle ranges, and adjustable control speed. It supports network IP, serial port, S.BUS control, 2MP CMOS sensor, 9x digital zoom, real-time focus, 1080P video output, thermal imagery with 640x512 resolution, and target tracking for humans and vehicles.

Dimensions: 120mm × 93.5mm. Work environment: -10°C to +55°C. Stored Environment: -20°C to +60°C. Main application: Drone aerial photography. Weight: 190±10 g. Interfaces include HDMI, TF card slot, and various connectors.
