TOPOTEK DYK290G207 Dual Light Drone Gimbal - 9x Zoom 1080P Visible Light Camera + 7mm 256x192 Thermal Imaging With IP/HDMI Output 2-Axis Gimbal

TOPOTEK DYK290G207 Description

The DYK290G207 is an integrated 1080P visible-light camera with a 7mm focal length and a 256x192 thermal imaging module that supports 9x digital zoom. The high-precision two-axis enhanced stability pod is a fixed-focus dual-light small pod, which adopts network IP and HDMI dual output, characterized by high stability, small size, lightweight, and low power consumption. The visible light camera uses a wide dynamic CMOS sensor with an effective pixel count of 2 million. A vanadium oxide detector with a resolution of 256x192 is used for thermal imaging. The system supports network RTSP stream output, four picture-in-picture modes, ten pseudo-color displays, and global temperature measurement. Both the serial port and network can control the camera and PTZ, and support local TF dual recording and photographing.

TOPOTEK DYK290G207 Features

• 1080p visible light
• Four picture-in-picture modes
• 256x192 thermal imager

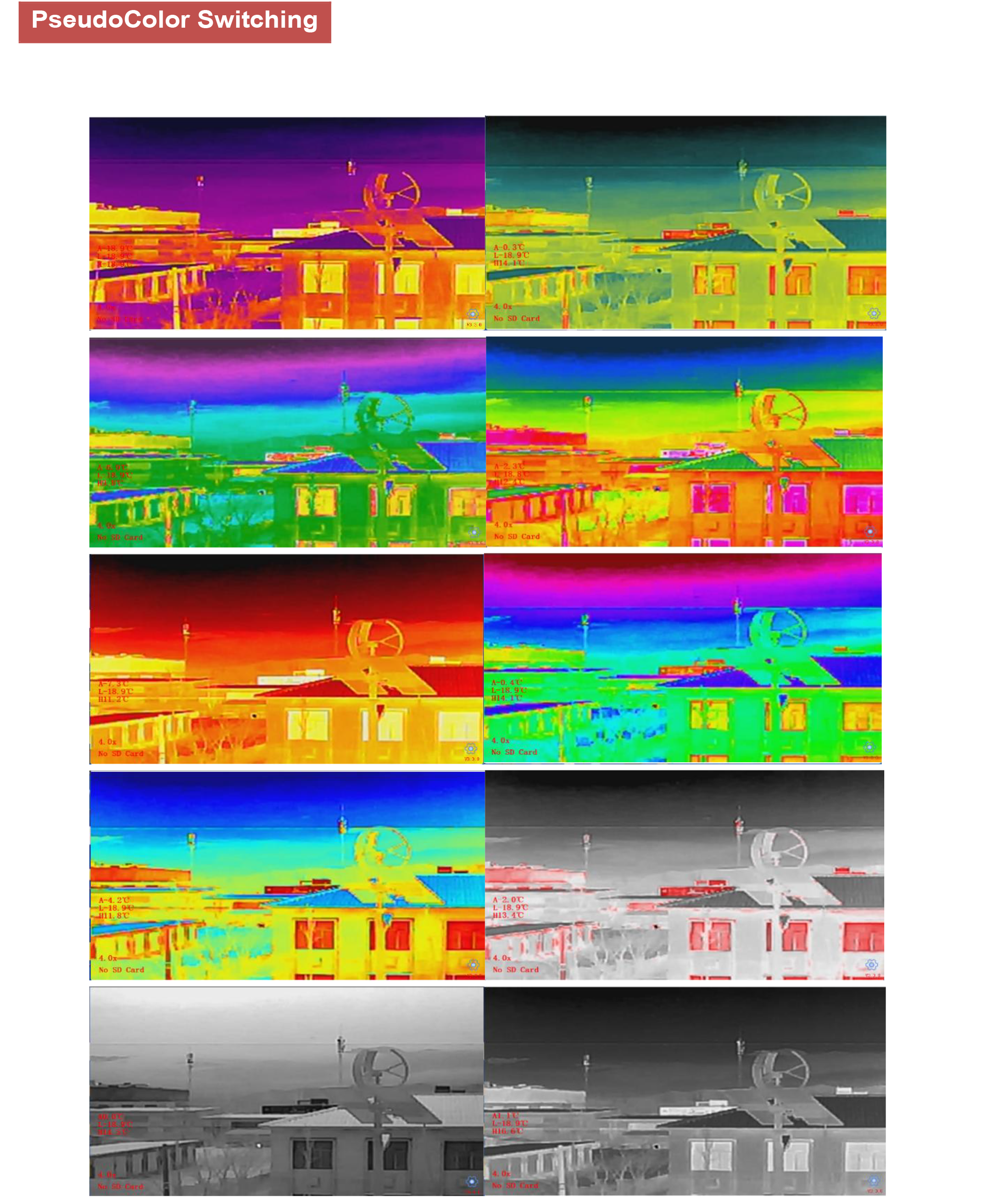

• Ten pseudo-color modes
• Supports dual output of IP/HDMI
• Supports 9x digital zoom
• Two-axis stabilization pods
• Network IP and UART control
• Lightweight gimbal, 180g
• TF card dual recording

TOPOTEK DYK290G207 Specifications

Compact design weighs only 180g with a sturdy overall structure, making it easy to handle and maneuver.

TOPOTEK DYK290G207 Dual Light Drone Gimbal features a 9x zoom 1080P visible light camera and 7mm 256x192 thermal imaging, with IP/HDMI output and 2-axis gimbal. It supports dynamic 4W roll angle action range -459 to +450, pitch action range -80 to +1059, and yaw angle action range -1500 to +1500. The gimbal has a low angular jitter of +0.020 in roll direction and +0.030 in pitch direction. With one-click return function, it can automatically quick return to the initial position.

Picture-in-Picture (PiP) mode enables seamless connection to applications, with a compatible HDMI input, displaying video and thermal imaging simultaneously.

Powered by a wide-range DC input (12V to 26.2V), this gimbal features serial ports for receiving commands and sending data, including TTL signals for TX+, TX-, RX+, and RX-.
