TOPOTEK KHY05L12 Dual Output Mini Gimbal Product Description
The TOPOTEK KHY05L12 is a high-precision three-axis stabilized camera gimbal integrated with a 45x hybrid zoom visible camera and a 1200m laser range finder. Designed for UAV aerial photography, it offers high stability, compact size, lightweight construction, and low power consumption. The camera uses a 4 megapixel sensor and supports UART, SBUS, and IP control, with backup TF card storage for pictures and videos. The system supports RTSP video format and provides both IP and HDMI output.
Functional Features
- Quick Focus
- 170ms Low Latency RTSP Video Format
- High-precision FOC
- Integrated Ground Station Software

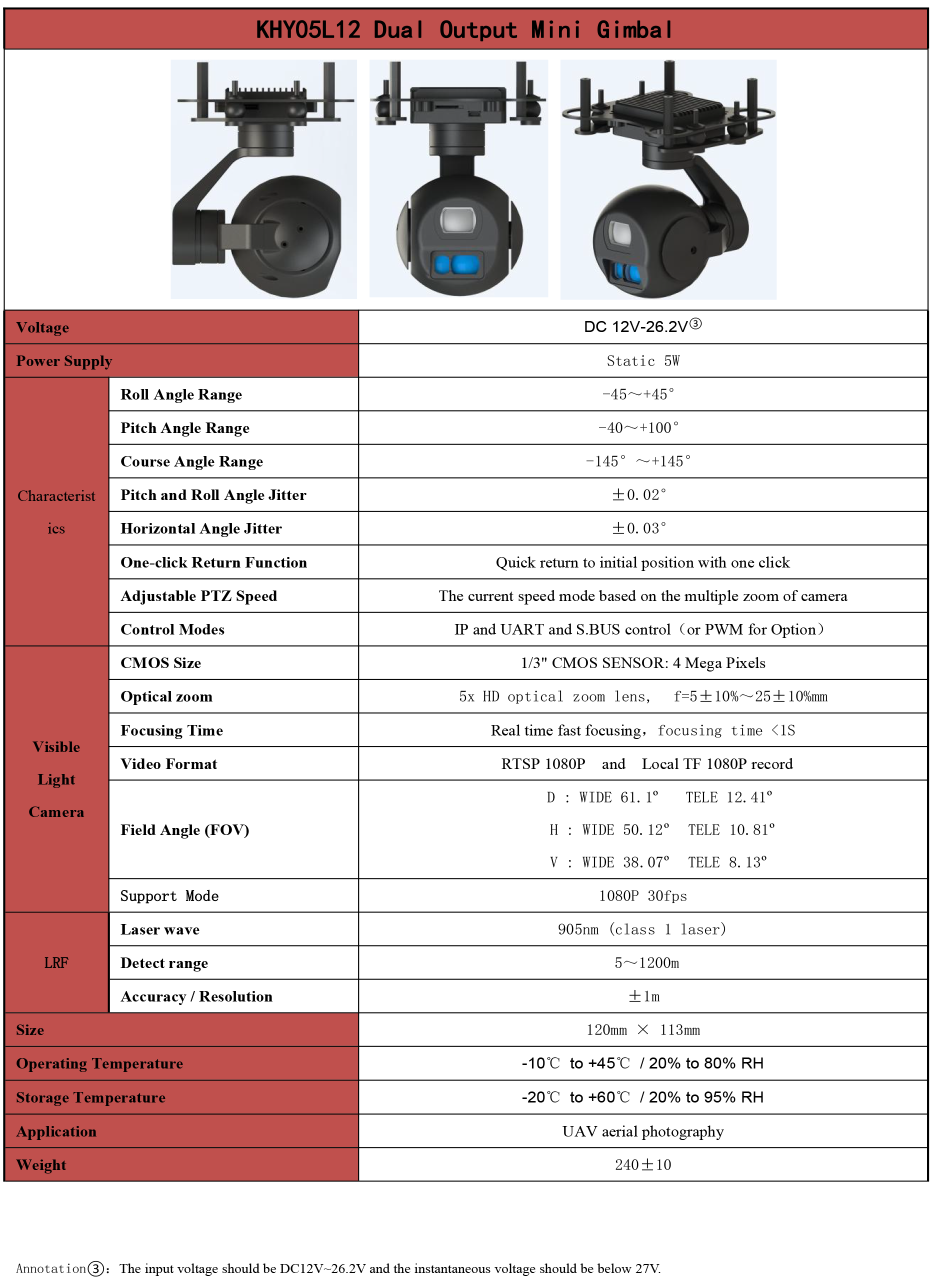

Technical Parameters
Parameter | Details |
---|---|
Voltage and Power Supply | DC 12V-26.2V, Static 5W |
Characteristics | |
Roll Angle Range | -45° to +45° |
Pitch Angle Range | -40° to +100° |
Course Angle Range | -145° to +145° |
Pitch and Roll Angle Jitter | ±0.02° |
Horizontal Angle Jitter | ±0.03° |
One-Click Return Function | Quick return to initial position with one click |
Adjustable PTZ Speed | The current speed mode based on the multiple zoom of the camera |
Control Modes | IP and UART and SBUS control (or PWM for Option) |
Visible Light Camera | |
CMOS Size | 1/3" CMOS SENSOR: 4 Mega Pixels |
Optical Zoom | 5x HD optical zoom lens, f=5±10%~25±10%mm |
Focusing Time | Real-time fast focusing, focusing time < 1s |
Video Format | RTSP 1080P and Local TF 1080P record |
Field Angle (FOV) | D: WIDE 61.1° TELE 12.41°<br> H: WIDE 50.12° TELE 10.81°<br> V: WIDE 38.07° TELE 8.13° |
Support Mode | 1080P 30fps |
LRF | |
Laser Wave | 905nm (class 1 laser) |
Detect Range | 5~1200m |
Accuracy / Resolution | ±1m |
Size | 120mm × 113mm |
Operating Temperature | -10°C to +45°C / 20% to 80% RH |
Storage Temperature | -20°C to +60°C / 20% to 95% RH |
Application | UAV aerial photography |
Weight | 240 ± 10g |
TopoteK KHP05L12 dual light drone gimbal features 3-axis stabilization, 45x hybrid zoom camera, and 1200m laser range finder for precise aerial photography.
Topotek KHP05L12 Dual Light Drone Gimbal features a 45x hybrid zoom camera with 1080P resolution, a 1200m laser range finder, and a 3-axis stabilized gimbal for smooth footage. It has adjustable PTZ speed, one-click return function, and supports IP UART, S.BUS control, and PWM options.
TOPOTEK KHP05L12 dual light drone gimbal features a hybrid zoom camera, 1080P resolution, and 1200M laser range finder, all stabilized by a 3-axis gimbal for smooth and accurate video recording.
![TOPOTEK KHP05L12 Dual Light Drone Gimbal - 45X Hybrid Zoom 1080P Camera + 1200M Laser Range Finder 3-Axis Stabilized Gimbal](http://rcdrone.top/cdn/shop/files/KHP05L12_45X_Hybrid_Zoom_Dual_Output_Mini_Gimbal_1715588928093_1.png?v=1717394326&width=1445)
![TOPOTEK KHP05L12 Dual Light Drone Gimbal - 45X Hybrid Zoom 1080P Camera + 1200M Laser Range Finder 3-Axis Stabilized Gimbal](http://rcdrone.top/cdn/shop/files/KHP05L12_45X_Hybrid_Zoom_Dual_Output_Mini_Gimbal_1715588928093_2.png?v=1717394326&width=1445)
![TOPOTEK KHP05L12 Dual Light Drone Gimbal - 45X Hybrid Zoom 1080P Camera + 1200M Laser Range Finder 3-Axis Stabilized Gimbal](http://rcdrone.top/cdn/shop/files/KHP05L12_45X_Hybrid_Zoom_Dual_Output_Mini_Gimbal_1715588945614_0.png?v=1717394326&width=1445)
