TOPOTEK KHP05M5 Overview

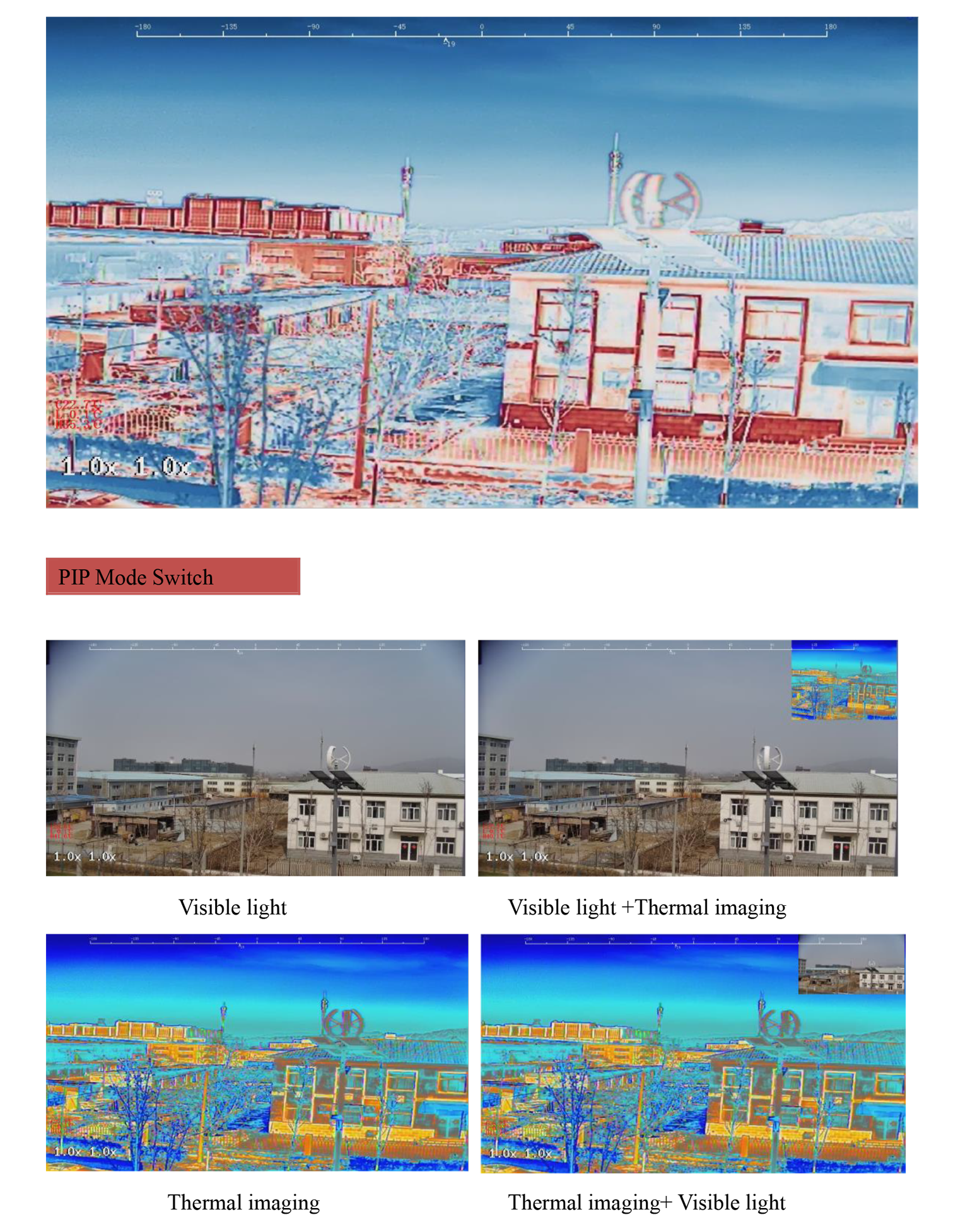

The TOPOTEK KHP05M5 is a dual-light small gimbal that integrates a 45x hybrid zoom camera and a 640x512 thermal camera. It features a high-precision professional 3-axis stabilization PTZ. This device supports IP and HDMI dual output, and IP control, and adopts a high-precision encoder FOC control scheme PTZ. It is characterized by high stability, small size, lightweight, and low power consumption. The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports, S.BUS, and network can control the camera and PTZ, supporting local TF dual-channel recording and photography.
TOPOTEK KHP05M5 Features
- 5x optical zoom, 9x digital zoom
- 640x512 infrared thermal
- RTSP stream output
- High precision control algorithms
- IP and HDMI dual output
- Integrated ground app
- Lightweight 235g

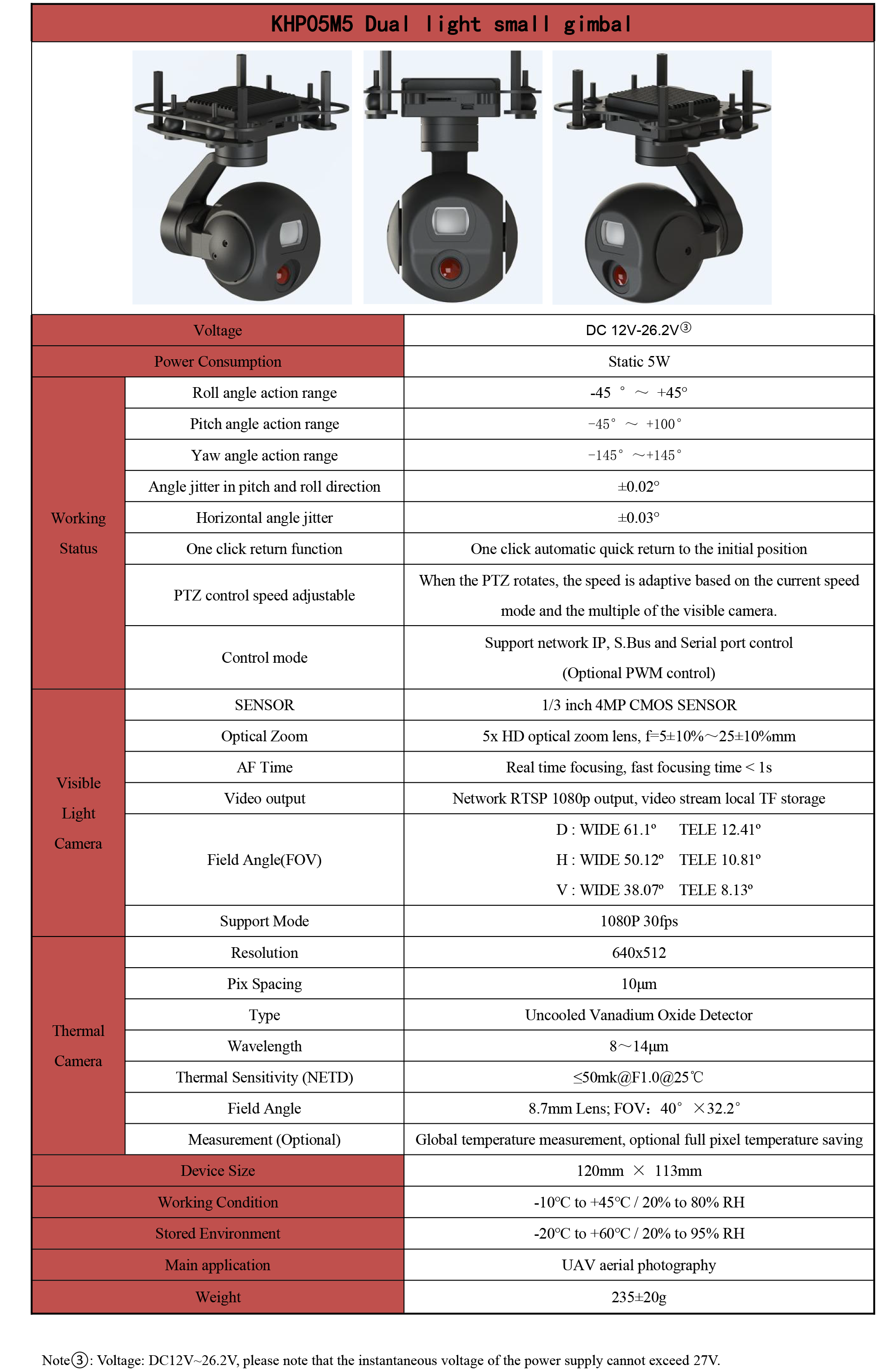

TOPOTEK KHP05M5 Specifications
Parameter | Details |
---|---|
Voltage | DC 12V-26.2V |
Power Consumption | Static 5W |
Working Status | |
Roll angle action range | -45° to +45° |
Pitch angle action range | -45° to +100° |
Yaw angle action range | -145° to +145° |
Angle jitter in pitch and roll direction | ±0.02° |
Horizontal angle jitter | ±0.03° |
One click return function | One click automatic quick return to the initial position |
PTZ control speed adjustable | When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera. |
Control mode | Support network IP, S.Bus, and Serial port control (Optional PWM control) |
Visible Light Camera | |
SENSOR | 1/3 inch 4MP CMOS SENSOR |
Optical Zoom | 5x HD optical zoom lens, f=5±10%~25±10%mm |
AF Time | Real-time focusing, fast focusing time < 1s |
Video output | Network RTSP 1080p output, video stream local TF storage |
Resolution | 1080P 30fps |
Field Angle (FOV) | D: WIDE 61.1°, TELE 12.41°<br> H: WIDE 50.12°, TELE 10.81°<br> V: WIDE 38.07°, TELE 8.13° |
Thermal Camera | |
Resolution | 640x512 |
Pix Spacing | 10μm |
Type | Uncooled Vanadium Oxide Detector |
Wavelength | 8~14μm |
Thermal Sensitivity (NETD) | ≤50mk@F1.0@25°C |
Field Angle | 8.7mm Lens; FOV: 40° x 32.2° |
Measurement (Optional) | Global temperature measurement, optional full pixel temperature saving |
Device Size | 120mm x 113mm |
Working Condition | -10°C to +45°C / 20% to 80% RH |
Stored Environment | -20°C to +60°C / 20% to 95% RH |
Main Application | UAV aerial photography |
Weight | 235±20g |
Note | Voltage: DC12V-26.2V, please note that the instantaneous voltage of the power supply cannot exceed 27V. |
Compact gimbal with dual output capabilities, featuring a 45x hybrid zoom camera, thermal imaging, and HDMI/IP connectivity.
Topotek KHP05M5 is a dual-light drone camera gimbal featuring a hybrid zoom lens with 45x optical and digital zoom. It has a 1080p visible light camera with HDMI and IP dual output, as well as an 8.7mm thermal imaging sensor with a resolution of 640x512 pixels. The gimbal supports network IP, S.Bus, and serial port control modes, with optional PWM control for the visible camera. The sensor has a 1/3-inch CMOS sensor with optical zoom lens, real-time focusing, and fast focus time of 1 second. It also features one-click return function for easy positioning.

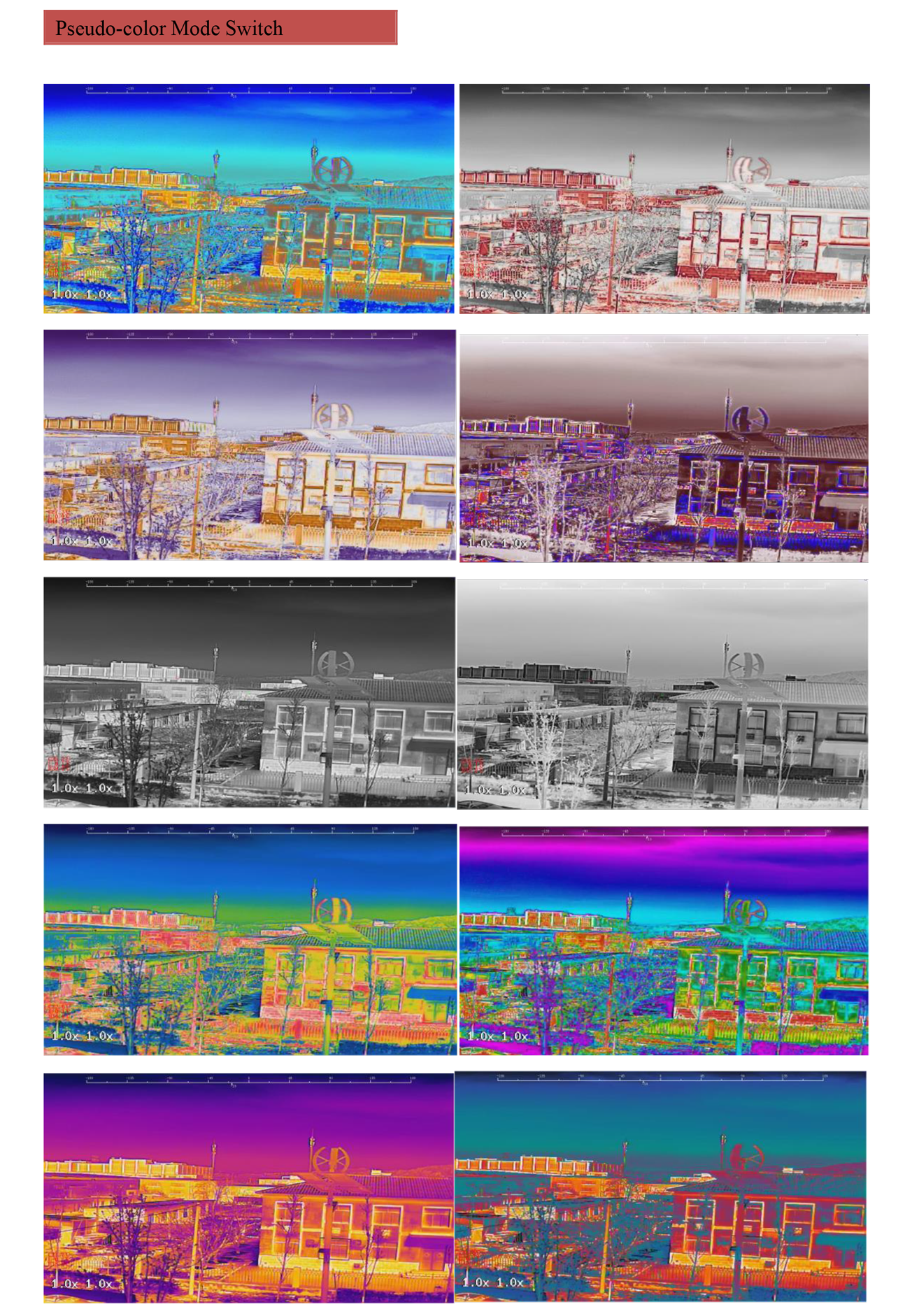

Switch between pseudo-color mode, A2 line, and LOx temperature display with this gimbal, offering flexible thermal imaging options.
Compatible with micro-HDMI and SBUS, this gimbal features dual outputs for visible light camera (1080P) and thermal imaging (640x512) sensors, with HDMI, IP, and ground connections available.
![TOPOTEK KHP05M5 Dual Light Drone Camera Gimbal - 45x hybrid zoom 1080P Visible Light Camera+ 8.7mm 640x512 thermal imaging With HDMI and IP Dual Output Small Gimbal](http://rcdrone.top/cdn/shop/files/KHP05M5_45x_hybrid_zoom_thermal_imaging_HDMI_and_IP_dual_output_small_gimal__1712720101564_0.png?v=1717316529&width=1445)
![TOPOTEK KHP05M5 Dual Light Drone Camera Gimbal - 45x hybrid zoom 1080P Visible Light Camera+ 8.7mm 640x512 thermal imaging With HDMI and IP Dual Output Small Gimbal](http://rcdrone.top/cdn/shop/files/KHP05M5_45x_hybrid_zoom_thermal_imaging_HDMI_and_IP_dual_output_small_gimal__1712720101564_1.png?v=1717316528&width=1445)
![TOPOTEK KHP05M5 Dual Light Drone Camera Gimbal - 45x hybrid zoom 1080P Visible Light Camera+ 8.7mm 640x512 thermal imaging With HDMI and IP Dual Output Small Gimbal](http://rcdrone.top/cdn/shop/files/KHP05M5_45x_hybrid_zoom_thermal_imaging_HDMI_and_IP_dual_output_small_gimal__1712720101564_2.png?v=1717316529&width=1445)
