TOPOTEK KHP20A12 Dual Light Drone Gimbal - 20x Optical / 140x Mixed Zoom 4K Camera + 35mm 1280*1024 Thermal Imaging Camera With 3-Axis Stabilized Gimbal, HDMI/Ethernet Dual Video Output

TOPOTEK KHP20A12 Dual Sensor Drone Gimbal Product Description

The TOPOTEK KHP20A12 is a dual sensor integrated camera system featuring a 20x optical zoom camera and a 35mm focal length, 1280×1024 resolution infrared thermal imaging camera, supported by a high-precision 3-axis stabilized gimbal. It adopts HDMI/Ethernet RTSP Stream video output and supports SBUS/UART/UDP/PWM control. The PTZ adopts a high-precision encoder FOC control scheme, characterized by high stability, compact size, lightweight, and low power consumption. The EO camera adopts a wide dynamic sensor with 2 million effective pixels, while the IR camera uses a 1280×1024 resolution uncooled vanadium oxide detector with a baffle design. The gimbal camera supports picture-in-picture (PIP) mode, multiple pseudo-color modes, and global temperature measurement. You can use the serial port and network to control the camera and PTZ synchronously. This gimbal camera adopts a full-metal housing, ensuring durability and reliability.

TOPOTEK KHP20A12 Features

• 140x mixed zoom camera
• 1280×1024 Thermal Imaging
• Ten pseudo-color modes
• Four Picture-in-Picture (PIP) modes
• Ethernet/HDMI dual output
• Photo and video record, TF card storage
• 3-axis stabilized gimbal
• SBUS/UART/UDP/PWM control

TOPOTEK KHP20A12 Parameters

Compact design with dimensions of 60mm x 50mm x 22mm and weighs approximately 105g, ideal for future drone applications.

TOPOTEK KHP20A12 Dual Light Drone Gimbal features a 20x optical zoom camera, paired with a 1280x thermal imaging camera. The gimbal offers 3-axis stabilization and dual video output via HDMI/Ethernet. Key specifications include: voltage/power supply DC12V, dynamic roll angle -45/+45, pitch angle -45/+120, yaw angle -290/290, and angular jitter +0.020/-0.030. Additional features include one-click return function, adaptive speed control, and support for UDP/UART control (optional SBUS and PWM). The camera also boasts a 1.8-inch 8MP CMOS sensor, optical zoom lens, digital zoom, real-time focusing, and local storage capabilities.

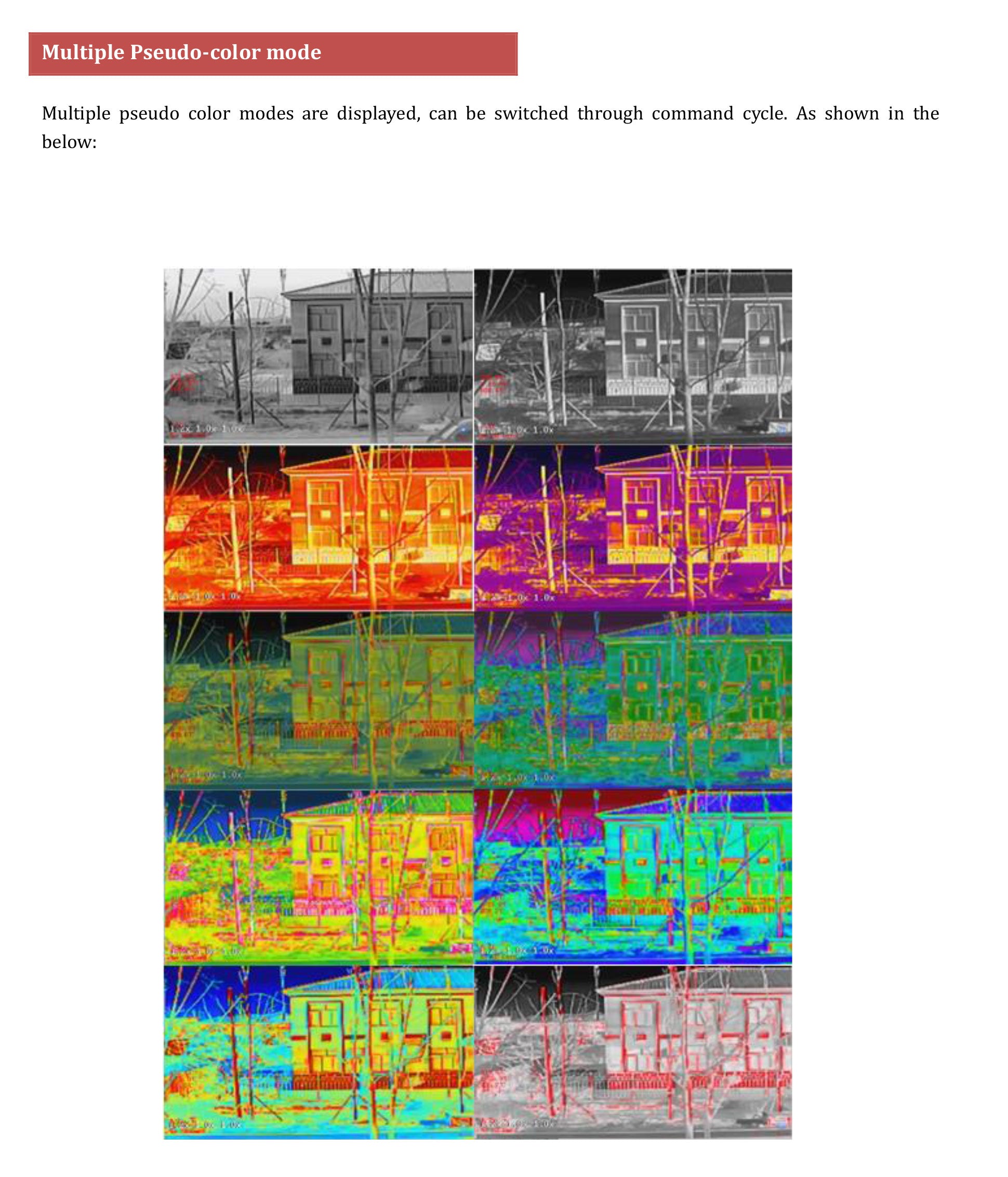

Experience multiple pseudo-color modes with adjustable display options via command controls.

Features picture-in-picture switching with 5 modes: single visible, visible large + thermal small, single thermal, thermal large + visible small. Supports dual video output via HDMI and Ethernet.

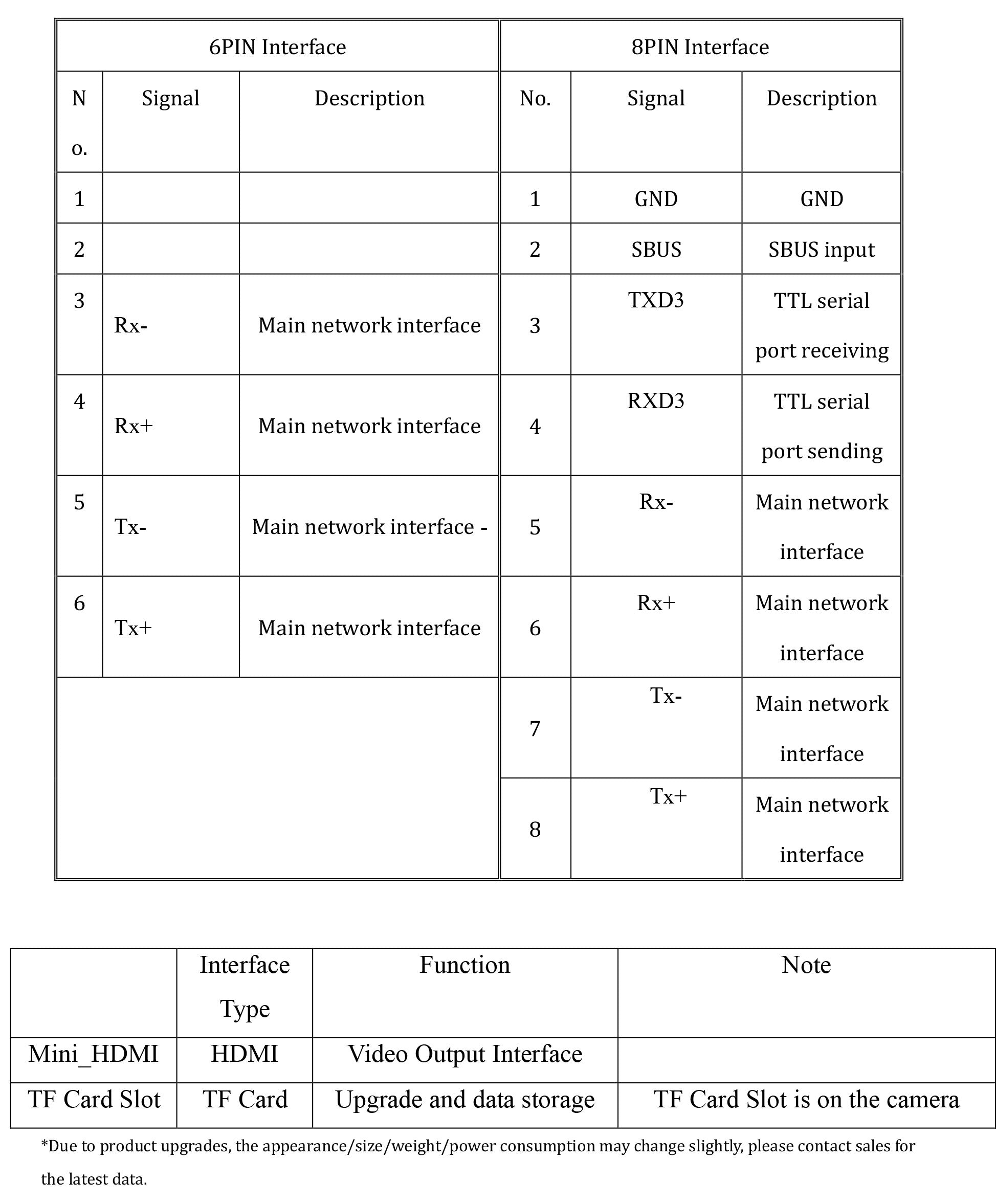

Features: 6PIN and 8PIN interfaces with SBUS signal; TTL serial RX/TX interface for main network communication; HDMI video output and TF card slot for upgrading and storing data. Note: Product design may have undergone changes, please contact sales for latest specifications.
