TOPOTEK KHP290A609 Dual Light Drone Gimbal - 9x Digital Zoom 1080P Visible Light Camera + 9.1mm 640x512 Thermal Imaging 3-Axis IP/HDMI PTZ Gimbal

TOPOTEK KHP290A609 Dual Light Drone Gimbal - 9x Digital Zoom 1080P Visible Light Camera + 9.1mm 640x512 Thermal Imaging 3-Axis IP/HDMI PTZ Gimbal

TOPOTEK

$5,539.00 USD
$5,539.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

4 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

TOPOTEK KHP290A609 Overview

The TOPOTEK KHP290A609 is an integrated 1080P visible-light camera with a 9.1mm focal length and a 640x512 thermal imaging module, supporting 9x digital zoom. The high-precision three-axis enhanced stability pod features high stability, small size, lightweight, and low power consumption by using dual output of network IP and HDMI. The visible light camera uses a wide dynamic CMOS sensor with an effective pixel count of 2 million, while the thermal imaging module uses a 640x512 resolution vanadium oxide detector. The system supports network RTSP stream output, four picture-in-picture modes, ten pseudo-color displays, and global temperature measurement. Both the serial port and network can control the camera and PTZ, supporting local TF dual recording and photographing.

Functional Characteristics

  • TF card dual recording
  • 1080P visible light
  • Four picture-in-picture modes
  • 640x512 thermal imager
  • Ten pseudo-color modes
  • Supports dual output of IP/HDMI
  • Supports 9x digital zoom
  • 3-axis stabilization pods
  • Network IP, UART, and SBUS control
  • Lightweight gimbal, 200g



Parameter Details
Voltage DC 12V-26.2V
Power Dynamic 4W
Working Status
Roll Angle action range -45° to +45°
Pitch Angle action range -45° to +100°
Yaw angle action range -140° to +140°
The amount of angular jitter in pitch and roll direction ±0.02°
Horizontal Angle jitter ±0.03°
One-click return function One-click automatic quick return to the initial position
The speed of the head control is adjustable The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera.
Control mode Support network IP control and serial port, SBUS control
Visible Light Camera
SENSOR CMOS SENSOR pixel: 2 mega pixels
Digital zoom Support 9x digital zoom
Compressed storage mode H264, H265, video streaming local TF storage
Field of view (FOV) FOV: 60° x 43°
HDMI video Micro-D HDMI 1080P 30fps
Network output mode 1080P 30fps
Thermal Imagery
Resolution ratio 640 x 512
Space between pixels 12μm
Type Uncooled vanadium oxide infrared thermal imagery instrument
Wavelength coverage 8~14μm
Heat sensitivity (NETD) ≤50mk@F1.0@25°C
Field angle 9.1mm lens, Angle: 48° x 38°
Measurement function (optional) Central point, the highest temperature and lowest temperature display temperature function; Global temperature measurement function
Dimensions Φ: 120mm H: 93.5mm
Work environment -10°C to +45°C / 20% to 80% RH
Stored Environment -20°C to +60°C / 20% to 95% RH
Main application Drone aerial photography
Weight 200 ± 10g



TOPOTEK KHP290A609 Dual Light Drone Gimbal, Compact lightweight gimbal weighing 120g, measuring 7.5cm long.

Lightweight gimbal with a total structure weighing only 120 grams, featuring a compact design and measuring 7.5 cm in length.

TOPOTEK KHP290A609 Dual Light Drone Gimbal, Advanced drone gimbal with dual light and thermal imaging capabilities.

TOPOTEK KHP290A609 Dual Light Drone Gimbal features a 9x digital zoom 1080P visible light camera with H.264/H.265 video compression and local TF storage. The gimbal supports IP/serial port/SBUS control, with one-click return function and automatic quick return to the initial position. The thermal imaging module has an uncooled vanadium oxide infrared thermal imagery instrument with a 9.1mm lens and a field of view (FOV) of 48°x38°. The gimbal offers a wide working temperature range (-10°C to +45°C), humidity range (20% to 80%), and storage environment range (-20°C to +60°C, 20% to 95%). With a weight of approximately 200g, the gimbal is suitable for drone aerial photography applications.

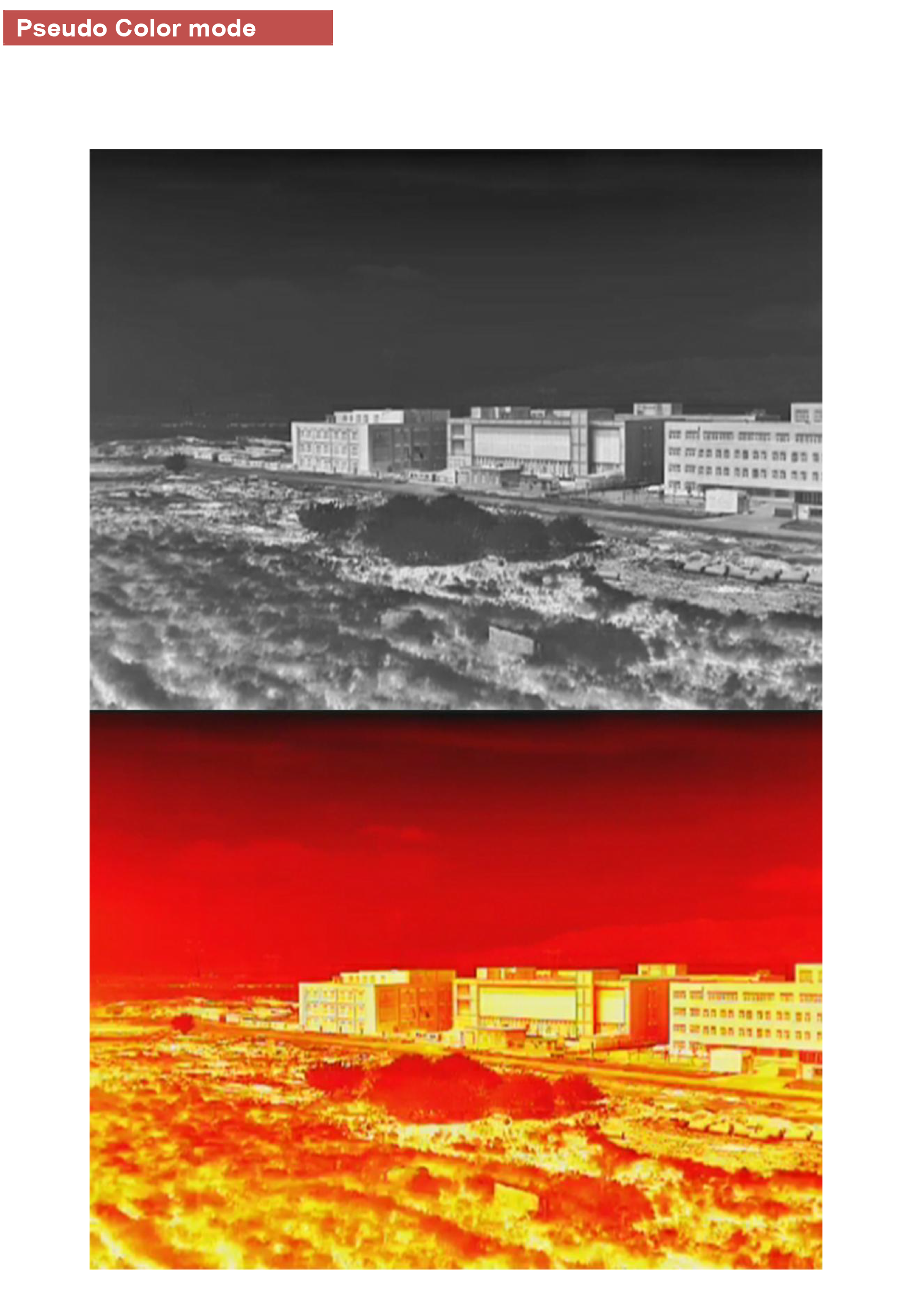

TOPOTEK KHP290A609 Dual Light Drone Gimbal, Network-enabled camera with RTSP streaming, multi-view modes, color options, and temperature sensing capabilities.

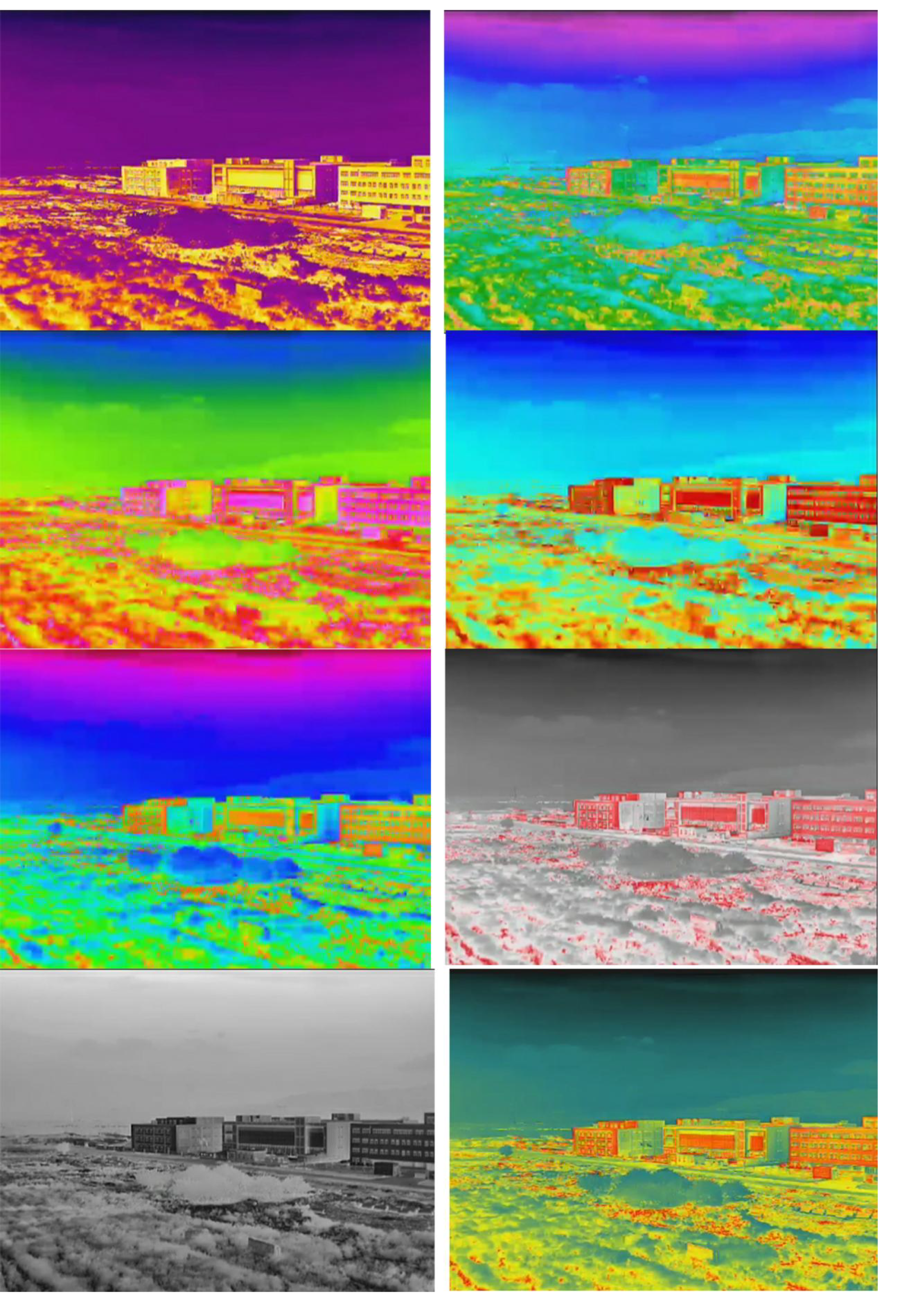

TOPOTEK KHP290A609 Dual Light Drone Gimbal, Thermal imaging camera with high-resolution sensor, zoom, and streaming capabilities for drone aerial photography.

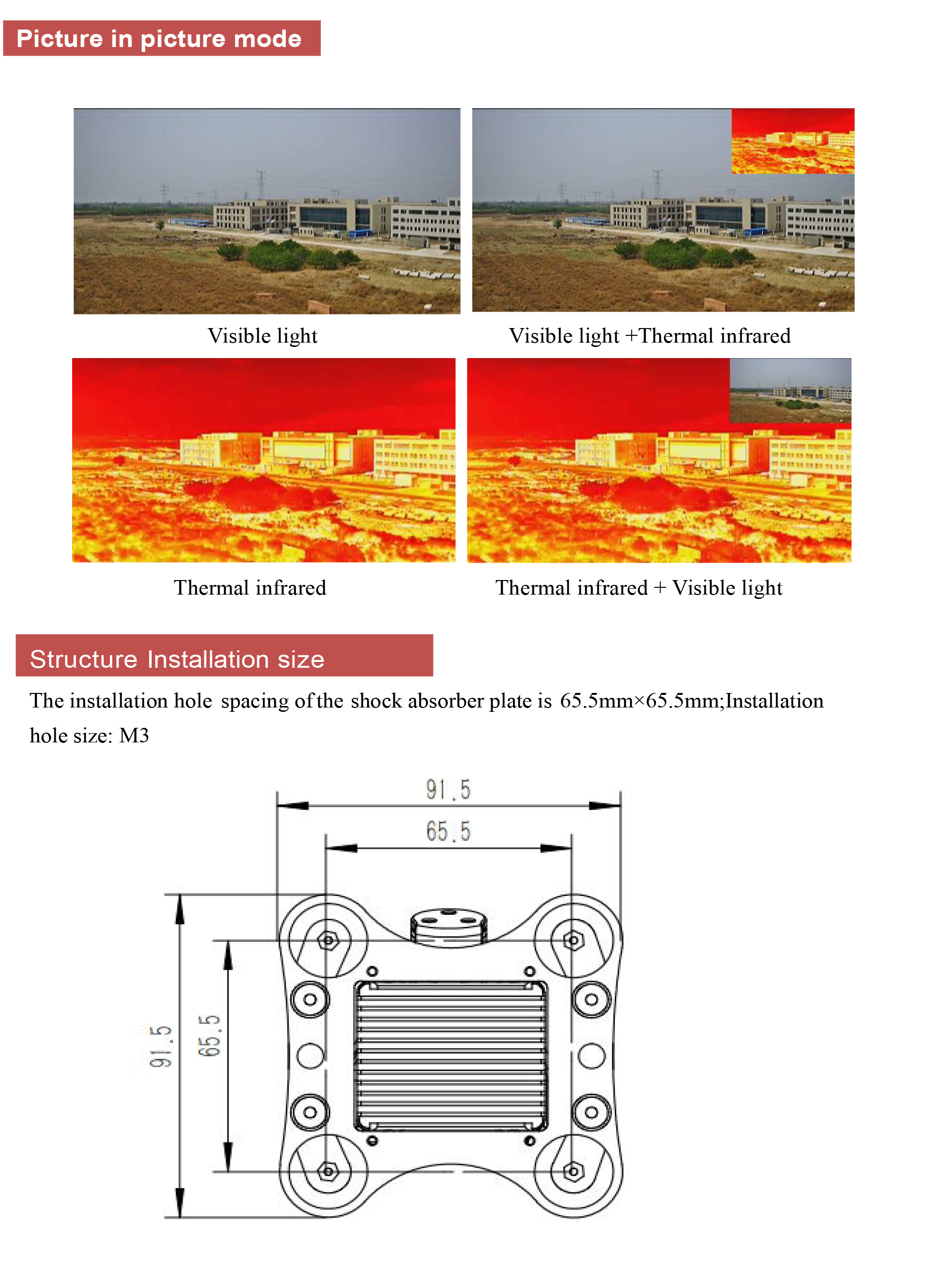

TOPOTEK KHP290A609 Dual Light Drone Gimbal, Compact design with dimensions of 91.5 x 65.5 x 3 cm, suitable for installation.

Compact design with dimensions of 91.5 x 65.5 x 3 cm, suitable for installation.

TOPOTEK KHP290A609 Dual Light Drone Gimbal, Dual light drone gimbal with 1080p camera and thermal imaging capabilities.

Dual light drone gimbal with 1080p visible light camera and thermal imaging capabilities, featuring a 3-axis PTZ gimbal for IP/HDMI connection, with connectivity options including TX/RX/SBUS/Micro-HD.
