TOPOTEK KHP335G609 Dual Light Drone Gimbal - Fixed Focus Visible Light Camera + 9.1mm 640x512 Thermal Imaging With 120g Small Gimbal, IP /HDMI output

TOPOTEK KHP335G609 Overview

The TOPOTEK KHP335G609 is a dual-light drone gimbal, integrating a fixed-focus visible light camera with a 4MP CMOS sensor, a 640×512 resolution thermal imaging module, and a high-precision professional 3-axis stabilized PTZ system. Designed for UAV aerial photography, it excels in applications requiring high stability, compact size, lightweight construction, and low power consumption.

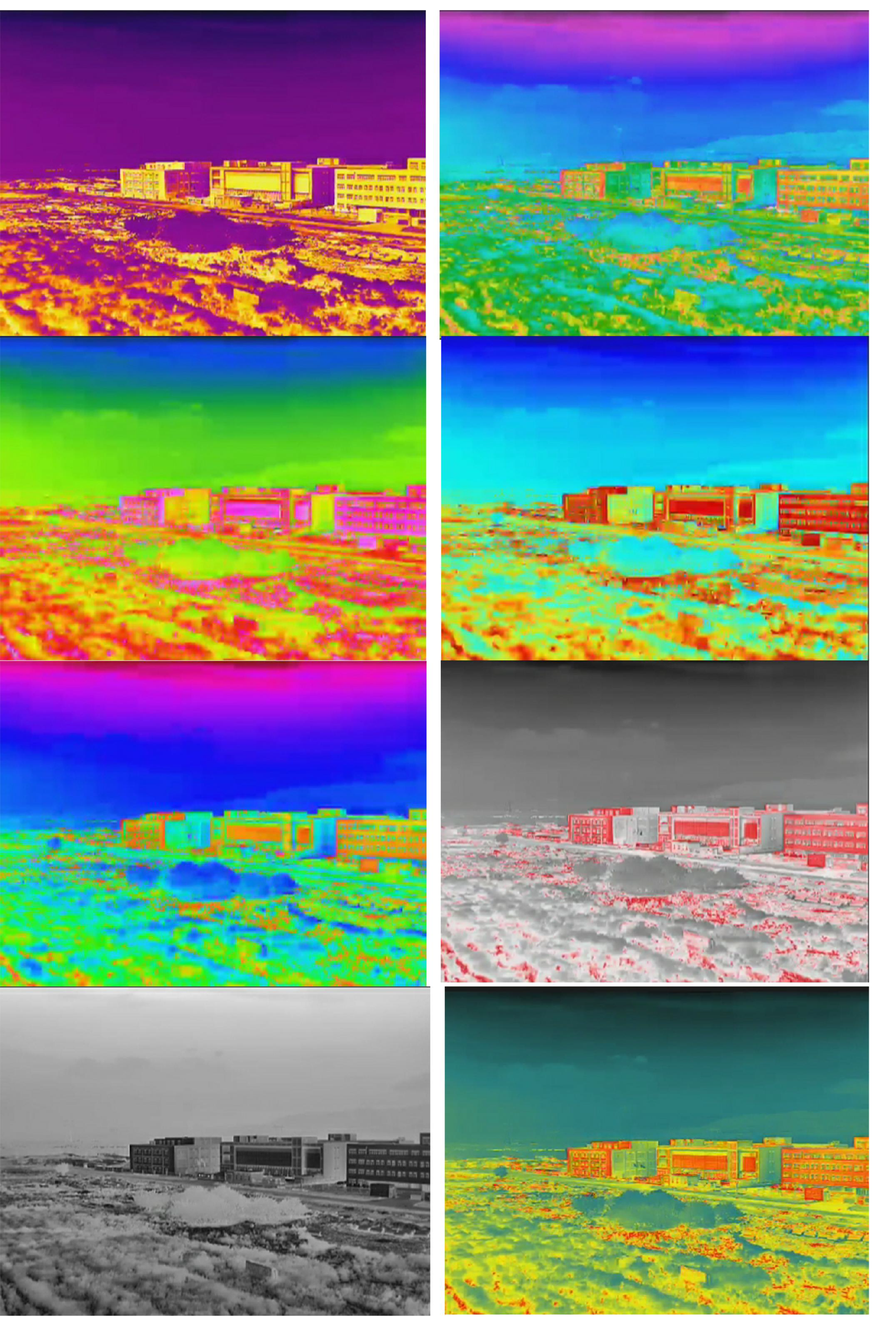

This gimbal supports both network IP and HDMI dual output, ensuring seamless integration with various control systems. The visible light camera delivers sharp and detailed images, while the thermal imaging module employs a vanadium oxide detector for precise thermal measurements. The system supports network RTSP stream output, picture-in-picture switching, multiple pseudo-color displays, and global temperature measurement. Both the serial port and the network can control the cameras and PTZ, and the system supports local TF two-way video recording and photography. With a 9x digital zoom, targets become more visible, and the thermal imaging lens has a focal length of 9.1mm for detailed thermal imaging.

TOPOTEK KHP335G609 Advantages

• Fixed focus visible light
• 640×512 IR camera
• 10 modes for pseudo color
• HDMI and IP interface dual output
• 9x digital zoom
• 4 modes for PIP (Picture-in-Picture)
• Network and UART control
• 3-axis stabilized gimbal, 120g

TOPOTEK KHP335G609 Specifications

Introducing TOPOTEK's KHP335G609, a compact gimbal camera featuring dual sensors: a fixed focus visible light camera and a thermal imaging camera with 9.1mm lens and 640x512 resolution.

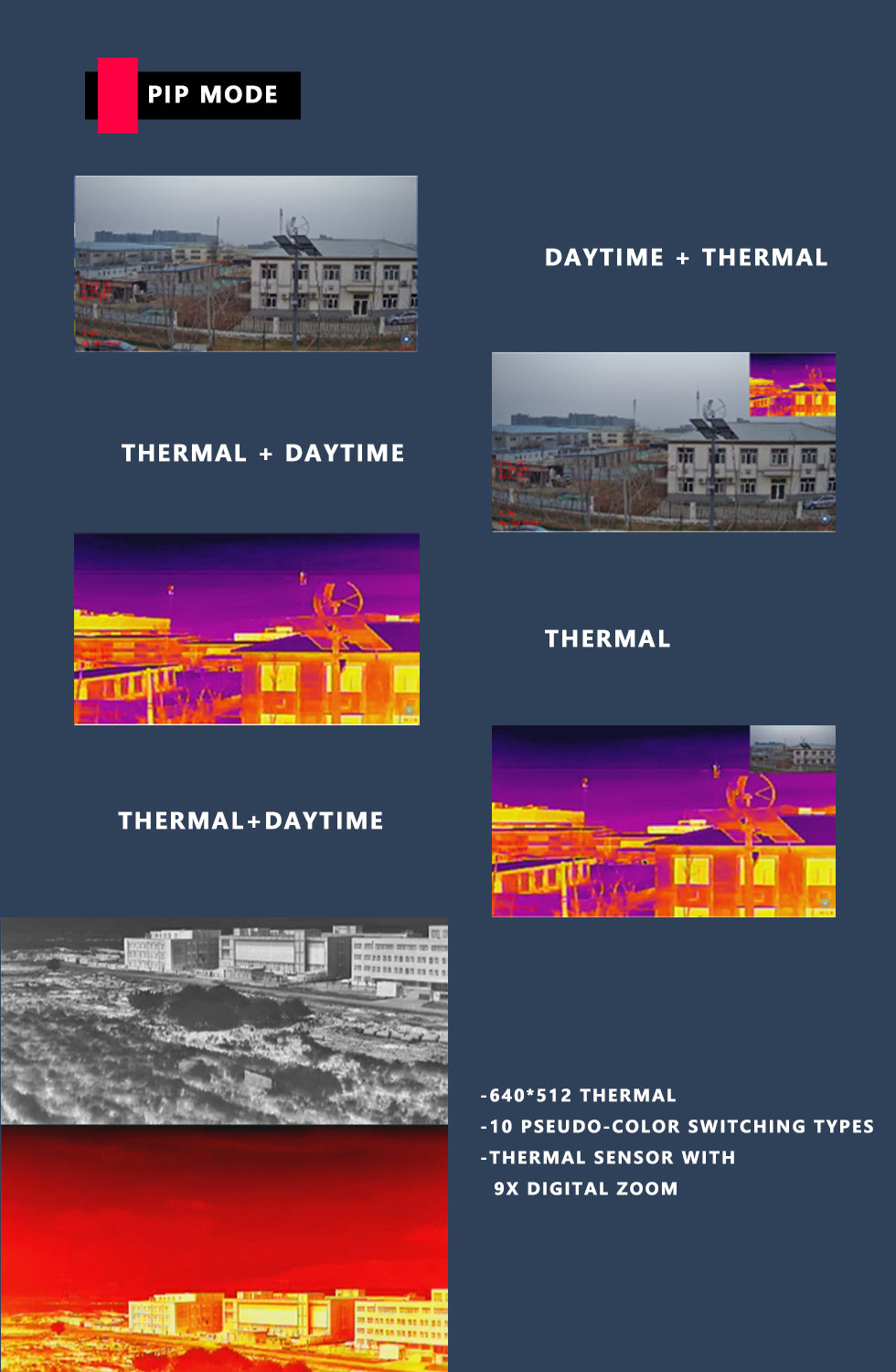

Equipped with a 9.1mm thermal imaging sensor, this drone gimbal features dual light cameras for daytime and nighttime use, with digital zoom and picture-in-picture capabilities. It also includes AI-powered human and vehicle identification, tracking, and switching modes. Output options include IP/HDMI and Ethernet (RTP/RTSP). Weighing only 120g, this compact gimbal is perfect for aerial photography and surveillance.

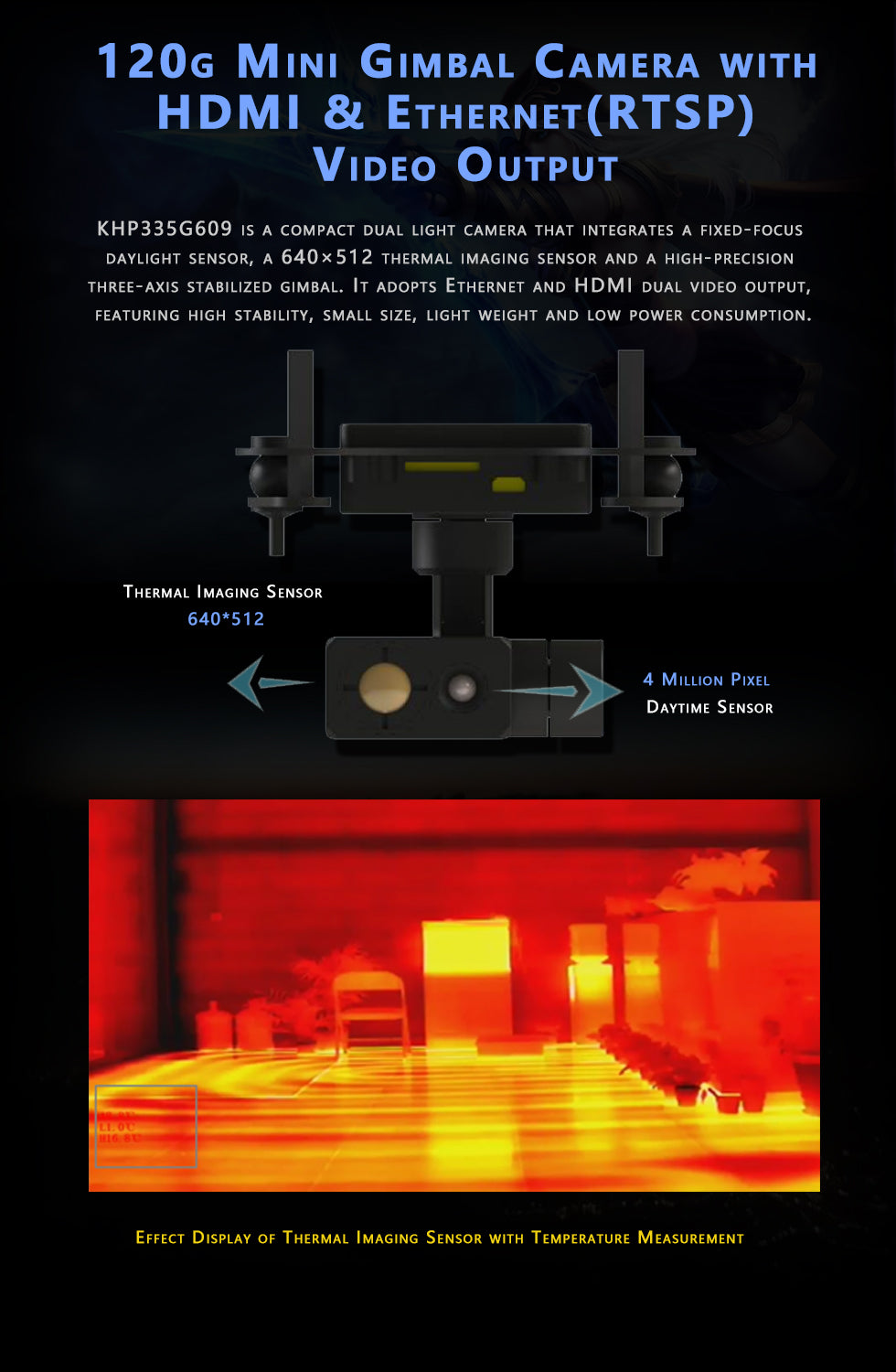

Quote: The TOPOTEK KHP335G609 dual light drone gimbal features a compact and lightweight design, integrating a fixed-focus daylight camera, 640x512 thermal imaging sensor, and high-precision three-axis stabilized gimbal. It offers dual video output via Ethernet and HDMI, providing high stability, small size, low power consumption, and advanced thermal imaging capabilities with temperature measurement.

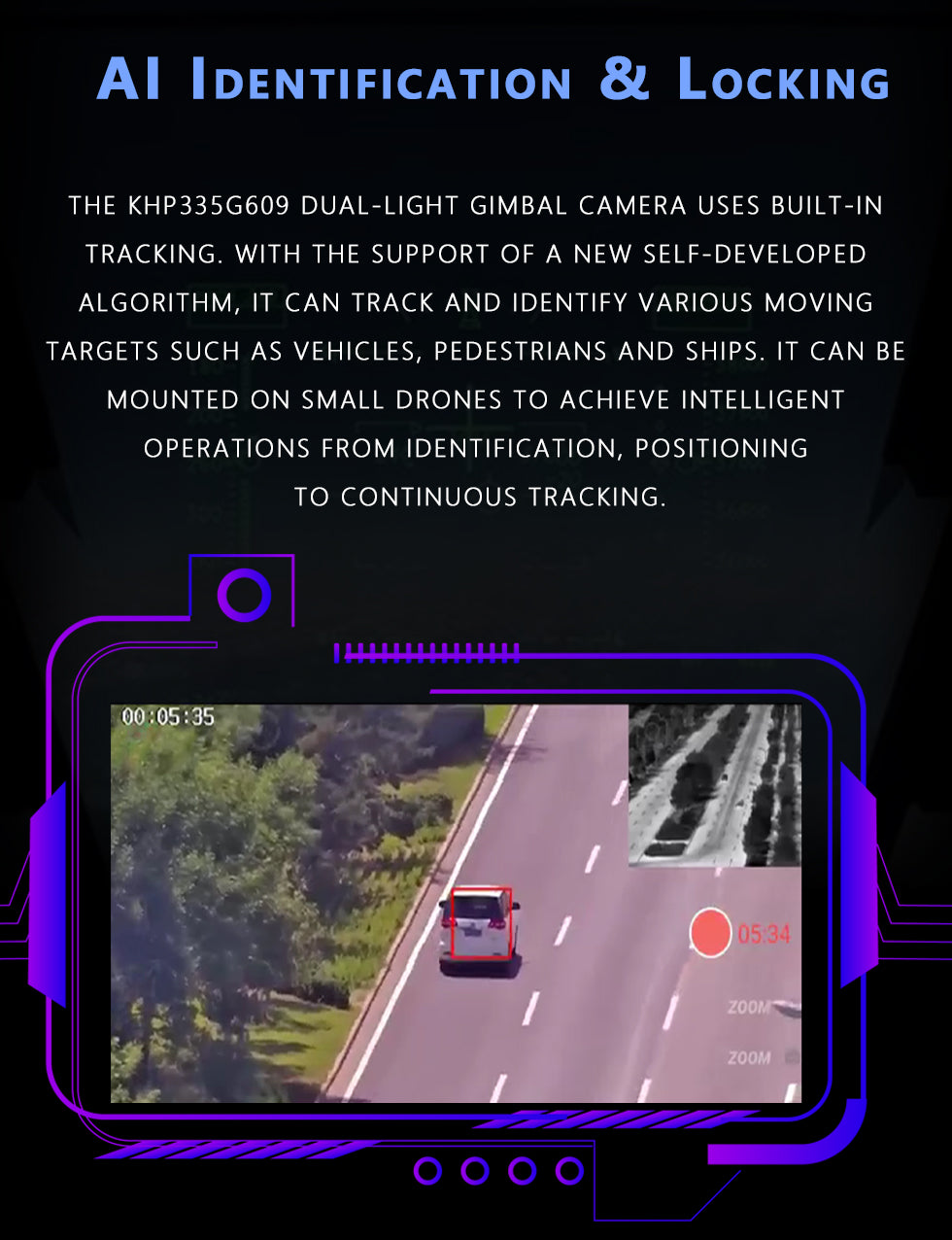

Identify and track various moving targets like vehicles, pedestrians, and ships with the KHP335G609 dual-light gimbal camera's built-in tracking feature, utilizing a self-developed algorithm. This intelligent system can be mounted on small drones for seamless identification, positioning, and continuous tracking operations.

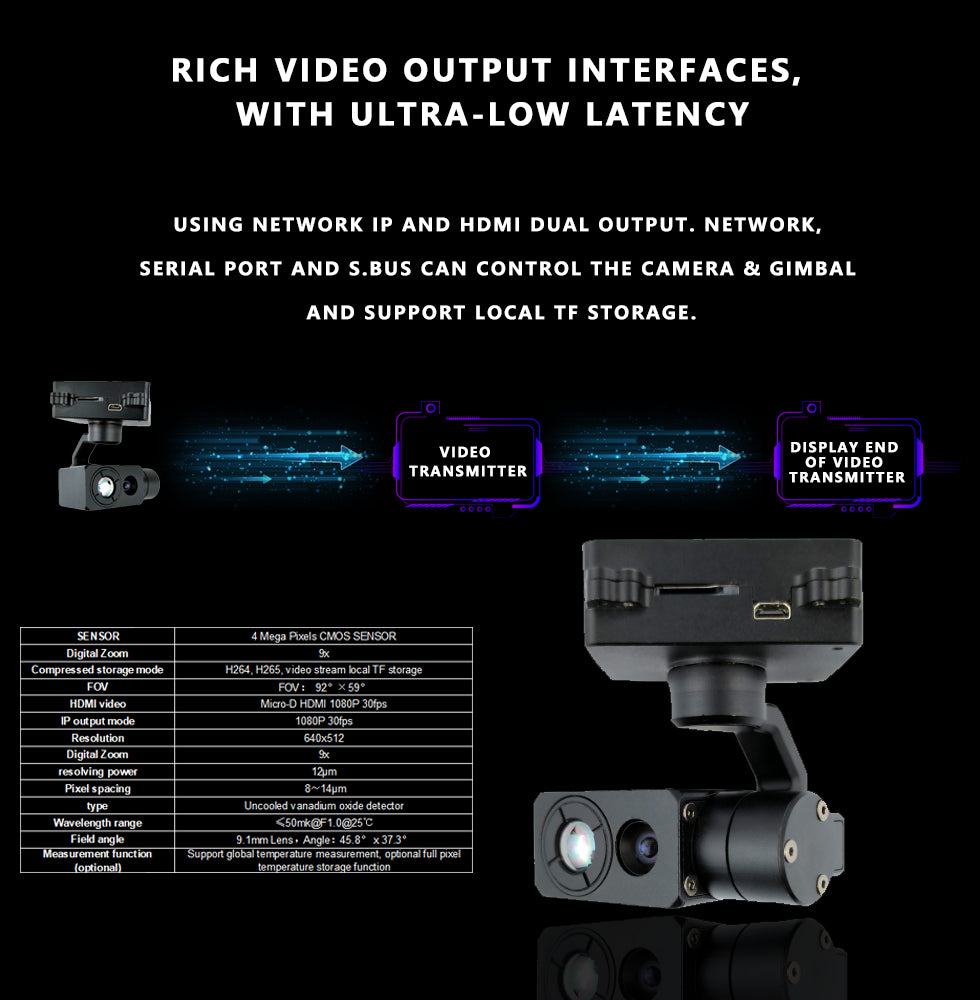

Rich video output interfaces with ultra-low latency using network IP and HDMI dual output, while also featuring network serial port and S.Bus control for camera and gimbal settings, as well as local TF storage. The system supports high-quality video transmission with H264/H265 compression, 640x512 resolution, digital zoom, and optional temperature measurement and storage.

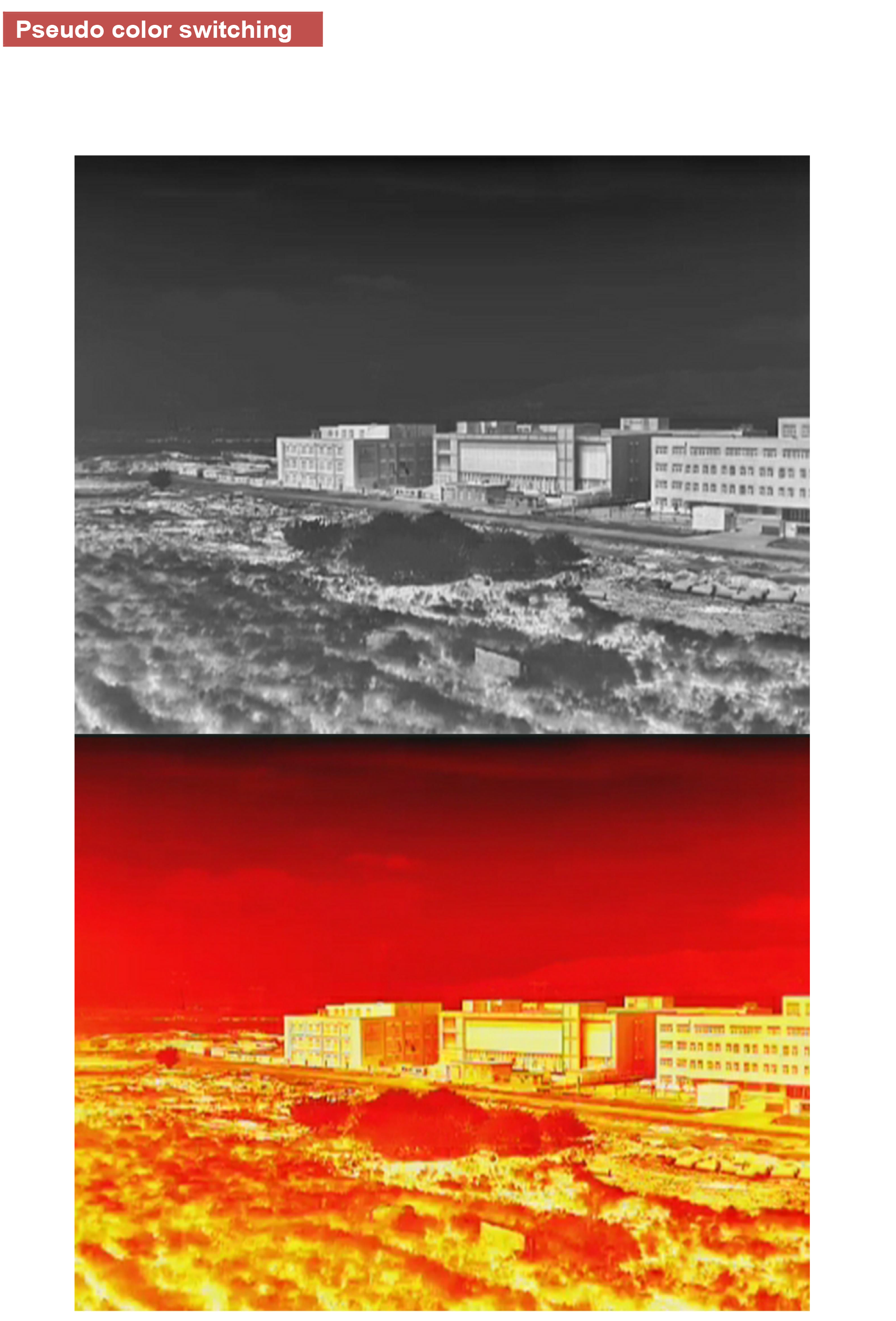

Features thermal imaging with 640x512 resolution, pseudo-color switching types, and a 9x digital zoom, plus daytime visible light camera with fixed focus.

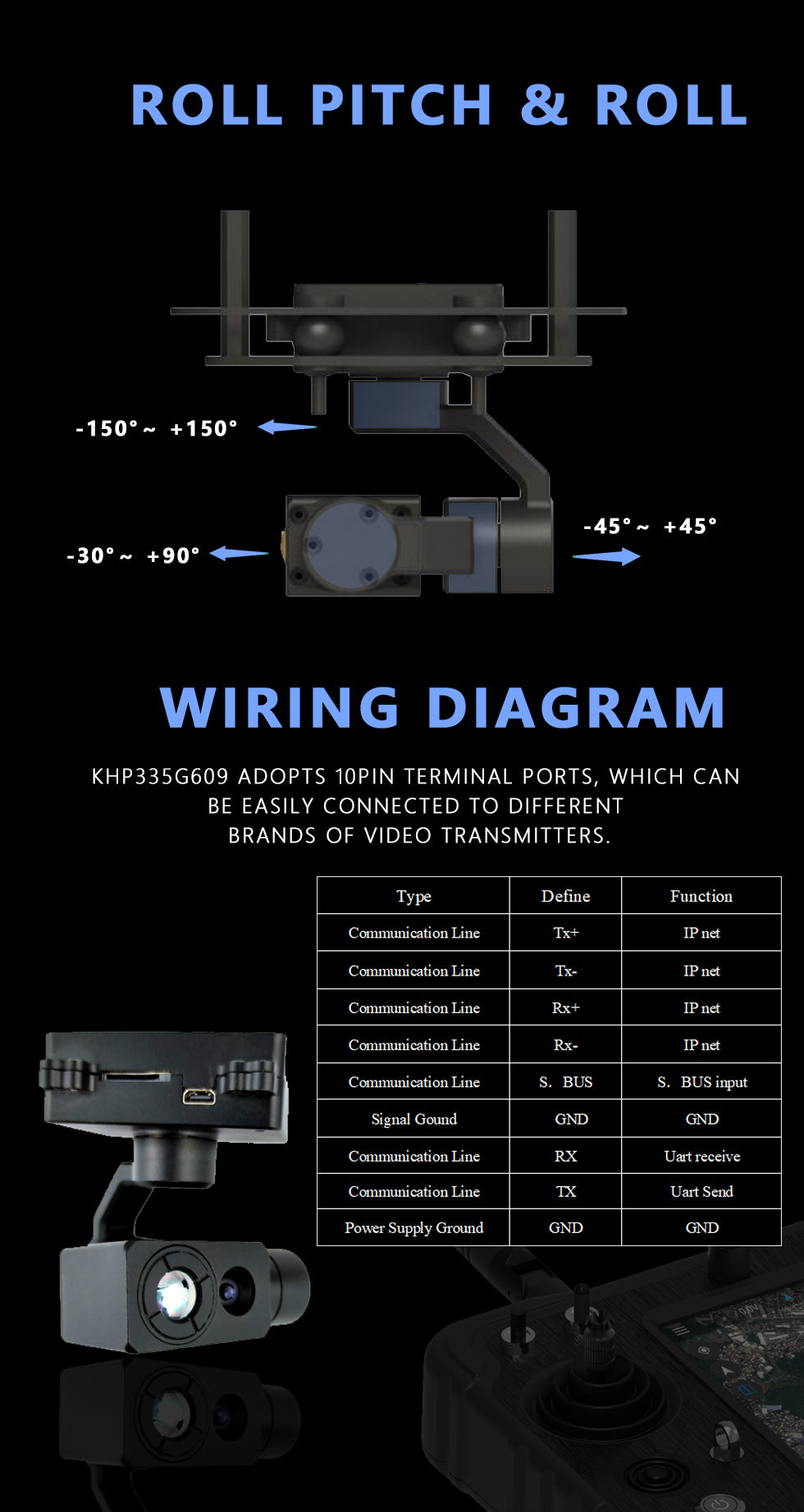

Quote: The TOPOTEK KHP335G609 gimbal features 150° of pitch and roll, with a wiring diagram that adopts IOPIN terminal ports for easy connection to various video transmitters from different brands. This gimbal has IP output, HDMI output, and supports visible light and thermal imaging cameras.

Compact design with a weight of only 120g, features an IP/HDMI output and fixed focus camera for efficient operations.

The TOPOTEK KHP335G609 dual light drone gimbal features a fixed focus visible light camera and 640x512 thermal imaging, with a 9.1mm sensor and 12V-26.2V DC power. The gimbal has a roll angle of -45 to +45 degrees, pitch angle of 30 to +90 degrees, yaw angle of -150 to +150 degrees, and jitter angle of +0.02 degrees. It supports one-click restore, adjustable gimbal speed, IP network control, and sensor parameters like daylight compressed storage mode H264/H265.

Features picture-in-picture switching; compact dimensions of 91.5x50x65.5mm.

Connect your drone to a monitor or tablet via micro-HDMI, transmit data through SBUS or TX/RX, and power it with a VCC input; also features a type-C interface for ease of use.
