TOPOTEK KHP335M608 Overview
The TOPOTEK KHP335M608 is a fixed-focus dual-light drone gimbal that integrates a fixed-focus visible light camera, an 8.7mm focal length 640x512 thermal camera, and a high-precision professional 3-axis stabilized PTZ. It supports network IP and HDMI dual output. The gimbal is characterized by high stability, small size, lightweight, and low power consumption. The visible light camera uses a CMOS sensor with 4 million effective pixels, while the thermal imaging adopts a 640x512 resolution vanadium oxide detector. The system supports network RTSP stream output, picture-in-picture switch, multiple pseudo color display, and global temperature measurement functions. Both the serial port and the network can control the cameras and PTZ, and support local TF two-way video recording and photography.
TOPOTEK KHP335M608 Advantages
- Fixed focus visible light
- 640 x 512 thermal camera

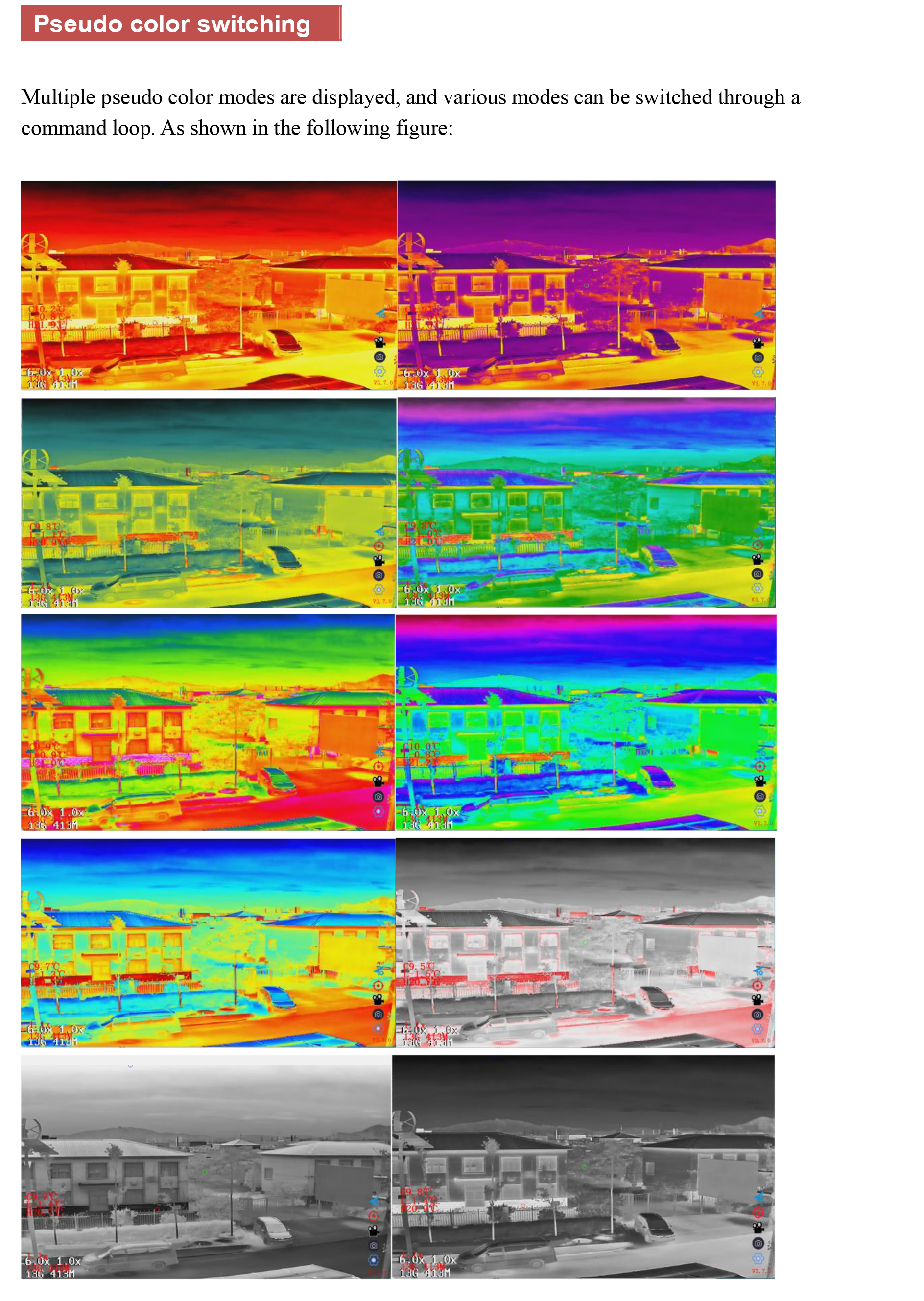

- Multiple pseudo color
- HDMI and IP interface dual output
- 9x digital zoom
- Picture-in-picture switch
- IP, SBUS, UART control
- Lightweight gimbal, 120g
TOPOTEK KHP335M608 Specifications
Voltage | DC 12V-26.2V |
---|---|
Power | Dynamic 4W |
Technical Parameters | |
Roll Angle | -45° to +45° |
Pitch Angle | -30° to +90° |
Yaw Angle | -150° to +150° |
Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
One-Click Restore | One-click restore to the initial position |
Adjustable Gimbal Speed | When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera. |
Control mode | Support network IP UART control (SBUS and PWM are optional) |
Daylight Sensor Parameters | |
SENSOR | 4 Mega Pixels CMOS SENSOR |
Digital Zoom | 9x |
Compressed storage mode | H264, H265, video stream local TF storage |
FOV | FOV: 92° x 59° |
HDMI video | Micro-D HDMI 1080P 30fps |
IP output mode | 1080P 30fps |
Thermal imager Parameters | |
Resolution | 640x512 |
Digital Zoom | 9x |
Pixel spacing | 10μm |
Wavelength range | 8~14μm |
Type | Uncooled vanadium oxide detector |
Wavelength sensitivity (NETD) | ≤50mk@F1.0@25°C |
Field angle | 8.7mm Lens, Angle: 40.0° x 32.2° |
Measurement function (optional) | Support global temperature measurement, optional full pixel temperature storage function |
Gimbal Size | Φ:120mm H:68mm |
Working Condition | -10°C to +55°C / 20% to 80% RH |
Storage Environment | -20°C to +60°C / 20% to 95% RH |
Main applications | UAV aerial photography |
Weight | 120 ± 10g |
Unique design combines dual light and thermal imaging capabilities with 3-axis gimbal for stable footage and high-quality visuals.

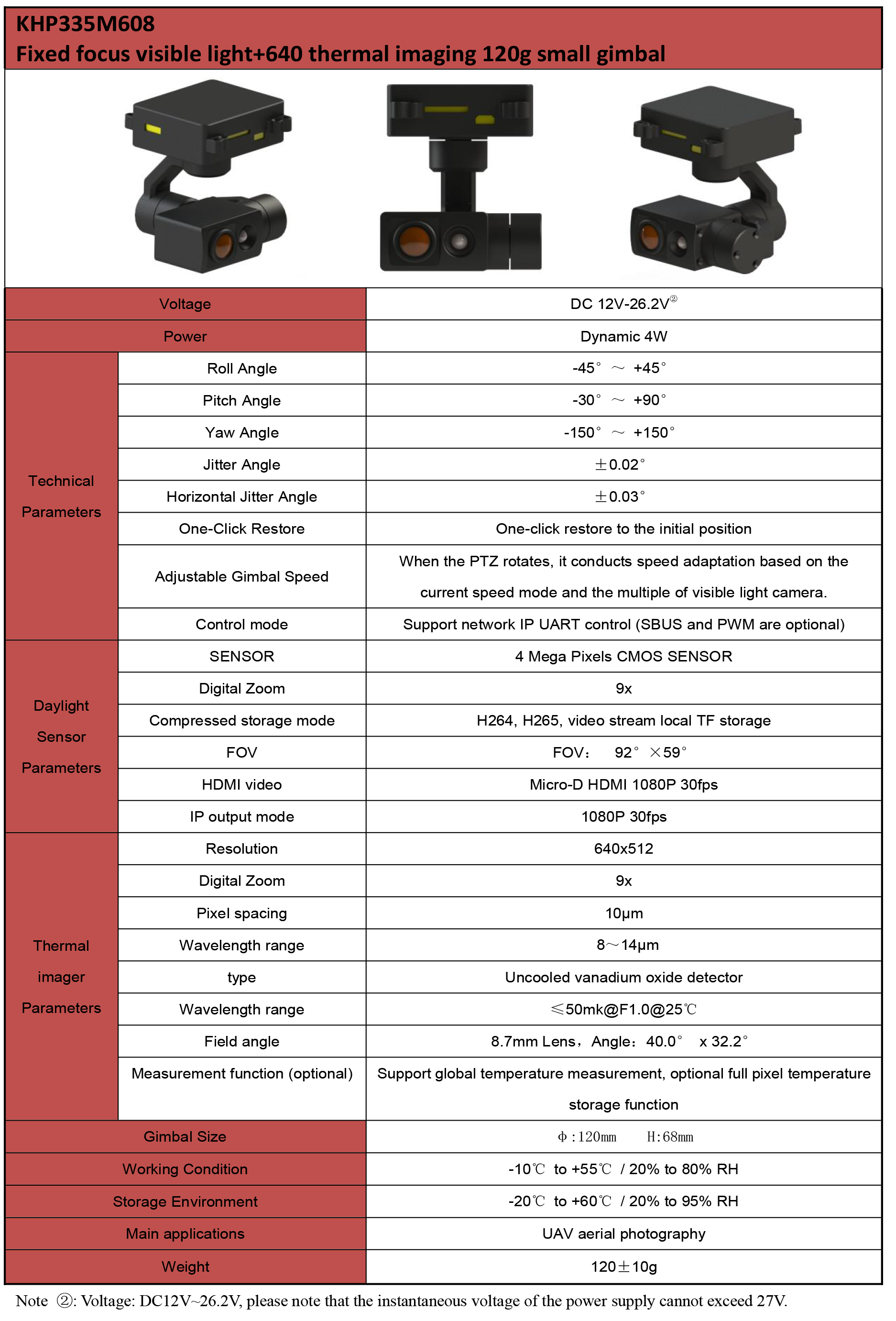

TOPOTEK KHP335M608: A compact dual-light drone gimbal featuring a 9x digital zoom, 1080P visible light camera, and 640x512 thermal imaging with 3-axis gimbal. Key specs include 120g weight, 12V-26.2V voltage range, and adjustable speed modes. Supports IP and UART control (optional SBUS and PWM). Includes a 4MP CMOS sensor, daylight compressed storage mode, and local TF storage. Outputs HDMI video at 1080P/3Ofps, with optional thermal imaging resolution of 640x512.

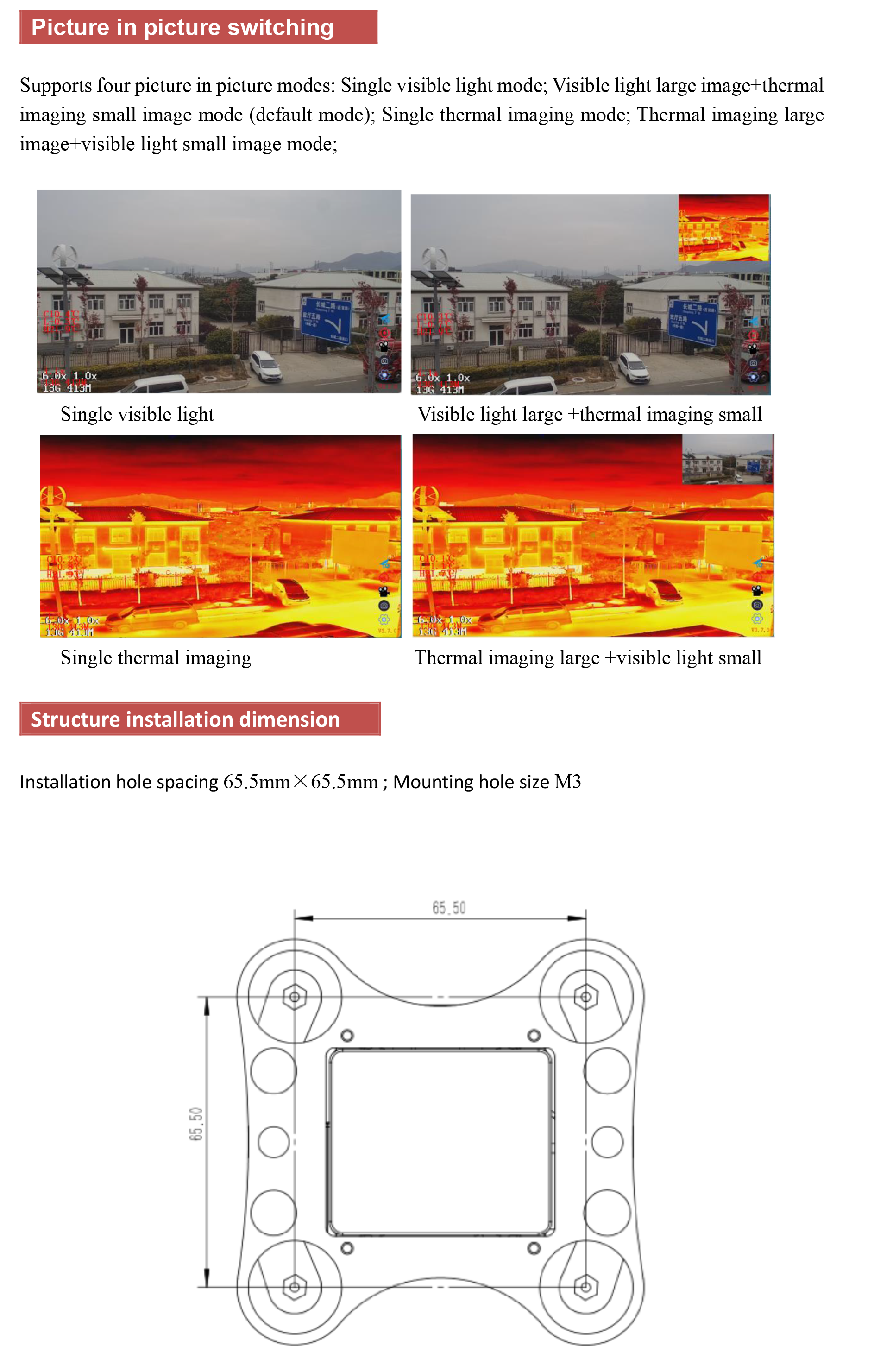

Picture-in-picture switching enabled for enhanced video monitoring, with features including a 1080p visible light camera and 640x512 thermal imaging, all controlled by a 3-axis gimbal with IP/HDMI output.

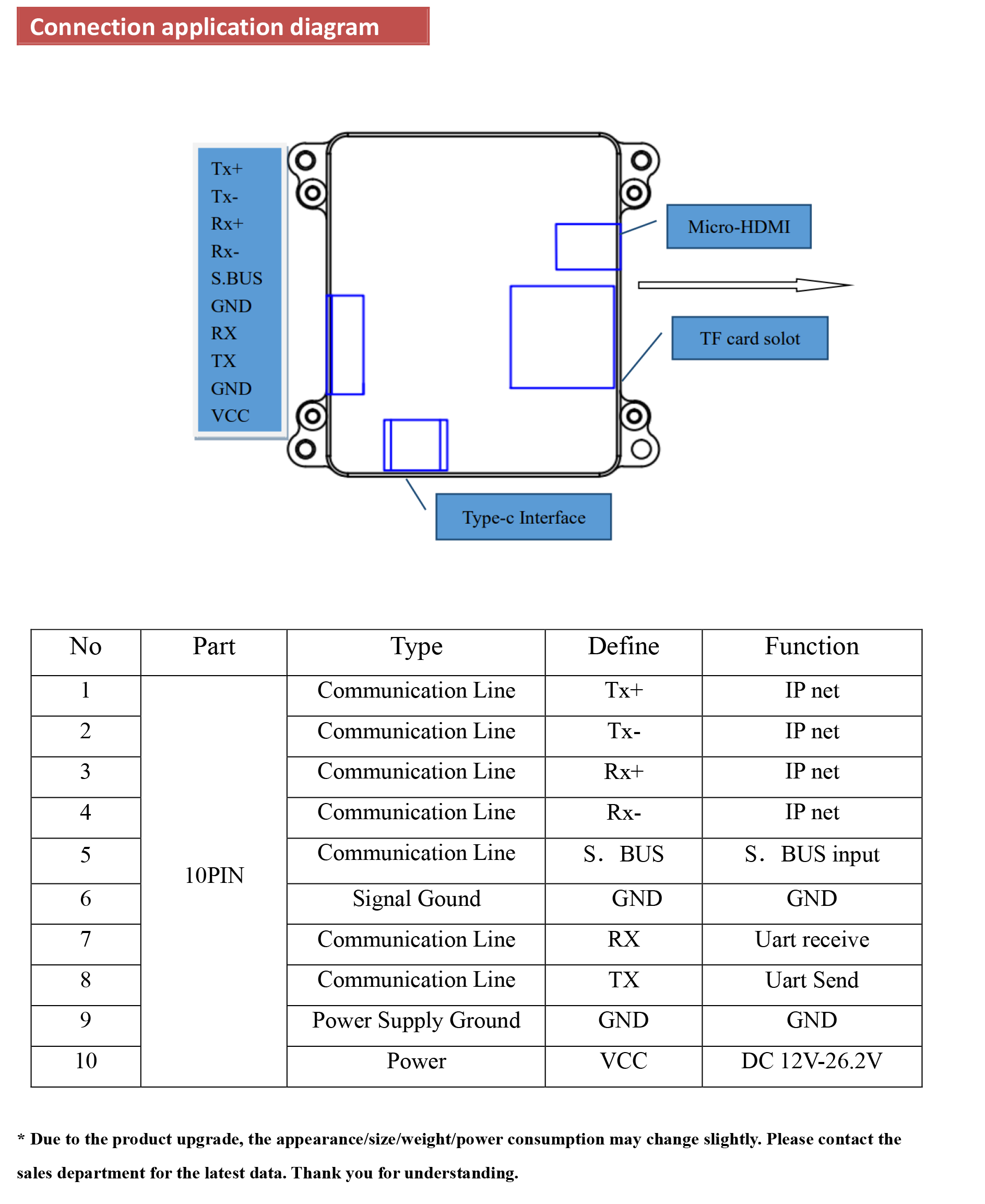

Connect devices via USB-C interface, or use HDMI output for monitor display, featuring IP/HD/MI outputs and a TF card slot for data storage.
![TOPOTEK KHP335M608 Dual Light Drone Gimbal - 9X Digital Zoom 1080P Visible Light Camera + 8.7mm 640x512 Thermal Imaging With 3-Axis Gimbal, IP /HDMI output](http://rcdrone.top/cdn/shop/files/KHP335M608_Fixed_focus_visible_light_640x512_thermal_imaging_dual_light_120g_small_gimbal_IP_HDMI_output_1704766785882_0.png?v=1717318423&width=1445)
![TOPOTEK KHP335M608 Dual Light Drone Gimbal - 9X Digital Zoom 1080P Visible Light Camera + 8.7mm 640x512 Thermal Imaging With 3-Axis Gimbal, IP /HDMI output](http://rcdrone.top/cdn/shop/files/KHP335M608_Fixed_focus_visible_light_640x512_thermal_imaging_dual_light_120g_small_gimbal_IP_HDMI_output_1704766785882_1.png?v=1717318423&width=1445)
![TOPOTEK KHP335M608 Dual Light Drone Gimbal - 9X Digital Zoom 1080P Visible Light Camera + 8.7mm 640x512 Thermal Imaging With 3-Axis Gimbal, IP /HDMI output](http://rcdrone.top/cdn/shop/files/KHP335M608_Fixed_focus_visible_light_640x512_thermal_imaging_dual_light_120g_small_gimbal_IP_HDMI_output_1704766785882_2_1.png?v=1717318423&width=1445)
