TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal - 9.1mm+50mm 640x512 Thermal Imaging Camera Network Gimbal for UAV Drone Night Vision

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal - 9.1mm+50mm 640x512 Thermal Imaging Camera Network Gimbal for UAV Drone Night Vision

TOPOTEK

$14,999.00 USD
$14,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

2 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

TOPOTEK KHPA60950 Description

The KHPA60950 is a high-precision professional three-axis stabilization pod that integrates 9.1mm focal length thermal imaging and 50mm focal length thermal imaging. It adopts HDMI and network IP dual output, and the gimbal camera uses a high-precision encoder FOC control scheme characterized by high stability and strong functional integration. The thermal imaging uses a 640x512 resolution 17μm vanadium oxide detector. The system supports network RTSP picture-in-picture code stream output, internal dual-channel video synthesis into a single code stream output, and supports multiple picture-in-picture modes. The gimbal camera can be controlled synchronously through the serial port, S.BUS, and network. It supports local TF storage and simultaneous dual recording with one card.

TOPOTEK KHPA60950 Features

  • 9.1mm focal length thermal imaging
  • 50mm focal length thermal imaging
  • 9x Digital Zoom
  • High precision and high collaborative control algorithm
  • Zero-second real-time switching
  • Menu parameter adjustment
  • TF card dual recording
  • Multiple picture-in-picture pseudo-color modes

TOPOTEK KHPA60950 Specifications

Parameter Details
Voltage DC 12V-26.2V
Power Supply Dynamic 7.5W
Working Status
Roll Angle -45° to +45°
Pitch Angle -45° to +120°
Yaw Angle -280° to +280°
Angle jitter in Pitch and Roll ±0.02°
Horizontal angle jitter ±0.03°
One click return function One click automatic quick return to the initial position
PTZ control speed adjustable When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera.
Control mode Support network IP control, serial port control, S.BUS control (optional PWM control)
Thermal Camera 1
Resolution 640 x 512 pixels
Pix Spacing 12 μm
Type Uncooled vanadium oxide
Wavelength coverage 8~14 μm
Thermal sensitivity NETD ≤50mk@25°C@F1.0
Video output Ethernet (RTSP)
Field angle 9.1mm lens, FOV: 48.7° x 38.6°
Measurement function (optional) Support global temperature measurement, optional full-pixel temperature saving function
Thermal Camera 2
Resolution 640 x 512 pixels
Pix Spacing 17 μm
Type Uncooled vanadium oxide
Wavelength coverage 8~14 μm
Thermal sensitivity NETD ≤40mk@F1.0
Video output Ethernet (RTSP)
Field angle 50mm lens, FOV: 8.78° x 7.03°
Measurement function (optional) Support global temperature measurement, optional full-pixel temperature saving function
Device Size Φ:178mm H:170mm
Working Condition -10°C to +45°C / 20% to 80% RH
Stored Environment -20°C to +60°C / 20% to 95% RH
Weight 700 ± 20g



TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Advanced thermal imaging gimbal with dual cameras for UAV drone night vision applications.

Future device structure 178, 2 - unclear phrase, please provide context or rephrase for clarity.

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Thermal imaging gimbal for drones, captures 640x512 images in low light conditions.

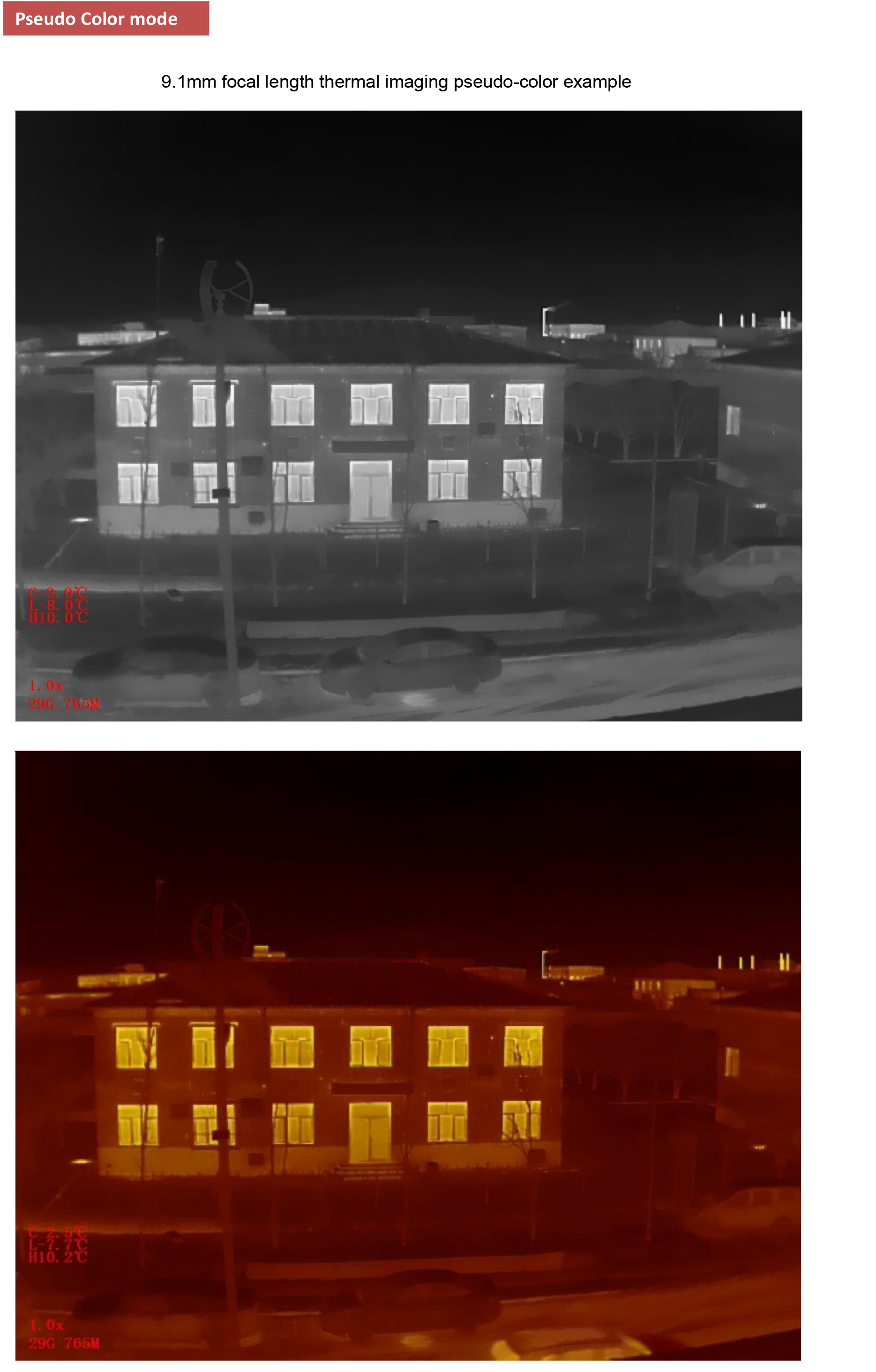

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Stable and integrated gimbal camera with HDMI/IP outputs and FOC control.

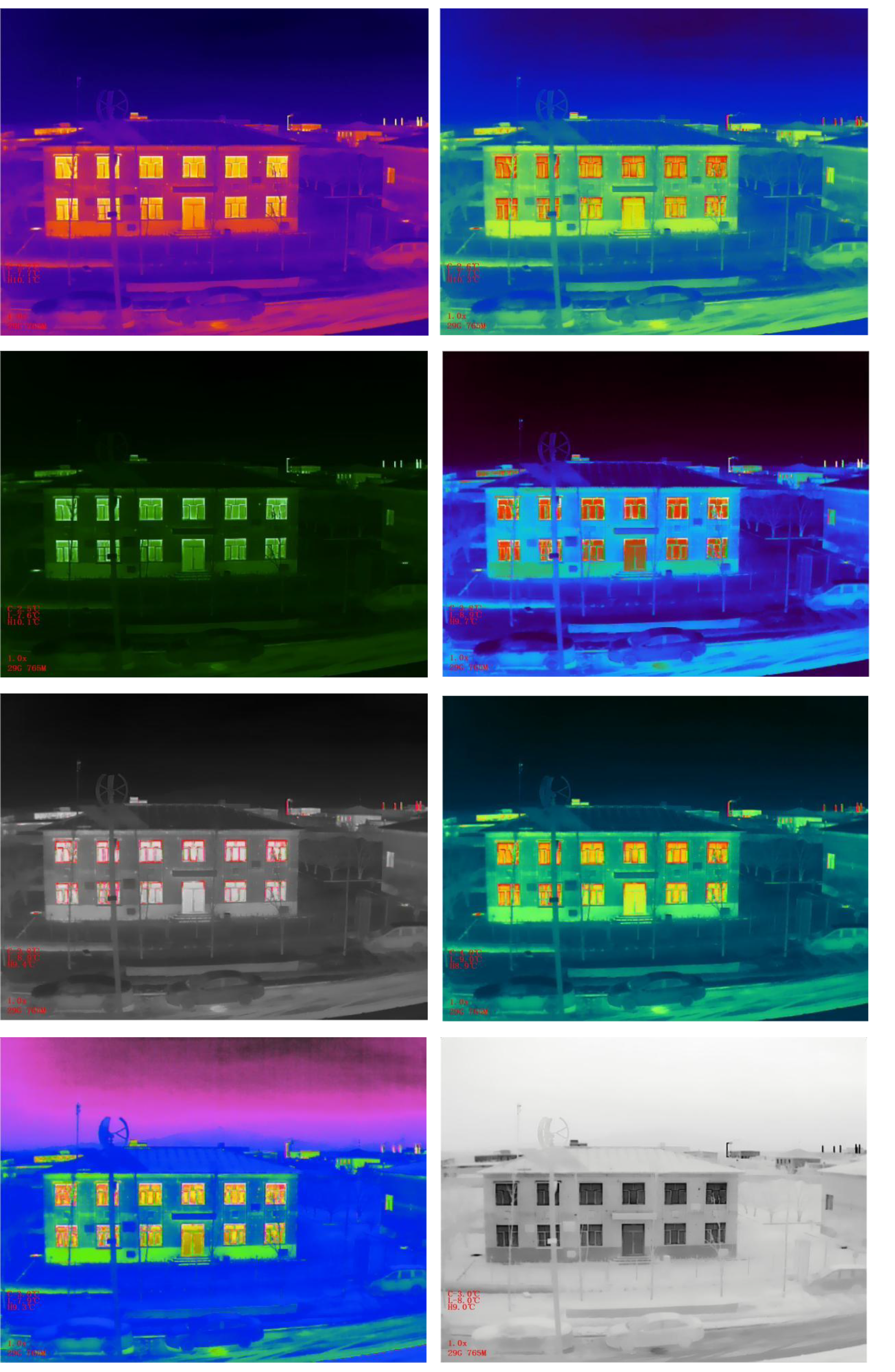

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Control gimbal camera via serial port, S.BUS, or network for precise synchronization.

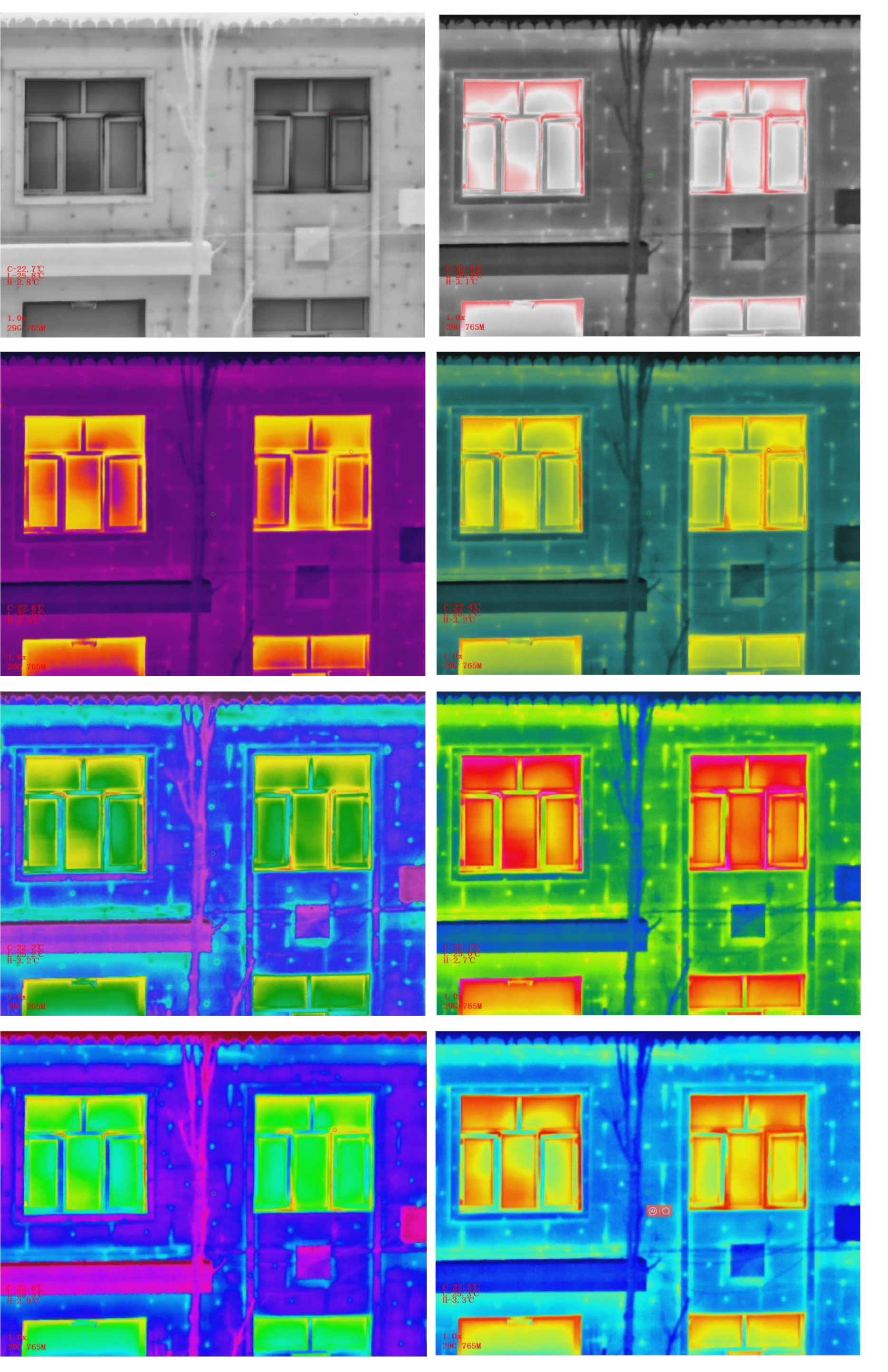

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Network media processing with RTSP support, dual-channel video synthesis, and multi-picture-in-picture mode options.

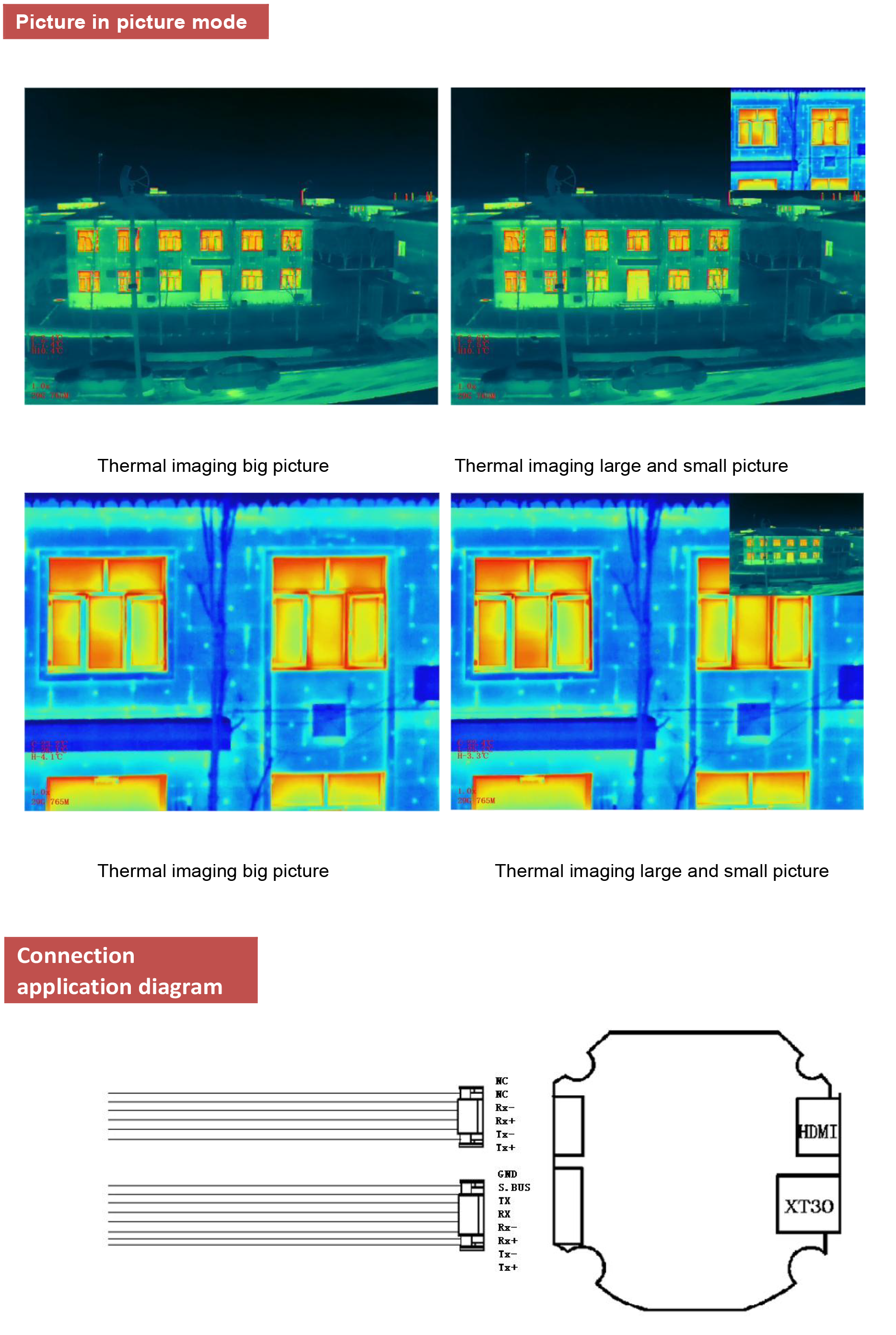

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, Seamless imaging with picture-in-picture mode, VGA output, and HDMI connectivity.

Features 'picture-in-picture' mode, VGA output, and HDMI connectivity for seamless imaging. Includes connection diagrams for NC, HC, RX, and BUS systems.

TOPOTEK KHPA60950 Dual Thermal Imaging Gimbal, TF storage support and dual recording capability on a single card.
