TOPOTEK KHY10G207 Dual Light Drone Gimbal - 10X Optical / 90x Mixed Zoom 1080P Visible Light Camera + 7mm 256x192 Thermal Camera 3-Axis Gimbal IP/HDMI Output

TOPOTEK KHY10G207 Overview

The KHY10G207 is a 90x mixed zoom camera gimbal integrated with a 7mm lens, 256×192 vanadium oxide infrared thermal imager, and high-precision three-axis stabilization. It supports IP and HDMI output, providing high stability, a compact form, lightweight, and low power consumption. The visible light camera uses a 2MP WDR sensor and supports control via serial port, S.BUS, and IP, with backup to TF card storage. The system also supports various PIP (Picture-in-Picture) modes, pseudo-color patterns, and global temperature measurement.

TOPOTEK KHY10G207 Features

• 90x Mixed Zoom
• 256x192 Thermal Imagery
• 4 PIP Modes

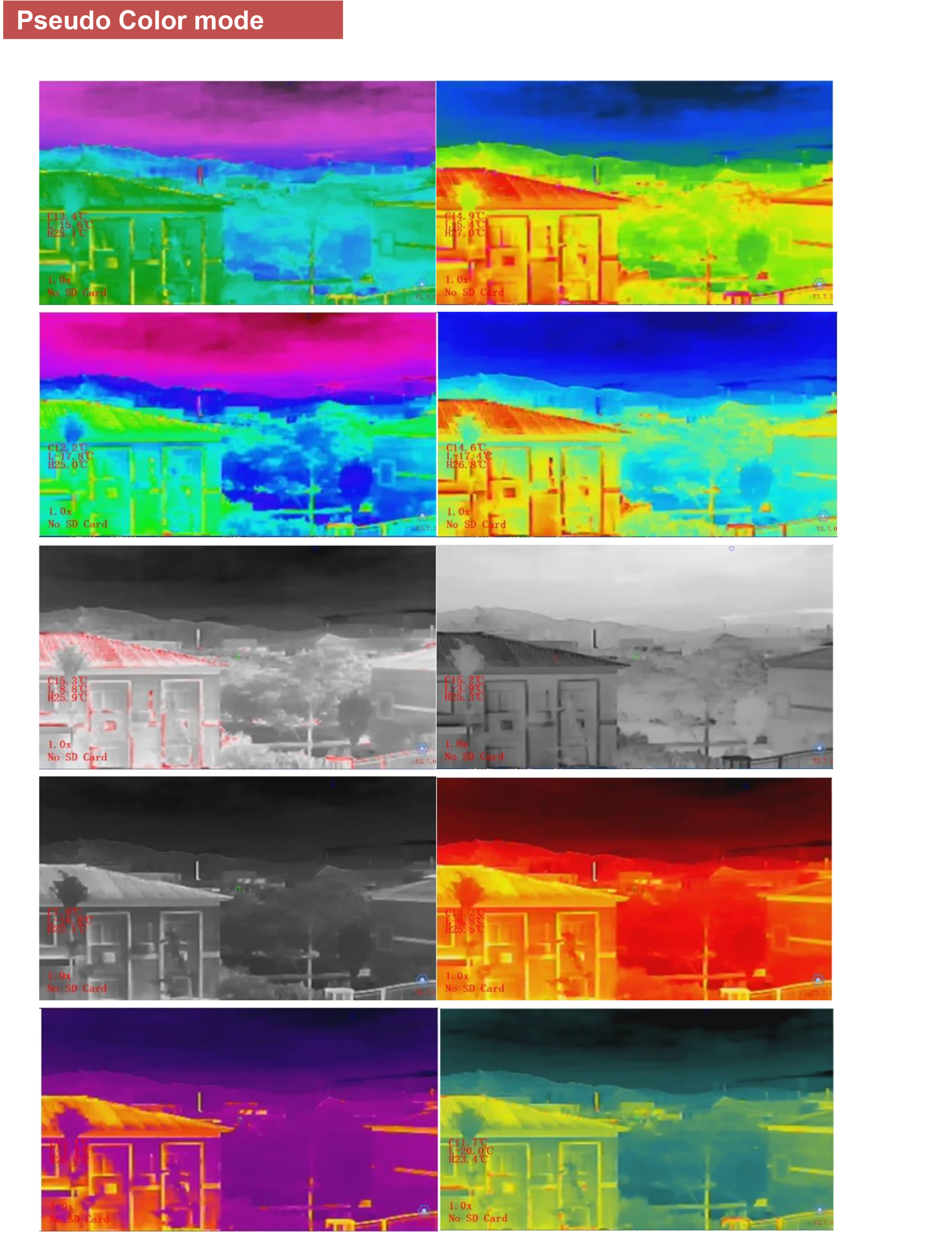

• 10 Pseudo Color Patterns
• TF Card Supports Dual Recording and Internet Read and Write
• HDMI and Ethernet Output
• Ground Station Display & Control
• Weight: 470g
• High Precision and Coordination Control Algorithm
• 3-axis Stabilizer
• UART and Ethernet Control

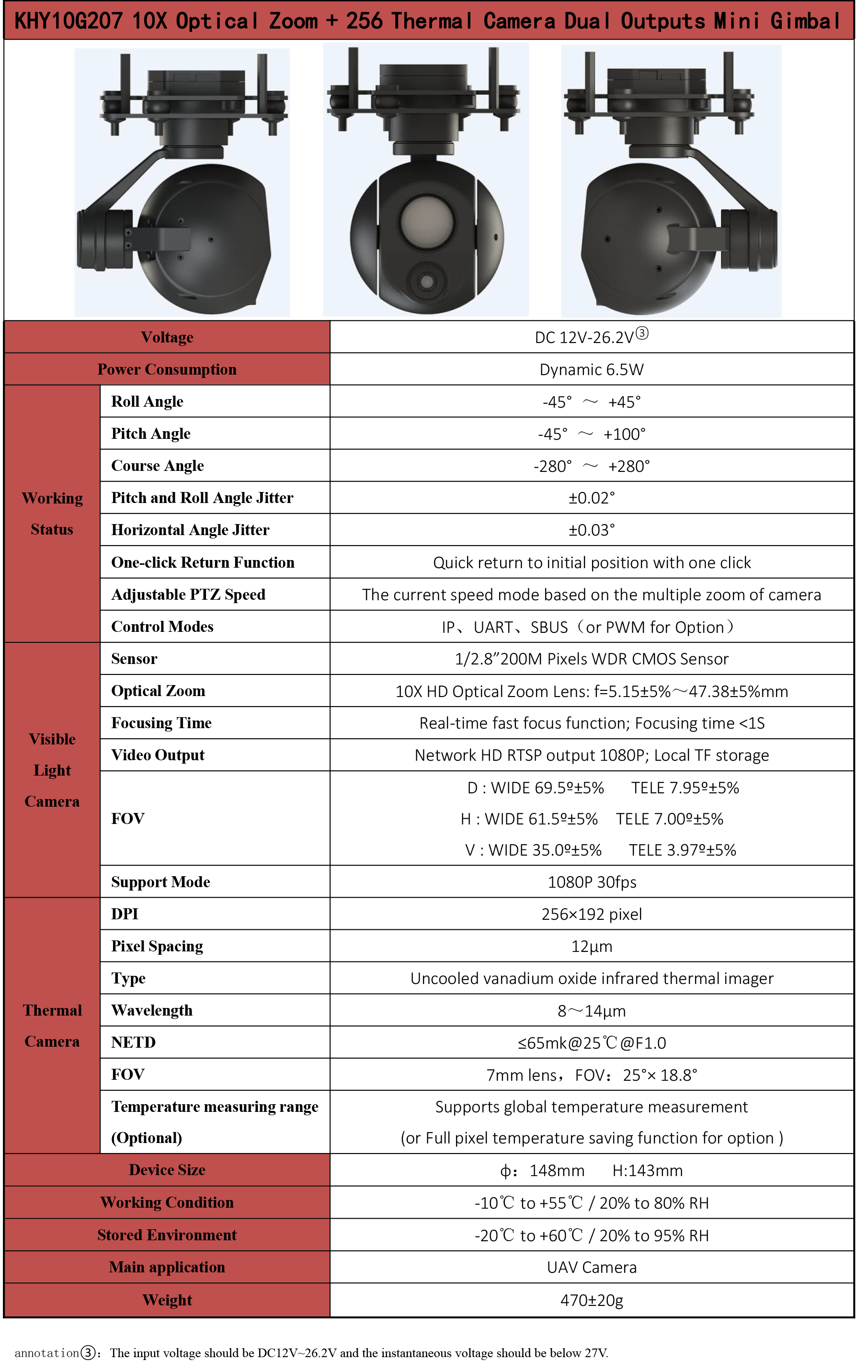

TOPOTEK KHY10G207 Specifications

Topotek KHY10G207 Dual Light Drone Gimbal features 10X optical zoom, 90x mixed zoom, and 1080P visible light camera. It also includes a 7mm thermal camera with 256x192 pixels and uncooled vanadium oxide infrared thermal imager. The gimbal supports IP/HDMI output, with adjustable PTZ speed and one-click return function. Camera specifications include a 1/2.8

Picture-in-Picture (PiP) mode, with options for 'Tead' and 'Etil' connections; diagram shows application of HDMI output, ground connection, and 'S_BOS'/'XT30' components.
