TOPOTEK KHY10G613 Dual Light Drone Gimbal - 10x Optical /90x Mixed Zoom EO Camera + 13mm 640x512 IR Thermal Camera 3-Axis Stabilized PTZ Gimbal

TOPOTEK KHY10G613 Overview

The TOPOTEK KHY10G613 is a drone gimbal payload that integrates a 90x mixed zoom, a 2MP EO camera, a 13mm lens 640x512 IR camera, and a 3-axis stabilized PTZ. It features HDMI and Ethernet output. The EO camera is equipped with a wide dynamic sensor with 2 megapixels, while the IR camera utilizes a 640x512 resolution vanadium oxide detector with a baffle design. The system supports picture-in-picture modes and pseudo-color switching. The camera and PTZ can be synchronously controlled via UART and IP, with support for local TF storage.

TOPOTEK KHY10G613 Features

• 90x mixed zoom
• 13mm lens 640x512 thermal imaging
• 4 picture-in-picture modes
• 10 multiple pseudo-color modes
• TF card recording, IP reading & writing
• HDMI and Ethernet output
• Ground station display & control
• Weight 480g
• 3-axis stabilizer
• UART and Ethernet control

TOPOTEK KHY10G613 Specifications

TopoteK KHY10G613 dual light drone gimbal features a 10x optical camera, 90x mixed zoom EO camera, and 13mm 640x512 IR thermal camera on a 3-axis stabilized PTZ gimbal for enhanced imaging capabilities.

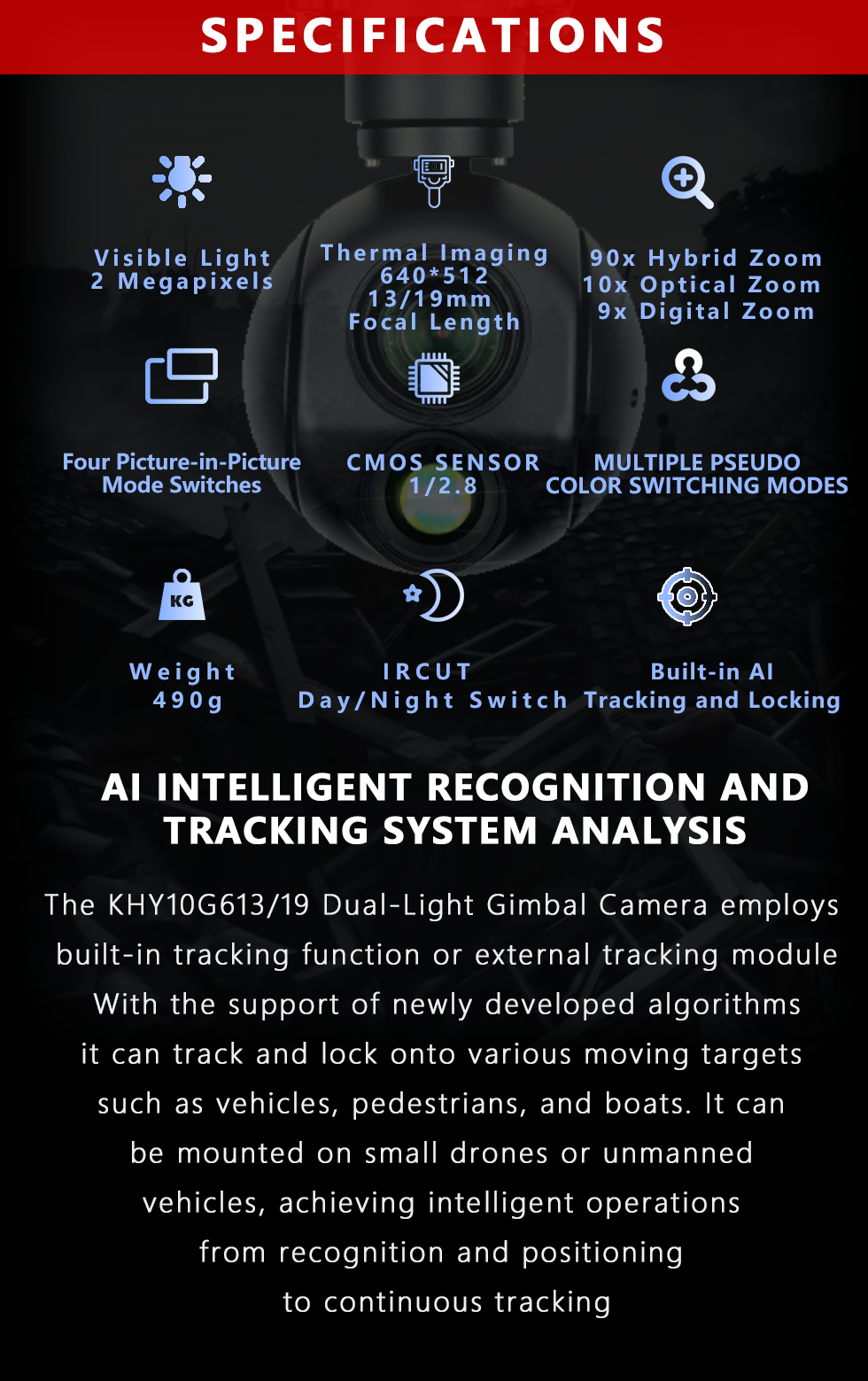

TOPOTEK KHY10G613 dual-light drone gimbal features 10x optical/90x mixed zoom EO camera and 13mm 640x512 IR thermal camera, with 3-axis stabilized PTZ gimbal. It has specifications including 2 Megapixels, 640*512 resolution, 10x optical zoom, 13/19mm focal length, and 9x digital zoom. The camera also features CMOS sensor, multiple pseudo modes, and switching modes. Weighing 49g, the IRCUT-built-in gimbal supports day/night switches and has an intelligent recognition and tracking system for continuous monitoring of targets like vehicles, pedestrians, and boats.

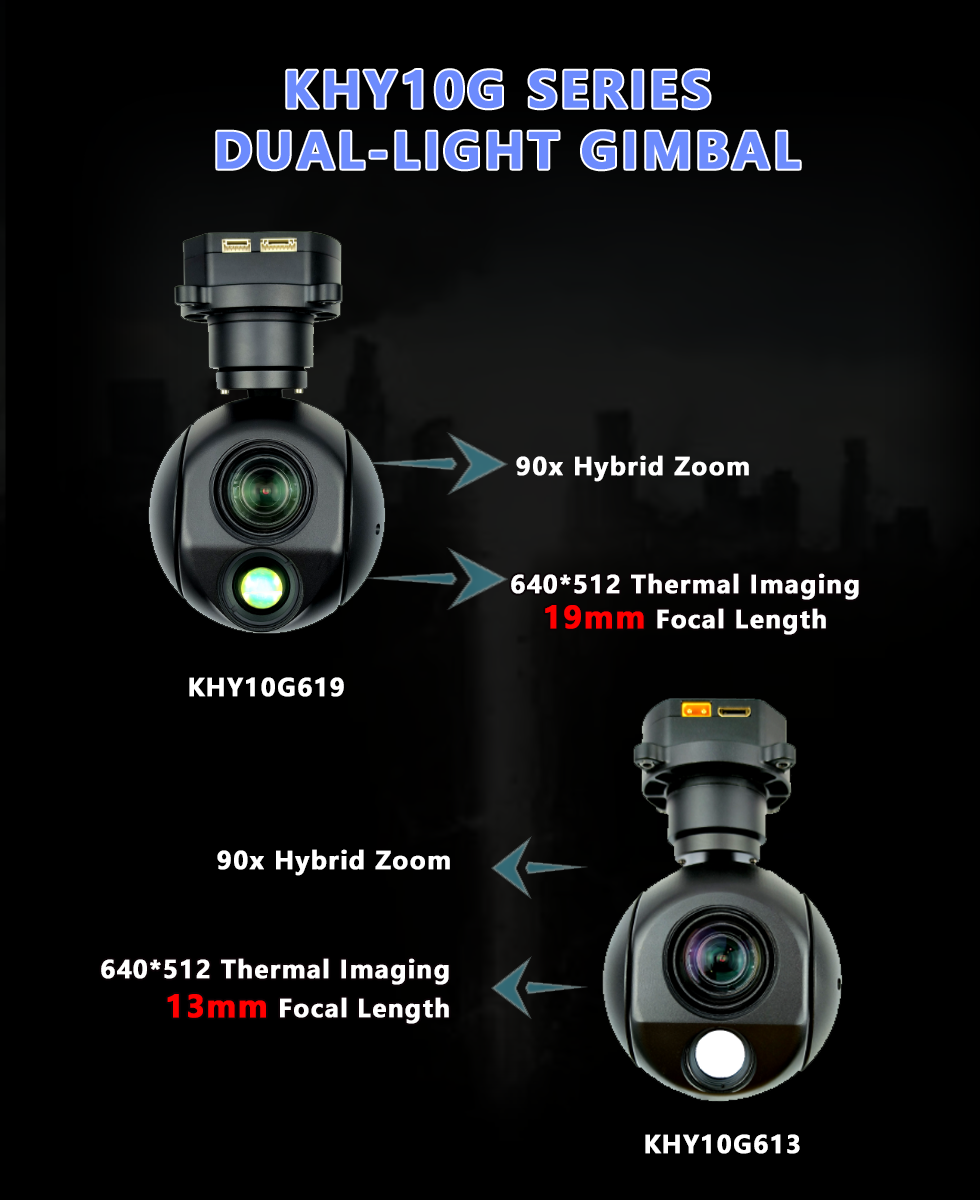

Introducing the TOPOTEK KHY10G613, a dual-light drone gimbal featuring a 10x optical EO camera and a 90x mixed zoom EO camera, along with a high-definition 640x512 thermal imaging IR camera, all stabilized by a 3-axis PTZ gimbal for smooth and precise control.

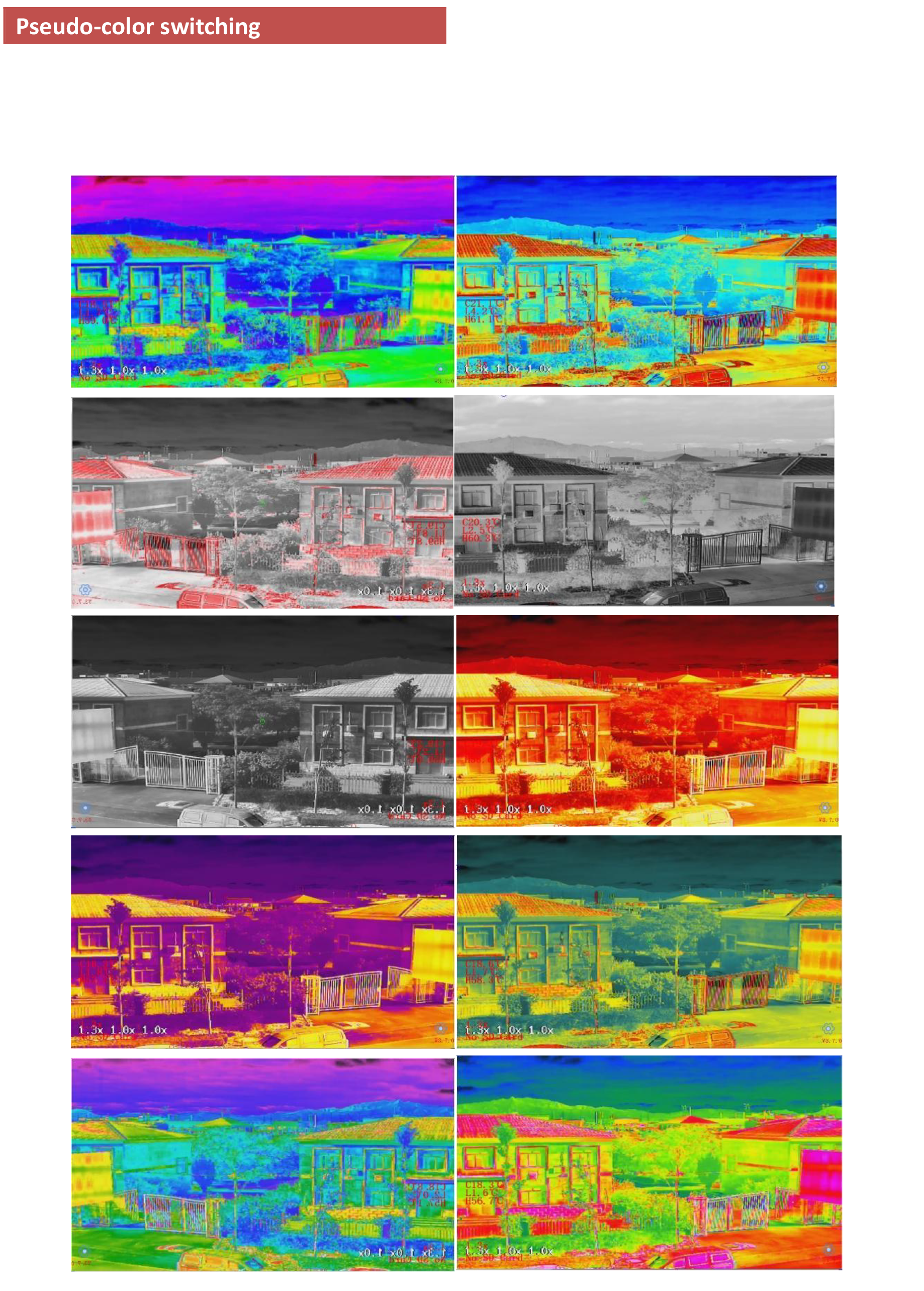

Features pseudo-color switching, high-sensitivity imaging, and a combination of 10x optical and 90x mixed zoom EO camera capabilities, along with a 13mm thermal infrared sensor offering 640x512 resolution.

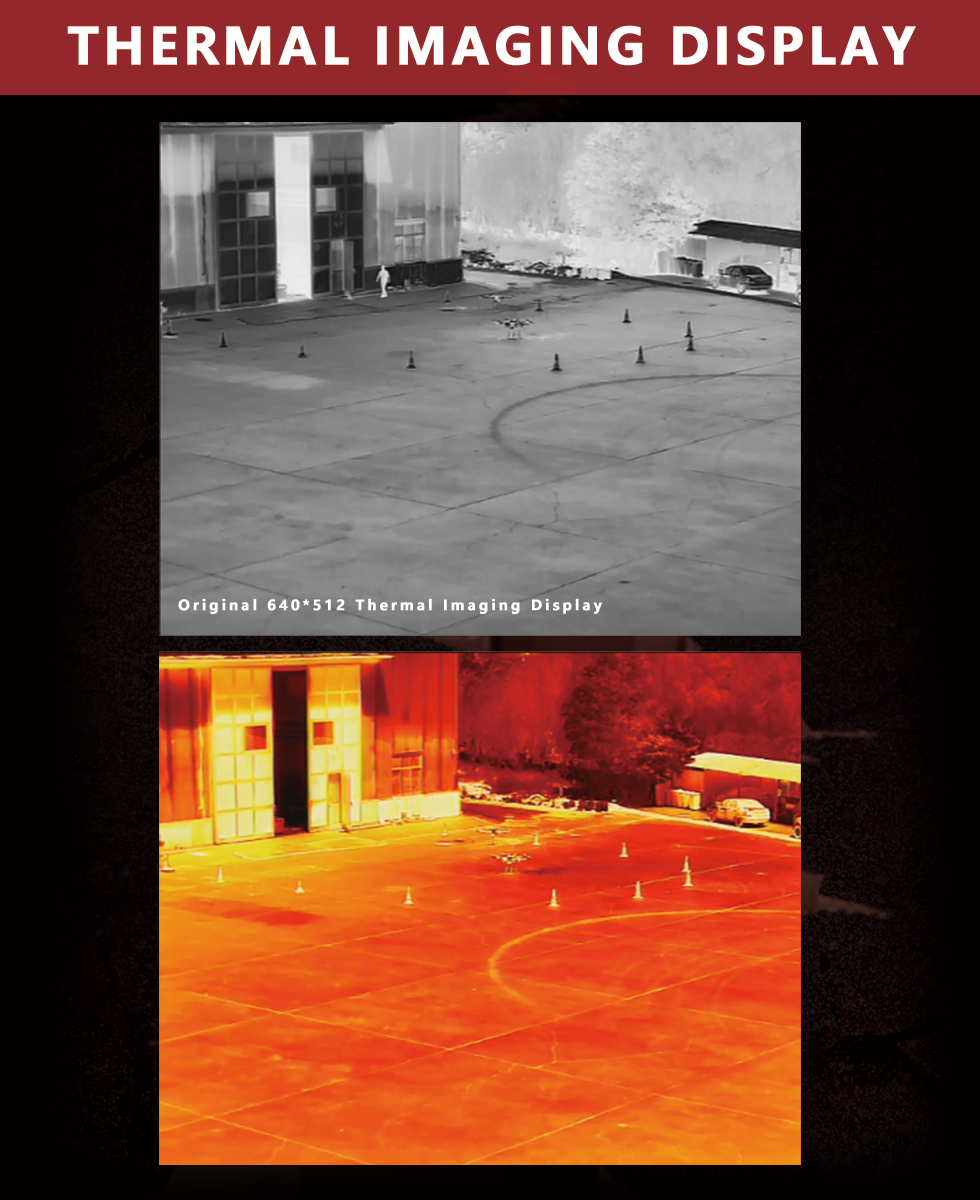

Features a thermal imaging display with 640x512 resolution for clear temperature readings.

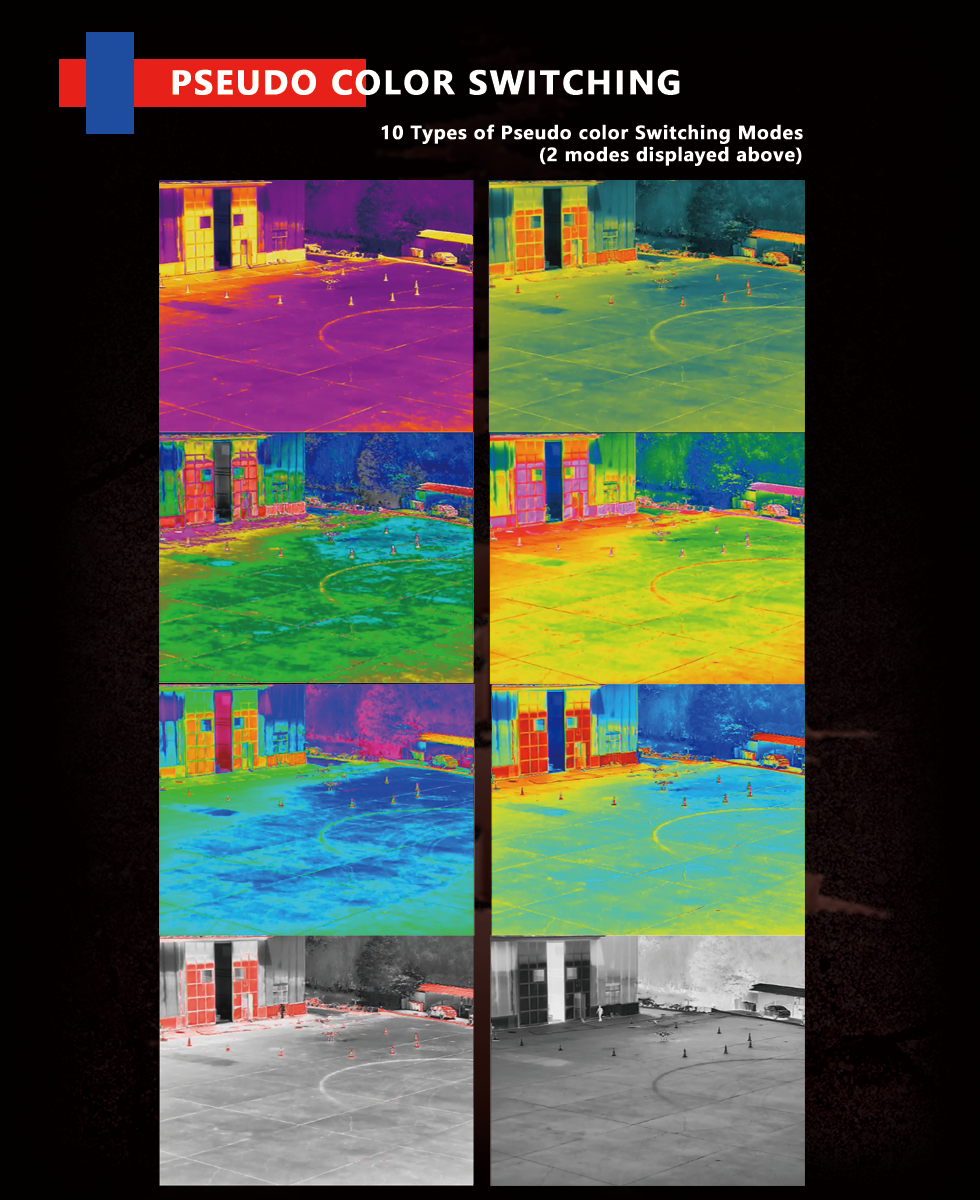

Features pseudo-color switching with 10 types of modes, offering flexible display options.

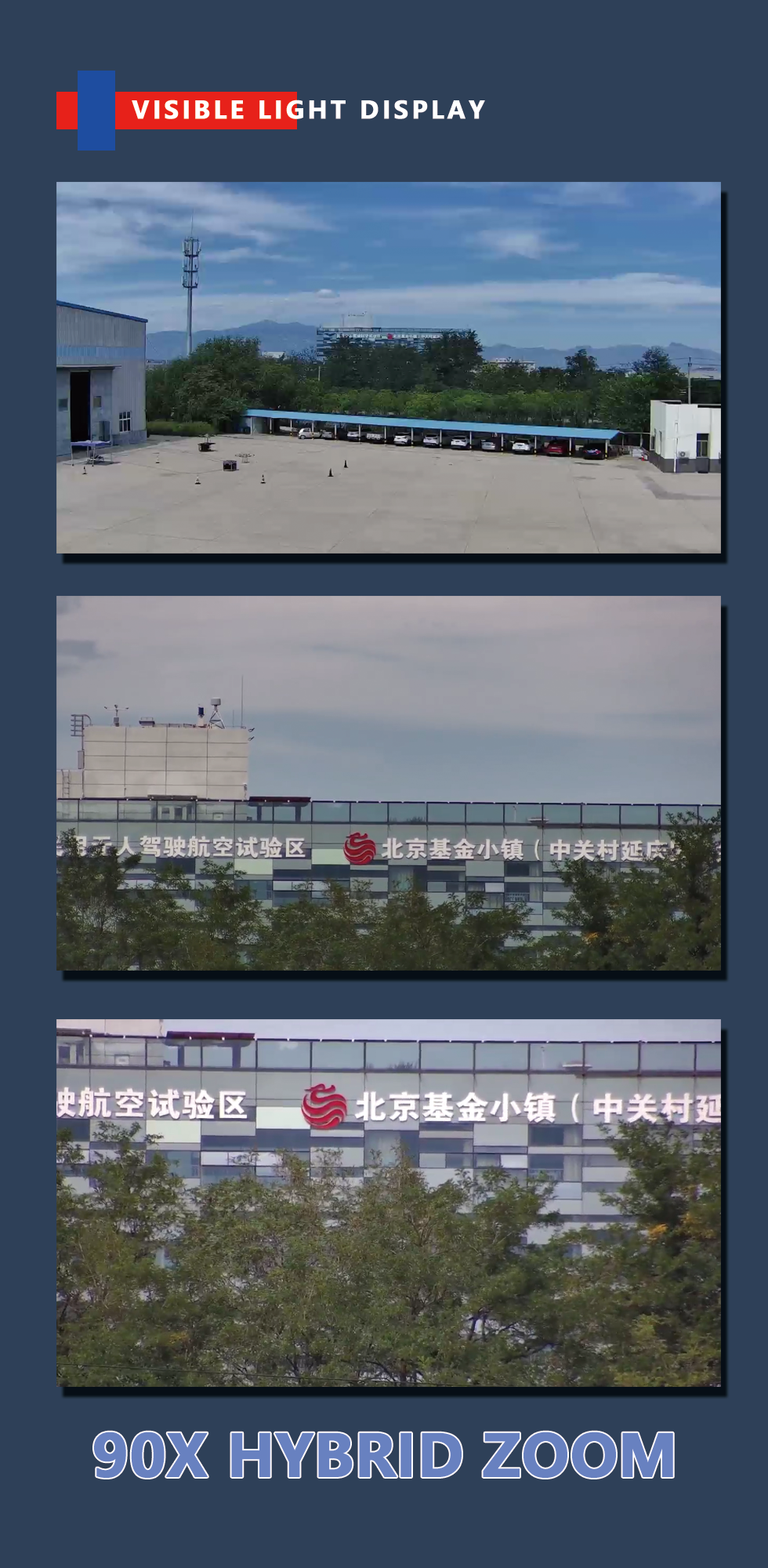

Visible light display with a 90x hybrid zoom, featuring high-quality visuals for enhanced surveillance and monitoring capabilities.

TopoteK KHY10G613 dual-light drone gimbal features a camera system that supports RTSP picture-in-picture stream output, multiple modes, pseudo color displays, and global temperature measurement. It can be controlled via serial port, SBUS, or network, with local TF card recording and photography capabilities.

TOPOTEK KHY10G613 Dual Light Drone Gimbal features a 3-axis stabilized PTZ gimbal with a 10x optical EO camera and a 90x mixed zoom EO camera, as well as a 13mm 640x512 IR thermal camera for enhanced surveillance capabilities.

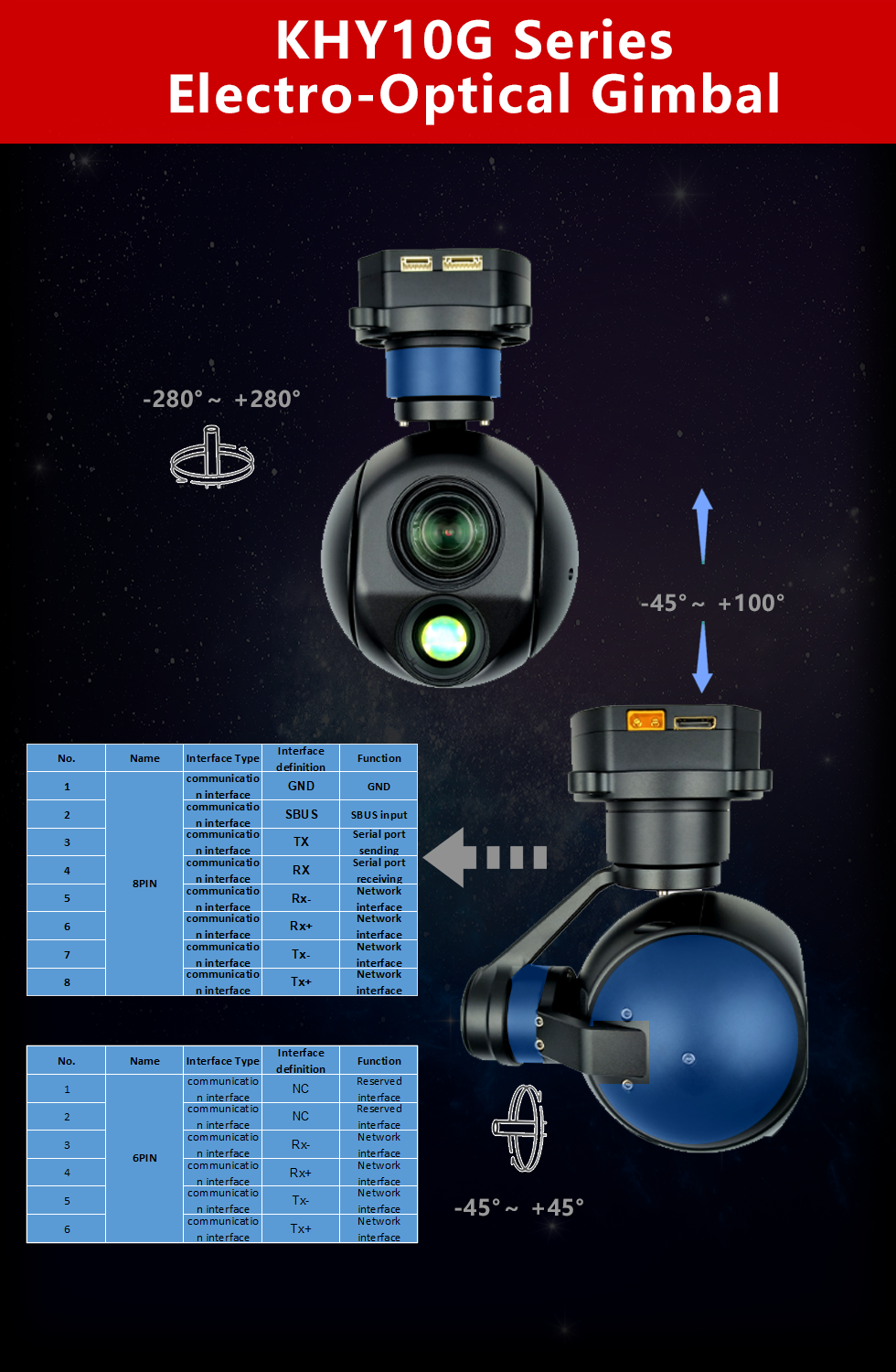

Features include a 3-axis stabilized PTZ gimbal with dual light EO camera and thermal infrared sensor for precise navigation.

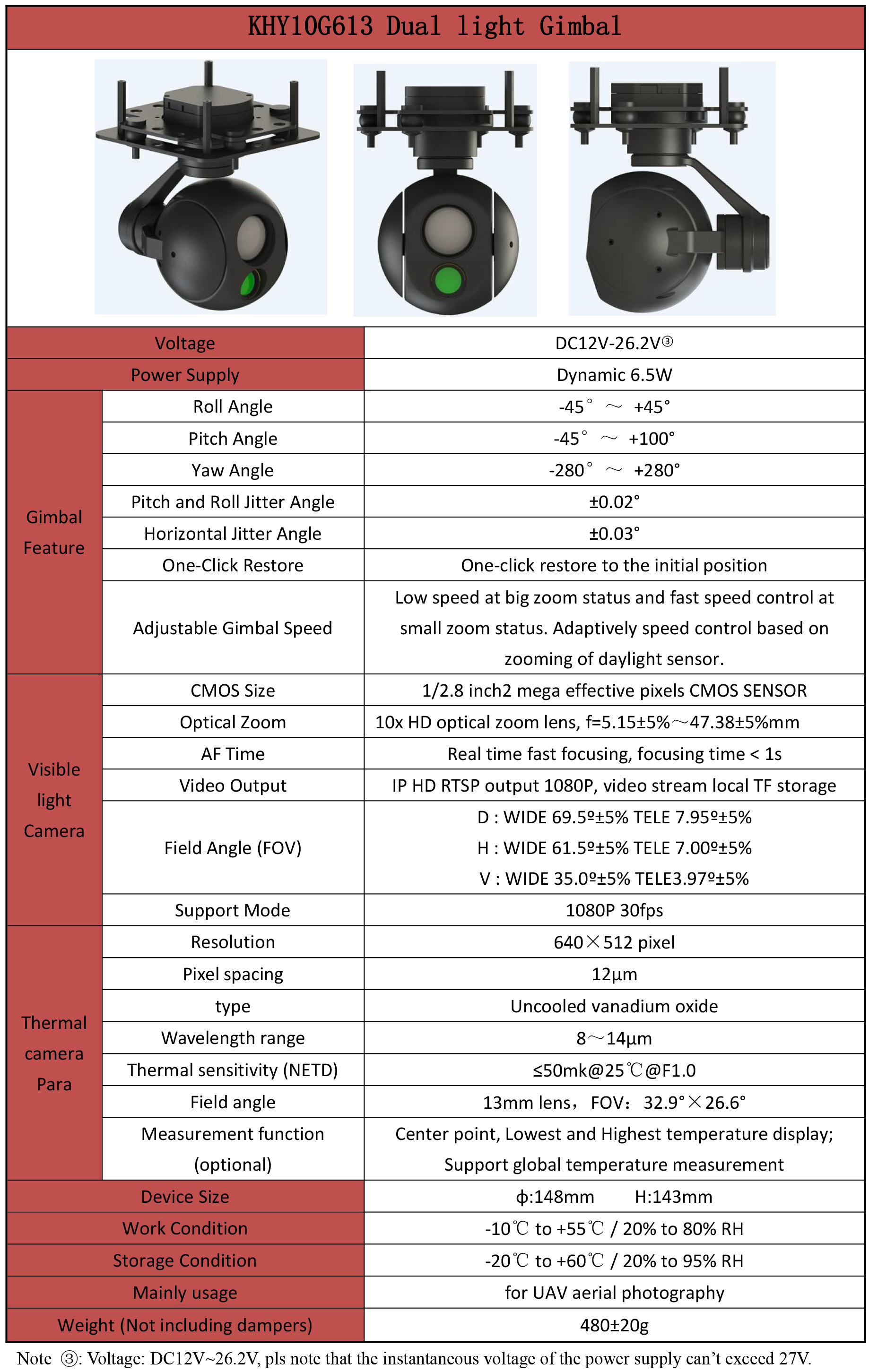

Topotek KHY10G613 is a dual-light drone gimbal featuring a 10x optical/90x mixed zoom EO camera and a 13mm 640x512 IR thermal camera with 3-axis stabilization. It has a voltage range of DC 1V-26.2V, power supply dynamic 6.5W, and adjustable gimbal speed based on zooming. The gimbal also features one-click restore to the initial position, low speed at big zoom status, and fast speed control at small zoom status.

Dual light drone gimbal with a 10x optical/90x mixed zoom EO camera and a 13mm 640x512 IR thermal camera, featuring a 3-axis stabilized PTZ gimbal for stable video capture.
