TOPOTEK KHY10G619 Overview
The KHY10G619 is a drone gimbal payload that integrates a 90x mixed zoom, a 2MP EO camera, a 19mm lens 640x512 IR camera, and a 3-axis stabilized PTZ. It features HDMI and Ethernet output. The EO camera is equipped with a wide dynamic sensor with 2 megapixels, while the IR camera utilizes a 640x512 resolution vanadium oxide detector with a baffle design. The system supports picture-in-picture modes and pseudo-color switching. The camera and PTZ can be synchronously controlled via UART and IP, with support for local TF storage.
TOPOTEK KHY10G619 Features
- 90x mixed zoom
- 19mm lens 640x512 thermal imaging
- 4 Picture-in-picture modes
- 10 Multiple pseudo-color modes
- TF card recording, IP reading & writing
- HDMI and Ethernet output
- Ground station display & control
- Weight 490g
- 3-axis stabilizer
- UART and Ethernet control

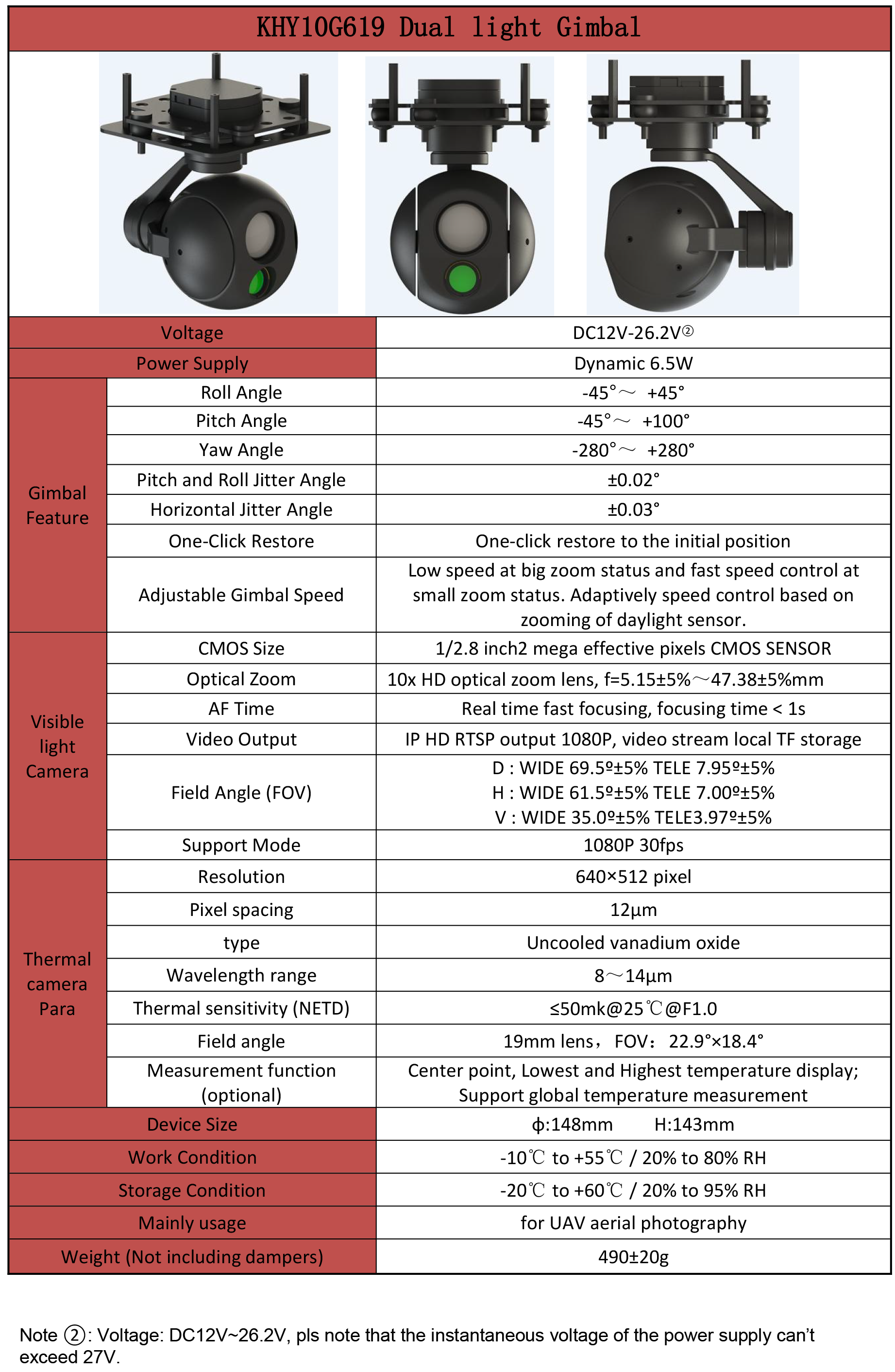

TOPOTEK KHY10G619 Specifications
| Parameter | Details |
|---|---|
| Voltage | DC 12V-26.2V |
| Power Supply | Dynamic 6.5W |
| Gimbal Feature | |
| Roll Angle | -45° to +45° |
| Pitch Angle | -45° to +100° |
| Yaw Angle | -280° to +280° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
| Visible Light Camera | |
| CMOS Size | 1/2.8 inch 2 mega effective pixels CMOS SENSOR |
| Optical Zoom | 10x HD optical zoom lens, f=5.15±5%~47.38±5%mm |
| AF Time | Real-time fast focusing, focusing time < 1s |
| Video Output | IP HD RTSP output 1080P, video stream local TF storage |
| Field Angle (FOV) | D: WIDE 69.5°±5% TELE 7.95°±5%<br> H: WIDE 61.5°±5% TELE 7.00°±5%<br> V: WIDE 35.0°±5% TELE 3.97°±5% |
| Support Mode | 1080P 30fps |
| Thermal Camera | |
| Resolution | 640 x 512 pixels |
| Pixel spacing | 12μm |
| Type | Uncooled vanadium oxide |
| Wavelength range | 8~14μm |
| Thermal sensitivity (NETD) | ≤50mk@25°C@F1.0 |
| Field angle | 19mm lens, FOV: 22.9° x 18.4° |
| Measurement function (optional) | Center point, lowest and highest temperature display; Support global temperature measurement |
| Device Size | Φ:148mm H:143mm |
| Work Condition | -10°C to +55°C / 20% to 80% RH |
| Storage Condition | -20°C to +60°C / 20% to 95% RH |
| Mainly Usage | For UAV aerial photography |
| Weight (Not including dampers) | 490 ± 20g |
TopoteK KHY10G619 dual-light drone gimbal features 90x hybrid zoom, 1080P visible light camera, and 19mm thermal imaging with 640x512 resolution on a 3-axis stabilized PTZ gimbal for enhanced earthquake relief and rescue operations.
Capture stunning visuals with the TOPOTEK KHY10G619 Dual-Light Drone Gimbal, featuring a 90x hybrid zoom lens, 2MP CMOS sensor, and 640x512 thermal imaging. The gimbal boasts intelligent recognition and tracking systems for seamless follow-up shots of vehicles, pedestrians, or boats.

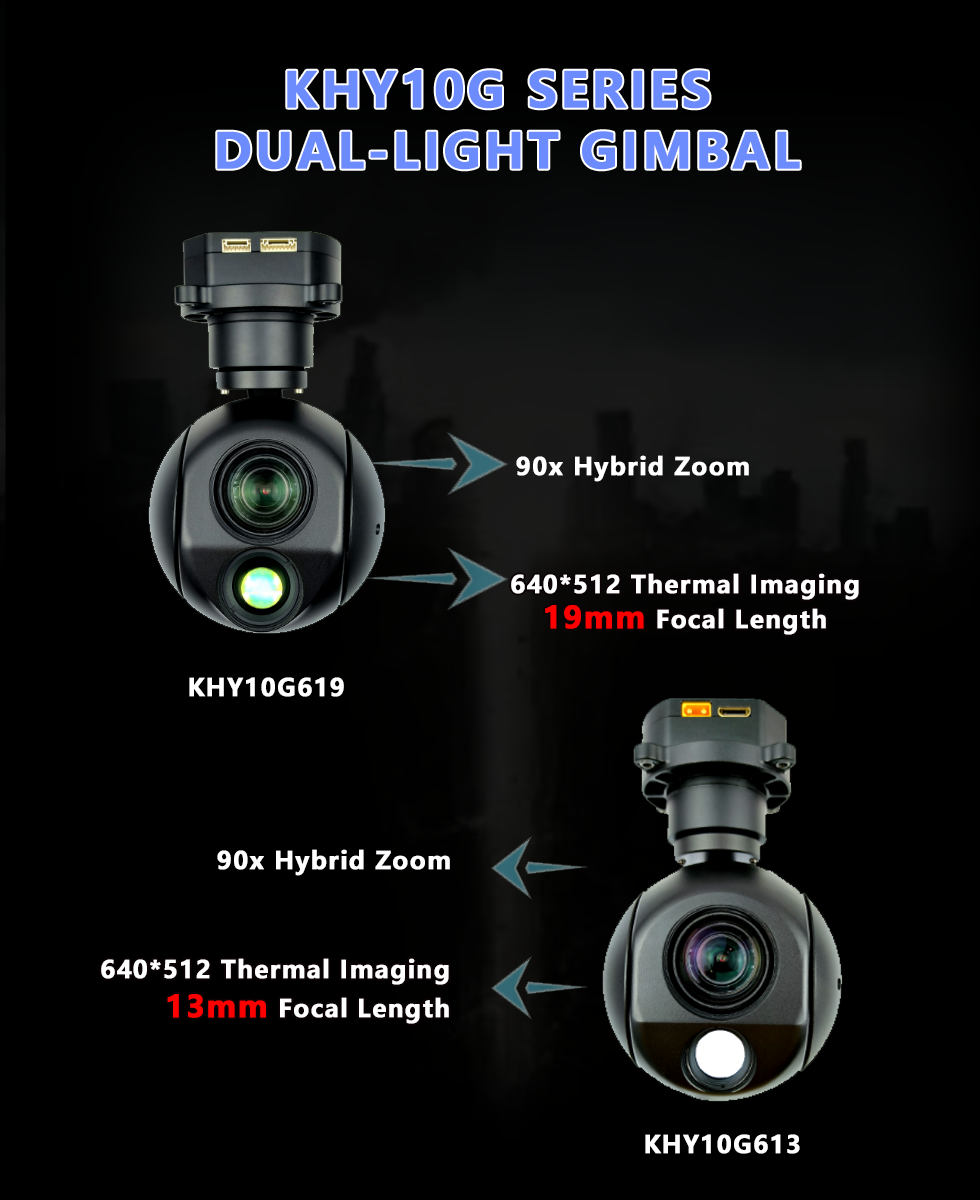

TOPOTEK KHY10G619 dual-light gimbal features a 90x hybrid zoom, 640x512 thermal imaging, and a 19mm focal length. It also offers 3-axis stabilization for smooth footage.

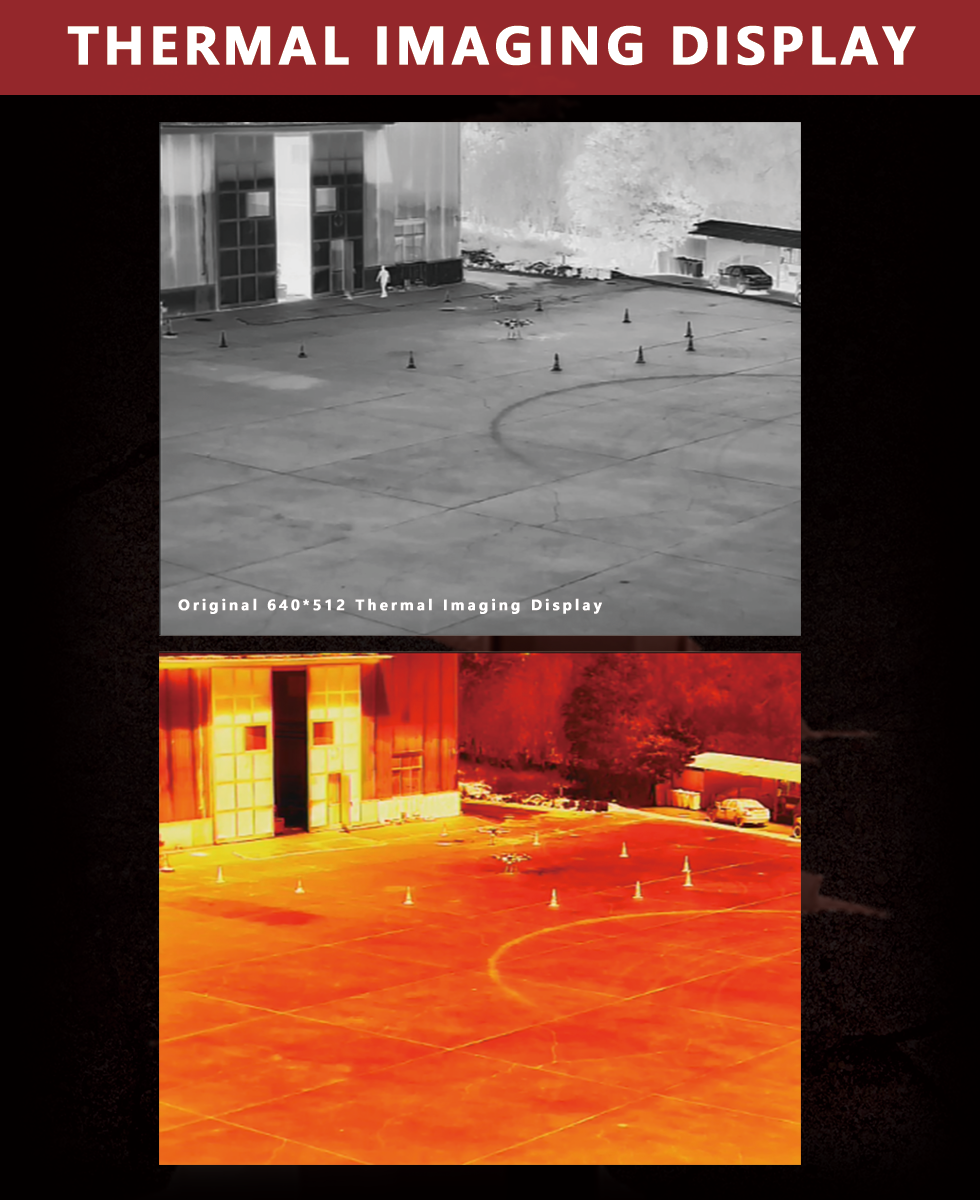

Original thermal imaging display with a resolution of 640x512 pixels.
Features 10 pseudo color switching modes, with 2 displayable options shown.
Capture 1080p visible light and 640x512 thermal imaging with a 3-axis stabilized PTZ gimbal featuring a 90x hybrid zoom lens, ideal for drone applications.

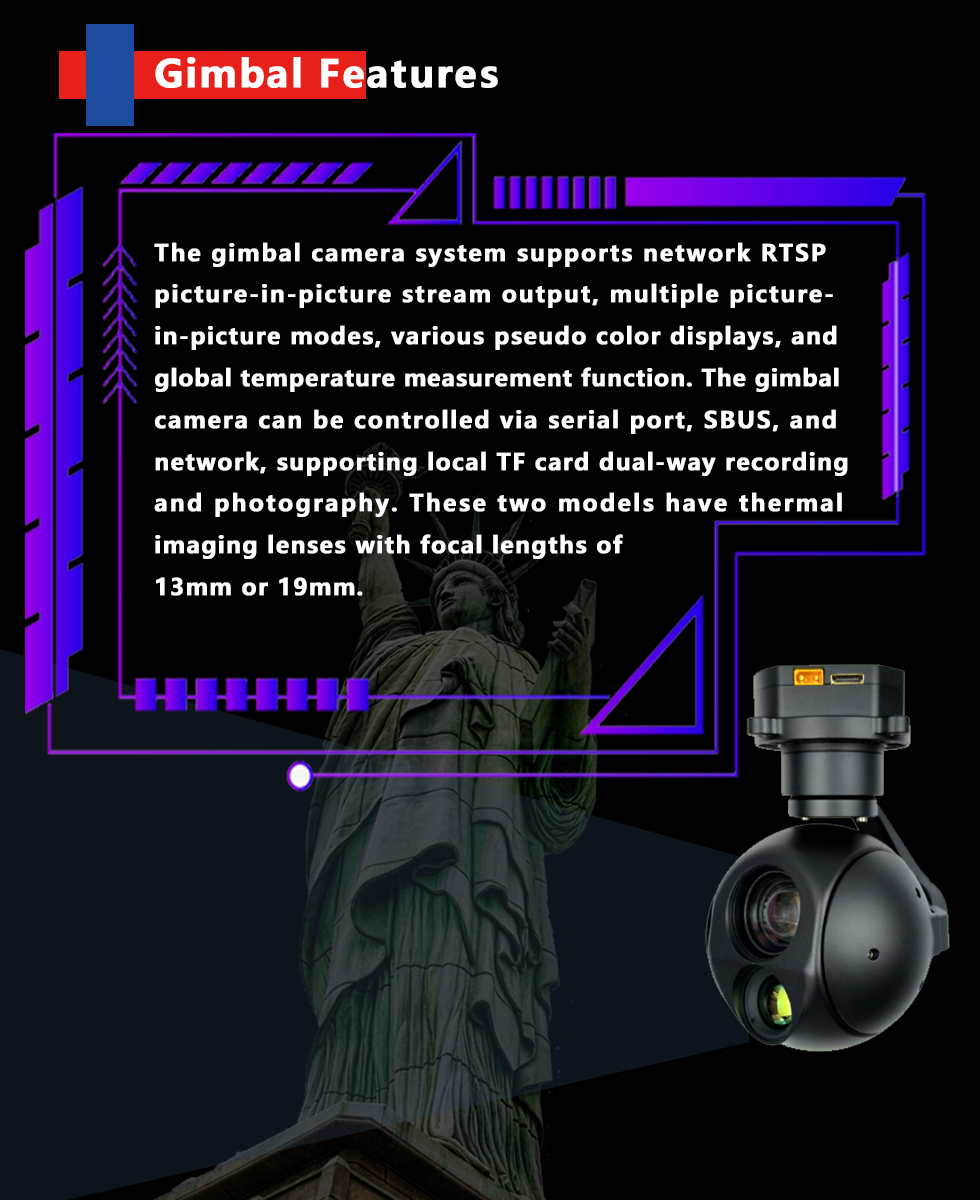

Features include real-time video output via RTSP, multiple picture-in-picture modes, pseudo color displays, and global temperature measurement. The gimbal camera can be controlled via serial port, SBUS, and network, with dual-recording capability on local TF cards.
TOPOTEK KHY10G619 Dual Light Drone Gimbal: A 3-axis stabilized PTZ gimbal that combines a 1080P visible light camera with a 640x512 thermal imaging camera, featuring mixed zoom (90x) and serial port interfaces for communication.
Features a dual-light system with mixed zoom and 1080P visible light camera, plus thermal imaging capabilities at 640x512 resolution.
Capture high-quality images and thermal insights with this dual-light drone gimbal, featuring a 90x mixed zoom camera for 1080P visible light imaging and a 19mm thermal imaging sensor for 640x512 resolution.
