TOPOTEK KIP10G613 Dual Light Drone Gimbal - 10x Optical /90x Mixed Zoom 2592x1560 Camera + 13mm 640x512 Infrared thermal Imaging With 3-Axis Stabilized Gimbal

TOPOTEK KIP10G613 Overview

The KIP10G613 is an integrated 90x mixed zoom camera with a resolution of 2592×1560. It features a 13mm focal length 640×512 resolution thermal imaging module and a high-precision professional three-axis stabilized gimbal. The enhanced pod zoom dual optical integration system uses network IP output and PFO adopts a high-precision encoder FOC control scheme, offering high stability, small size, lightweight, and low power consumption. The system supports four picture-in-picture modes, ten pseudo-color displays, and global temperature measurement functions. Both the serial port and the network can control the camera and PTZ, and the local TF card supports dual recording and photographing.

TOPOTEK KIP10G613 Features

• 90x mixed zoom
• 640×512 Thermal imager
• Four Picture-in-Picture modes
• 3-Axis stabilized gimbal
• IP and UART control
• Lightweight gimbal, 430g
• TF card double recording
• Ten pseudo color modes

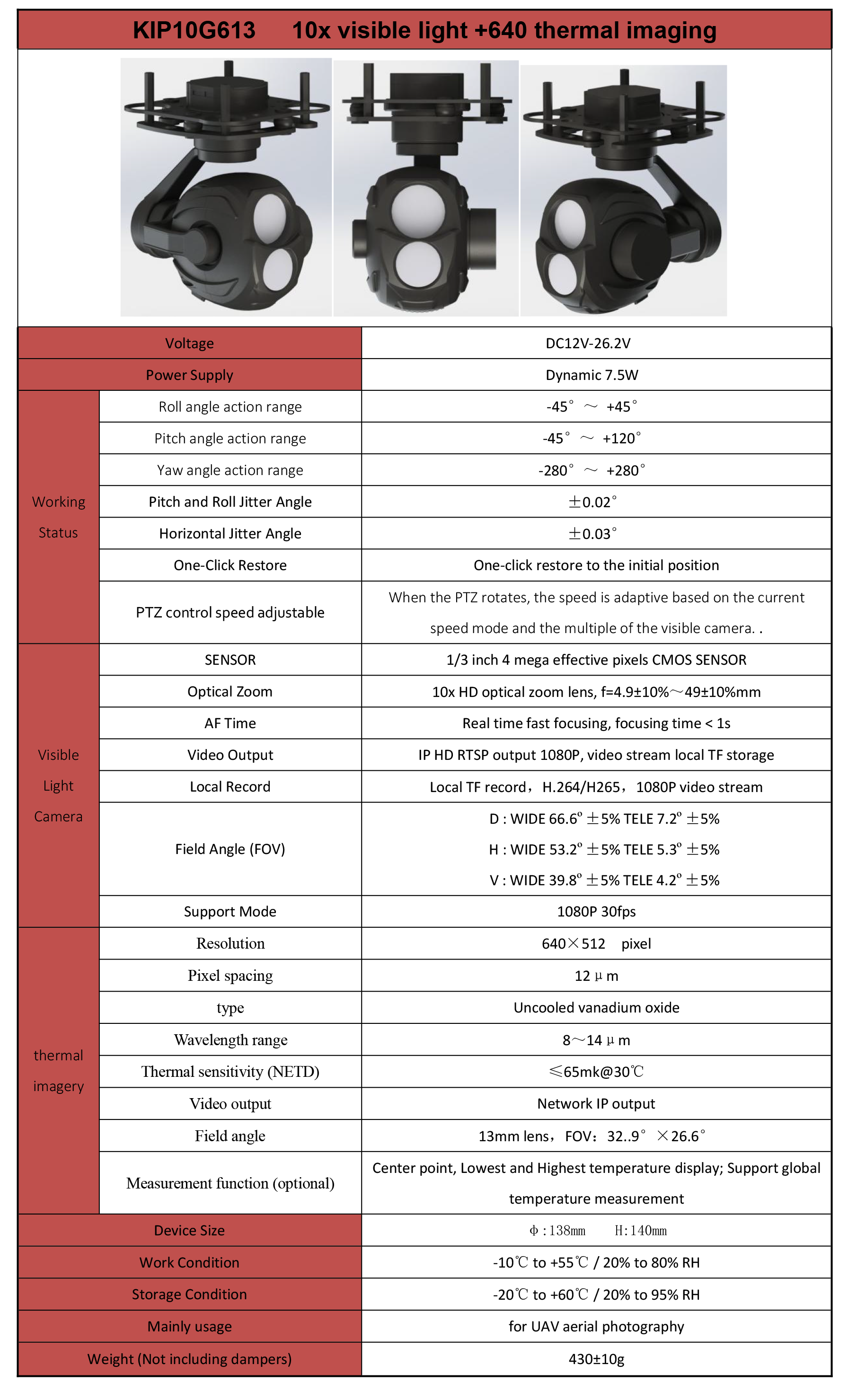

TOPOTEK KIP10G613 Specifications

Equipped with a dual light system, this gimbal features an optical camera with 10x zoom and mixed 90x magnification for high-quality imaging.

TOPOTEK KIP10G613 dual light drone gimbal features a 10x optical/90x mixed zoom camera with 2592x1560 resolution, 13mm infrared thermal imaging, and a 3-axis stabilized gimbal. It also has adjustable power supply, dynamic roll angle range of -45 to +45 degrees, pitch angle range of -45 to +120 degrees, and yaw angle range of -280 to +280 degrees.

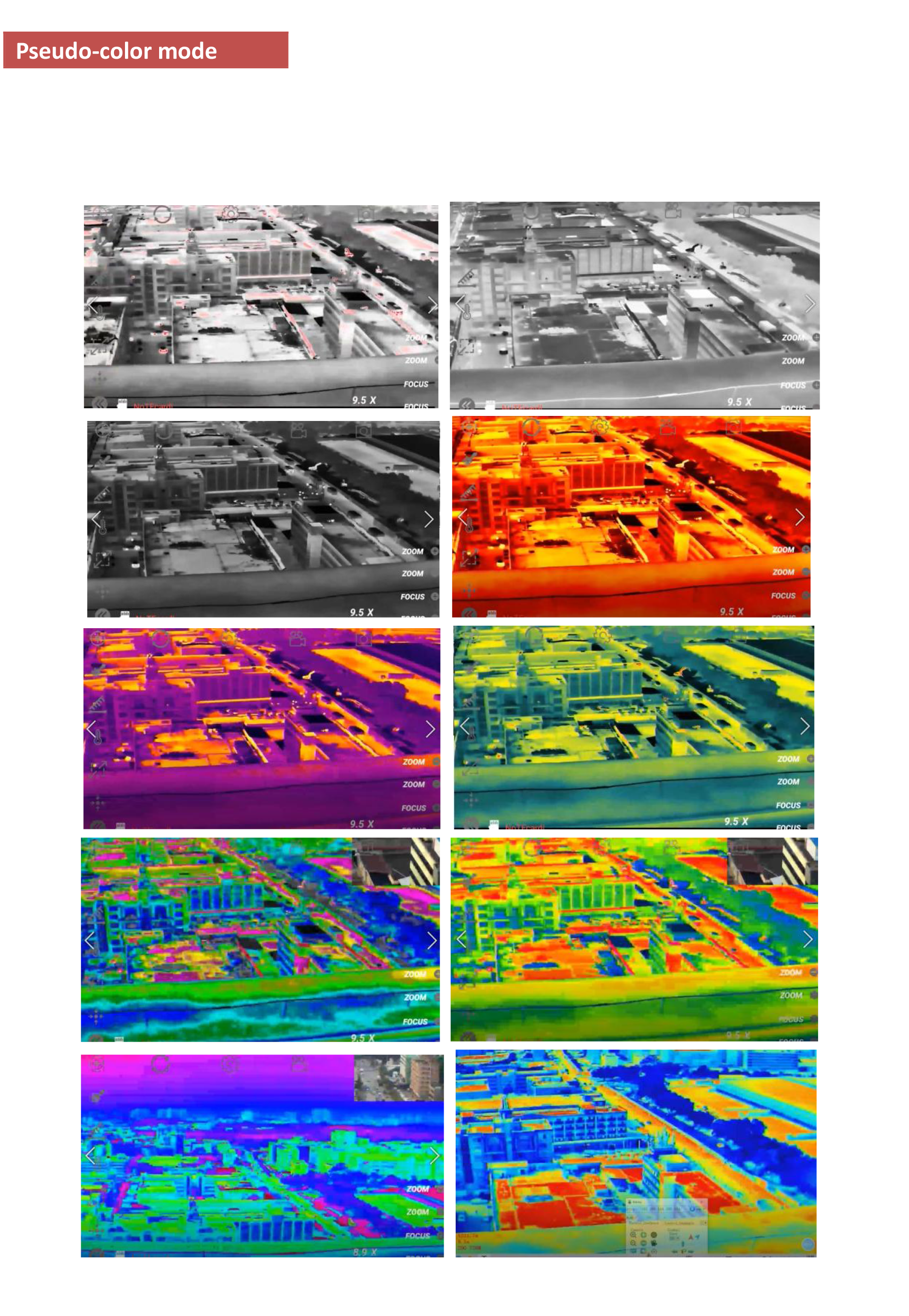

Features pseudo-color mode, 10x optical zoom, and 90x mixed zoom with a 2592x1560 camera sensor, plus 13mm infrared thermal imaging with a 3-axis stabilized gimbal.

Picture-in-Picture mode not available. The product features a dual-light drone gimbal with a 10x optical zoom and 90x mixed zoom camera, as well as 13mm infrared thermal imaging capabilities. The gimbal is stabilized in three axes for smooth video capture. No connection diagram or parameter adjustment options are provided.
