TOPOTEK KIP290G650 Dual Light Drone Gimbal - 1080P Visible Light Camera + 50mm lens 640x512 Thermal Imaging With 3-axis Gimbal

TOPOTEK KIP290G650 Dual Sensor Drone Gimbal Product Description

The TOPOTEK KIP290G650 is a dual sensor drone gimbal camera system integrated with a fixed-focus 1080P visible light sensor and a 50mm lens, 640×512 resolution thermal imaging sensor, supported by a high-precision professional 3-axis stabilized PTZ. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, compact size, lightweight, and low power consumption. The visible light camera adopts a low illumination CMOS sensor with 2 million effective pixels, while the thermal imaging employs a 640×512 resolution uncooled vanadium oxide detector with a baffle design. This camera system supports network RTSP stream output, various picture-in-picture modes, and multiple pseudo-color switching options. The cameras and PTZ can be controlled through SBUS, UART, UDP, and PWM, and support local TF storage. It features a full-metal casing, ensuring durability and reliability.

TOPOTEK KIP290G650 Advantages

• HDR

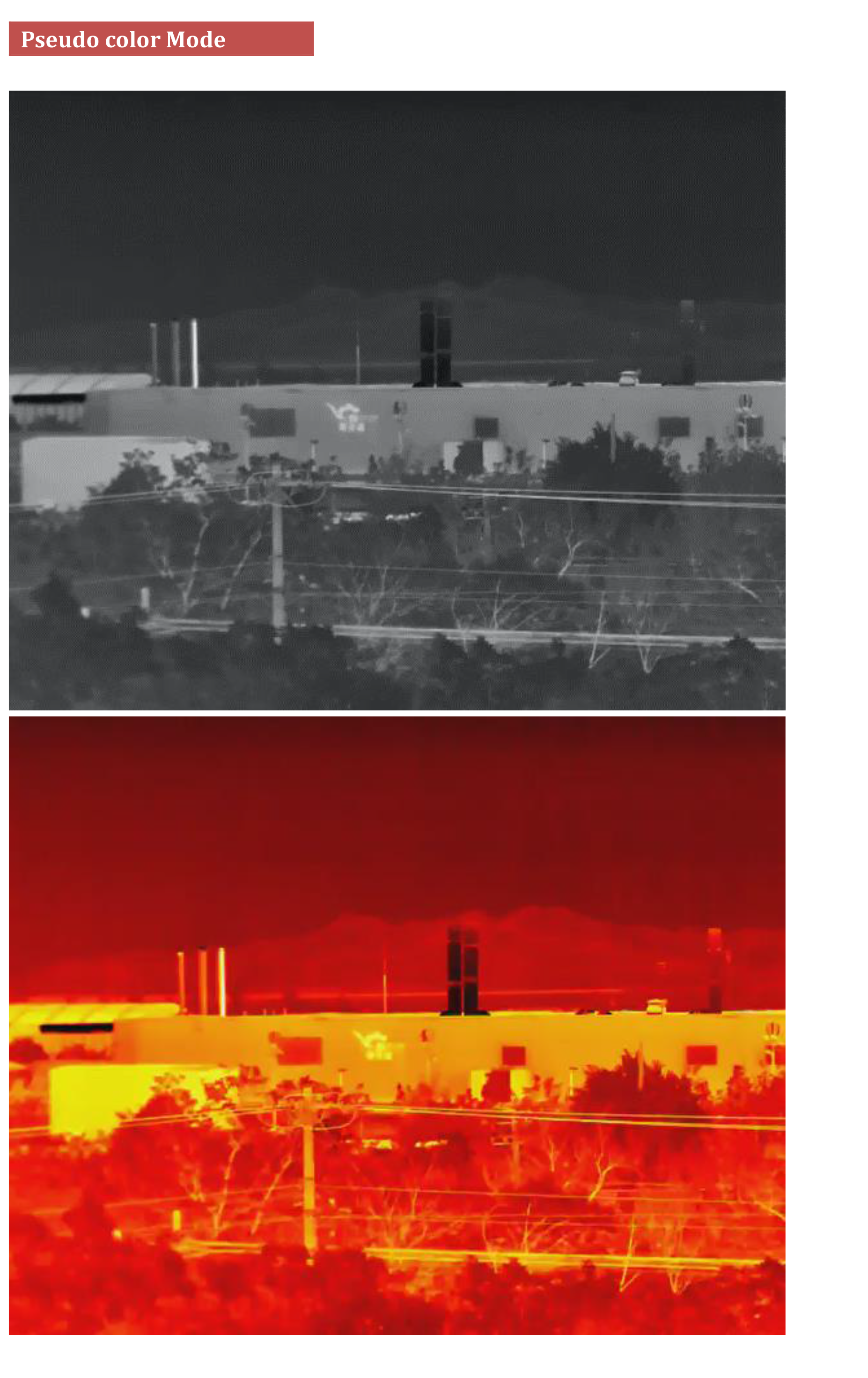

• Multiple pseudo-color modes
• RTSP stream video output
• TF card 2-way video recording
• 170ms low latency
• Support multiple PIP modes
• SBUS, UART, UDP, and PWM control
• 3-axis stabilized gimbal

TOPOTEK KIP290G650 Parameters

Compact dual-light gimbal with 1080P visible light camera, 50mm lens, and thermal imaging capabilities, offering flexible operation and high-precision stabilization.

TOPOTEK KIP290G650 is a dual light drone gimbal that features an 1080P visible light camera with a 50mm lens, as well as thermal imaging capabilities with a resolution of 640x512. It has a 3-axis gimbal with adjustable roll angle (-45° to +45°), pitch angle (30° to +100°), and yaw angle (±280°). The gimbal also supports one-click restore, dynamic speed control, and real-time focusing.

Picture-in-picture mode enables simultaneous visible and thermal imaging, allowing for zooming (up to 66.5x) and focusing with a 50mm lens and 640x512 thermal resolution.
