TOPOTEK SIP10L11A Dual Light Drone Gimbal - 10xOptical Zoom Camera +1100m Laser Ranging IP network Small Gimbal

TOPOTEK SIP10L11A 10xOptical Zoom Camera

The TOPOTEK SIP10L11A is a high-precision gimbal camera system designed for UAV aerial photography. It integrates a 10x optical zoom camera and a 1100m laser ranging module, featuring a high-precision 3-axis stabilization pod. This system is equipped with network IP output and IP control, ensuring high stability, small size, light weight, and low power consumption. The camera utilizes a low illumination CMOS sensor with 4 million effective pixels, supporting network RTSP code stream output, synchronous control of the camera and head, and local TF storage.

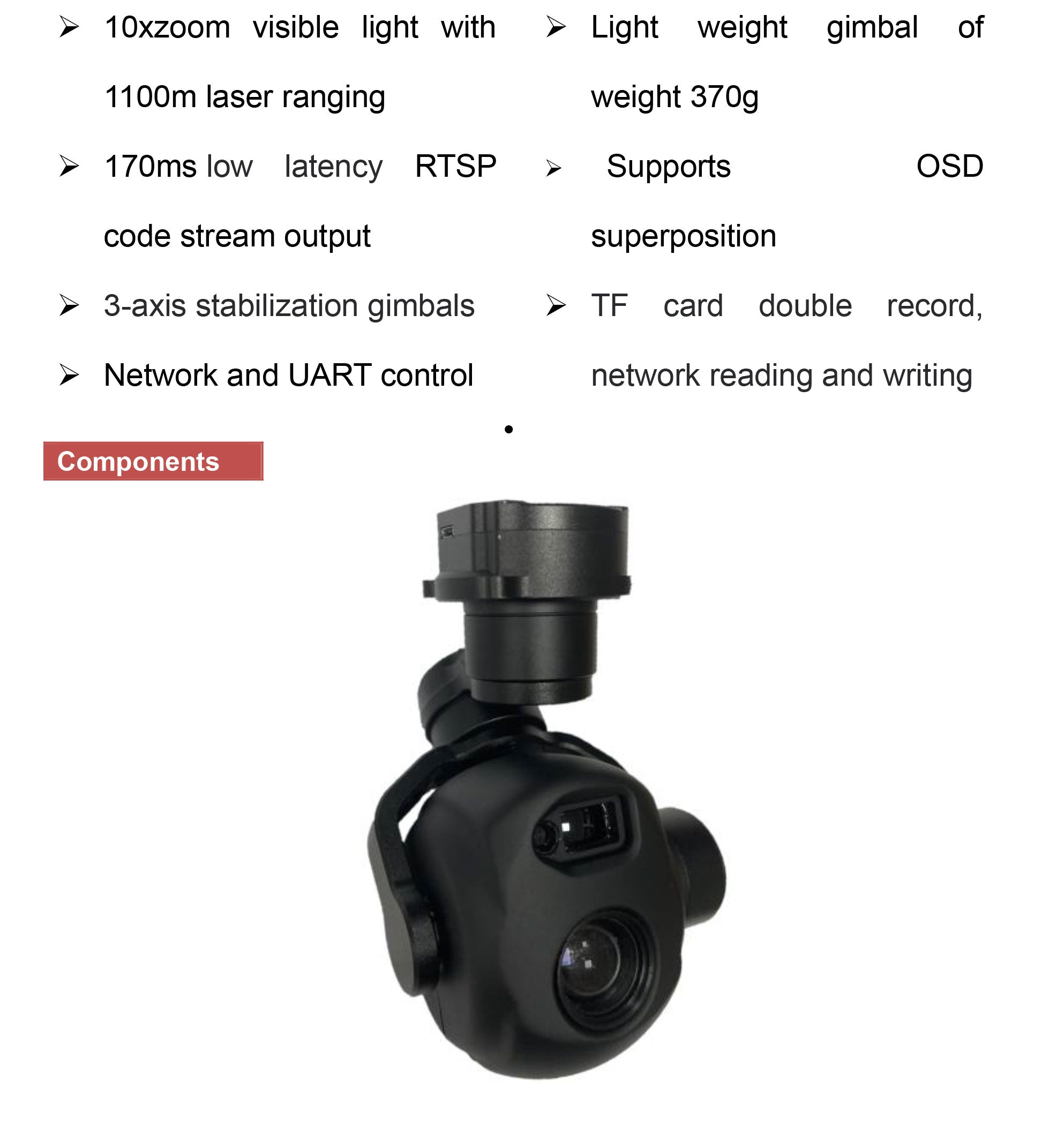

TOPOTEK SIP10L11A Features

• 10x Zoom Visible Light
• 1100m Laser Ranging
• 170ms Low Latency RTSP Code Stream Output
• 3-Axis Stabilization Gimbals
• Network and UART Control
• Lightweight Gimbal of 370g
• Supports OSD Superposition
• TF Card Double Record, Network Reading and Writing

TOPOTEK SIP10L11A Specifications

Features 10x optical zoom, visible light, lightweight gimbal, 1100m laser ranging, and 370g weight. Equipped with low latency RTSP, supports OSD code stream output, and includes superposition of 3-axis stabilization gimbals. TF card for double recording, with network and UART control for reading and writing.

TOPOTEK SIP10L11A: A dual light drone gimbal with a 10x optical zoom camera, 1100m laser ranging, and IP network control. Features include one-click restore to initial position, adjustable gimbal speed, and support for multiple control modes. The camera has a 4-megapixel CMOS sensor, white balance, and real-time fast focusing function. It also has HD video output with RTSP streaming, local TF storage, and a wide field of vision. Specifications include a working temperature range of -10°C to +45°C, humidity range of 20% to 80%, and storage environment of -20°C to +60°C.

Dimensions: 95.5 x 65.5 x 8mm (LxWxH). Mounting plate size: 65.5mm*65.5mm; mounting holes: 4x M2.5. Connectivity options include GND, SV OUT, SBUS, NC, AS Oj31w NET TN NET TP, and more.

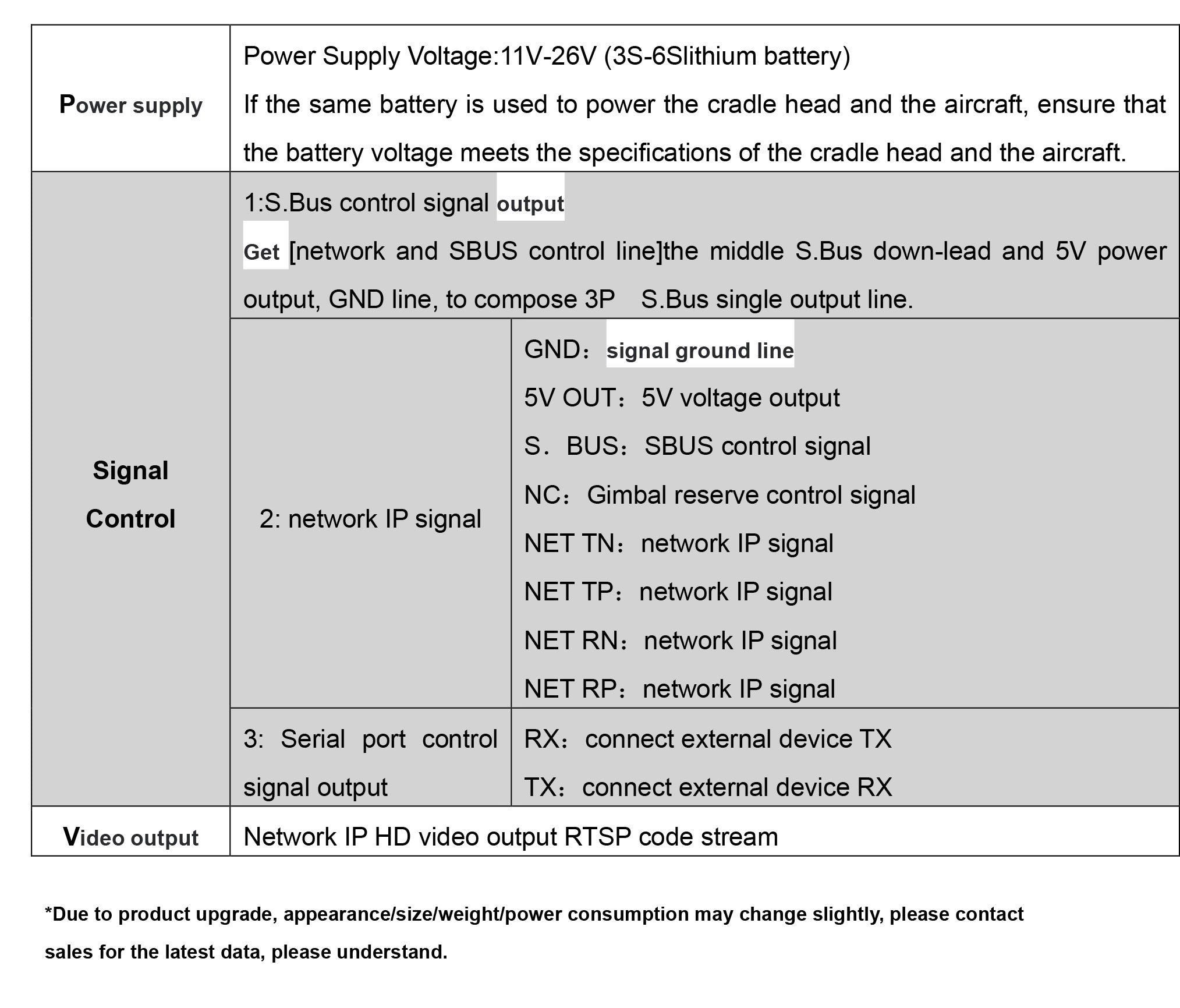

Power Supply: 11V-26V (3S-6S lithium battery). Ensure that the battery voltage meets the specs of both the gimbal and aircraft. The power supply outputs include S.Bus control signal, GND line, 5V OUT voltage output, and NC signal for gimbal reserve control. Additionally, it features network IP signals NET TN, TP, RN, RP, serial port RX/TX, video output, and HD video output with RTSP code stream. Please note that product updates may result in slight changes to size, weight, and power consumption; contact sales for the latest information.
