Overview

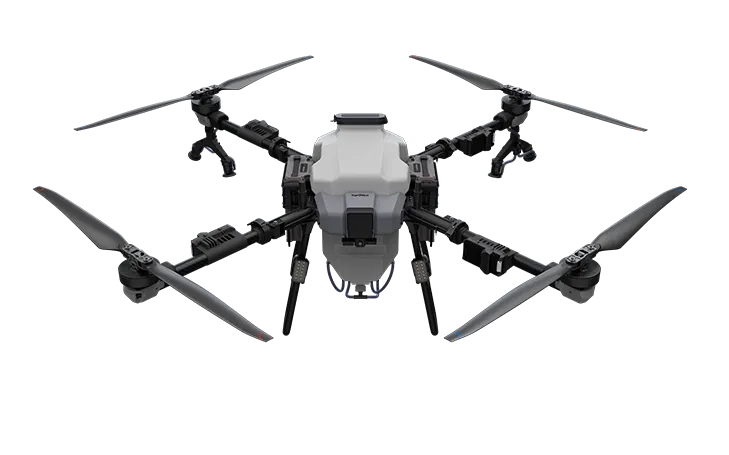

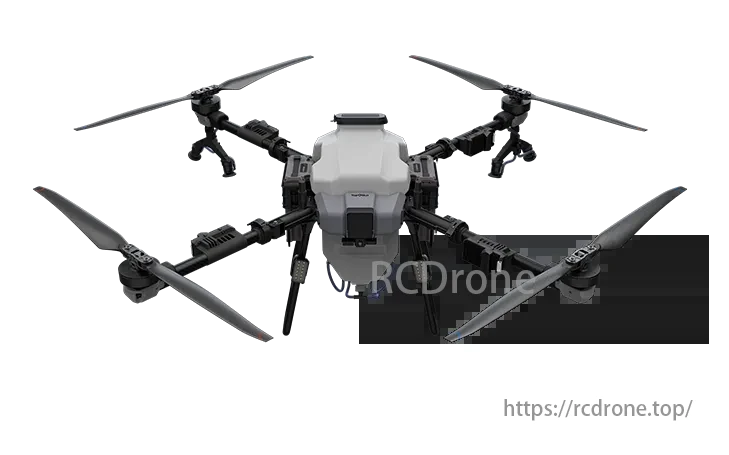

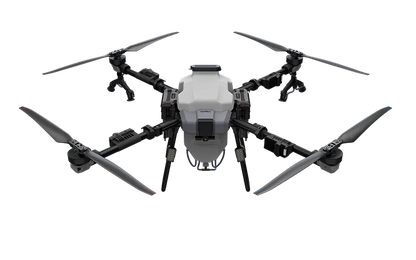

The TopXGun FP700 Agriculture Drone is the 2025 flagship model, built for large-scale farmland and orchard operations. It combines a high-capacity 60L spraying tank, an 80L spreading tank, and a 70kg max payload, along with an upgraded 4D radar system, intelligent flight control, and rugged IP67-rated construction. Designed for productivity, durability, and smart performance, the FP700 is ready to tackle the toughest agricultural tasks with precision.
Specifications
| Category | Specification |
|---|---|
| Brand | TopxGun |
| Spraying Tank Capacity | 60L |
| Spreading Tank Capacity | 80L |
| Maximum Payload | 70kg |
| Spreading Width | 5–10 meters |
| Maximum Spray Flow Rate | 10L/min (Single Nozzle) |
| Max Spreader Discharge Rate | 220kg/min |
| Atomization Particle Size | 30–500μm (Adjustable) |
| Nozzle Type | Centrifugal Nozzles |
| Spreader Type | SP6 Centrifugal Spreader with Dual Roller System |
| Drone Battery | Two 20000mAh Batteries |
| Charging System | 9000W Dual-Channel Air-Cooled Charger |
| Flight Range | 2km |
| Max Flight Altitude | 30m |
| Max Flight Speed | 13.8 m/s |
| Obstacle Avoidance | Forward Detection with Autonomous Bypass |
| Radar | Automotive-Grade 4D Radar (150m Detection Range) |
| Mapping Camera | Built-in HD Mapping Camera |
| Frame Material | Aviation-Grade Aluminum Alloy |
| Protection Level | IP67 (Waterproof, Dustproof, Corrosion-Resistant) |
| Spray Accuracy | ±5% Deviation |
| Flight Control System | Self-Developed, Modular Design |
| Special Features | Night Mode FPV, Single-Sided Spraying, UPS Battery Swap |
Key Features
-
High-efficiency rear-mounted 4-nozzle system with precise droplet control
-
SP6 dual-roller spreader supports fertilizers, seeds, and bait with accurate flow control
-
Automotive-grade 4D radar detects obstacles up to 150m, ensuring safe operation even at high speeds
-
Real-time HD mapping with autonomous flight covers up to 13.5 hectares per mission
-
Dual 20Ah battery system with UPS and fast-charging ensures continuous work without downtime
-
Rugged and modular build with IP67 rating for pesticide and fertilizer resistance
-
User-friendly Agri Assistant App with intuitive UI, flight planning, and night operation support
Details
FP700 Agricultural Drone. Ready for every challenge. Suitable for large fields, orchards, hills, and aquaculture.

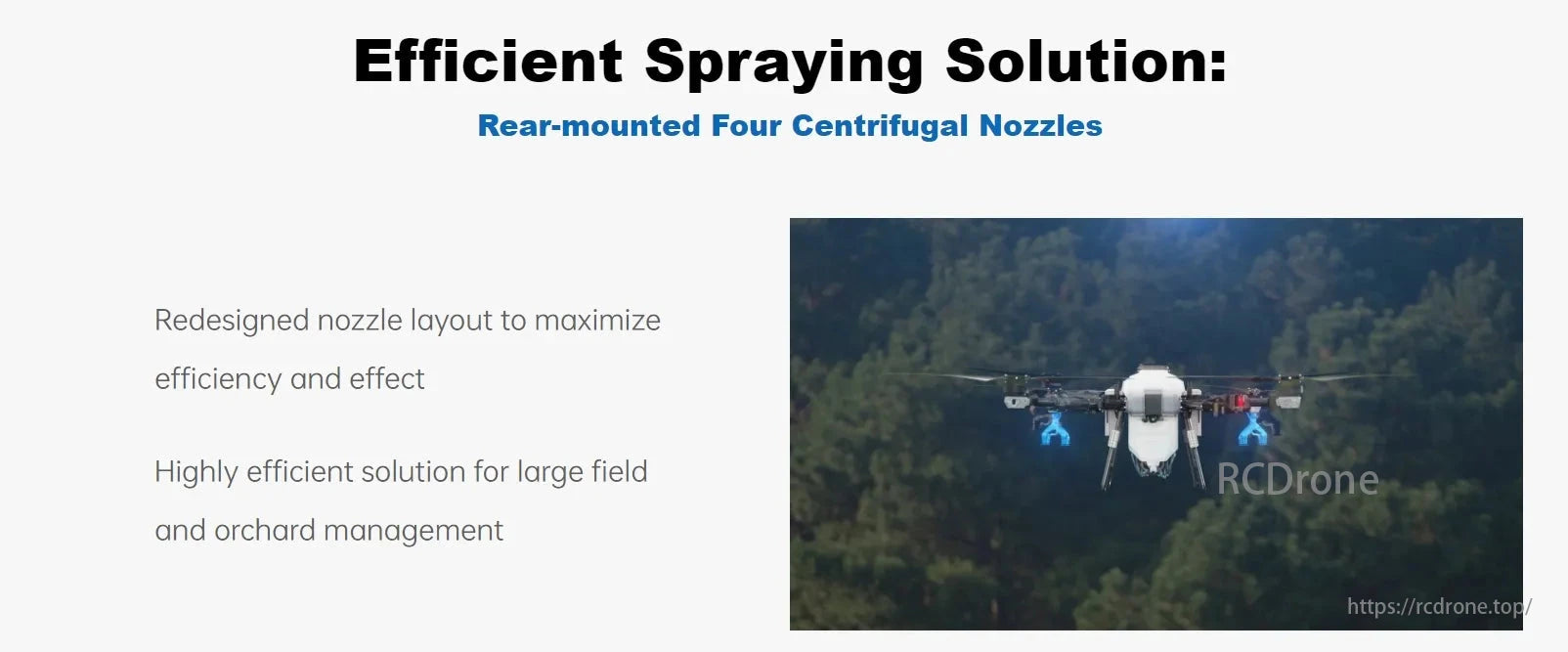

Efficient spraying solution with rear-mounted centrifugal nozzles for large fields and orchards.
High-flow metering pump, 40L/min max flow rate. Spray accuracy within 5% deviation. Adjustable droplet size, single-sided spraying support.

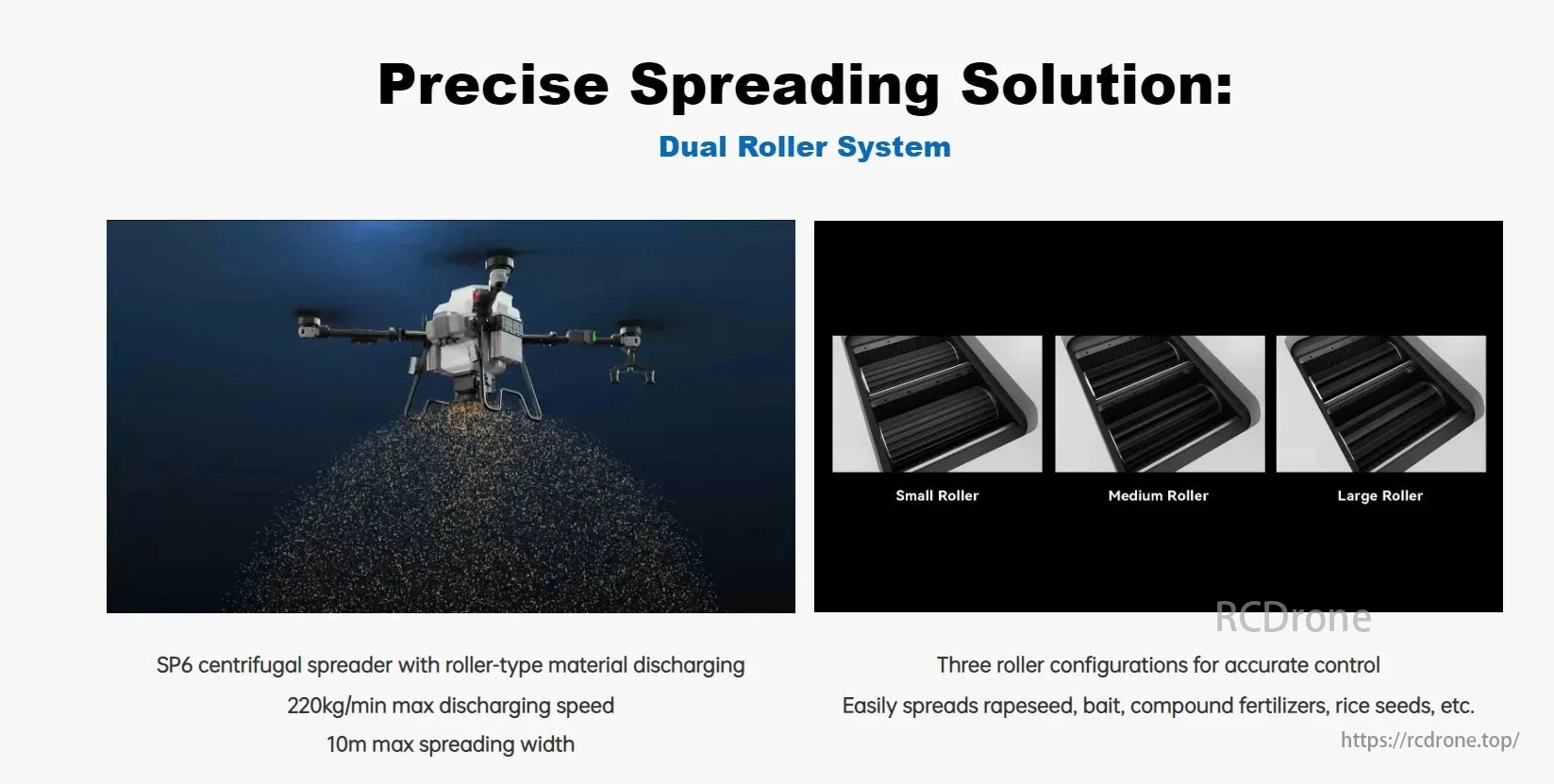

Precise Spreading Solution: Dual Roller System. SP6 centrifugal spreader with roller-type material discharging, 220kg/min max speed, 10m width. Three rollers for accurate control of various materials.

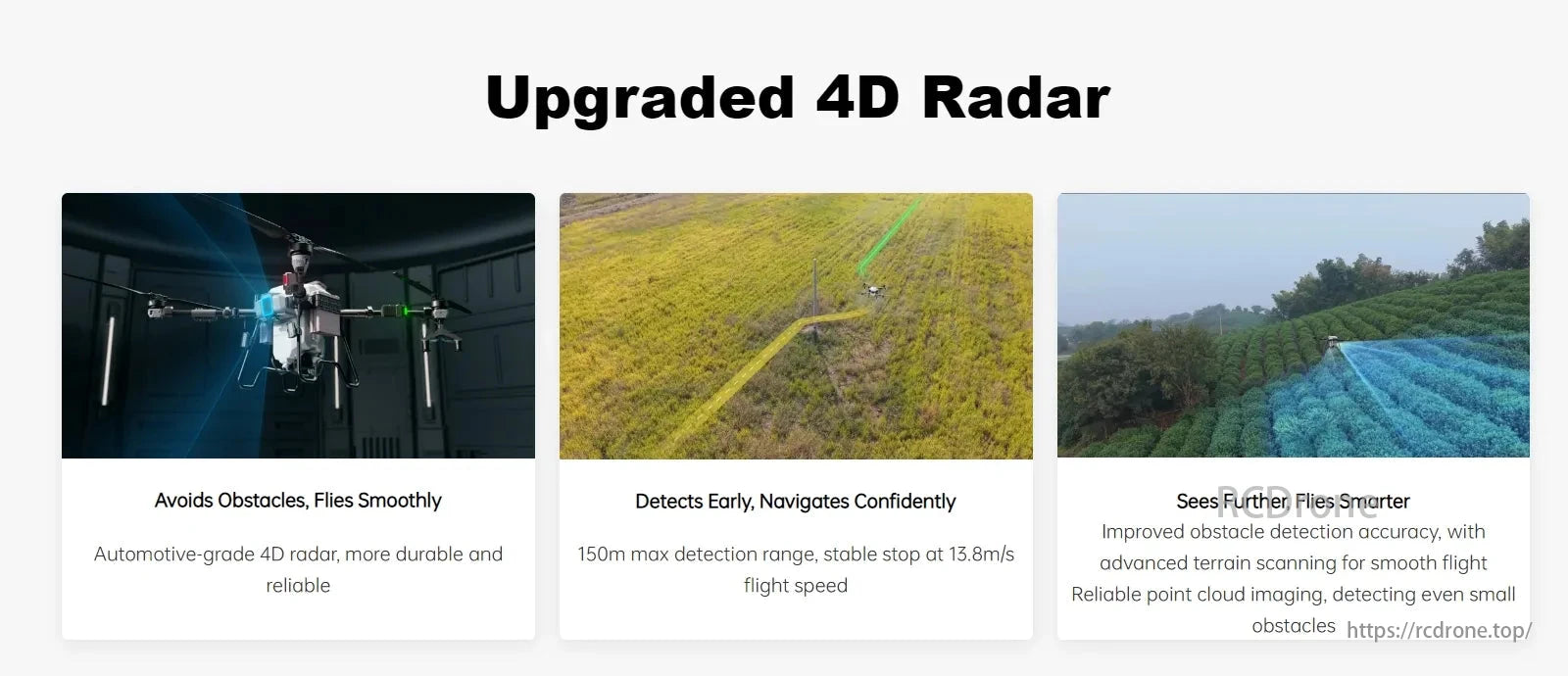

Upgraded 4D Radar avoids obstacles, flies smoothly. Detects early, navigates confidently with 150m range. Sees further, flies smarter with advanced terrain scanning and point cloud imaging for smooth flight.
Mounted HD Mapping Camera. Ready for Instant Use. Equipped with a HD mapping camera for real-time mapping. Fully autonomous flight. Supports up to 13.5 hectares per aerial mapping.

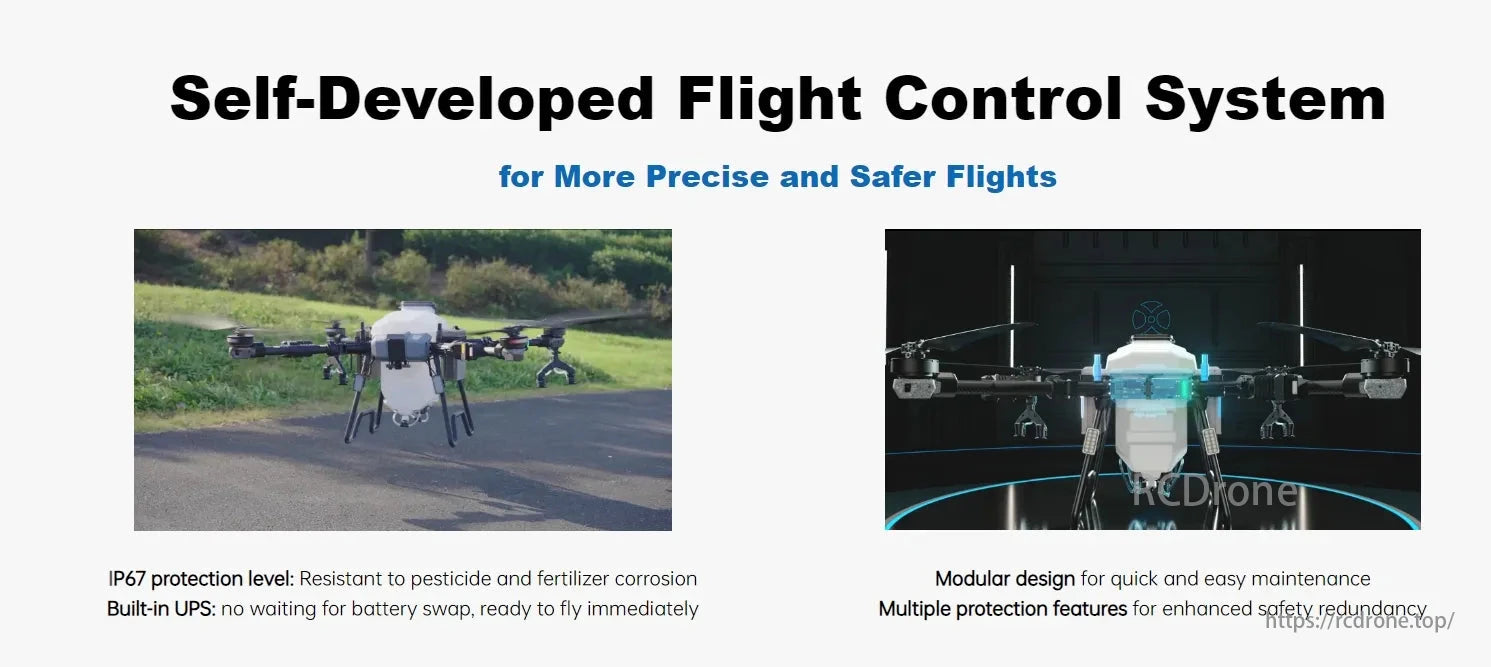

Self-developed flight control system ensures precise, safer flights. IP67 protection resists corrosion; built-in UPS for immediate flight. Modular design aids maintenance with safety redundancy.

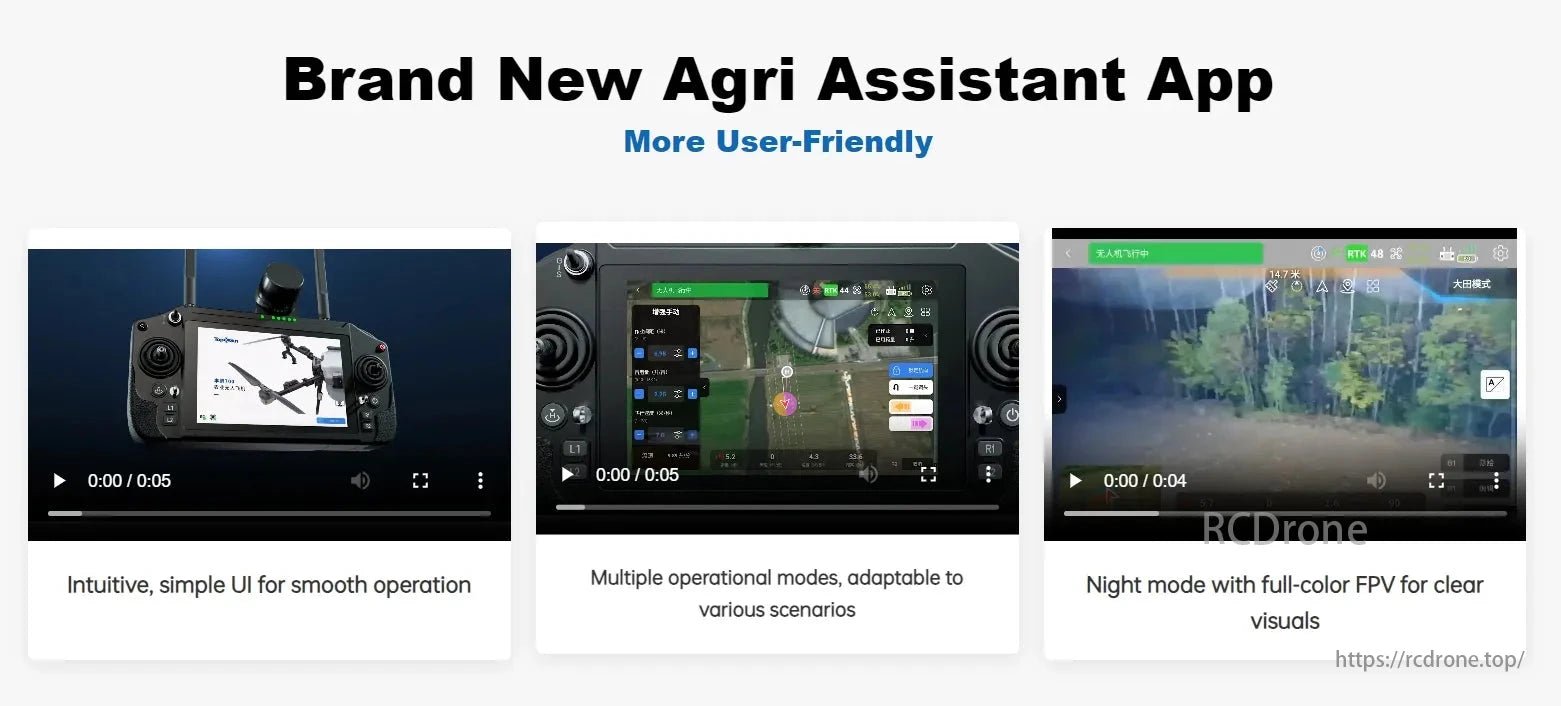

Brand New Agri Assistant App offers an intuitive, simple UI for smooth operation. It features multiple operational modes adaptable to various scenarios and a night mode with full-color FPV for clear visuals. More user-friendly.
Dual-battery system with 20Ah capacity and mutual backup. 9000W air-cooled charger ensures fast charging and continuous operations for extended flight time.
