TTA G300 30L Agriculture Drone - 6 Axis 24 Acres Per Hour Heavy Lift Seed Spreader Sprayer Drone

TTA G300 30L Agriculture Drone - 6 Axis 24 Acres Per Hour Heavy Lift Seed Spreader Sprayer Drone

TTA

Regular price $21,999.00 USD
Regular price Sale price $21,999.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

9 orders in last 30 days

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



WHAT'S INCLUDED

  • 1x G300 Drone with RC
  • 1x Charger
  • 4x Batteries
  • 1x Terrain Following Module
  • 1x Front & Rear Obstacle Sensors
  • 2x FPV
  • 1x LEDs
  • 12x Nozzles (3 color options)
  • 1x Assembly & Maintenance Tools
  • 1x 1 Year Manufacturer's Warranty

HIGHLIGHTS

  • Great for Orchards

  • Great for Nurseries

  • 2-in-1 Sprays & Seeds

24 Acres per Hour*

Capacity: 7.9 Gal (30L)

Swath: 13 - 29 ft

Max Flow: 2.11 GPM (7.9 LPM)

Droplet Size 170 - 265 microns

(depending on the actual operating environment, spray flow, and other factors)



TECHNICAL PARAMETERS

Diagonal Distance

76.7 inch (1950mm)

Dimensions

114 x 114 30.7 inch (2900×2900×780mm) (with unfolded arms and unfolded propellers )

80.7 x 63 x 30.7 inch (2050×1610×780mm)  (with unfolded arms and folded propellers)

41 x 24 x 30.7 inch (1050×620×780mm) (with folded arms)

Spray System - Tank

Quantity

1pc

Tank Volume

7.9 gal (30L)

Spray System- Pump

Quantity

2pcs

Operating Flow Rate

1.3 gal (5L) /min per pump

Operating Voltage

51.8-60.0V

Spray System- Pressure Nozzles

Quantity

12pcs

Max Flow Rate

8L/min

Droplet Size

SX110015VS : 170 - 265 μm

Max Effective Spray Width

4M-9M (1.5-3.5M above crop)

Flying Parameters

Empty Weight(without batteries)

61 lbs (27.8kg)

Standard Takeoff Weight

84 lbs (38.3 kg)

Max Effective Takeoff Weight

150 lbs (68.3 kg) (horizontal)

Hover Accuracy(GNSS)

With J-RTK Enabled:Horizontal ±10 cm, Vertical ±10 cm;

With J-RTK Disabled:Horizontal ±0.6m,Vertical ±0.3 m (with radar function enabled:±0.1 m)

RTK / GNSS Frequency Bands

RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5

Battery Capacity

14S (28000mAh 51.8V)

Max Power Consumption

12000 W

Flight Time

20.10 min (@28000 mAh&takeoff weight of 38.3kg);

8.30 min (@28000 mAh&takeoff weight of 68.3kg);

Max Pitch angle

15°

Max Operating Flight Speed

7 m/s

Max Flight Speed

10m/s

Max Tolerable Wind Speed

8 m/s

Max Flight Altitude

6,561 ft (2000 m)

Recommended Operating Ambient Temperature

0°C to 40°C

Front and Rear Dual Camera

View Angle (FOV)

FOV120°

Resolution

1280×960 30fps

Front and Rear Dual Searchlights

Power Consumption

<8W

Luminous Flux

1W/120-140 lm

Shine Angle

120°

IP Ratings

IP67

Battery

Model

TATTU28A

Capacity

28000mAh-53.2V

Weight

20.5 lbs (9.3KG)

Discharge Rate

3C

IP Ratings

IP56

Power System - Motor

Dimensions

3.7 x 1 inch (96×26mm)

KV Value

100 rpm/V

Max Pull

12 lbs (15.5kg) /rotor

Max Power

2400 w/rotor

Weight

1.8 lbs (835 g)

Power System - Propeller

Diameter and Pitch

36×12inch

Material

Carbon-Plastic

Weight

0.7 lbs (324 g)

Power System - ESC

Normal Operating Current (continuous)

60A

Max Operating Voltage

58.8 V (14S LiPo)

Max Operating Current(continuous)

120A

Remote Control

Model

H12

Max Valid Distance

15KM (without blockage and interference)

AG Drone Operating Range

3.5KM (flight height>3m)

Signal Output

16 channels S.BUS;

5 channels PWM;

Video Transmitter Resolution

1080P

Screen

5.5inch High-brightness Touch LCD Screen

Configuration

2G RAM,16GB Internal Storage

Weight

1.1 lbs (530g)

Battery

10000mAh 3.7V Lithium-ion Battery

Endurance

13 hours

Charger

Model

U6Q

Input Voltage

110V-220V

Output Power

2400W

Charge Current Range

15A-50A

Support Battery Model

 Lithium Battery

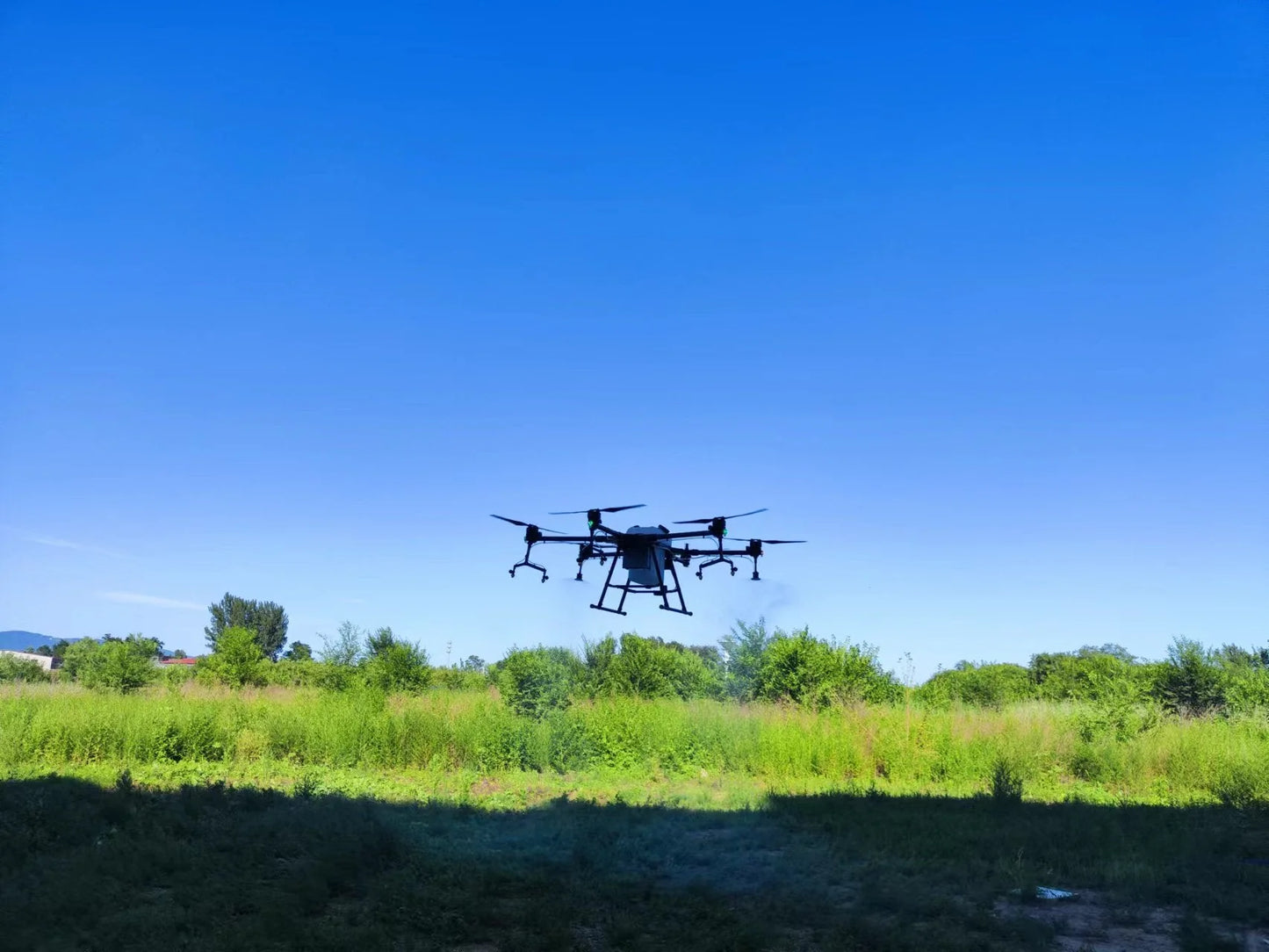

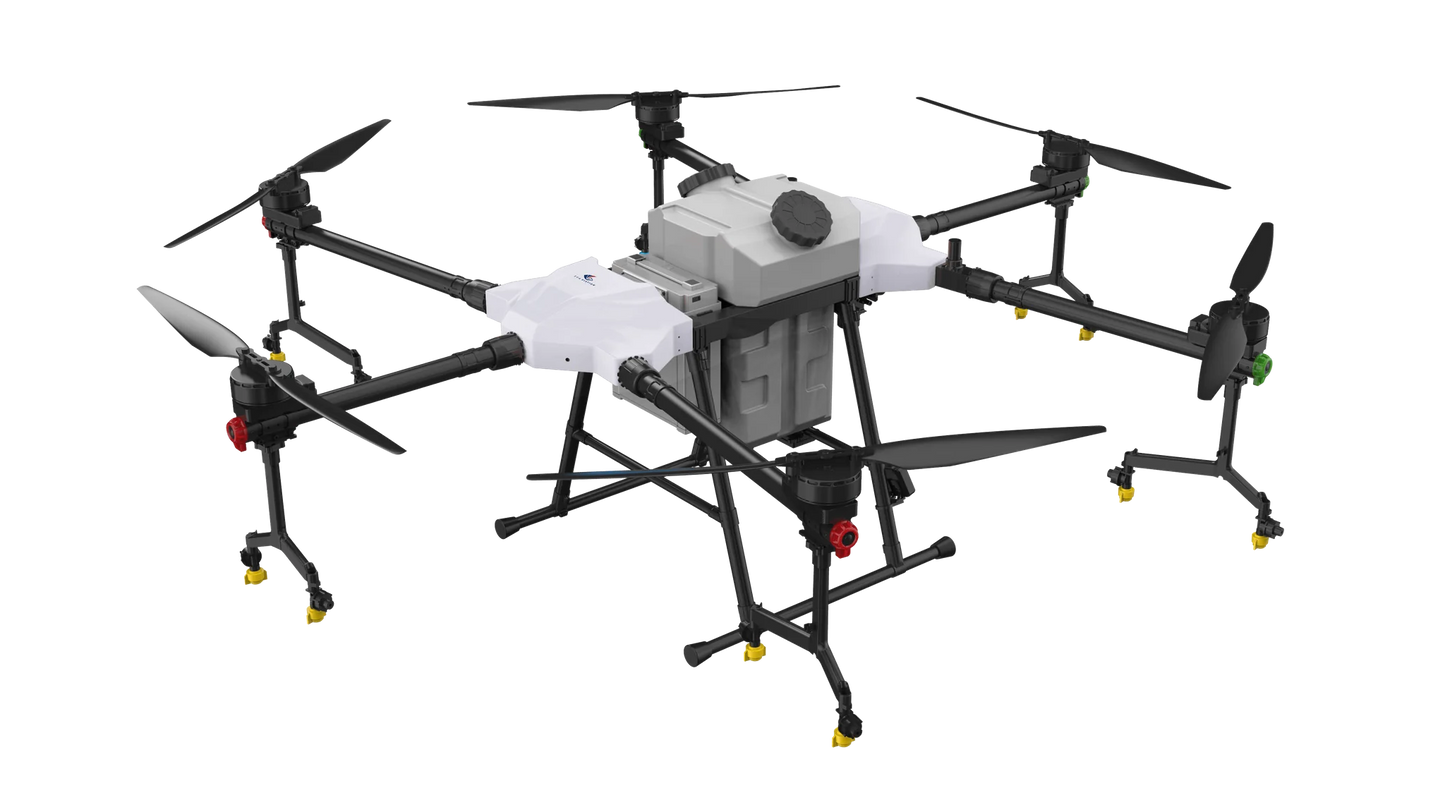

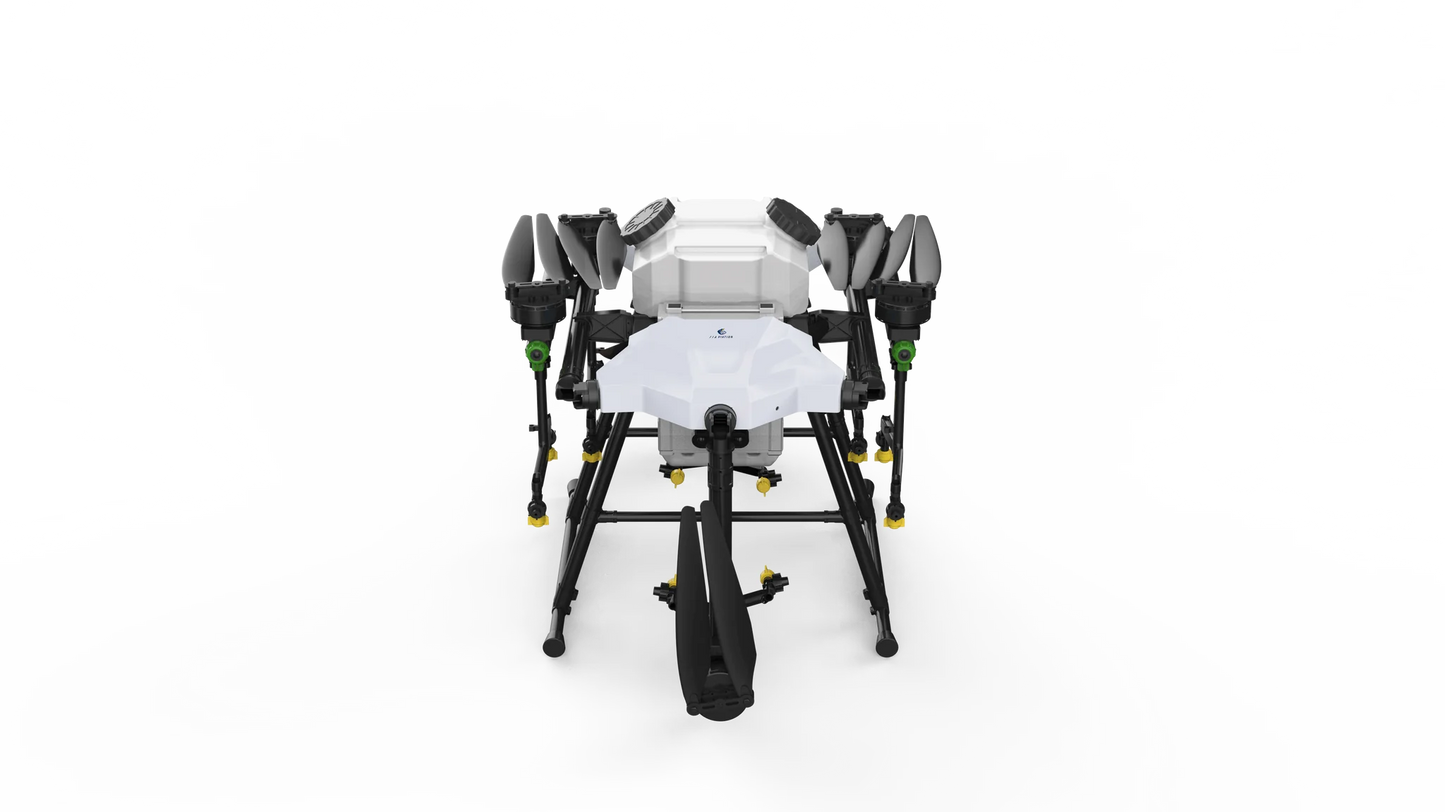

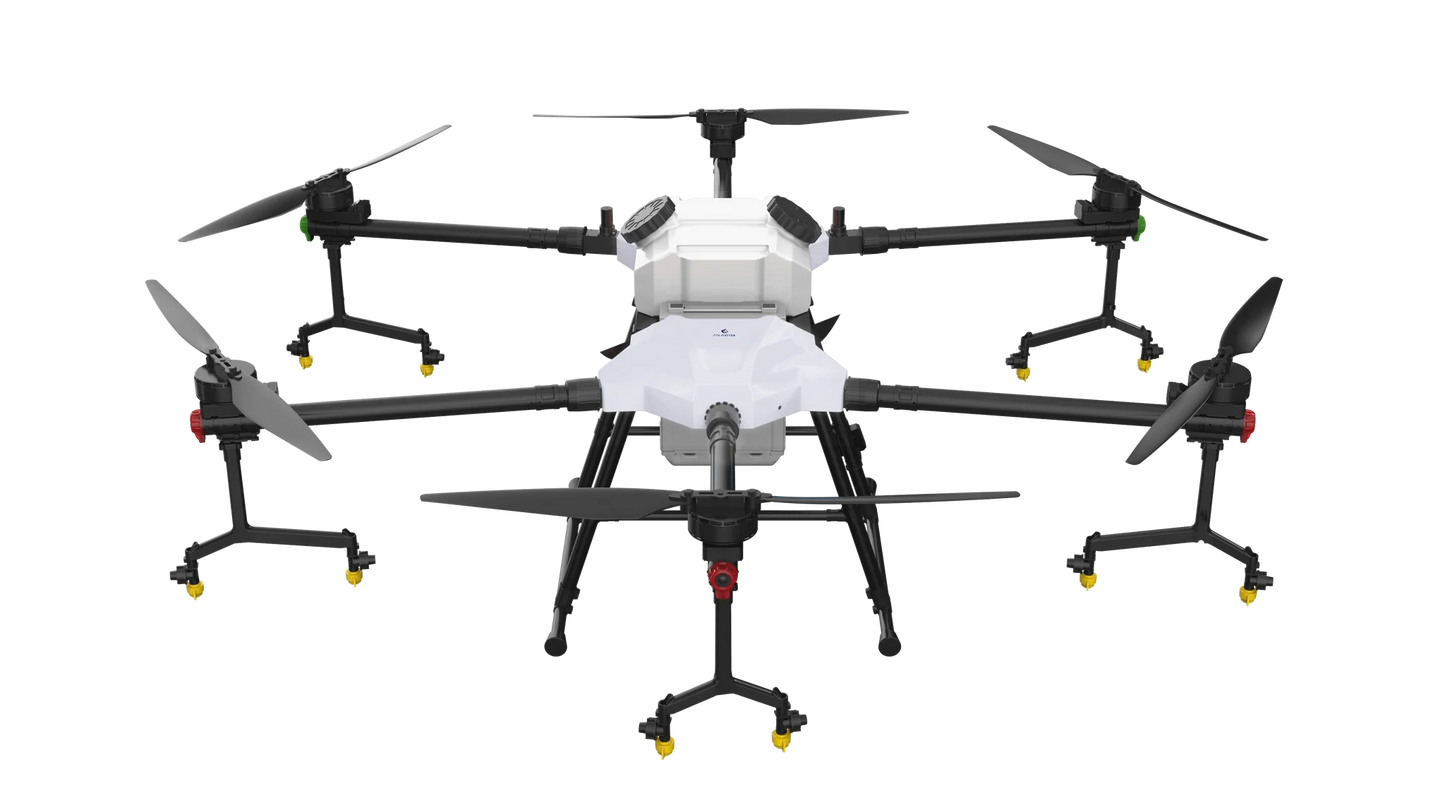

The TTA G300 Spraying, Seeding & Mapping Drone

OBSTACLE AVOIDANCE | EASIER FLYING |EASIER MAINTENANCE

HEAVY LIFT AGRICULTURAL DRONE


  • G300  7.9 GAL (30L) SPRAYING DRONE

  • AUTOMATIC SPRAY MODE - Find your crop field and set waypoint from the GCS Google Map, the route will automatically appear. The start point, the final point and the working direction can all be set.

  • ACCURATE RTK POSITIONING SYSTEM - Covers the whole field accurately, also to avoid damage and pollution to neighboring fields

  • 24 ACRES PER HOUR

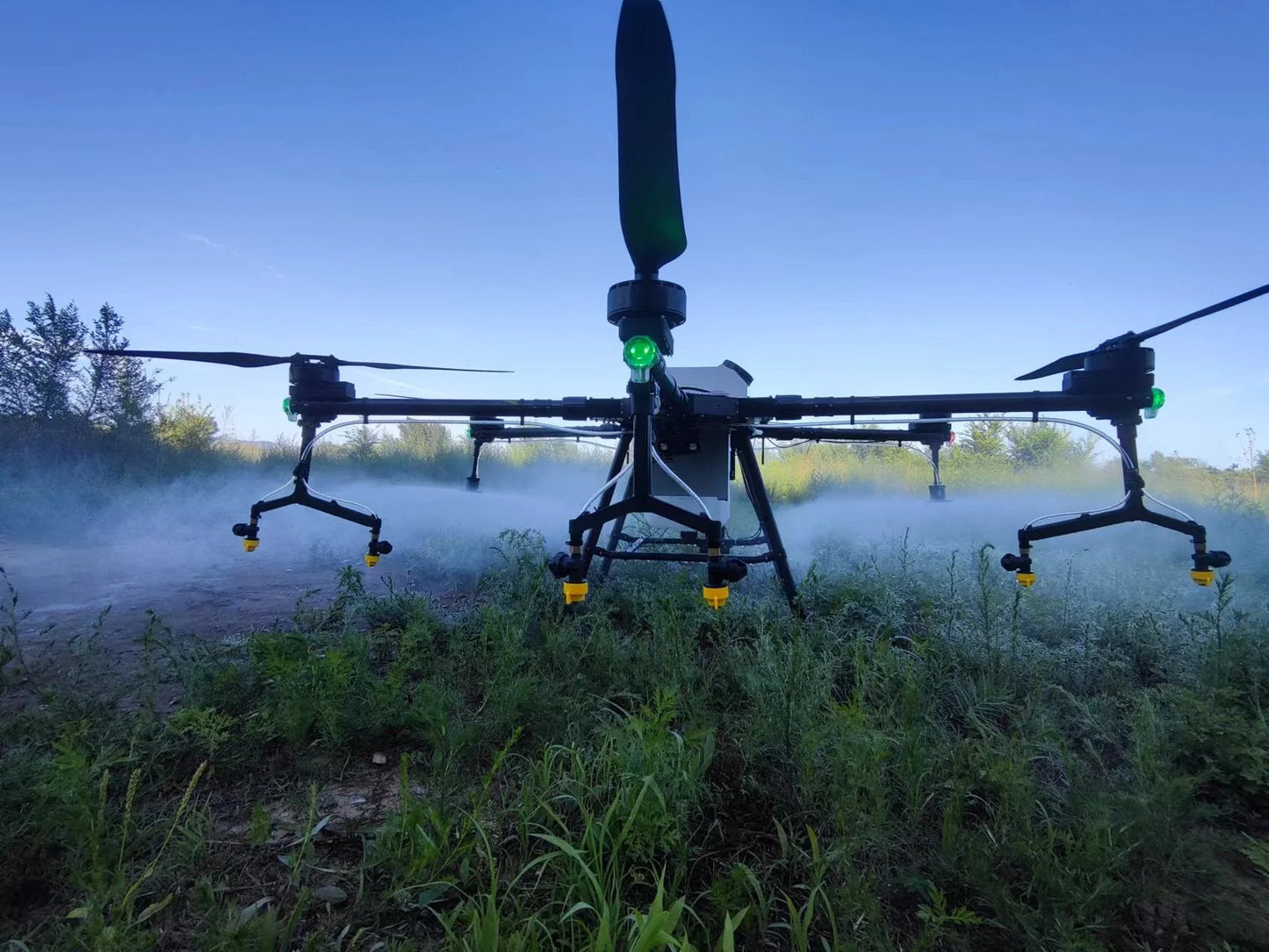

  • SPRAYING SYSTEM - Double water pumps generate bigger pressure, max 4L/min adjustable flow rate. Bigger inlet for you to fill in the chemical faster with no leak
