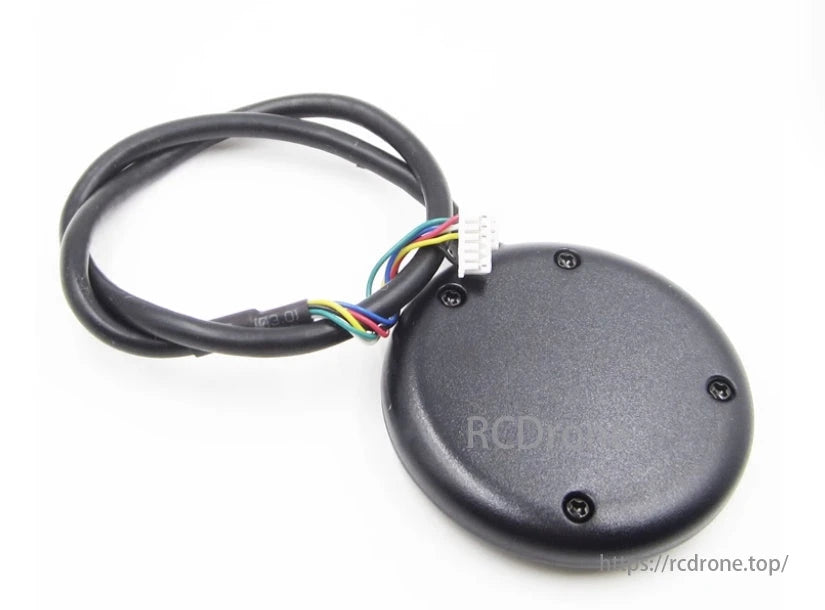

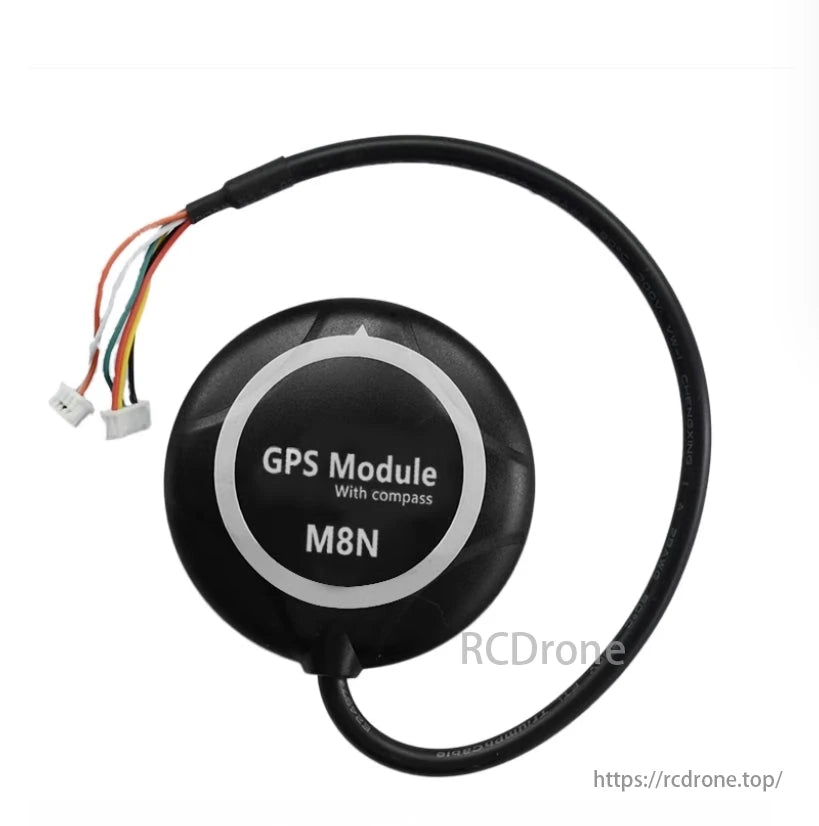

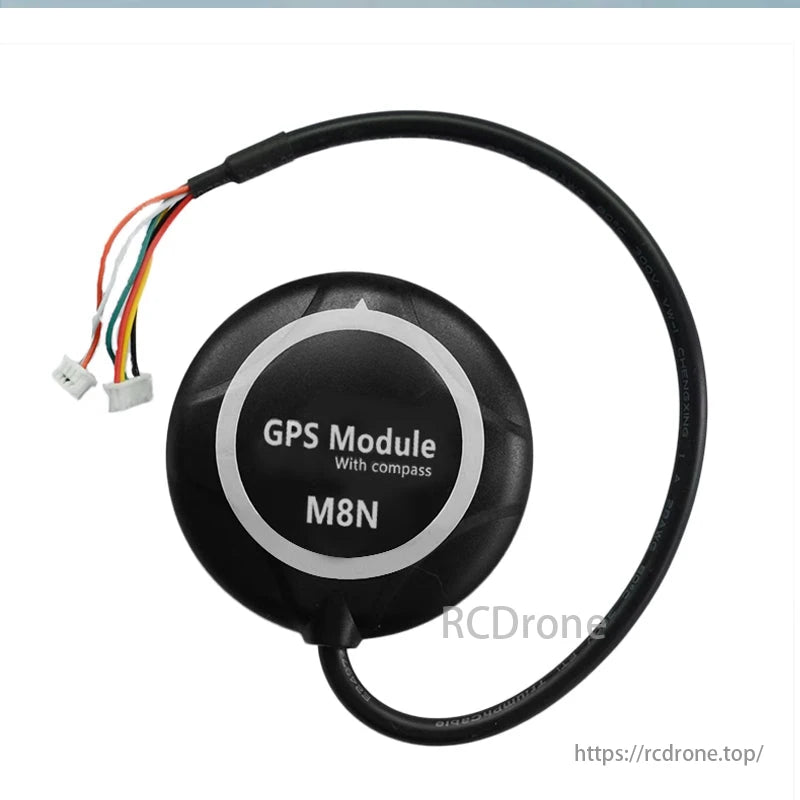

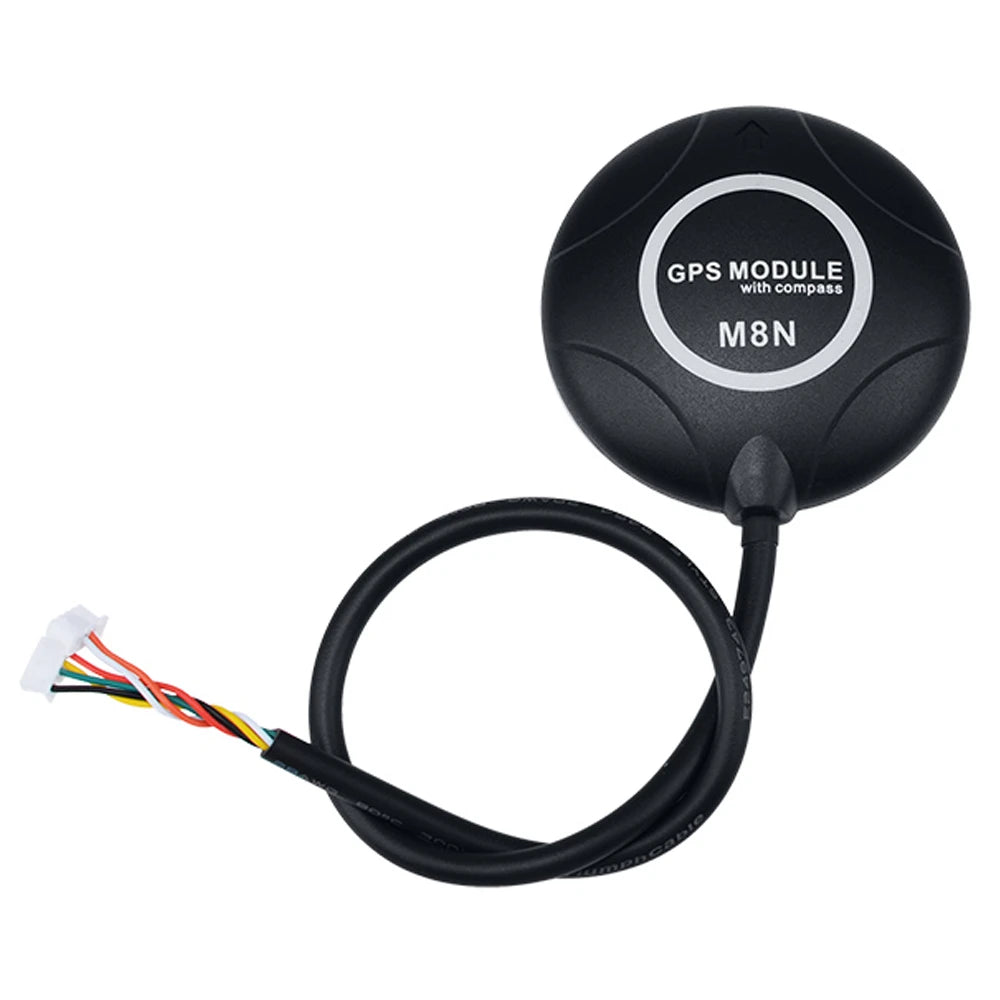

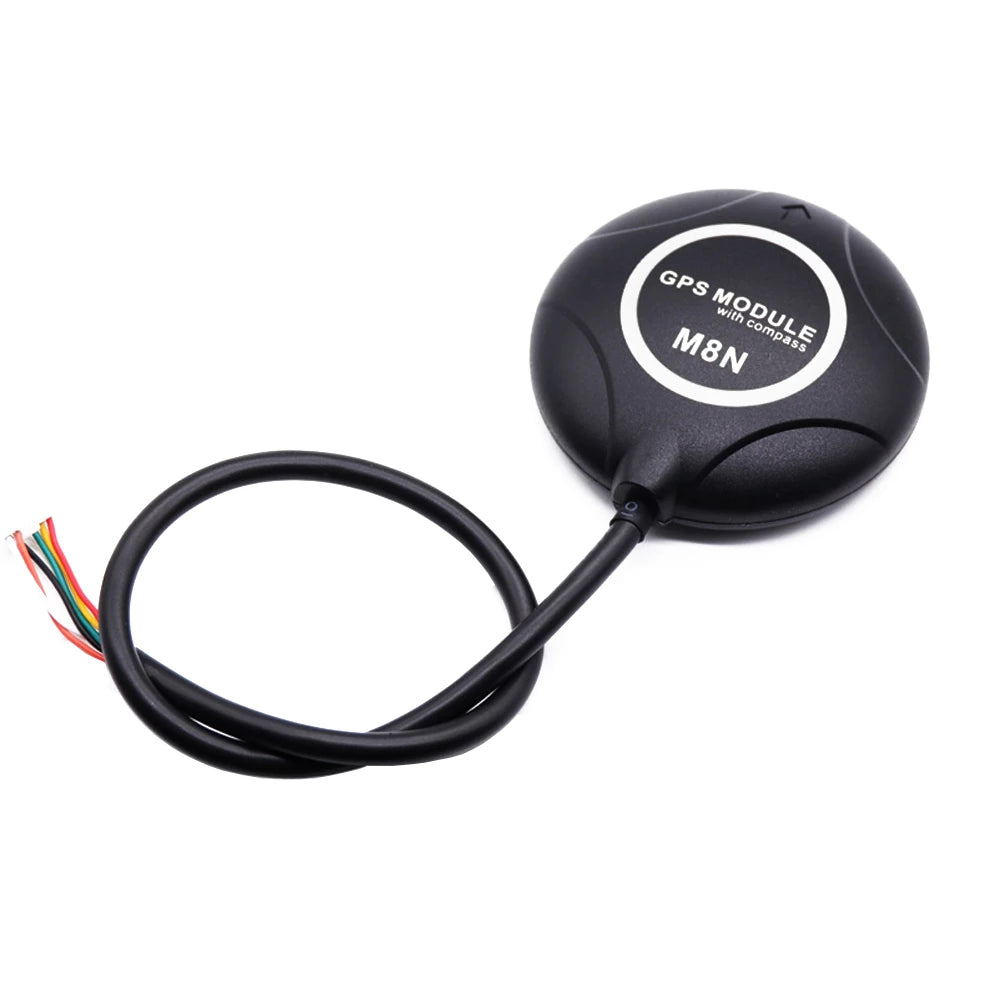

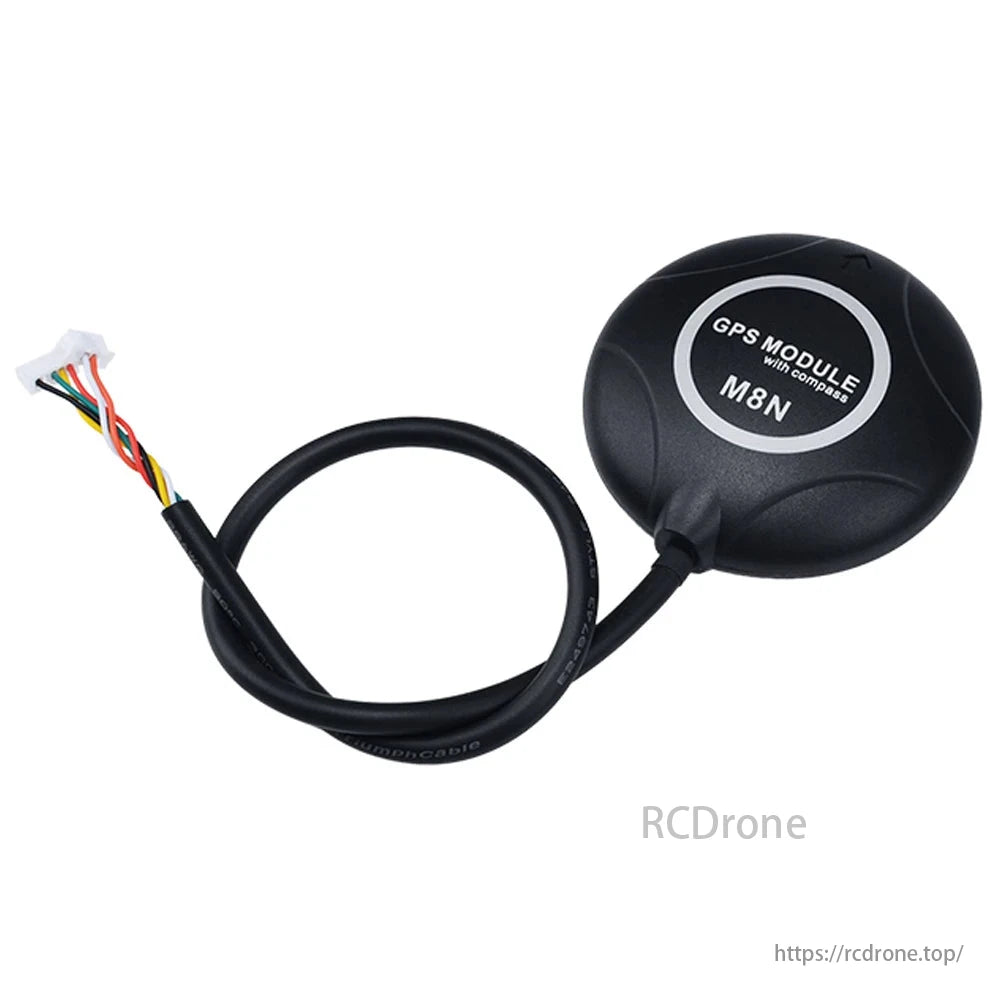

Ublox NEO-M8N High Precision GPS Module with HMC5883 Compass | 26 Satellites, 0.5m Accuracy, APM/Pixhawk Compatible

The Ublox NEO-M8N GPS Module is a high-precision GNSS positioning unit with built-in HMC5883 electronic compass, designed for drones, FPV aircraft, and RC fixed-wings. With support for GPS + GLONASS + BeiDou + SBAS, the module provides accurate and stable positioning, even in challenging environments.

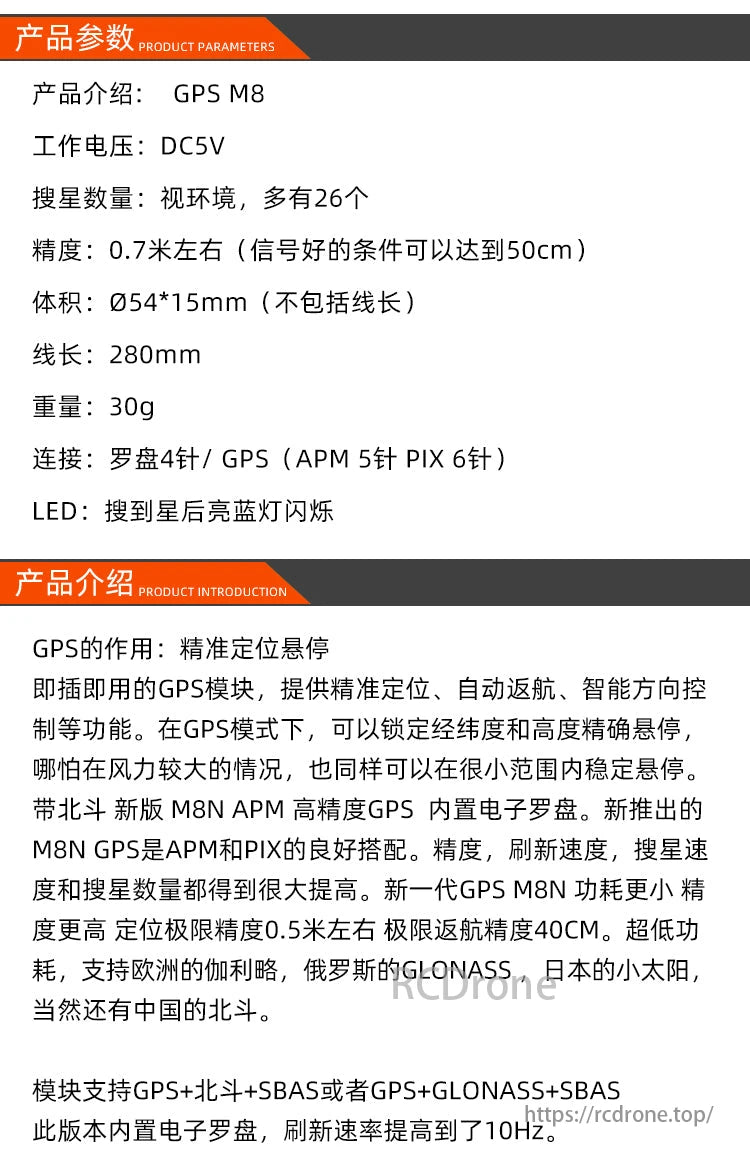

🔧 Key Specifications

• Chipset: Ublox NEO-M8N

• Compass Sensor: HMC5883 3-axis electronic compass

• Working Voltage: DC 5V

• Satellite Support: Up to 26 satellites in view (GPS + GLONASS + SBAS + BeiDou)

• Position Accuracy: 0.7m typical, up to 0.5m under ideal conditions

• Refresh Rate: Up to 10Hz

• LED Indicator: Blue LED flashes after GPS lock

• Module Size: Ø54 × 15mm (excluding cable)

• Cable Length: 280mm

• Weight: 30g

• Connector:

  • GPS: APM (5-pin), Pixhawk (6-pin)

  • Compass: 4-pin I2C interface

🛠️ Product Features

• High-precision positioning for flight control systems

• Built-in EEPROM memory, backup power system, and amplifier circuit

© rcdrone.top 2025-07-16 00:54:02 (Beijing Time). All rights reserved. Product ID: 8938249257184

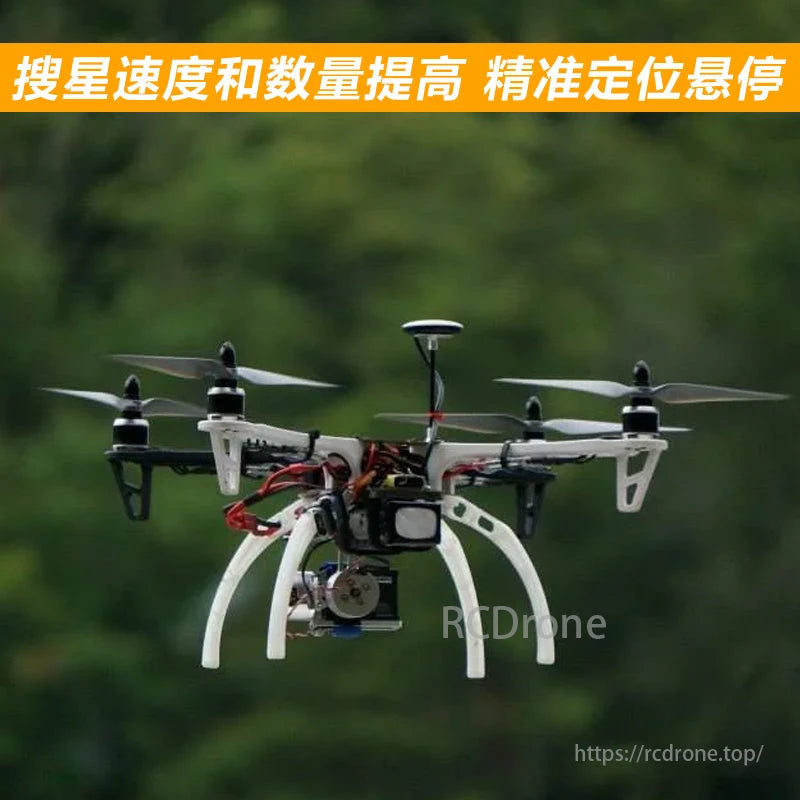

• Supports auto-return, intelligent heading control, and accurate hovering

• Stable in high-wind environments or tight indoor areas

• Plug-and-play compatibility with APM 2.5, 2.6, 2.8, Pixhawk, and PX4

• Outputs via UART (GPS) and I2C (Compass)

• Configuration retained after power-off thanks to onboard EEPROM

• Includes double-sided adhesive mounting pad

✅ Benefits Compared to Old GPS Modules

• Improved satellite acquisition speed

• Higher satellite tracking count (26+)

• Superior precision and positioning stability

• Enhanced compatibility with mainstream flight controllers

• Better return-to-home and autonomous flight performance

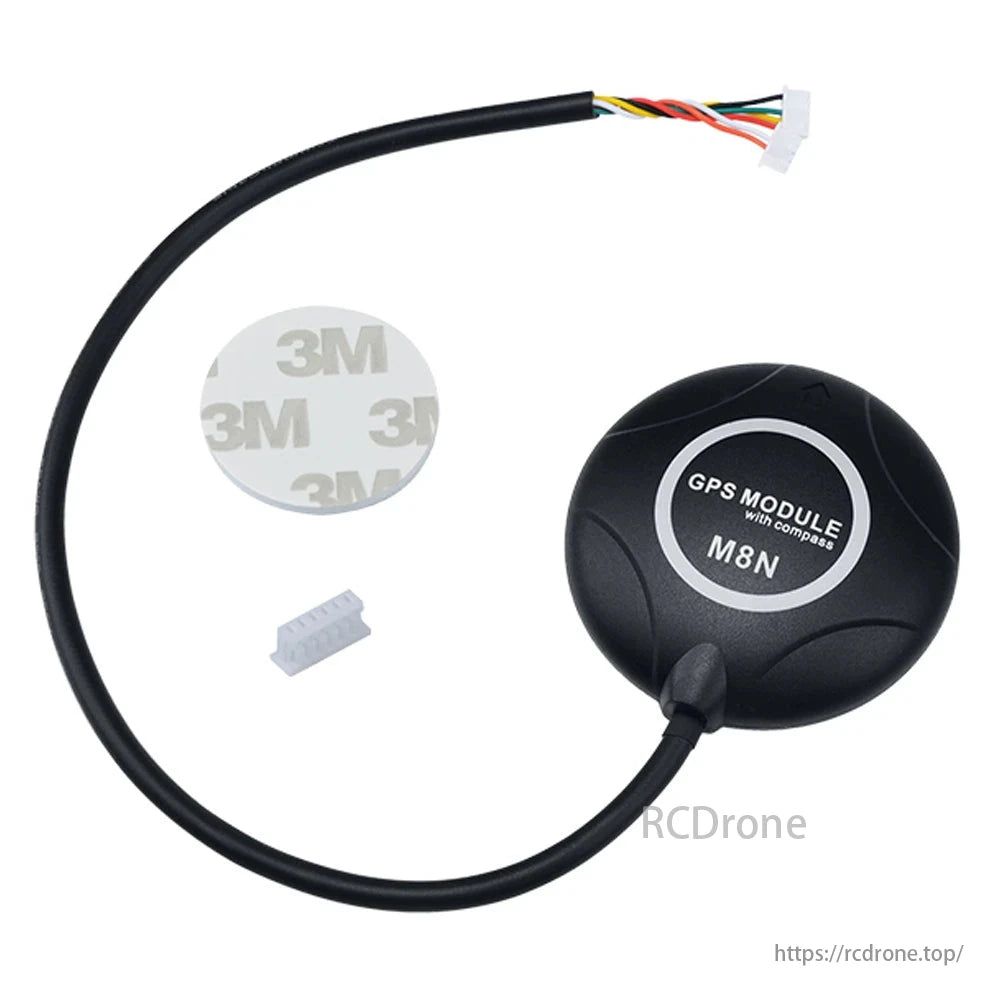

📦 Package Contents

• 1x Ublox NEO-M8N GPS Module (with compass)

• 1x Pre-soldered cable with connectors (APM/Pix compatible)

• 1x Adhesive foam pad for easy mounting

This NEO-M8N GPS Module with HMC5883 Compass is ideal for flight controllers like Pixhawk, APM, and PX4, providing reliable GNSS performance for autonomous drones and aircraft. It’s a widely-used and trusted solution for both hobbyists and professional UAV builders.

Details

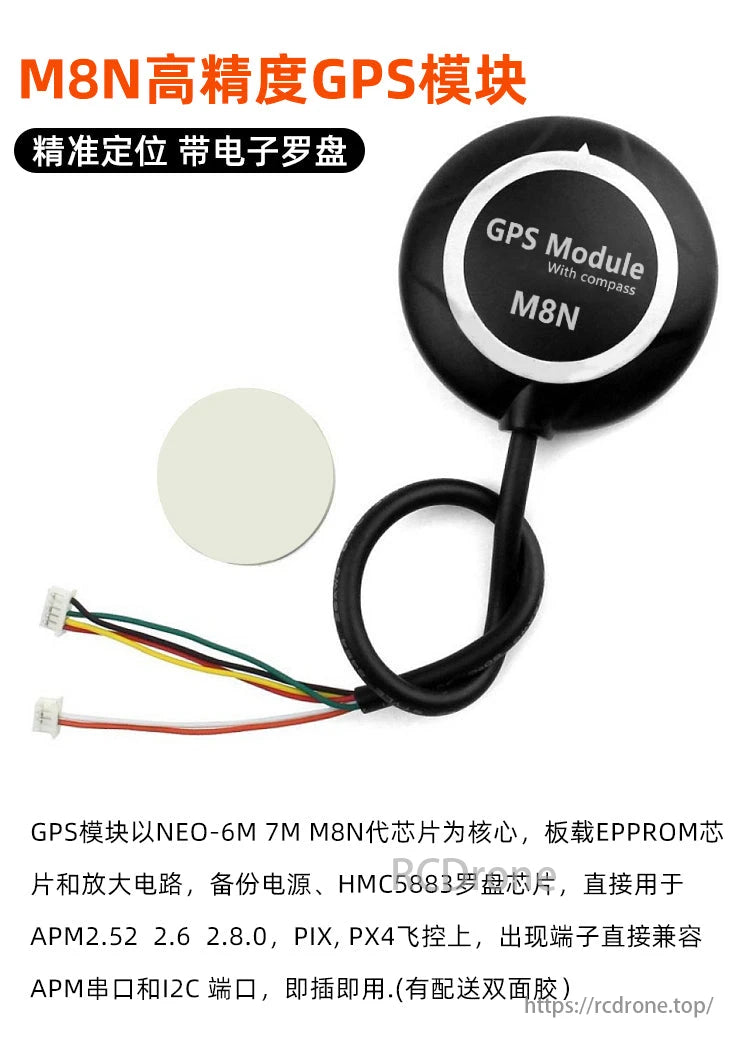

Ublox NEO-M8N GPS module with compass, featuring high precision and compatibility with APM2.52, 2.6, 2.8.0, PIX, PX4 flight controllers. Plug-and-play design with EEPROM and backup power.

Ublox NEO-M8N GPS module offers high precision, 0.7m accuracy, supports multiple GNSS systems. Features include 26 satellite tracking, 10Hz refresh rate, low power consumption, and compatibility with APM and PIX controllers.
