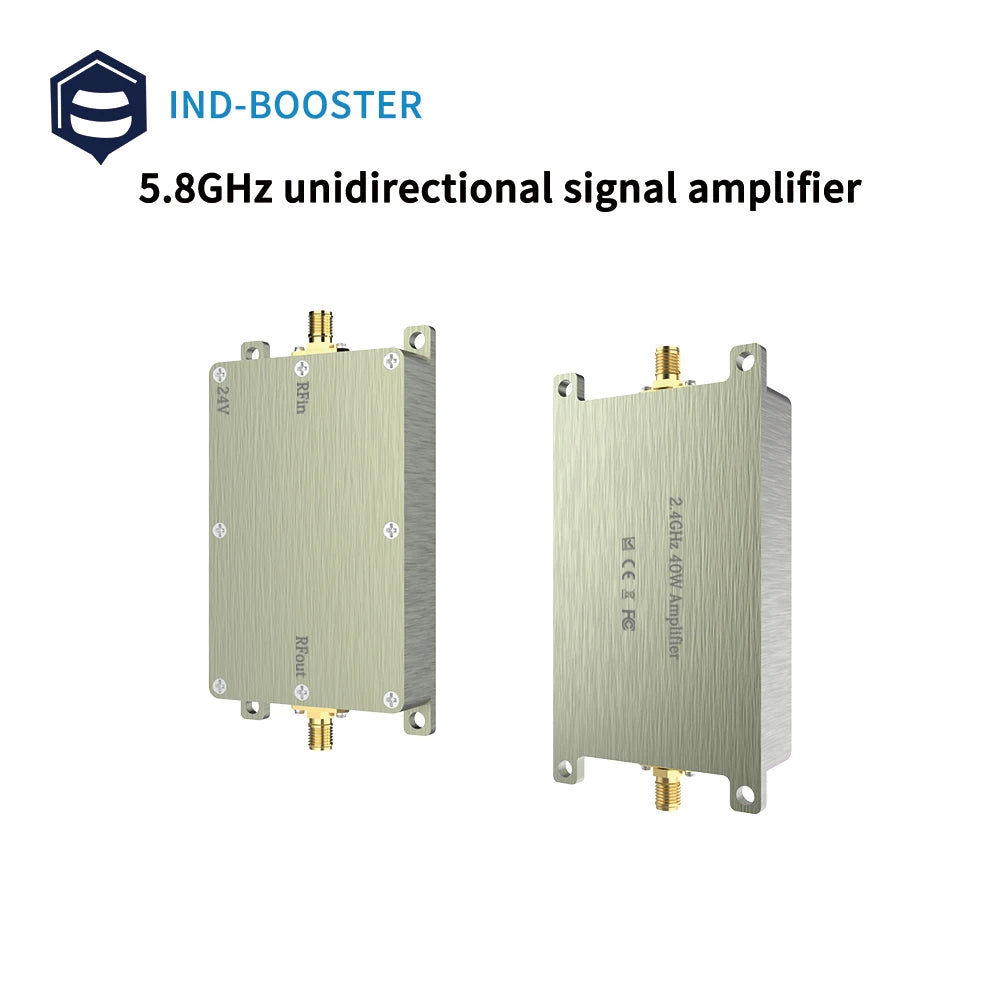

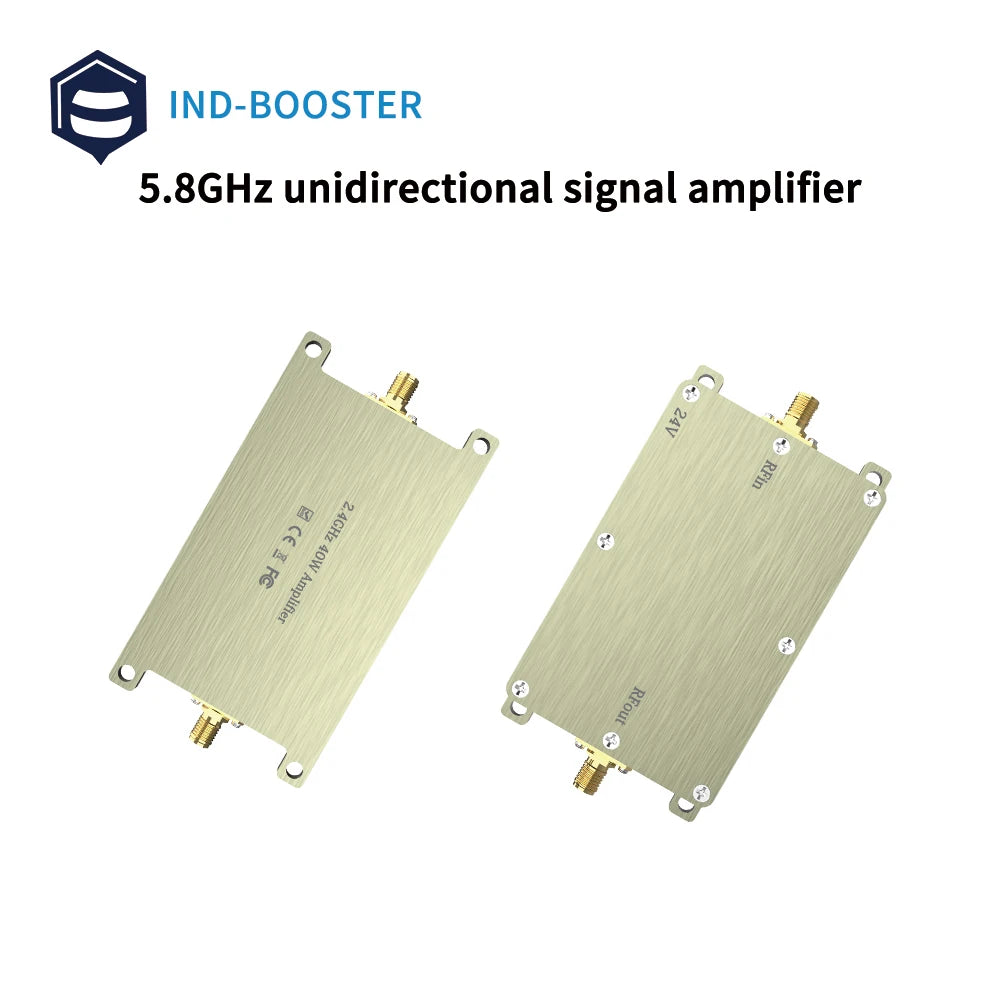

5.8GHZ Anti Drone Module Overview
The 5.8GHz Anti Drone Module is a powerful unidirectional signal amplifier designed for counter-drone applications in the 5725-5850MHz range. Available in 10W, 20W, 40W, and 50W configurations, it delivers a high output power of 47dBm with a customizable gain of 25-37dB, making it ideal for disrupting unauthorized drones. The module operates efficiently on 20-24V (customizable to 28-32V) and features 45% efficiency at 46dBm output. Housed in a compact 965317mm aluminum shell and weighing just 0.15kg, it is built for durability and ease of integration. With an operating temperature range of -30℃ to 85℃, SMA-Female connectors, and a design optimized for use with Autel and DJI drones, this amplifier ensures reliable, one-way signal transmission, making it essential for secure and effective drone defense operations.
5.8GHZ Anti Drone Module SPECIFICATIONS
Brand Name: RCDrone
Item Type: original
Origin: Mainland China
Model Number: 5.8Ghz uni
5.75-5.85GHz Unidirectional Amplifier FOR WiFi/ DRONE Only the Transmitting Channel (TX), NO RX
No. |
Items |
Specifications |
1 |
Frequency Range |
5725-5850MHz |
2 |
Operating Voltage |
20-24V(customizable28-32V) |
3 |
Gain(S21) |
37dB(customizable 25-37dB) |
4 |
Input Return Loss(S11) |
-15dB |
5 |
Flatness |
±0.5dB |
6 |
Output Power |
47dBm |
7 |
Current |
4.3A @24V, 47dBm |
8 |
Efficiency |
45%@46dBm |
9 |

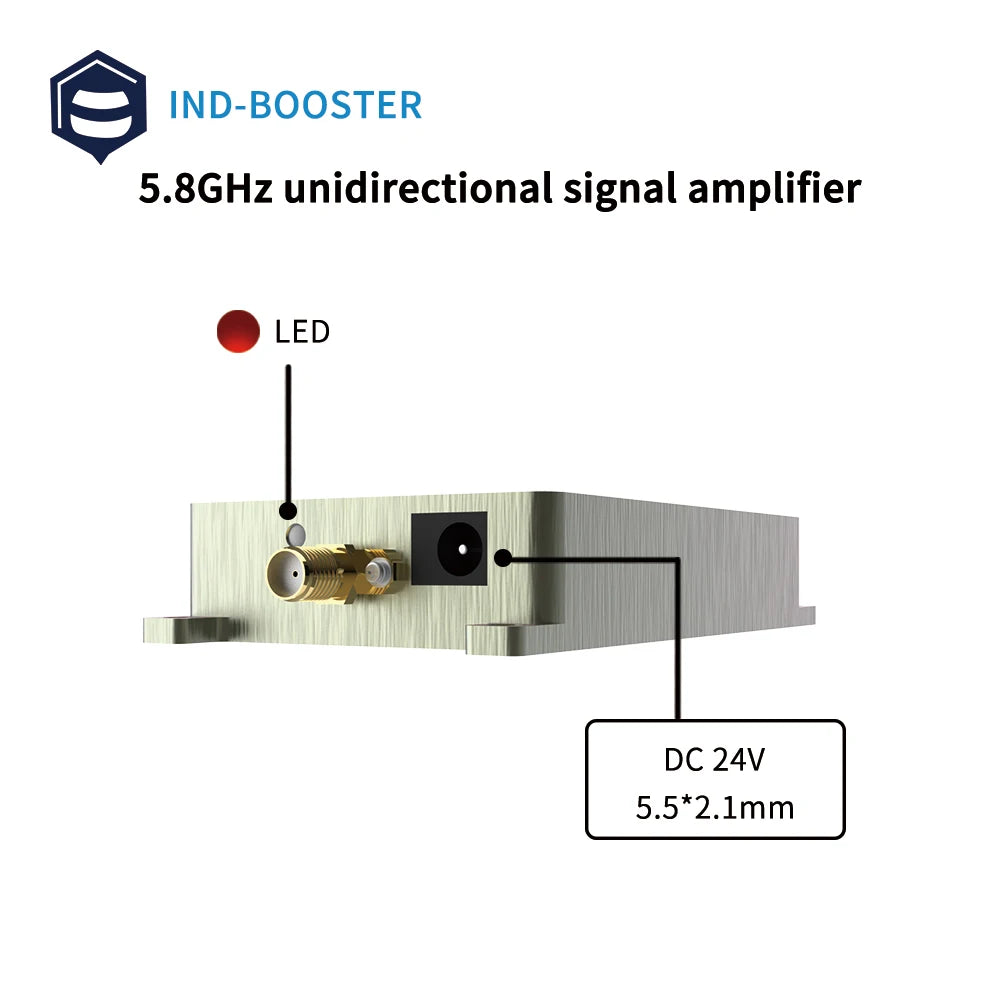

LED State |
Red |
10 |
Operating Temperature |
-30℃~85℃ |
11 |
Storage Temperature |
-40℃~150℃ |
12 |
Operating Humidity |
<95%RH |
13 |
RF Connector |
Input:SMA-Female; Output:SMA-Female |
14 |
Power Socket |
5.5*2.0mm DC( default ) or 15cm red/black wire |
15 |
Shell Material |
Aluminum |
16 |
Shell Size |
96*53*17mm |
17 |
Net Weight |
0.15Kg |
1 24V /4.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 46dBm, when input power is10dBm or 11dBm (default gain is 36dB).
Autel EVO/EVOⅡ
Autel Lite+/Nano
DJI Inspire2
DJI Phantom4 Pro Phantom4 Pro V2.0
DJI RC Pro
DJI Avata
DJI Mini3 Mini3 Pro Mini2
DJI Air2S Air2
DJI Mavic 3 Classic Mavic 3 Mavic 2
Aunidirectional amplifier is an electronic device that primarily serves to amplify the strength of an input signal without amplifying the output signal. In other words, it only amplifies the signal in one direction (from input to output) and does not amplify it in the reverse direction (from output to input), thereby achieving unidirectional signal transmission.
-
Signal amplification in communication systems: In communication systems, signal transmission may require passing through multiple stages, each of which needs amplification to compensate for signal attenuation. Unidirectional amplifiers can be used to ensure one-way signal transmission between different stages, preventing feedback and interference.
-
Radar systems: Radar systems need to amplify the received weak signals for better target analysis. Unidirectional amplifiers can ensure one-way signal transmission from the radar antenna to the signal processing system, preventing interference from reverse signals.
-
Amplifier chains: In some special applications, signals may need to pass through multiple amplifiers for consecutive amplification. Using unidirectional amplifiers can ensure that signals flow in the expected direction within the amplifier chain, preventing issues caused by feedback.
-
Secure and confidential communication: In certain situations, it's necessary to ensure that sensitive information can only be transmitted in a specific direction and cannot be eavesdropped on in the reverse direction. Unidirectional amplifiers can be used to ensure signal transmission in only one direction.
