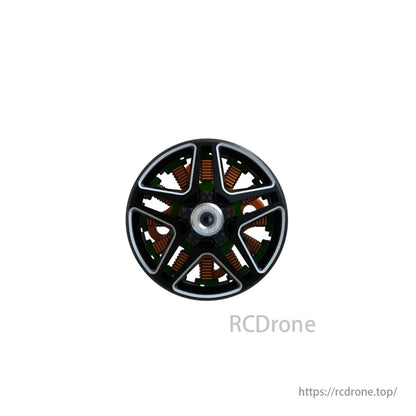

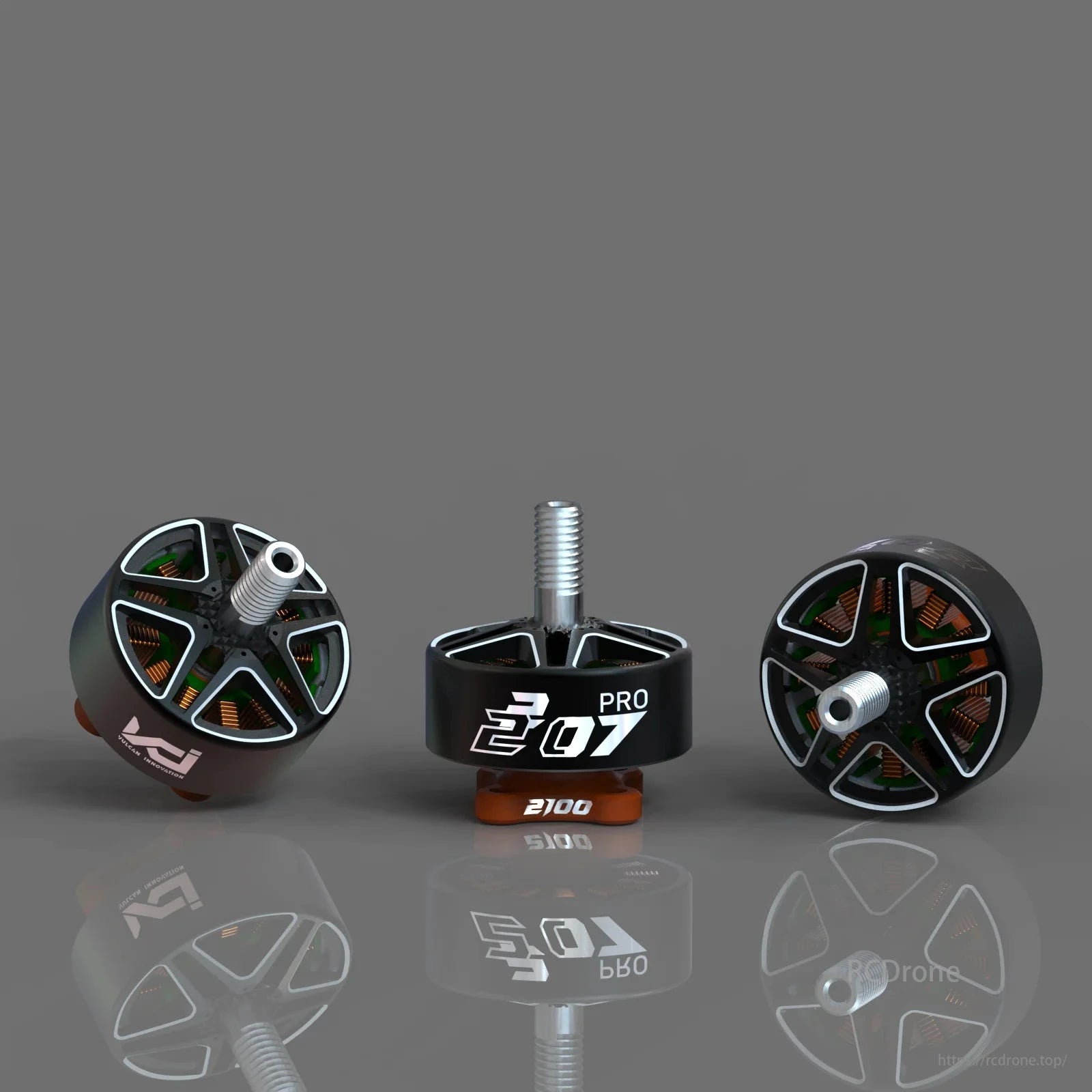

VCI HOBBY 2207 PRO 1950KV 2050KV 2100KV 6S Brushless Motor with GEMFAN F4 Prop for FPV Freestyle Racing Drone

Overview

The VCI HOBBY 2207 PRO Series Brushless Motor is engineered for high-performance 5-inch FPV racing and freestyle drones. Available in 1950KV, 2050KV, and 2100KV, these motors are optimized for 6S LiPo setups, delivering strong thrust, thermal resilience, and reliable efficiency with popular propellers like GEMFAN F4-3B, GF51466-3B, and HQ S5.1x3.8x3B.

Each motor is built with N52SH arc magnets, a 12.2mm long shaft, and precision-balanced 12S14P configuration to provide consistent torque and responsiveness in aggressive flight scenarios.

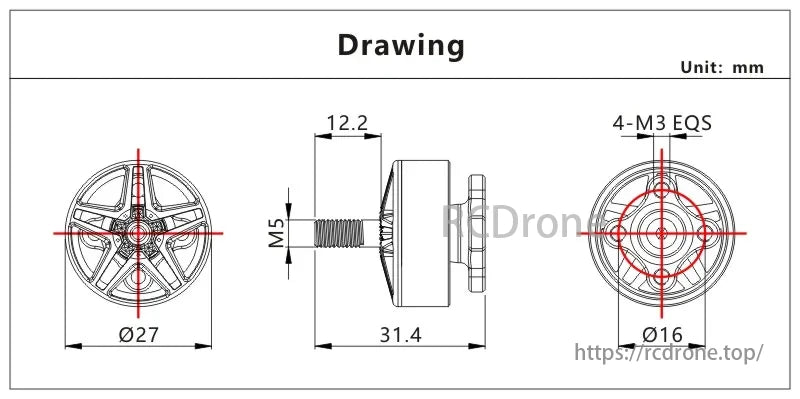

Key Specifications

• Configuration: 12S14P

• Shaft: M5, 12.2mm length

• Stator Size: 22x7mm

• Voltage: 6S (24V)

• Silicone Wire: 20AWG, 150mm

• Magnets: N52SH Arc Magnets

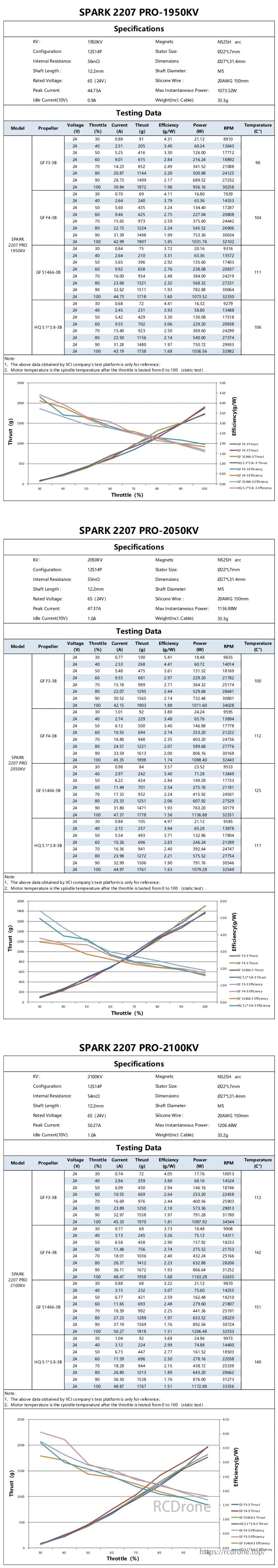

Performance Test Summary (with GEMFAN F4-3B Prop)

Efficiency Trends:
All KV variants show peak efficiency at low-mid throttle (30–50%) and deliver high thrust at full throttle. The 2100KV model provides the highest maximum thrust (1978g), while the 1950KV and 2050KV variants offer more balanced thermal and efficiency performance.

Propeller Compatibility (Tested)

• GEMFAN F4-3B

• GF 51466-3B

• HQ S5.1x3.8x3B

• GF F3-3B

All performance data were collected using 6S setups under static conditions (0–100% throttle). Temperature reflects spindle temperature after full cycle.

Application

Perfect for 5-inch FPV drones in freestyle, cinematic, and racing applications. Choose 1950KV for control and stability, 2050KV for freestyle balance, and 2100KV for extreme power and responsiveness.

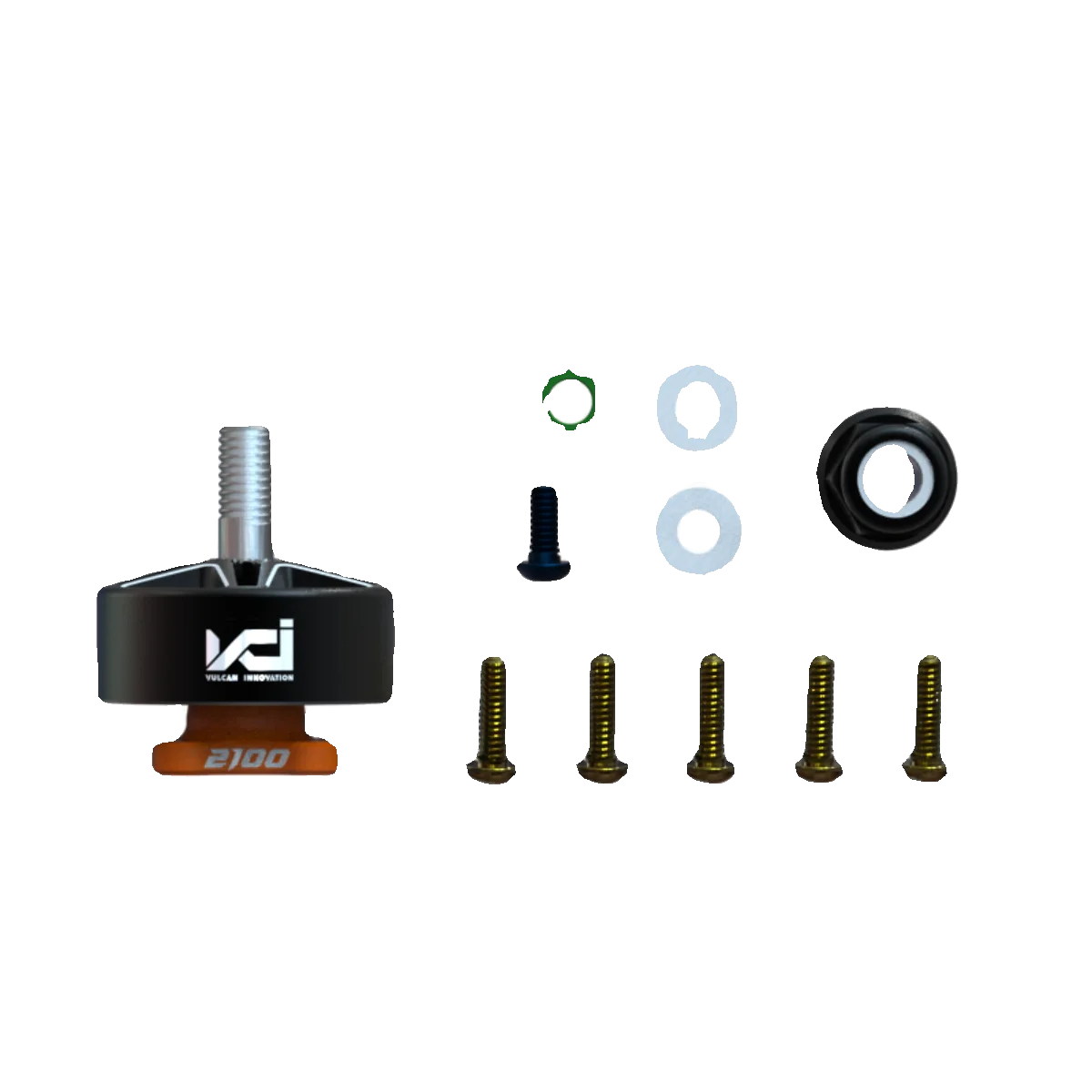

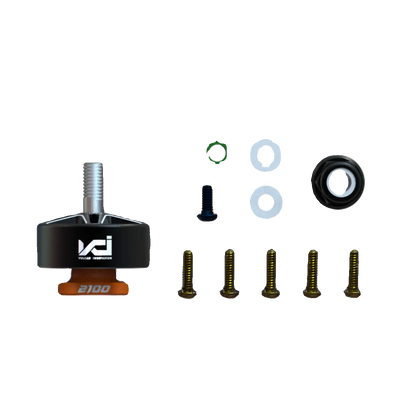

Package Includes

• 1x VCI HOBBY SPARK 2207 PRO Brushless Motor (KV variant as selected)

• Mounting hardware (screws, washers)

SPARK 2207 Pro motor specs: 1950KV, 2050KV, 2100KV. Configurations include 12S14P. Rated voltage 6S (24V). Peak currents vary from 44.73A to 50.27A. Max power up to 1136.8W. Idle current 0.9A-1.0A. Weight 33.2g-33.6g.
