Overview

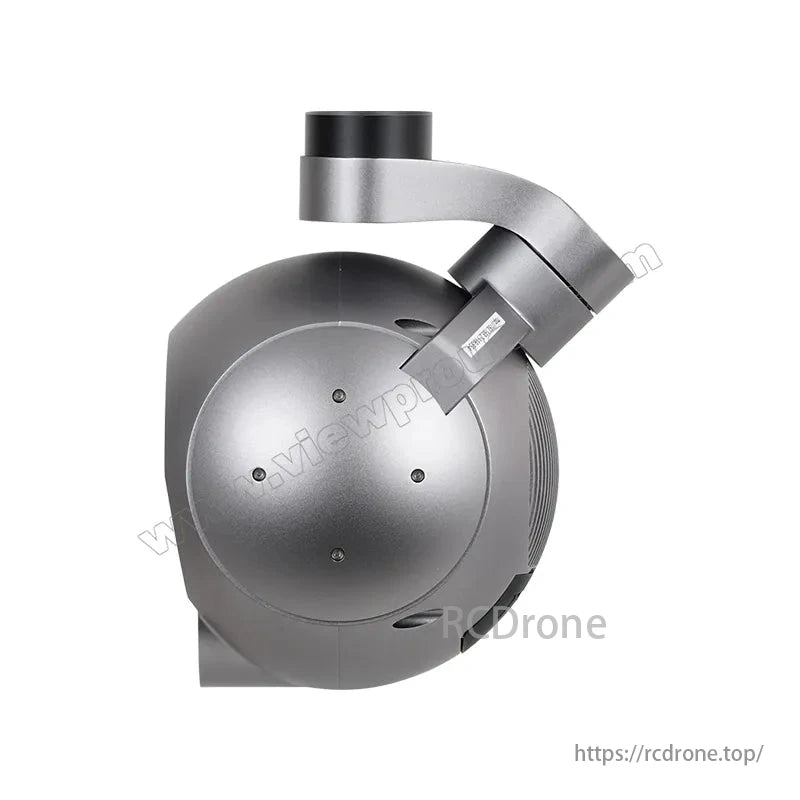

The ViewPro A30TR-50 Drone Gimbal Camera redefines drone surveillance and inspection with its exceptional 5km laser rangefinder and advanced EO/IR imaging capabilities. Featuring 30x optical zoom, 12x digital zoom, and a powerful 50mm thermal lens, this gimbal camera offers unmatched clarity and detail for various applications. With AI-powered target identification, robust CNC aluminum housing, and compatibility with ViewPro's intuitive software, the A30TR-50 is the ultimate tool for precision, durability, and efficiency in demanding conditions.
Key highlights include:
- 5km Laser Rangefinder with ≤1m accuracy
- 640×512 Thermal Imaging Sensor with 12μm pixel pitch
- AI Auto-Identify and Tracking for cars and humans
- Three-Axis FOC Stabilization ensuring smooth, stable visuals
- Dual-Mode EO/IR Cameras with 30x optical zoom and defog capabilities
Specifications
Hardware Parameter | |
Working voltage | 16V |
Input voltage | 4S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 800~2200mA @ 16V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4 (1080P 30fps) |
Card reading online | HTTP read picrutes |
Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
Geotagging | Support, display time and GPS coordinate in picture exif |
Gimbal Spec | |
Mechanical Range | Pitch/Tilt: -55°~125°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
Camera spec | |
Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 30x, F=4.3~129mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Min illumination | Color 0.01lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
Shutter speed | 1/1s to 1/10,000s, 22 steps |
Backlight compensation | Yes |
Aperture control | 16 steps |
Defog | Yes |
OSD | Yes |
IR Thermal Imager Spec | |
Focus Length | 50mm |
Coating Film | DLC |
Horizontal FOV | 8.8° |
Vertical FOV | 7.0° |
Diagonal FOV | 11.2° |
Detective Distance (Man: 1.8x0.5m) | 2083 meters |
Recognize Distance (Man: 1.8x0.5m) | 521 meters |
Verified Distance (Man: 1.8x0.5m) | 260 meters |
Detective Distance (Car: 4.2x1.8m) | 6389 meters |
Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
Verified Distance (Car: 4.2x1.8m) | 799 meters |
Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
Detector pixel | 640*512 |
Pixel pitch | 12μm |
Focusing method | Athermal prime lens |
NETD | ≤50mK@F.0 @25℃ |
Color palette | White hot, black hot, pseudo color |
Digital zoom | 1x ~ 8x |
Sync correct time | Yes |
EO / IR Camera Object Tracking | |
Update rate of deviation pixel | 30Hz |
Output delay of deviation pixel | <30ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 16*16 pixel |
Maximum object size | 256*256 pixel |
Tracking speed | ±48 pixel/frame |
Object memory time | 100 frames |
IR Laser Rangefinder | |
Measure ability | ≥5km for big target (eg. building) ≥3km for car(2.3m×2.3m ) ≥1.5km for people(1.75m×0.75m ) (Based on typical value: LOS visibiligy: ≥8km Diffuse reflection rate: ≥0.3 Humility: ≤80%) |
Accuracy (Typical value) | ≤ ±1m (RMS) |
Wave length | 1535nm pulse laser |
Divergent Angle | ≤ 0.5mrad |
Measurement frequency | 1~10HZ |
Min measuring range | ≤20m |
Resolution | ≤ 50m (multiple targets) |
Ranefinder | Target distance measuring |
EO Camera AI Performance | |
Targets type | Car and human |
Simultaneous detection quantity | ≥ 10 targets |
Min contrast ratio | 5% |
Min target size | 5×5 pixel |
Car detection rate | ≥85% |
False alarm rate | ≤10% |
Packing Information | |
N.W. | 1485g (Viewport version) |
Product meas. | 145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version) |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
G.W. | 3632g |
Package meas. | 350*300*250mm |
Key Features
- High-Precision Laser Rangefinder: Accurately measures distances up to 5km with a wavelength of 1535nm, ideal for surveillance and inspections.
- Dual EO/IR Imaging: Combines full-HD visual clarity with thermal imaging for superior performance in varied environments.
- AI Target Tracking: Identifies and tracks up to 10 targets simultaneously with ≥85% detection accuracy.
- Three-Axis Stabilized Gimbal: Ensures ultra-smooth visuals even in dynamic conditions.
- Durable CNC Housing: Aluminum alloy construction for enhanced heat dissipation and interference shielding.
Applications
- Public Safety: Enables efficient border surveillance, law enforcement, and disaster management.
- Facility Inspection: Perfect for inspecting solar farms, power lines, and large-scale industrial assets.
- Search & Rescue: Provides reliable thermal imaging and AI tracking for critical rescue missions in remote areas.
Compatibility
The A30TR-50 is fully integrated with ViewPro's proprietary Viewlink and Vstation software for seamless gimbal control, video stream settings, and waypoint-based flight planning. It also supports KLV metadata for enhanced mission reporting.
Included in the Box
Standard Version
- A30TR-50 Gimbal Camera
- Pelican Case
- USB-TTL Cable
- Damping Balls, Copper Cylinders, Screws
Viewport Version
- All Standard Accessories
- Viewport Module for Quick-Release Integration
The ViewPro A30TR-50 is the ideal choice for professionals demanding exceptional imaging, precise tracking, and rugged performance across diverse applications.
A30TR-50 ViewPro First Skym Lasera Rangefinder EO/IR Camera with AI Auto-Identify and Tracking. Features include 30x optical zoom, 640*512 resolution, 12μm sensor, 213MP effective pixel, and 12x digital zoom. Also includes IR thermal Laser Rangefinder and Al Auto-Identify Viewport. The gimbal features 3-axis JO8OP and tracking, with a quick-release FOC Gimbal for HFD Video connector.
The ViewPro A30TR-50 Drone Gimbal features a 47mm optical zoom, laser rangefinder, and IR thermal camera with a 3Ox optical zoom and 12x digital zoom. It has a maximum range of 5000m and a resolution of 4K.
The ViewPro A30TR-50 drone gimbal features a three-axis stabilized design utilizing FOC technology, ensuring exceptional stability, precision, and sensitivity. This advanced system allows for smooth and accurate footage capture.
A30TR-50 features an aluminum alloy shell processed by single CNC for high precision and a superior metal texture. Designed with ruggedness, heat dissipation, and electromagnetic interference in mind, this gimbal provides a robust and reliable platform for capturing stunning aerial footage.
Support EO/IR PIP, dual-screen display at a glance. Time: 15:10:00. Camera settings: EO 1.0x FOV 63.79 IR 1.0x LRF 1484.91. Recording time: 00:05:29. Features: pseudo hot white hot black.
The ViewPro A30TR-50 Drone Gimbal supports multiple control methods, including PWM, TTL, S.BUS, TCP, and UDP. Additionally, it features HDMI and Ethernet output.
The ViewPro A30TR-50 Drone Gimbal is perfectly compatible with ViewPro self-developed control software, including ViewLink and VStation. Additionally, it supports KLV Metadata embedded indexing. Users can access and edit files on the SD card online through HTTP protocols during flight.
The ViewPro A30TR-50 drone gimbal can be loaded on Viewpro drones like Ninja X8/F320 for public safety, first responders; inspection; patrol, disaster prevention; emergency monitoring and inspection; search and rescue, etc. The A3OTR-50 is designed to work seamlessly with the Ninja X8 and F320 drones, offering a range of applications including public safety, inspection, emergency monitoring and inspection, patrol, disaster prevention, and search and rescue.
The ViewPro A30TR-50 Drone Gimbal has a dimension of 30.5mm x 23.5mm and weighs around 1-2-3 units. The standard version comes with a package size of 145.8mm x 145.8mm.
Standard Version AC A30TR-50 XL Pelican Case, Includes: Micro SD Card, Power Cable, USB-TTL Cable, Copper Cylinder x4, M3 Screw x8. ViewPro A30TR-50 XL Gimbal for Drone Camera.
