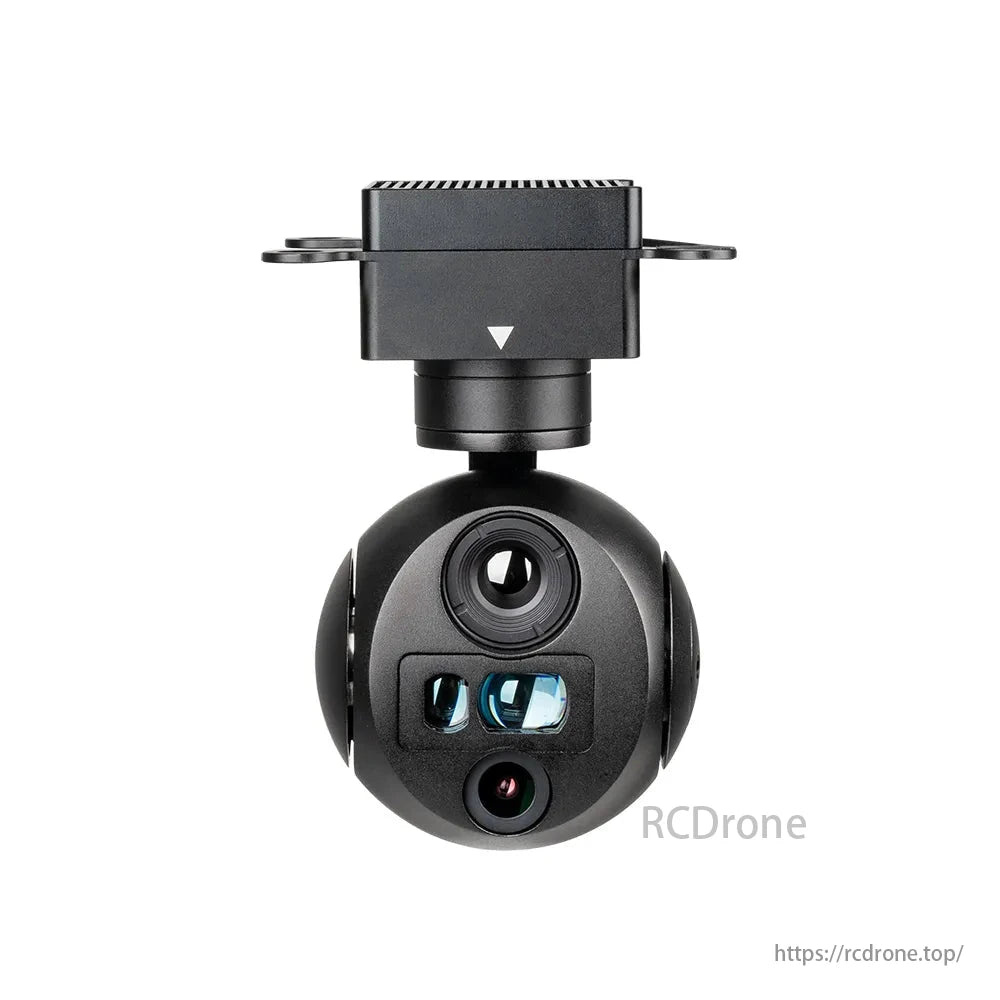

ViewPro A609R Ultra-Compact Triple-Sensor 3-Axis EO/IR & LRF Gimbal Camera for UAV Drone

ViewPro A609R Gimbal Camera Overview

The ViewPro A609R Gimbal Camera is a lightweight, ultra-compact, and high-performance imaging system tailored for UAV applications. Integrating EO, IR, and Laser Rangefinder (LRF) capabilities, this triple-sensor gimbal camera offers exceptional versatility for various drone missions, such as surveillance, inspections, and search-and-rescue operations. Weighing just 235g, the A609R combines cutting-edge technology with unparalleled portability, making it an ideal choice for UAV operators seeking reliable performance in compact form factors.

ViewPro A609R Gimbal Camera Key Features

1. Triple-Sensor Excellence

• Electro-Optical (EO) Camera: Full HD 1080 resolution with a 2MP sensor and 12x digital zoom, delivering crisp, clear visuals for precise inspection and monitoring.
• Infrared (IR) Thermal Imaging: Equipped with a 640x512 VOx thermal imager, it detects human targets up to 379m and vehicles up to 1.1km, supporting three color palettes (white hot, black hot, pseudo color) for various scenarios.
• Laser Rangefinder (LRF): Measures distances between 5m to 1200m with ±1m accuracy, providing reliable target information for precise operations.

2. Compact and Lightweight

• Ultra-Portable: At only 235g, the A609R is perfect for lightweight drones, maximizing flight efficiency without compromising functionality.
• Durable Design: Operates seamlessly in extreme conditions with a temperature range of -20°C to +60°C.

3. Advanced AI Tracking and Geotagging

• AI Object Tracking: Automatically identifies and tracks up to 10 simultaneous targets, including vehicles and humans, with high detection accuracy (≥85%).
• Geotagging Capability: Captures precise GPS coordinates and timestamps in images for accurate location data.

4. Thermal Radiometry (Optional)

• Radiometric Function: Optional thermal data output supports temperature ranges of -20°C to +150°C or +100°C to +550°C with ±2°C accuracy, ideal for industrial inspections and environmental monitoring.

5. Intelligent Imaging and Control

• On-Screen Display (OSD): Provides essential data, including pitch/yaw angles, magnification, ranging value, GPS coordinates, and altitude.
• Multiple Video Outputs: Supports dual-stream video (EO and IR) for simultaneous real-time monitoring and analysis.
• Flexible Control Options: Operates via TTL, S.BUS, TCP, or UDP for seamless integration with UAV systems.

ViewPro A609R Specifications

Applications

1. Public Safety: Ideal for search-and-rescue missions, surveillance, and disaster management.
2. Industrial Inspections: Supports thermal and EO inspections of infrastructure, pipelines, and solar panels.
3. Environmental Monitoring: Enables thermal mapping and precise GPS-based data collection for environmental studies.

Packing Information

The ViewPro A609R Gimbal Camera delivers high performance in a compact and lightweight design, making it the ultimate choice for drone applications requiring EO, IR, and LRF capabilities. Its precision tracking, dual-stream output, and optional radiometric functionality empower operators with versatile tools for complex missions across various industries.

ViewPro A609R Gimbal Camera Details

The Lightest Triple-Sensor Gimbal Camera: Ultra-Compact A609R Triple-Sensor 3-Axis EO/IR & LRF Gimbal Camera Offers 00.03 FOV and 29.6" IFOV with 30217 MB Storage, Tag Number 22-25413, Dimensions 63" Long and 113*2254.88" Altitude Capability.

ViewPro A609R Gimbal Camera features a 2MP sensor, captures 640x512 pixel images, and has Long Range Fusion (LRF) and tracking capabilities. It also includes an infrared thermal camera with 5-1200m zoom, onboard video encoding, and 3-axis digital zoom recording with Forward Overlap Compensation (FOC).

Triple sensor, lightweight and compact design for target recognition, tracking and laser range finding. The camera features night surveillance capabilities and is well packaged with an integrated metal shell for enhanced electromagnetic compatibility (EMC) performance.

Only a 230g mini-size, lightweight and compact design infrared (IR) thermal camera with laser range finder and full HD electro-optical (EO) camera

The camera boasts a 2-megapixel sensor capable of capturing high-resolution images. It features a 12x digital zoom function, allowing for significant magnification of distant subjects. Equipped with a 6mm focal length lens, it provides a clear and focused field of view. The camera delivers Full HD image quality with a resolution of 1080p, ensuring crisp and detailed visuals.

The infrared IR gimbal camera is outfitted with an 8x digital zoom and a 9.1mm lens, ensuring precise focus and magnification. It delivers a thermal resolution of 640 x 512 for detailed thermal imaging and provides a field of view FOV with angles of D: 62.49 degrees, H: 48.39 degrees, and V: 38.60 degrees to accommodate a wide range of surveillance needs.

The ViewPro A609R Gimbal Camera features a laser range finder with a measurement range of 5-1200 meters, allowing for accurate location resolution including latitude and longitude of targets.

ViewPro A609R Gimbal Camera features rich on-screen display (OSD) for easy settings adjustment. It records up to 22 seconds of video at a time, with two REC modes available. The camera also has a target tracking feature and is suitable for use with aircraft like the Junn Aircraft ACET. The overall weight of the gimbal is approximately 0.00332 ounces.

The ViewPro A609R Gimbal Camera features a DRI Human of 1.8x0.5x0.3 meters, with detective distance capabilities reaching up to 1163 meters, recognizeable distance of 291 meters and verified distance of 145 meters.

The ViewPro A609R Gimbal Camera features a CNC-machined aluminum alloy housing that offers superior metal texture, enhanced protection, and improved heat dissipation.

The ViewPro A609R gimbal camera sets a new standard for aerial imaging. Its advanced features include a yaw axis that smoothly pans left and right, capturing sweeping vistas and dynamic scenes. The pitch axis tilts up and down, adapting to diverse shooting scenarios, while the roll axis maintains horizon-level footage even during rapid maneuvers. With a yaw range of +1508°, a pitch range of -60° to +120°, and a roll range of ±60°, this gimbal camera is perfect for capturing stunning aerial footage.

The ViewPro A609R Gimbal Camera offers a video control output method via IP (RTSP, UDP) or TTL/SBUS. Choose from H264/H265 encoding formats and store videos in MP4 or TTL by default. The camera supports additional functions such as Mavlink and KLV metadata, as well as compatibility with Viewlink, Vstation, Mission Planner, QGC, and SmartAP. It can provide a video stream output for Mp and SmartAP.

ViewPro A609R Gimbal Camera: KLV Metadata, Unix Time Stamp 26, Platform Heading Angle 62,234, Platform Pitch Angle 70,552, Platform Roll Angle 39,112, Sensor Latitude 75,047,072, Sensor Longitude 13.60721, Sensor True Altitude 77,470,054, Plateau Elevation 41, Ben Wetied DIEeen 61, Sensor Horizontal FOV 62.6 km, Sensor Vertical FOV many, Sensor Relative Azimuth Angle 64,844, Sensor Relative Elevation Angle pmo, Sensor Relative Roll Angle 10,986,633, Slant Range QOOOQOQ Width QQQQQQQ Frame Center Latitude 22,6853, Frame Center Longitude 13.6234996, Frame Center Elevation 67,747,054, Range Target

The ViewPro A609R Gimbal Camera supports HTTP protocol, allowing you to upload, read, copy or delete photos and videos stored on a micro-SD card via an online website.

The ViewPro A609R Gimbal Camera is a stabilized camera with advanced features for capturing smooth and high-quality video footage.
