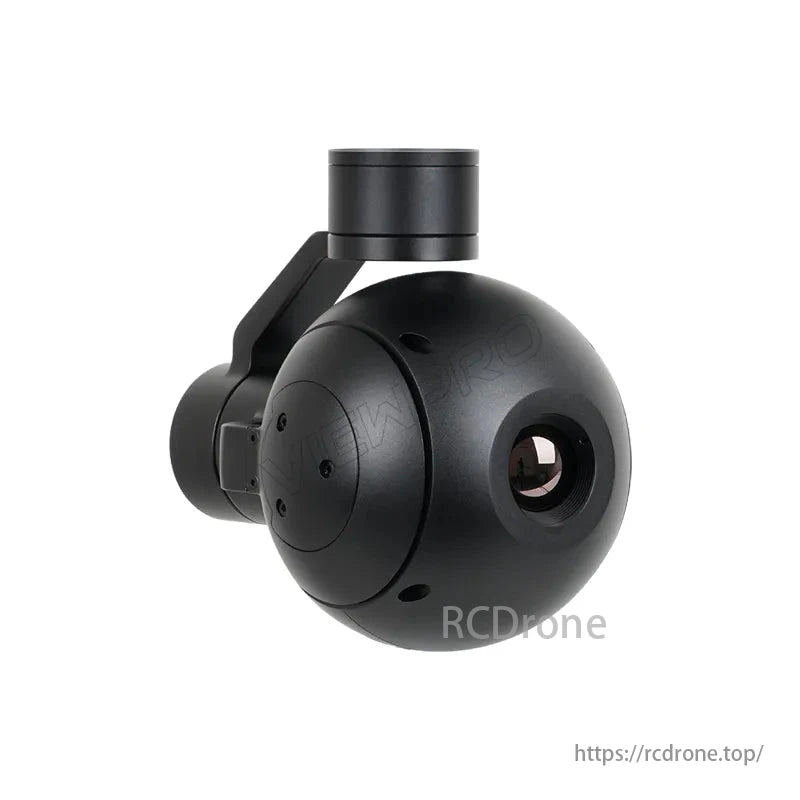

ViewPro AT19 - 3-Axis Lightweight 19mm 640*512 Thermal Camera Gimbal with AI Tracking Objects
ViewPro AT19 - 3-Axis Lightweight 19mm 640*512 Thermal Camera Gimbal with AI Tracking Objects
ViewPro
Couldn't load pickup availability
Overview
The ViewPro AT19 is a high-performance thermal imaging camera featuring a 19mm lens, 640×512 resolution, and advanced AI-powered tracking technology. With a lightweight design of only 612g and a 3-axis stabilized gimbal, it delivers precise stabilization and ±0.02° vibration compensation for smooth operation. Equipped with multiple output options, including micro HDMI (1080P) and IP (RTSP/UDP), the AT19 supports geotagging with embedded GPS coordinates for detailed analysis. Its long-range detection capability extends up to 2428 meters for vehicles and 792 meters for humans, making it an ideal tool for inspections, surveillance, and search-and-rescue missions.
Features
- High-Resolution Thermal Imaging: Equipped with a 640×512 thermal sensor and 12μm pixel size, providing crisp and detailed images in various conditions.
- AI Object Tracking: Automatically detects and tracks multiple targets (≥10), including vehicles and humans, with a detection accuracy of ≥85%.
- 3-Axis Stabilization: FOC-controlled gimbal compensates for vibrations, ensuring stability with ±0.02° precision on all axes.
- Long-Range Detection: Detects vehicles up to 2428 meters and humans up to 792 meters, with effective recognition and verification capabilities.
- Compact and Lightweight: Weighing just 612g, the AT19 is designed for drones requiring low payloads without compromising performance.
- Multiple Color Palettes: Offers white, iron red, and pseudo color modes for optimized thermal visualization in diverse scenarios.
- Geotagging: Embedded time and GPS coordinates enrich post-operation analysis and mission planning.
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 400~1000mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -45°～103°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -40°～100°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Coating Film | DLC |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |
| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Verified Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Verified Distance (Car: 4.2x1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| IR Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
Package
- Net Weight: 612g (Viewport version)
- Dimensions: 118.2×86×147.1mm (standard version)
-
Accessories:
- 1pc gimbal camera device
- Screws and USB to TTL cable
- High-quality box with foam cushioning
Applications
- Public Security: Real-time surveillance and tracking for law enforcement and emergency response.
- Infrastructure Inspection: Perfect for inspecting power lines, pipelines, and industrial facilities.
- Environmental Monitoring: Enables wildlife surveys and thermal mapping for research purposes.
- Search and Rescue: Facilitates quick identification of individuals in challenging environments.
The ViewPro AT19 redefines drone-mounted thermal imaging with advanced stabilization, AI tracking, and lightweight design, making it the ultimate tool for a wide range of professional applications.
ViewPro AT19 Lightweight Thermal Camera with 640x512 Resolution, 12um Pixel Size and 8x Digital Zoom. Features a 19mm Lens with F/0.03 Aperture and 16:1 Optical Zoom. The camera has a FOV of 0.00 degrees and a frame rate of 60Hz. It also features a quick-release 19mm lens, 3-axis gimbal and lightweight design. The camera is suitable for small size video applications.
Compact Structure A: Small volume, low wind resistance. Suitable for various drones, multi-rotor, fix-wing, VTOL, etc. Lightweight, only 416g. Quadrocopter shape, carbon fiber body.
The ViewPro AT19 features a CNC high-precision processed aluminum alloy housing, offering improved metal texture, enhanced protection strength against interference and electromagnetic radiation, as well as better heat dissipation. This robust design ensures optimal performance and reliability.
The ViewPro AT19 is a 3-axis focus gimbal offering excellent stability, accuracy, and sensitivity. It features an IP67 waterproof rating, making it suitable for outdoor use. This device is designed for capturing smooth and stable video footage, ideal for various applications such as filmmaking and photography.
ViewPro AT19 Thermal Camera: 8x Digital Zoom, 640*512 Resolution. Features Multiple Pseudo-color Patterns for Black Hot, White Hot, and Iron Pseudo-color modes.
The highlight of AT19 is its integrated AI object identification and tracking module, which enables automatic car, human, and boat detection. The system can be customized to detect specific objects or track multiple targets simultaneously.
ViewPro AT19. Compatible with Viewlink and V-Station. Supports Waypoint, Caro, Stca, Fude '99. Delay before aypoint 0. Wgodm Hodon Hooo at 7C0. M7CJM JodOM JoooM J0oom. Also supports Viewlink V-Station POWER (3S~65) PWM HDMI IP (TCP | UDP) UART | SBUS. Supports output I/O and ITDUIT Support control for 3EA1 HDMI, IP on TCP, UDP, UART, PWM, S.BUS. Encoding format: H264/H265.
ViewPro AT19 Product Image Support Mission planner, QGroundControl (QGC), SmartAP Ground Control Station (GCS) for video streaming output. Mavlink KLV metadata protocol, HTTP index of /download/AL 2022-09-LILL-0-LXL. Micro Air Vehicle High-Speed Communication Protocol.
