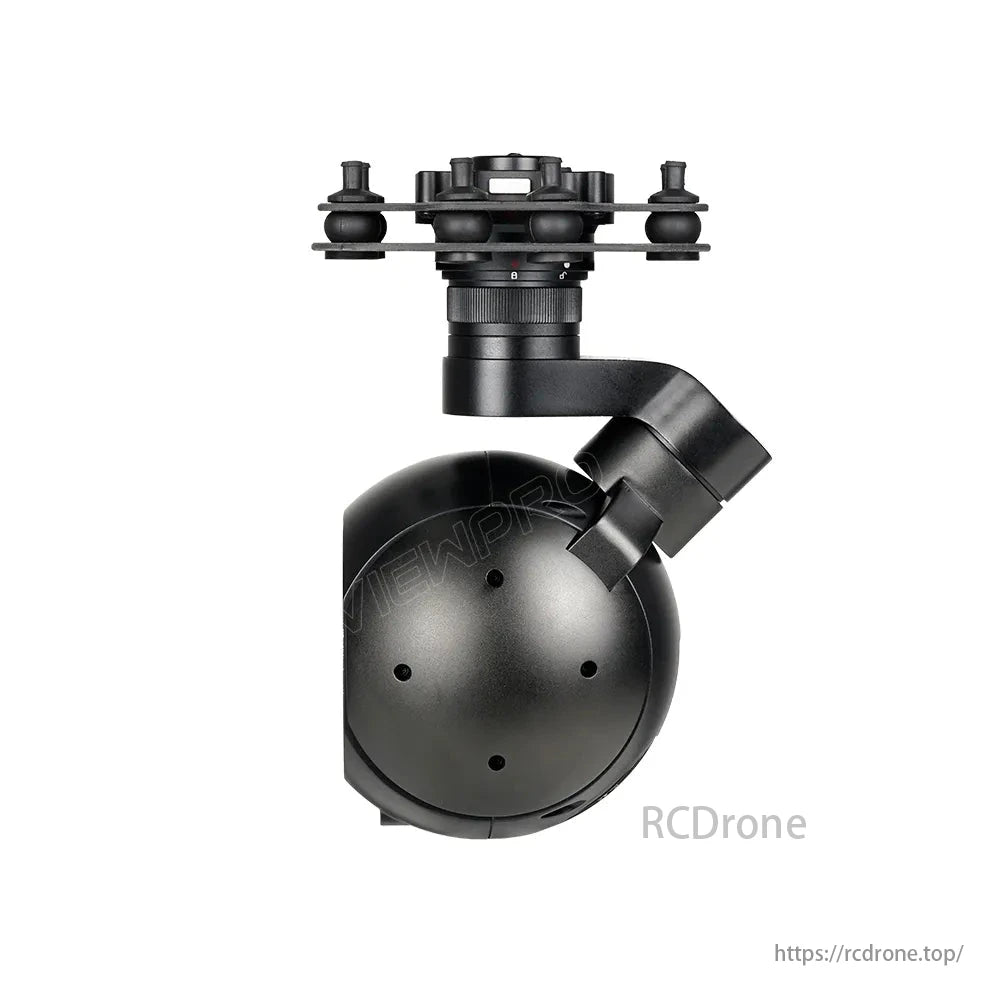

ViewPro AT9-50 Dual Thermal Drone Gimbal Camera - 5x Zoom 9.1mm 50mm 640 IR Thermal Imaging

Overview

The ViewPro AT9-50 is a cutting-edge dual thermal drone gimbal camera, integrating a 5x thermal optical zoom, dual field of view (9.1mm and 50mm), and 640x512 IR resolution. Designed for precision, it combines advanced thermal imaging with AI-powered human and vehicle tracking capabilities. The robust CNC-machined aluminum housing ensures durability, while its wide input voltage range (14.8V–25.2V) and operational temperature tolerance (-20℃ to +50℃) make it suitable for demanding applications like public safety, facility inspection, and search and rescue missions.

Key Features

• Dual Thermal Sensors: Switch seamlessly between narrow and wide fields of view for unparalleled situational awareness.
• 5x Thermal Optical Zoom: Enables accurate long-range detection with flexible focus adjustments (8.8° to 48.3° FOV).
• High-Resolution IR Sensor: 640x512 detector with 12μm pixel pitch ensures sharp imaging even in challenging environments.
• AI Target Tracking: Tracks up to 10 simultaneous targets, with support for both human and vehicle detection.
• CNC Anti-Interference Design: Aluminum housing minimizes interference and enhances durability.
• Quick Release System: Universal Viewport connector for fast, tool-free installation and integration.

Specifications

Category	Specification

Hardware

Input Voltage

14.8V–25.2V (4S–6S)

Working Environment

-20℃ to +50℃

Storage Support

Up to 128GB SD card (FAT32/exFAT format)

Photo Format

JPG (1920x1080)

Video Format

MP4 (1080P 25fps)

Remote Access

HTTP protocol for SD card access via IP

Gimbal

Tilt/Pitch Range

-105° to +135°

Yaw Range

±300° or ±360° continuous

Stabilization

3-axis FOC control with ±0.02° vibration angle

One-Key Centering

Supported

Thermal Imaging

Lens Options

9.1mm (wide FOV 48.3°) and 50mm (narrow FOV 8.8°)

Resolution

640x512, 12μm pixel pitch

Detection Ranges

Vehicles: 6,389m; Humans: 2,083m

Color Modes

White hot, black hot, pseudo color

Tracking & Software

Target Recognition

Minimum object size: 16x16 pixels; Minimum contrast: 5%

AI Tracking

Supports up to 10 simultaneous targets

Software Compatibility

Viewlink (gimbal and camera control), Vstation (ground control operations)

Mavlink Support

Fully compatible for telemetry and KLV metadata streaming

Applications

• Public Safety: Monitor and identify potential threats along borders or urban areas.
• Facility Inspection: Inspect solar panels, power plants, and pipelines with precision imaging.
• Search & Rescue: Enhance rescue missions by detecting and tracking individuals or vehicles in challenging terrains.

Packaging and Dimensions

• Standard Dimensions: 168.8mm height, 102mm diameter.
• Package Includes: AT9-50 camera, damping accessories, cables, 32GB SD card, and a rugged pelican case.
• Package Dimensions: 350x300x250mm (G.W. 1.4kg).

The ViewPro AT9-50 Dual Thermal Drone Gimbal Camera is an unparalleled solution for professionals requiring high-precision thermal imaging and AI-assisted tracking. Its durability, ease of use, and multi-application compatibility make it an invaluable tool for critical operations.

The new generation AT9-50 Dual IR SX thermal zoom camera features a flexible FOV and dual thermal sensor with Sx thermal resolution. It includes a 640x512 detector pixel with narrow-wide FOV switching and optical zoom of up to 12um pixel size. The AI-powered gimbal supports human 3-axis viewport car tracking and FOC (Field of View) flexibility. Additionally, it features a quick-release connector for easy mounting.

ViewPro AT9-50 Dual Thermal Drone Gimbal Product Image: Three-color Palette ~ Hot Long Distance (S0mm Lens) Detection Range: 1.8x0.5m, Detective Distance: 2083m, Recognize Distance: 521m, Verified Distance: 260m. Car Detection Range: 4.2x1.8m, Detective Distance: 6389m, Recognize Distance: 1597m, Verified Distance: 799m.

Identify and track multiple targets simultaneously, including cars and humans, with up to 210 target capacity. Compatible with Al and Vieip systems.

The ViewPro AT9-50 Dual Thermal Drone Gimbal features an aluminum housing processed with CNC precision and a superior metal texture. Additionally, it has excellent shielding capabilities to avoid interference, ensuring 3-axis stabilization with FOC technology, providing exceptional stability, accuracy, and sensitivity in pitch, tilt, roll, yaw, and pan movements.

The ViewPro AT9-50 Dual Thermal Drone Gimbal offers multiple video output and control methods, including HDMI, Ethernet, UART, PWM, and IP (RTSP, RIMP, UDP). It also supports remote access via HTTP protocol to the SD card with an IP address. The gimbal features a power system that accepts 4S-6S batteries (14.8V-25.2V) and operates in temperatures ranging from -20°C to +50°C.

The ViewPro AT9-50 Dual Thermal Drone Gimbal features a 3D map development with accurate Lat, Lon, and Alt data for the 'Point camera here' function. It also includes VIEWLINK technology for seamless gimbal control, camera setting, and video stream management through Vstation software. The device is compatible with Viewlink, allowing for ground control station functionality. Additionally, it supports Mavlink protocol, providing KLV metadata. This gimbal offers more advanced features, making it an excellent choice for drone enthusiasts.

ViewPro AT9-50 Dual Thermal Drone Gimbal for Public Safety, Facility Inspection, Search & Rescue, and Industrial Applications

ViewPro AT9-50 Dual Thermal Drone Gimbal: Viewport Dimension: 34.5cm x 2cm, Standard Dimension: Q67.9mm x 8mm x 34.5cm, Package Dimension: 350mm x 300mm.

ViewPro AT9-50 Dual Thermal Drone Gimbal Packing List: Includes one gimbal camera viewport, one accessories case, and one Pelican case. Accessories include two 32G micro-SD cards, three damping balls, eight M3 screws, one TTLISBUS control cable, four aluminum cylinders, and one power cable. The list also includes a USB-TTL cable and an Ethernet cable.
