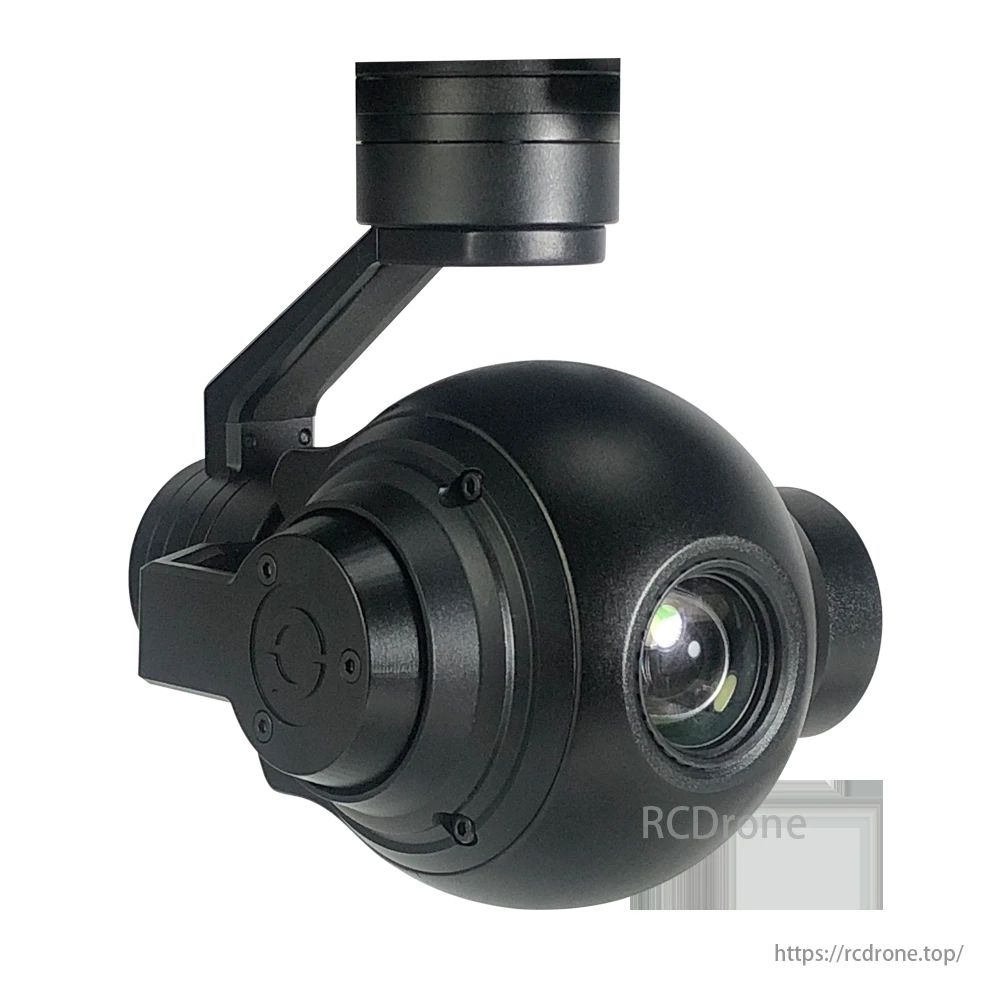

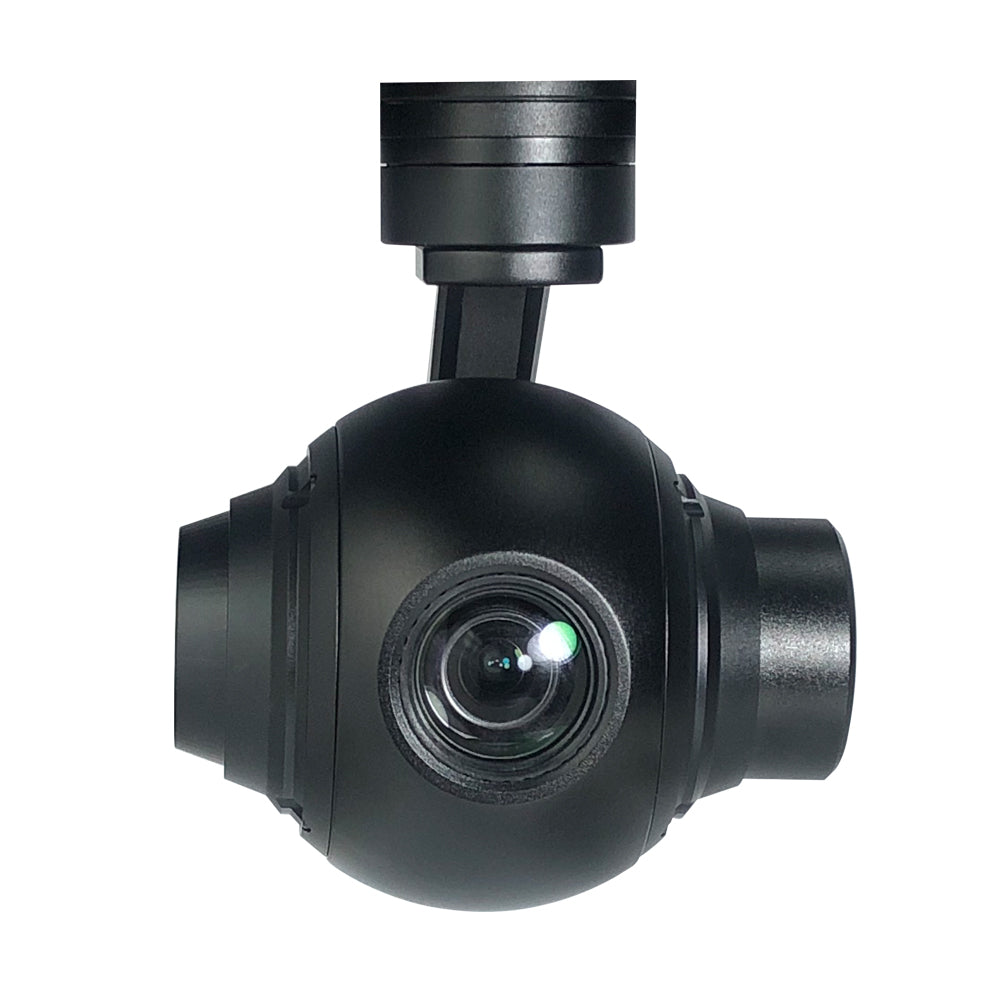

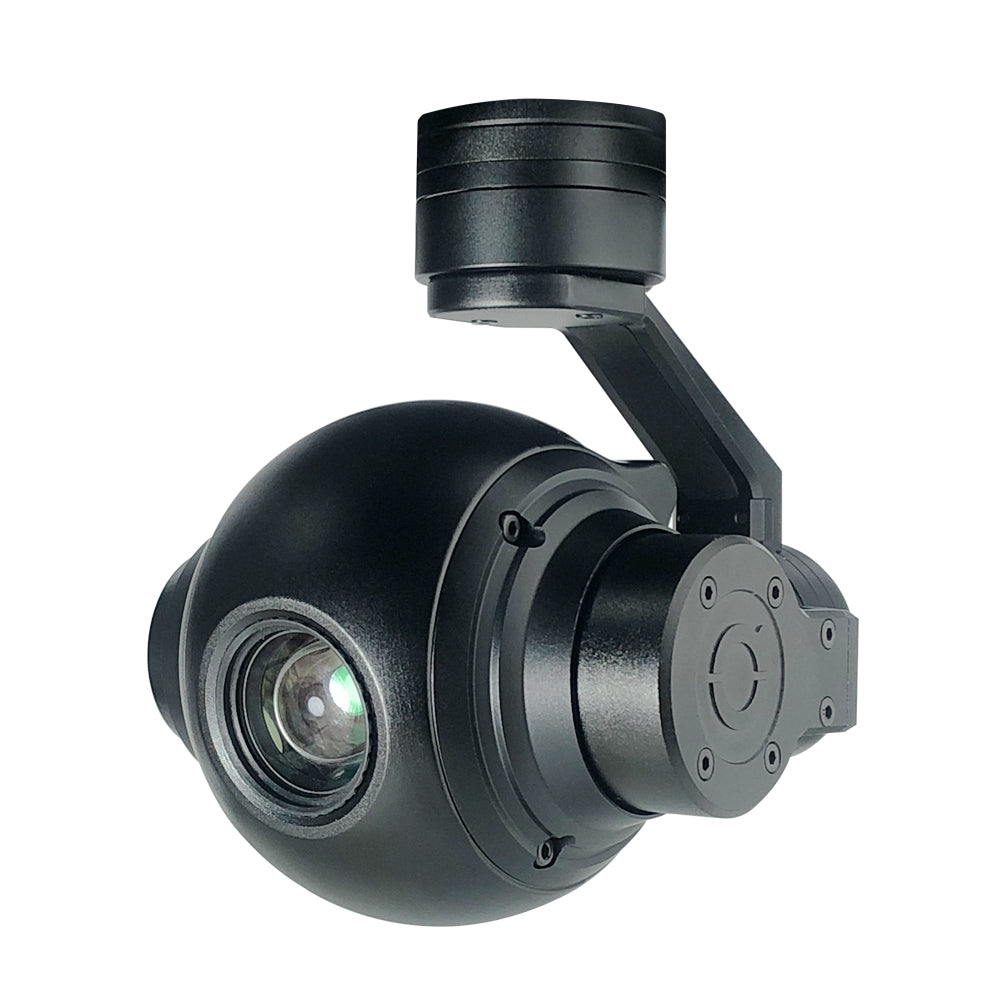

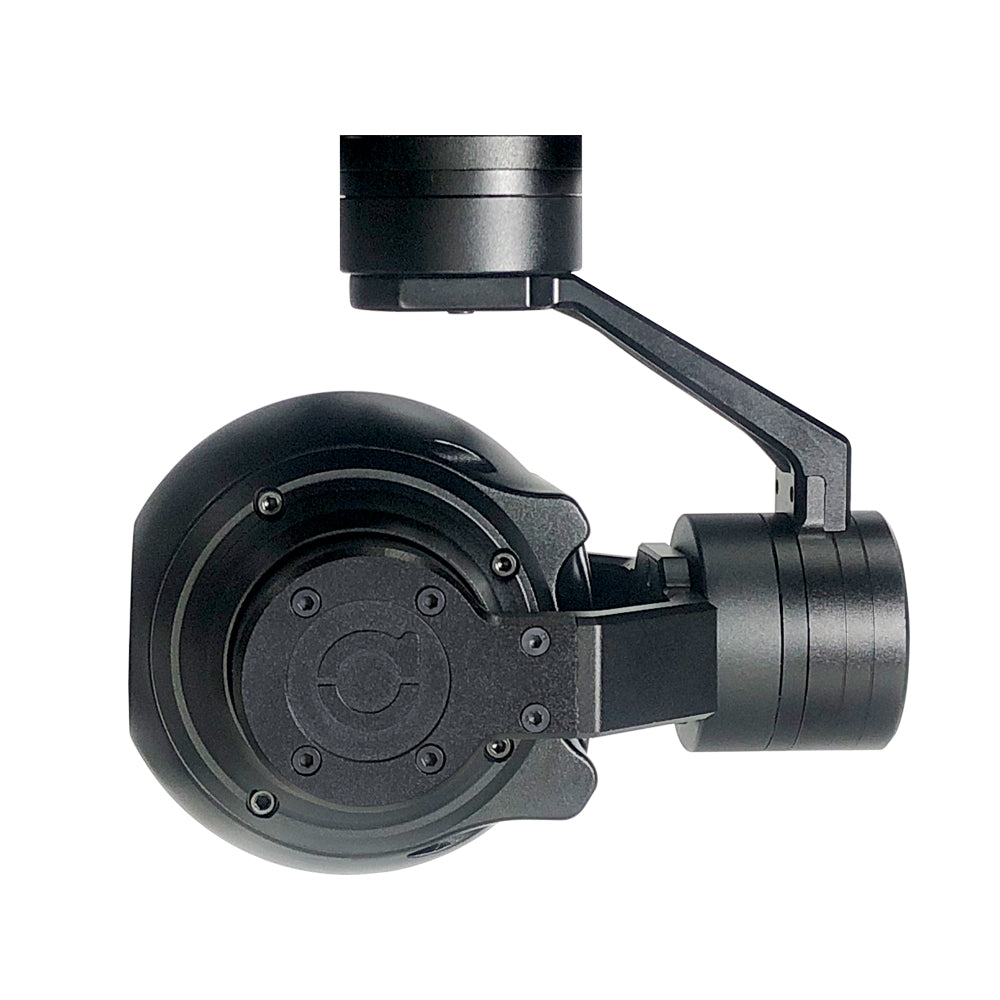

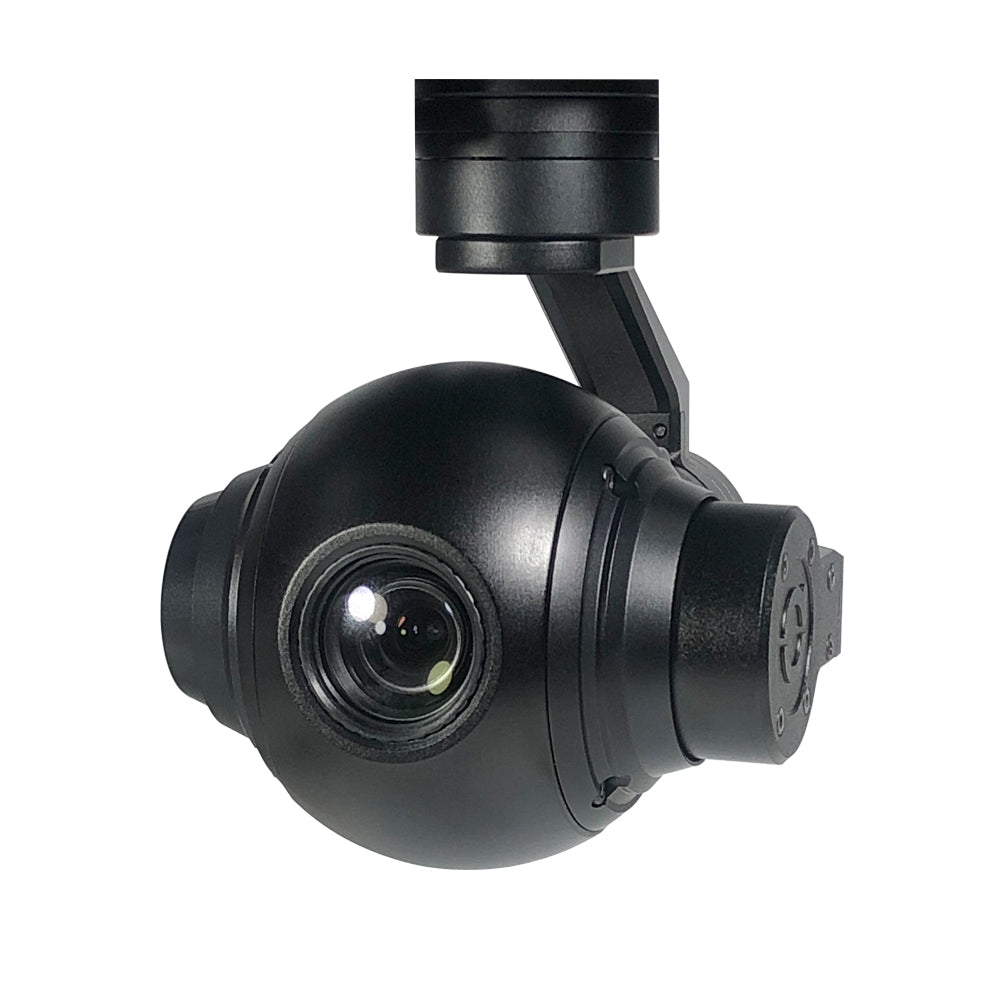

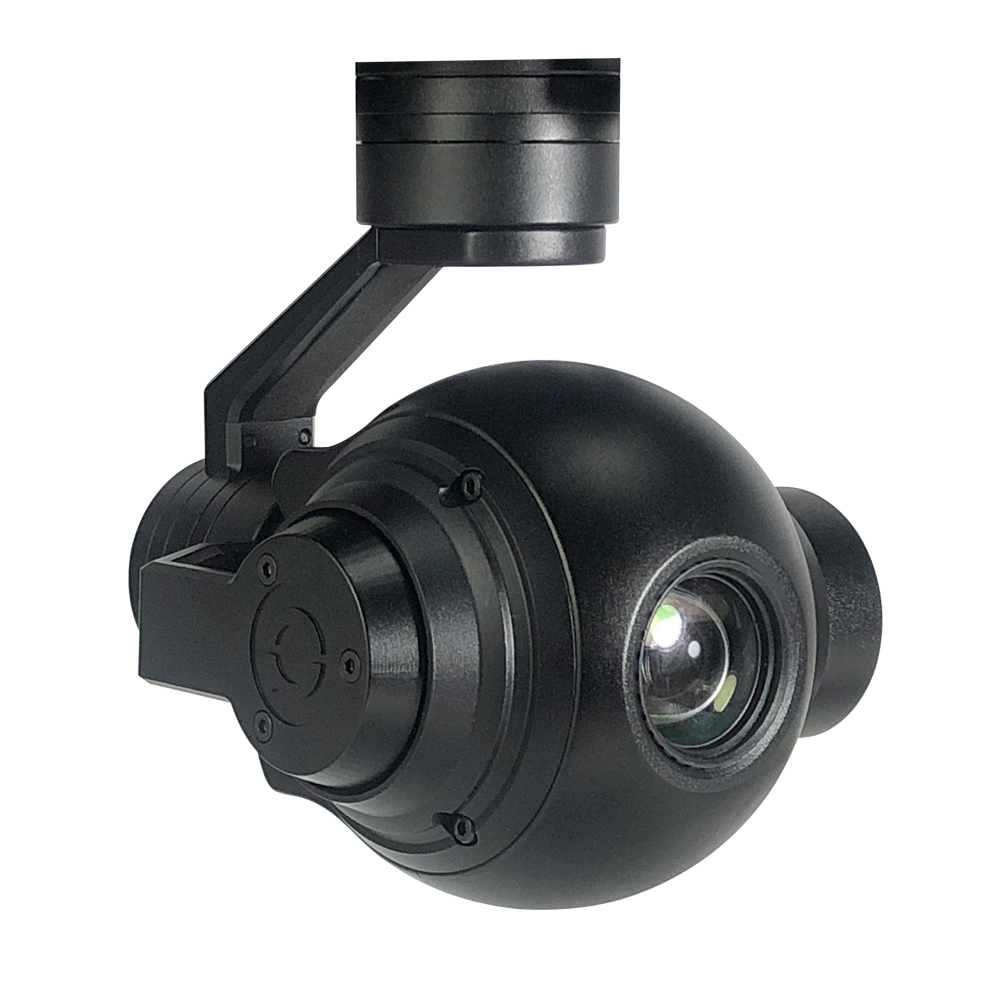

ViewPro Q10F Camera - 3 Axis Gimbal 1080P Single Sensor
ViewPro Q10F Camera - 3 Axis Gimbal 1080P Single Sensor
ViewPro
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 180~500mA @ 16V |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | micro HDMI(HD output 1080P 60fps/30fps) / Analog |
| Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (1920*1080) |
| Video storage format | MOV (1080P 30fps) |
| Control method | PWM / SBUS / TTL |
| Geotagging | not support |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan:±300° |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Image Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Effective pixels | 2688*1520 |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.9~49mm |
| Min focus distance | 1.5m |
| Scope of observation | Horizontal: 53.2°(close focus) ~ 5.65°(far focus) |
| Vertical: 39.8°(close focus) ~ 4.2°(far focus) | |
| Focus: 66.6°(close focus) ~ 7.2°(far focus) | |
| Sync system | Progressive scanning |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
|
Analog output |
Standard CVBS 1Vp-p |
| SNR | 38dB |
| Min illumination | Chromatic color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light suppression |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Not support |
| Camera Object Tracking(Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 4s |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 437g / 530g(Viewport version) |
| Product meas. | 108*86.2*140.6mm / 108*86.2*146.3mm(Viewport version) |
| Accessories | 1pc gimbal camera device with damping system, screws / Hight quality box with foam cushion |
| G.W. | 820g |
| Package meas. | 200*200*150mm |
