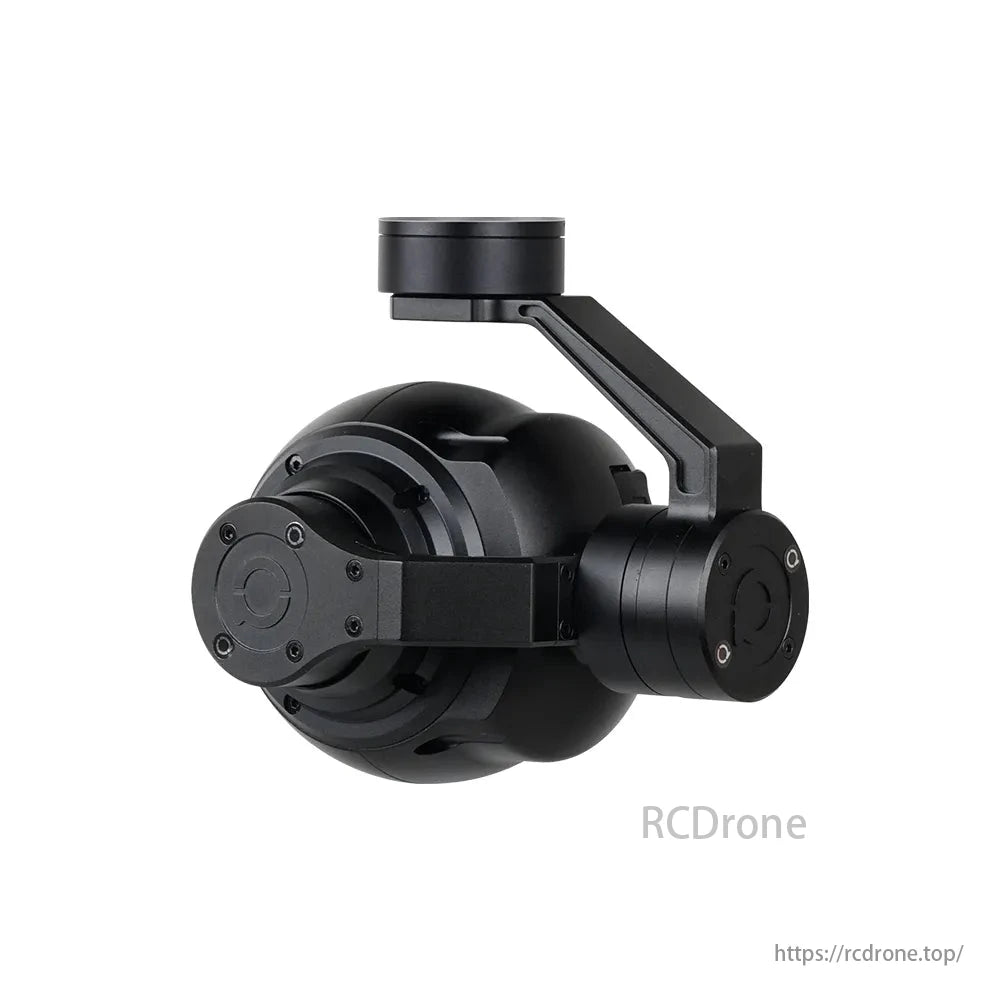

ViewPro Q10N 10x Optical Zoom Gimbal Camera for Drone
ViewPro Q10N 10x Optical Zoom Gimbal Camera for Drone
ViewPro
Couldn't load pickup availability
Overview
The ViewPro Q10N 10x Optical Zoom Gimbal Camera is a lightweight, high-performance solution designed for drones requiring precise aerial imaging. Equipped with a 1/2.8-inch CMOS sensor, this gimbal camera provides Full HD 1080p resolution and supports 10x optical zoom, ensuring crystal-clear visuals for various professional applications. With ±360° continuous yaw rotation, stable pitch and roll control, and ICR-based day/night switching, the Q10N excels in dynamic environments, making it ideal for surveillance, inspections, and environmental monitoring.
Features
1. Powerful Zoom Capabilities
- 10x Optical Zoom: Effortlessly capture detailed images from distances with a focal length range of 4.9mm to 49mm.
- Wide-to-Narrow Field of View: Horizontal FOV spans 53.2° (wide) to 5.65° (telephoto) for versatile scene coverage.
2. High-Quality Imaging
- Full HD 1080p Output: Captures vivid images and videos with 2.48MP resolution.
- Day/Night Mode Switching: Features an ICR filter for seamless transitions between daylight and low-light operations.
- Low-Light Performance: Color sensitivity as low as 0.002 lux @ F1.2, ensuring clear images in dim environments.
3. Advanced Stabilization
- 3-Axis Gimbal System: Provides precise stabilization with vibration angles of ±0.02° for pitch/roll and yaw, ensuring smooth footage even during rapid drone movements.
- ±360° Yaw Rotation: Full-range coverage to track and capture any angle.
4. Versatile Control and Storage
- Multiple Control Options: Supports PWM, TTL, S.BUS, and TCP/UDP protocols for flexible drone integration.
- Onboard Storage: Compatible with SD cards up to 256GB, ensuring extended recording capacity.
- Streamlined Output: Offers IP-based video streaming at 1080p/720p resolution (25fps) for real-time monitoring.
5. Lightweight and Compact Design
- Weighing only 506g, the Q10N integrates seamlessly with lightweight drone platforms.
- Built for durability, it operates efficiently in environments ranging from -20°C to +60°C.
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (16V - 24V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 150~700mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | IP (RTSP 720p/1080P 25fps) |
| Local-storage | SD card (Up to 256G,class 10, FAT32) |
| Photo storage format | JPG(1920*1080/1280*720) |
| Video storage format | MP4 (1080P 25fps) |
| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS / TCP/UDP(IP output version) |
| Geotagging | Not support |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±105°, Roll: ±70°, Yaw/Pan: ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8" CMOS Sensor |
| Total pixel | 2.48M |
| Picture quality | Full HD 1080 (1920*1080) |
| Optical zoom | 10x, f = 4.9mm ~ 49mm |
| Digital zoom | No |
| Angle of View (Horizontal) | 53.2°(Wide end) ~ 5.65° (Tele end) |
| Sync system | PAL/NTSC; Progressive Scan |
| S/N ratio | more than 50dB |
| Min illumination | Color : 0.002 lux@F1.2 BW: 0.001lux@F1.2 |
| Day&Night Mode Switch | ICR filter type |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed | Auto / Manual (1/5 ~ 1/50,000 sec) |
| Focus | Auto / One Push / Manual |
| Packing Information | |
| N.W. | 506g / 560g (Viewport version) |
| Product meas. | 91.6*111.4*143.1mm (including control box) / 91.6*111.4*148.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 860g |
| Package meas. | 200*200*150mm |
Package
- Net Weight: 506g (standard) / 560g (viewport version)
- Product Dimensions: 91.6 x 111.4 x 143.1mm (standard) / 148.8mm (viewport version)
-
Included Accessories:
- 1 gimbal camera device
- Screws and USB to TTL cable
- High-quality box with foam cushion
- Gross Weight: 860g
- Package Dimensions: 200 x 200 x 150mm
Applications
- Surveillance and Security: Ideal for monitoring sensitive areas with high-resolution imaging and zoom.
- Inspection Tasks: Perfect for inspecting power lines, pipelines, and infrastructure.
- Search and Rescue: Low-light capabilities support nighttime operations in challenging environments.
- Wildlife Monitoring: Quiet and effective for studying wildlife without disturbance.
The ViewPro Q10N Gimbal Camera delivers a compact, efficient, and versatile solution for professional drone operators. Its 10x optical zoom, low-light performance, and reliable stabilization make it an excellent choice for diverse aerial imaging applications.
Professional 3-axis High-precise FOC Program
The Q10N is a gimbal designed for 10X zoom camera for drone aerial inspection,surveillance,search and rescue mission.It consists of HD 10X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled via drone pilot or a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 10X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.
10x Optical Zoom Camera
Q10N gimbal and camera features an 10x optical zoom lens. It powered by 1/3 SENSOR CMOS module, supports approx.2.48 million effective pixels, with Color 0.05lux@F 1.6 ultra-low illumination, can still clearly display image features in the poor light environment, and has a wide dynamic range of 105dB. In the presence of backlight or strong light, the view of the over bright and over dark regions can sill be captured at the same time. Q10N has 2.48 Mega effective pixels, supports 10x optical qutofocus, and HD 1080P video recording. Design for UAV aerial photography, according to aerial characteristics, using fast focus algorithm, focus time <1s.
IP Output with 360 degrees continuous
The Q10N support IP output with 360 degrees continuous. IP output as default is 720P.
Multi Control Methods
Defualt PWM, Serial port TTL and TCP control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.
Control box signal interfaces:
Compatible with Viewport
Q10N is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Dimensions
Applications
Q10N have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
