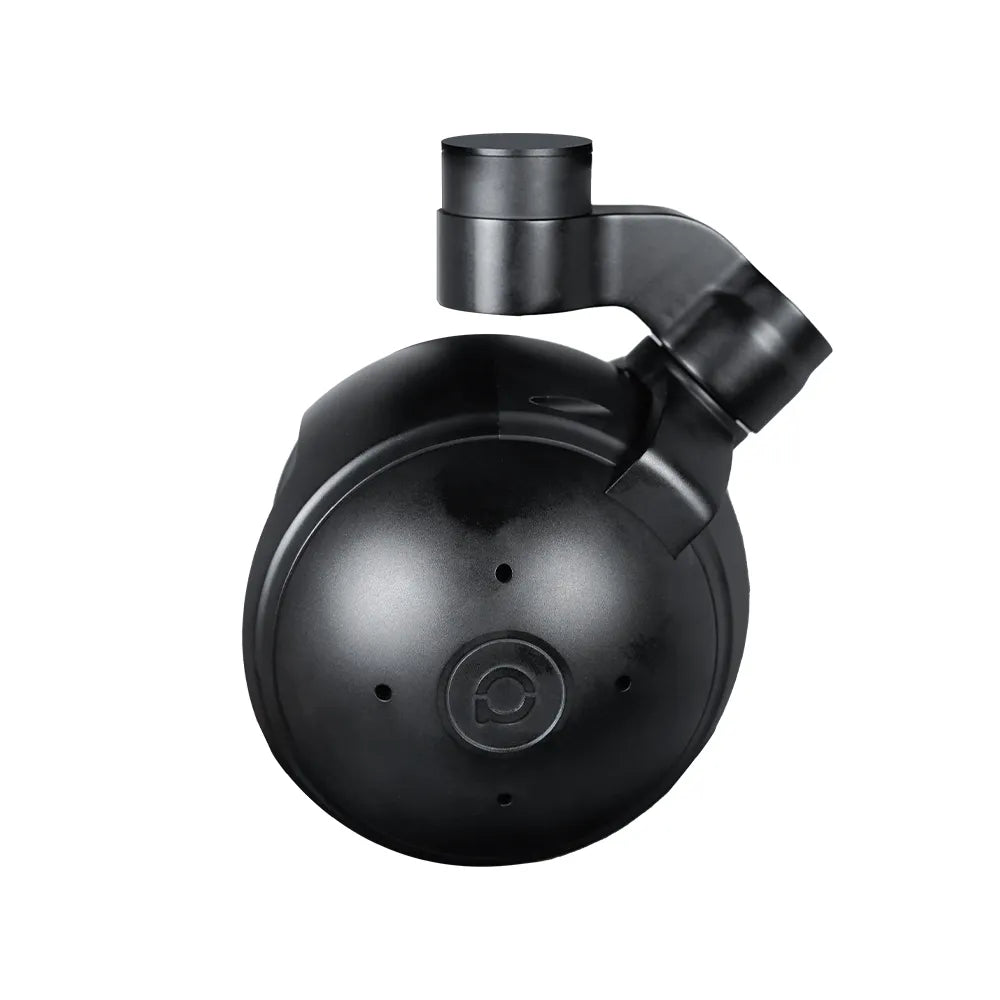

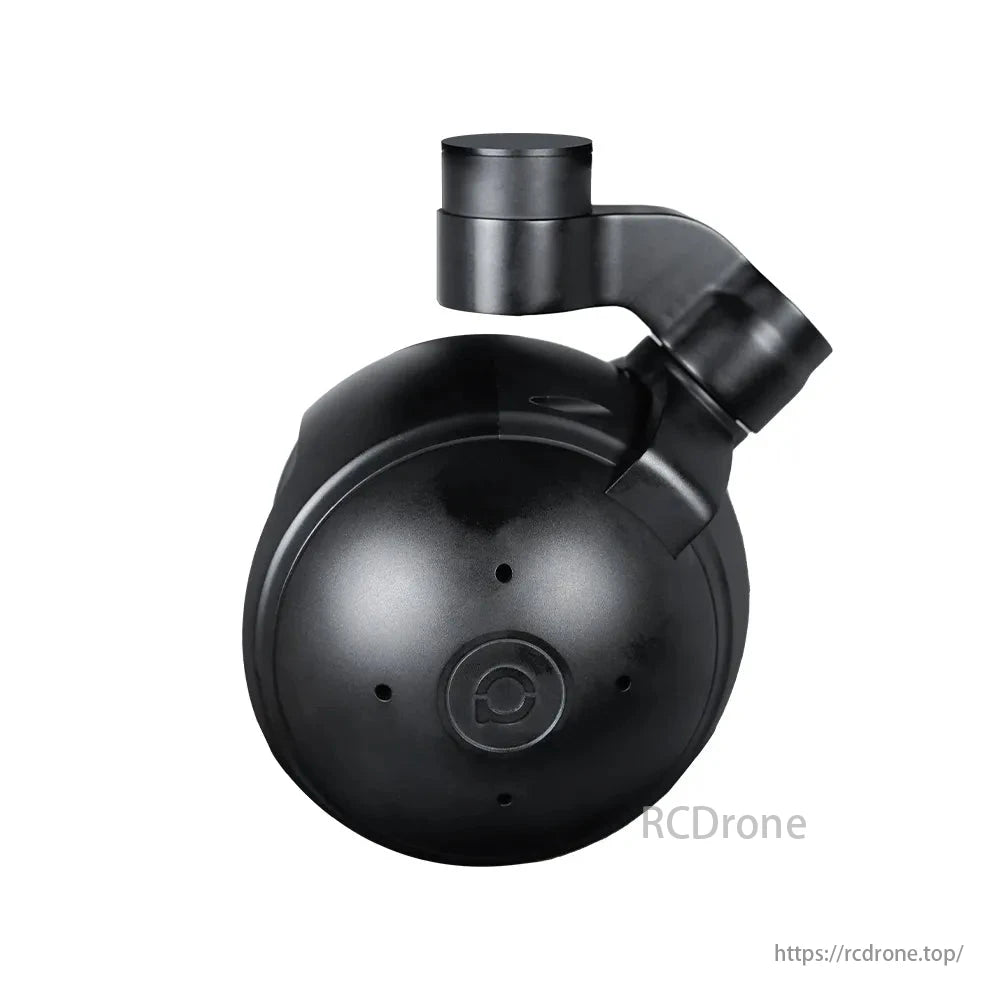

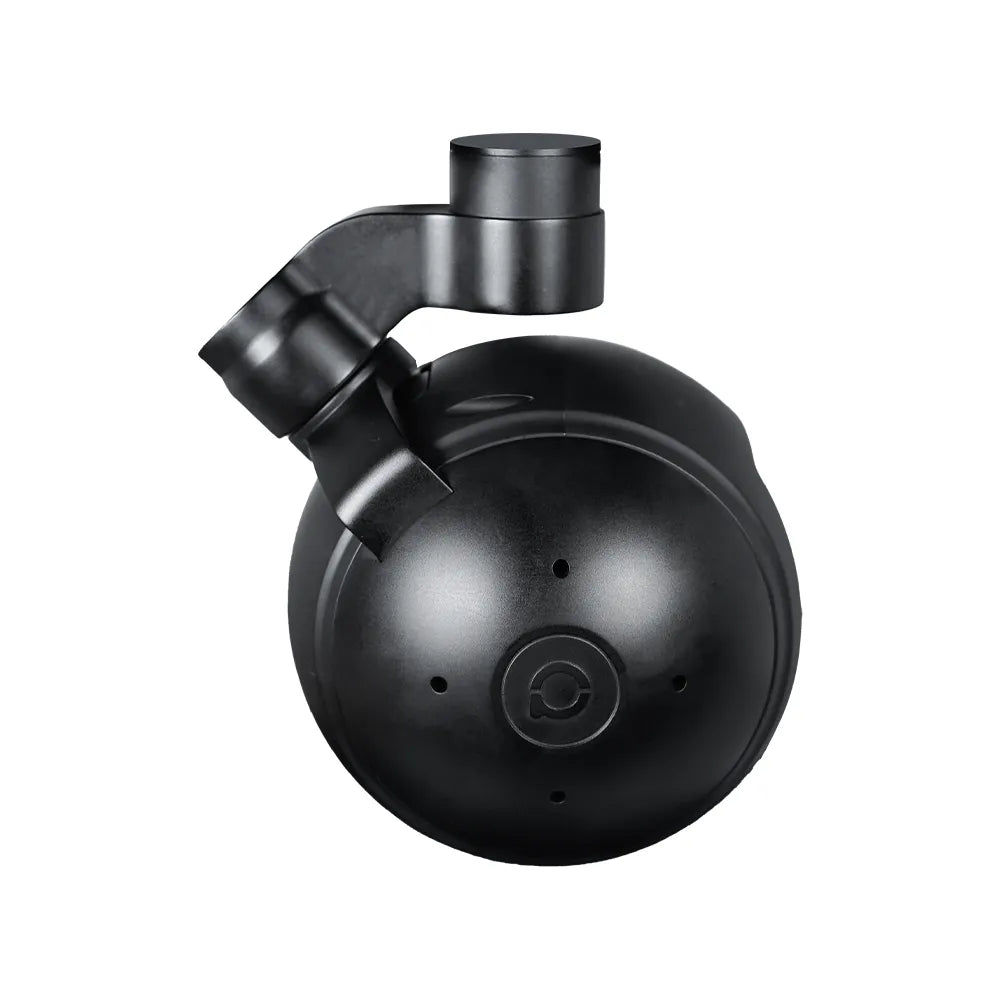

ViewPro Q20KTIR Pro Gimbal Camera Overview

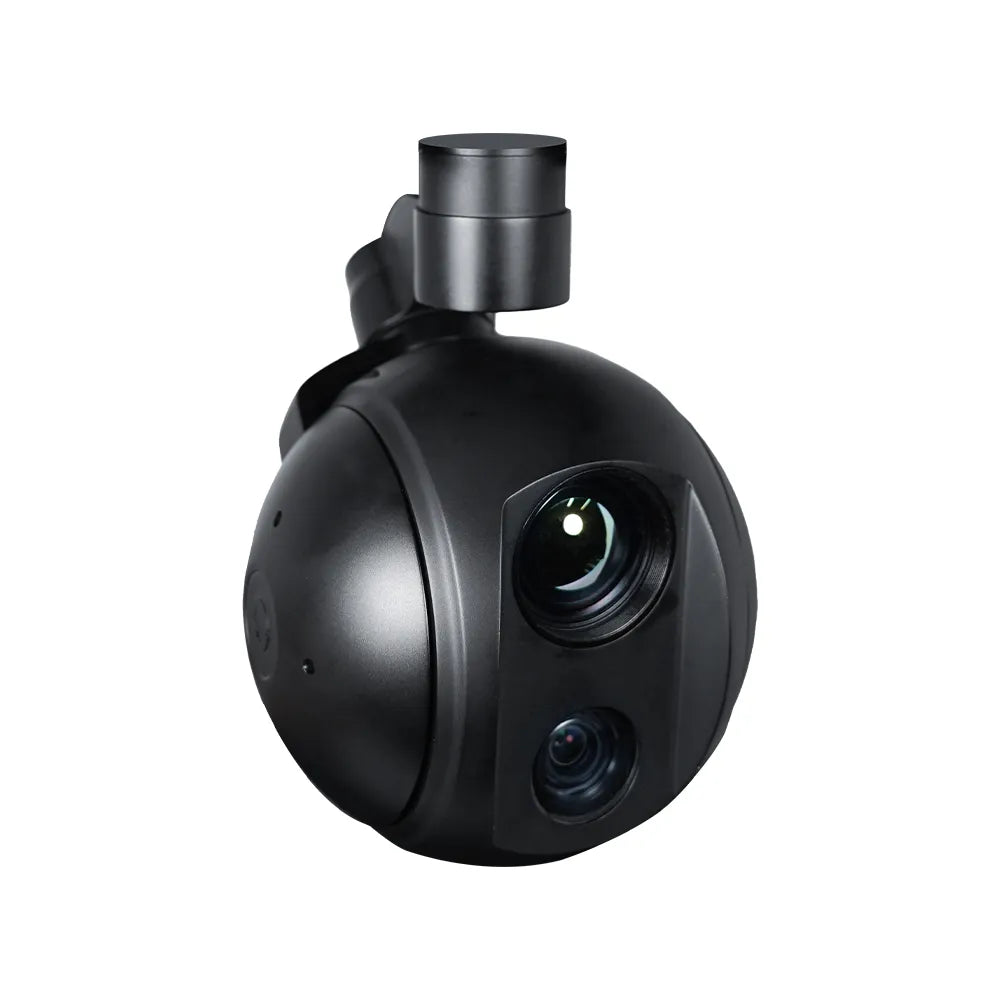

The ViewPro Q20KTIR Pro Gimbal Camera is an advanced imaging solution for professional drones, combining a powerful 20x optical zoom 4K EO camera with a 1280x1024 resolution 35mm IR thermal imager. Designed for precision and versatility, this dual-sensor gimbal offers unmatched capabilities for industrial inspections, search and rescue, surveillance, and mapping applications. Its rugged build, smooth 3-axis stabilization, and multi-output compatibility make it a top choice for demanding operations.
ViewPro Q20KTIR Pro Gimbal Camera Key Features
Electro-Optical (EO) Camera:
- High Resolution: SONY 1/2.5" CMOS sensor with 4K video (3840x2160) and 8.51MP for exceptional clarity.
- 20x Optical Zoom: Wide-to-telephoto range (4.4mm to 88.4mm), with an additional 12x digital zoom for detailed observations.
- Low-Light Performance: Minimum illumination of 0.06 lux ensures visibility in challenging conditions.
- Advanced Functions: Includes defog mode, auto/manual focus, and electronic shutter control.
IR Thermal Imaging Camera:
- High Sensitivity: 1280x1024 resolution with ≤50mK NETD ensures detailed thermal readings.
- Long-Range Detection: Detects human heat signatures up to 1458m and vehicles up to 4472m.
- Versatile FOV: 35mm lens with a horizontal field of view of 24.8° for broad coverage.
- Temperature Monitoring: Optional thermometry for temperature warnings and analysis.
Stabilized Gimbal System:
- 3-Axis Stabilization: ±0.02° vibration angle accuracy for smooth, steady footage.
- Wide Operating Range: Pitch -45° to 90° and yaw ±290° with full 360° rotation in IP output mode.
- One-Key Centering: Quick setup for efficient operations.
Output & Control:
- Video Outputs: micro HDMI (1080P 30fps) and IP (4K/1080P 30fps) for flexible integration.
- Control Methods: PWM, SBUS, TTL, and TCP ensure compatibility with various platforms.
- Storage: SD card support up to 128GB for local recording.
ViewPro Q20KTIR Pro Gimbal Camera Specifications
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1250~1900mA @ 12V |
| Idle current | 1250mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P25/30fps)/IP (4K/1080p 25/30fps ) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (4K:3840*2160) |
| Video storage format | MP4 (1080P/4K 30fps) |
| Control method | PWM / SBUS / TTL / TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60°～135°, Roll: ±50°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | SONY 1/2.5" "Exmor R" CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele) |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H ) | 70.2°(Wide end) ~ 4.1°(Tele end) |
| Sync system | Internal/External |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) |
| 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) | |
| 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) | |
| 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) | |
| Back light compensation | On/Off |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Lens size | 35mm |
| Horizontal FOV | 24.8° |
| Vertical FOV | 19.9° |
| Diagonal FOV | 31.4° |
| Detective Distance (Man: 1.8x0.5m) | 1458 meters |
| Recognize Distance (Man: 1.8x0.5m) | 356 meters |
| Verified Distance (Man: 1.8x0.5m) | 182 meters |
| Detective Distance (Car: 4.2x1.8m) | 4472 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1118 meters |
| Verified Distance (Car: 4.2x1.8m) | 559 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 1280*1024 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1692g(Viewport Version) |
| Product meas. | 139*160.2*230.5mm（Standard Version）139*160.2*236.2（Viewport Version） |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| Package meas. | 350*300*250mm |
Applications
- Industrial Inspections: Monitor power lines, pipelines, and other critical infrastructure.
- Search & Rescue: Detect heat signatures in challenging environments.
- Surveillance: Long-range observation and tracking for security applications.
- Agriculture: Analyze crop health using thermal and optical imaging.
The ViewPro Q20KTIR Pro Gimbal Camera is an all-in-one imaging solution for drone professionals, offering exceptional versatility, precision, and reliability for diverse aerial operations.
ViewPro Q20KTIR Pro Gimbal Camera Details
1. Professional 3-axis High-precise FOC Program
Stabilized the Q20KTIR Pro is a highly optimized 3-axis gimbal payload with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the Q20KTIR Pro uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.
2. High Resolution SONY 20x Zoom 4K Camera
Powered by SONY 1/2.5" "Exmor R" CMOS module, 8.51 mega effective pixel and 4K video quality, combined with 20x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.
3. Advanced HD IR Thermal Imager
Integrated with high-precision 35mm 1280*1024 HD uncooled long wave (8μm ~14μm ) (pixel pitch is 12μm) thermal image sensor, Q20KTIR Pro can record and transmit thermal image and visible images at the same time in PIP format. The IR can show clear image for target far away, and the digital zoom can support longer range surveillance and inspection.
Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.
*Temp bar: Indicates gradually variation temperature with corresponding colors.
*Temp measurement: Display average, highest, and lowest temperatures in real time.
*Temp alarm: Don't miss a thing when object temperatures exceed pre-set alert values.
4. Visible Light and Thermal Imager Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
Q20KTIR Pro supports both HDMI output and Ethernet/IP output. HDMI and output are 1080p, Ethernet output defualt as 1080p and record is 4K. IP output versions will support 360 degree enless pan.
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional. IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.

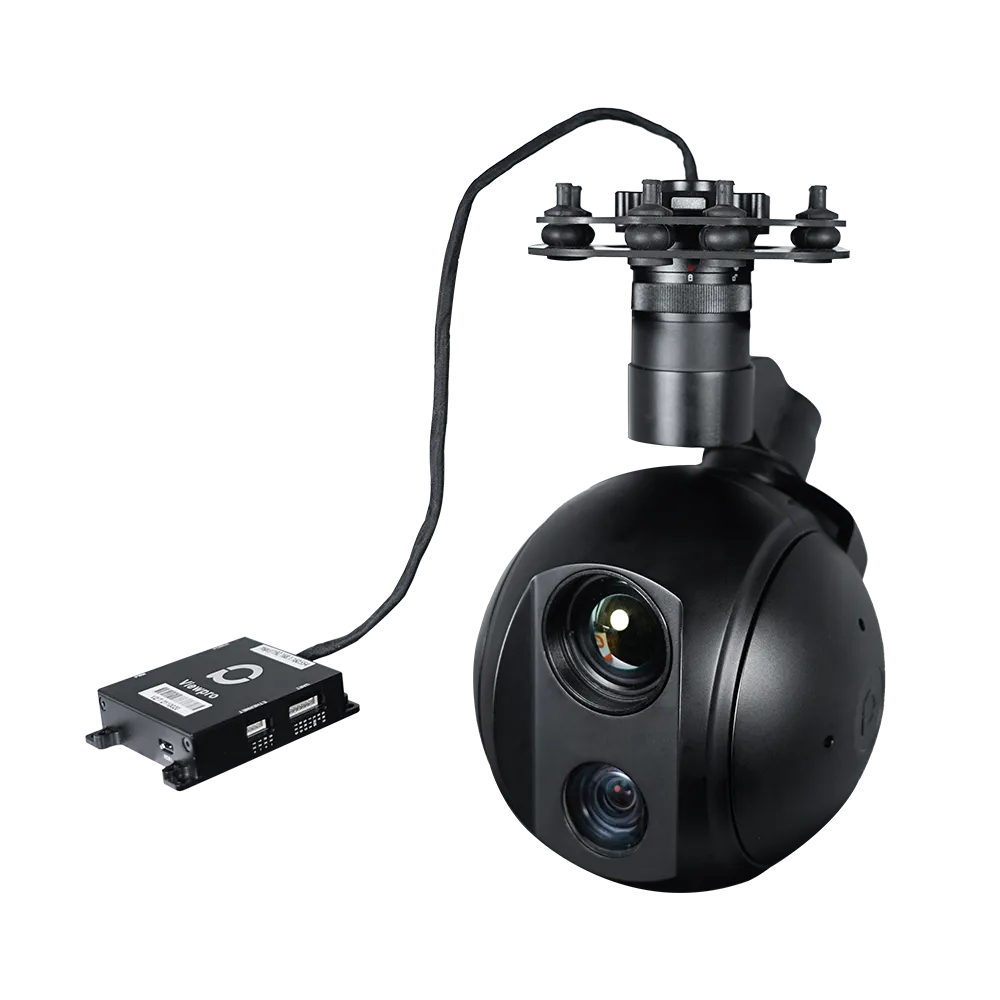

Control box signal interfaces:
Compatible with Viewport
Q20KTIR pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
