Overview

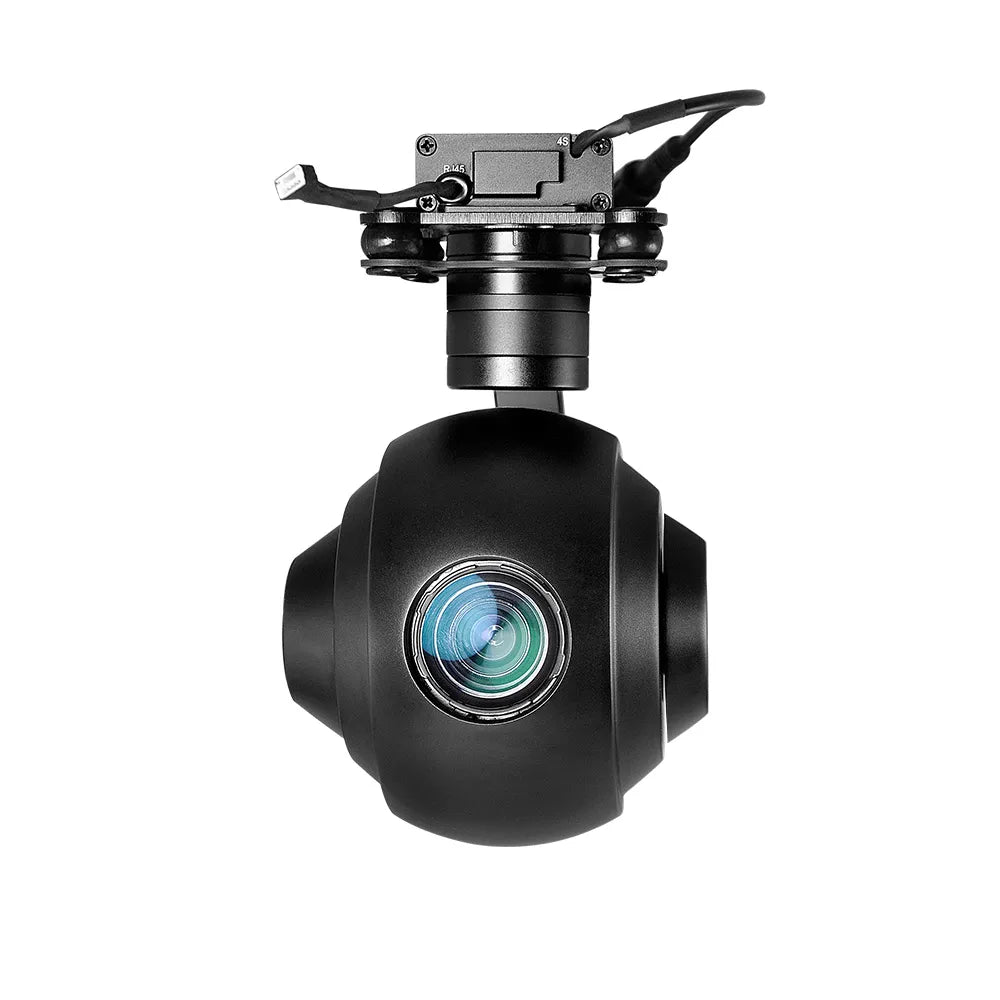

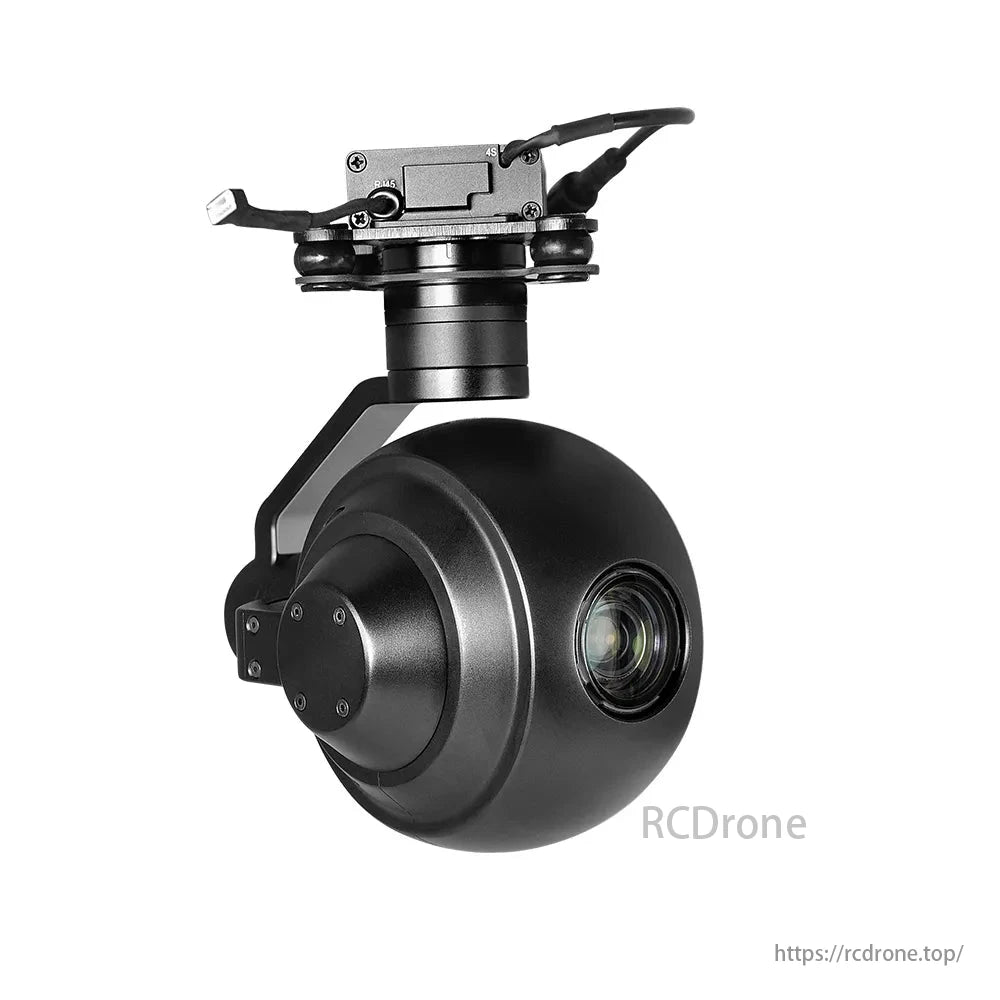

The ViewPro Q20T is a cutting-edge 20x optical zoom gimbal camera designed for UAVs, combining superior imaging capabilities with advanced object tracking for dynamic aerial operations. Featuring a Sony 1/2.5" Exmor R CMOS sensor with 8.51MP resolution, it delivers stunning 4K video and 1080p images with exceptional clarity. Its 12x digital zoom extends the total zoom capacity to 240x, enabling detailed inspection and surveillance from great distances. Mounted on a 3-axis stabilized gimbal, the Q20T ensures smooth performance even in demanding environments. Designed for applications such as search and rescue, security, and inspection, the Q20T is the ultimate UAV camera solution.
Features
- High-Resolution Imaging: Equipped with a Sony Exmor R CMOS sensor, the camera captures 4K video (2160P) and crystal-clear photos.
- 20x Optical Zoom: The zoom lens offers an expansive field of view, ranging from 70.2° (wide) to 4.1° (tele), ideal for detailed inspections.
- Dynamic Object Tracking: Tracks objects with high accuracy at an update rate of 50Hz and a delay of just 5ms.
- Stable 3-Axis Gimbal: Offers a vibration angle precision of ±0.02°, ensuring stable and smooth footage in flight.
- Advanced Low-Light Performance: Delivers clear imaging with a minimum illumination of 0.06 lux under slow shutter and high-sensitivity settings.
- Versatile Control Options: Supports PWM, TTL, and S.BUS, enabling seamless integration with various UAV platforms.
- Rugged Design: Operates in harsh environments with a temperature range of -20°C to +60°C.
Specifications
Hardware Parameter | |
Working voltage | 12V |
Input voltage | 3S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 900mA @ 12V |
Idle current | 800mA @ 12V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI1080P60/IP (4K 2160P/1080p25 30 optional) |
Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) (4K/1080p optional) |
Control method | PWM / TTL / S.BUS |
Gimbal spec | |
Mechanical Range | Pitch/Tilt: -125°~125°, Roll: ±70° Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
Controllable Range | Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
Camera spec | |
Imager Sensor | SONY 1/2.5" "Exmor R" CMOS |
Total pixel | 8.51MP |
Signal system | 4K: 2160P/29.97,2160P/25 FHD: 1080P/59.94,1080P/50,1080i/59.94,1080i/50,720P/59.94,720P/50 |
Lens optical zoom | 20x, F2.0 to F3.8 |
Digital zoom | 12x (240x with optical zoom) |
Min.working distance | 80 mm (Wide end), 800 mm (Tele end) |
Angle of view ( H ) | 70.2°(Wide end) ~ 4.1°(Tele end) |
Sync system | Internal/External |
S/N ratio | 50dB |
Photo storage format | JPG (4K:3840*2160/1080P:1920*1080) |
Video storage format | MP4 (2160P 25fps/30fps or 1080P 25/30fps) |
Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto |
White balance | Auto/Manual |
Electronic Shutter speed | 1/1 to 1/10000 sec. (22 steps) |
Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
Defog mode | On/Off (Low, Mid, High) |
Focus | Auto/Manual/One-time automatic focus |
Focus speed | 2s |
Lens initialization | Built-in |
User presetting bit | 20 sets |
Image rotation | 180°, Horizontal/Vertical mirror image |
OSD | Yes |
Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | 5ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 ~ ±192 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Packing Information | |
N.W. | 663g (Viewport version) |
Product meas. | 105*140.6*150.3mm |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards Hight quality plastic box with foam cushion |
Package meas. | 260*180*280mm |
Package
- Net Weight: 663g (Viewport version)
- Product Dimensions: 105 × 140.6 × 150.3mm
-
Included Accessories:
- Gimbal camera device
- Screws, copper cylinders, damping balls, damping boards
- High-quality plastic box with foam cushioning
Applications
- Search and Rescue: Identify and track objects or individuals in challenging environments.
- Surveillance and Security: Perform wide-area monitoring with high zoom capabilities.
- Infrastructure Inspection: Ideal for inspecting power lines, pipelines, and other critical structures.
- Environmental Monitoring: Survey wildlife and natural habitats with precision.
- Cinematic Drone Shoots: Capture high-quality aerial footage with professional stability.
The ViewPro Q20T is a versatile and advanced gimbal camera, offering unmatched performance for professionals in aerial photography, surveillance, and inspection industries.
Q20T features 20x optical zoom 4K EO and auto tracking function. It is a 3-axis gimbal camera for UAV, Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting.
SONY 20x Time Optical Zoom 4K Camera
Powered by SONY 1/2.5" "Exmor R" CMOS module, with 0.01 lux@F1.6 minillumination, 8.51 mega effective pixel and 1080p FHD image quality, combined with 20x advanced optical zoom technology, the observation range is up to 2000 meters, which can meet the application requirements of various domains.
Built-in Auto-tracking Function
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
Q20T support both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output will support 360degree enless pan.
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional. With Viewpro software Viewlink you can fulfill IP output, TTL control.
Control box signal interfaces:
Compatible with Viewport
Q20T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Applications
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
Dimensions
The ViewPro Q20T is a 20x optical object tracking gimbal camera designed for drone use, featuring a standard version with a 105mm x 105mm x 140.6mm body size.
