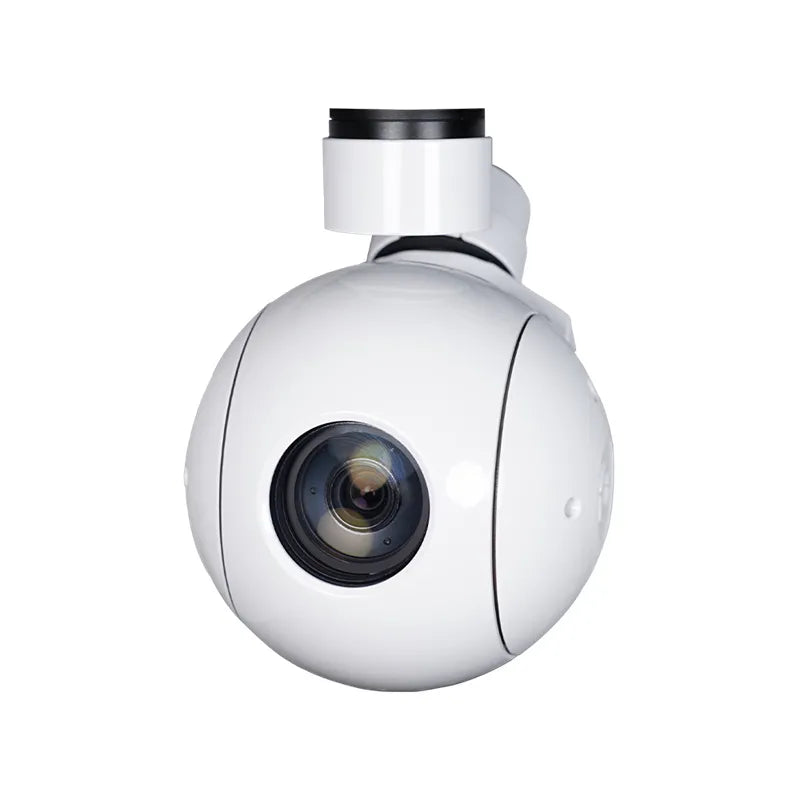

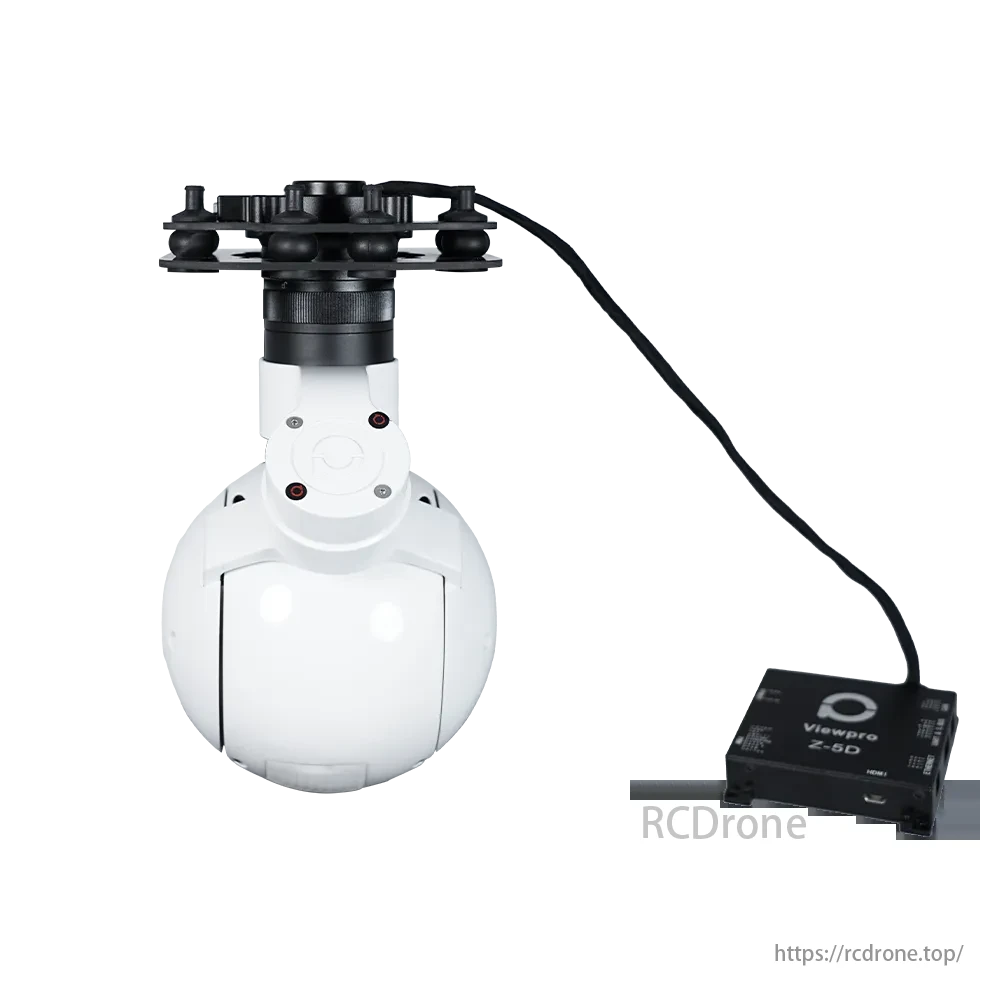

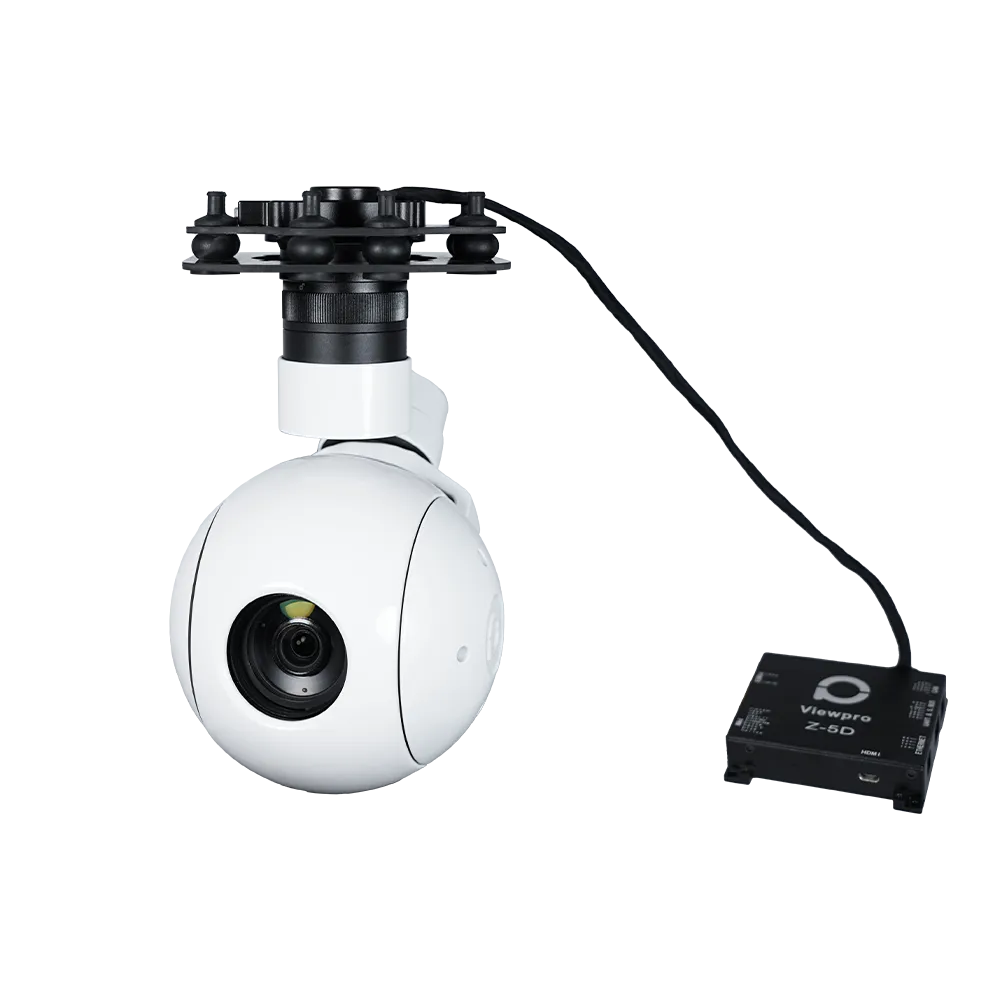

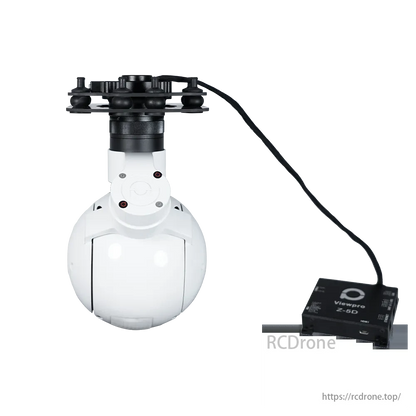

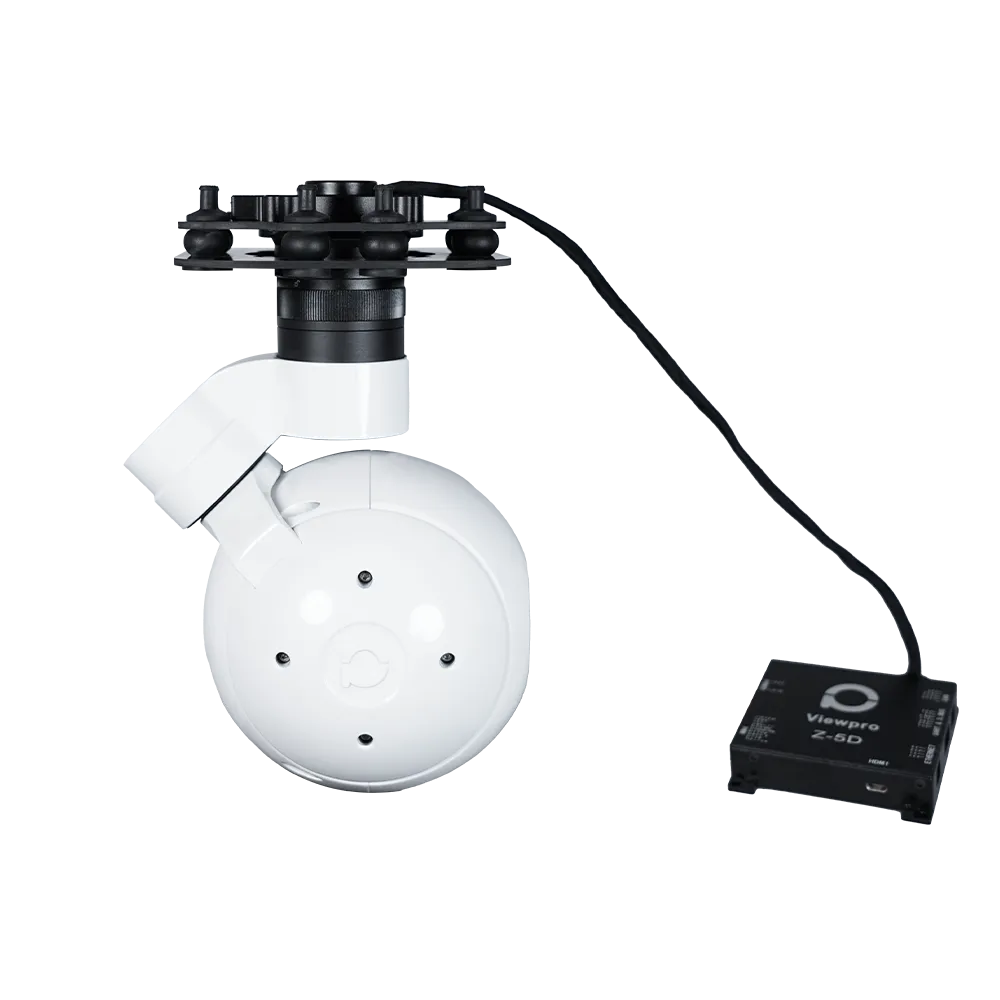

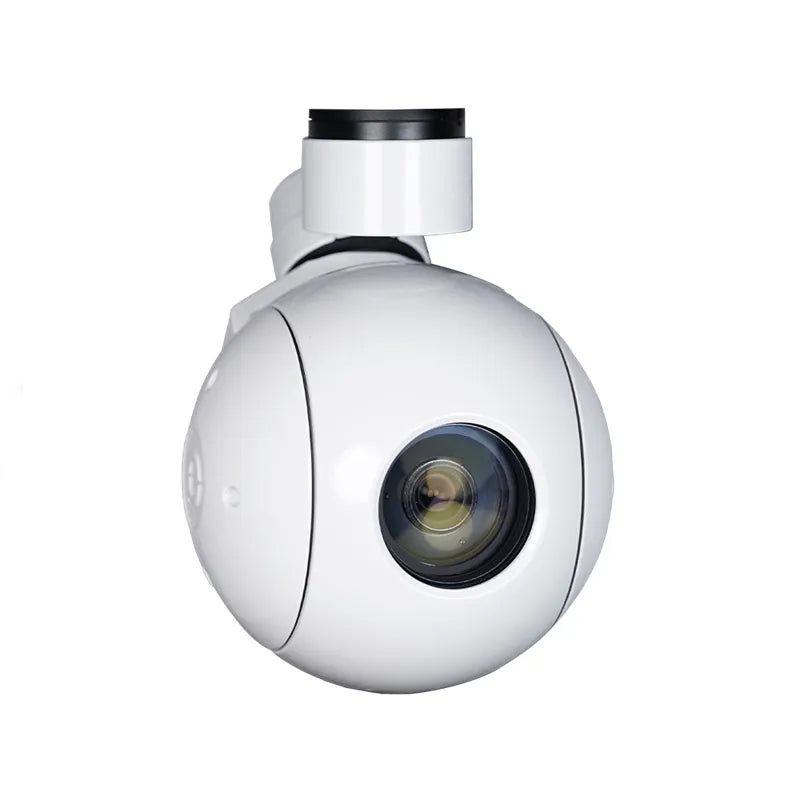

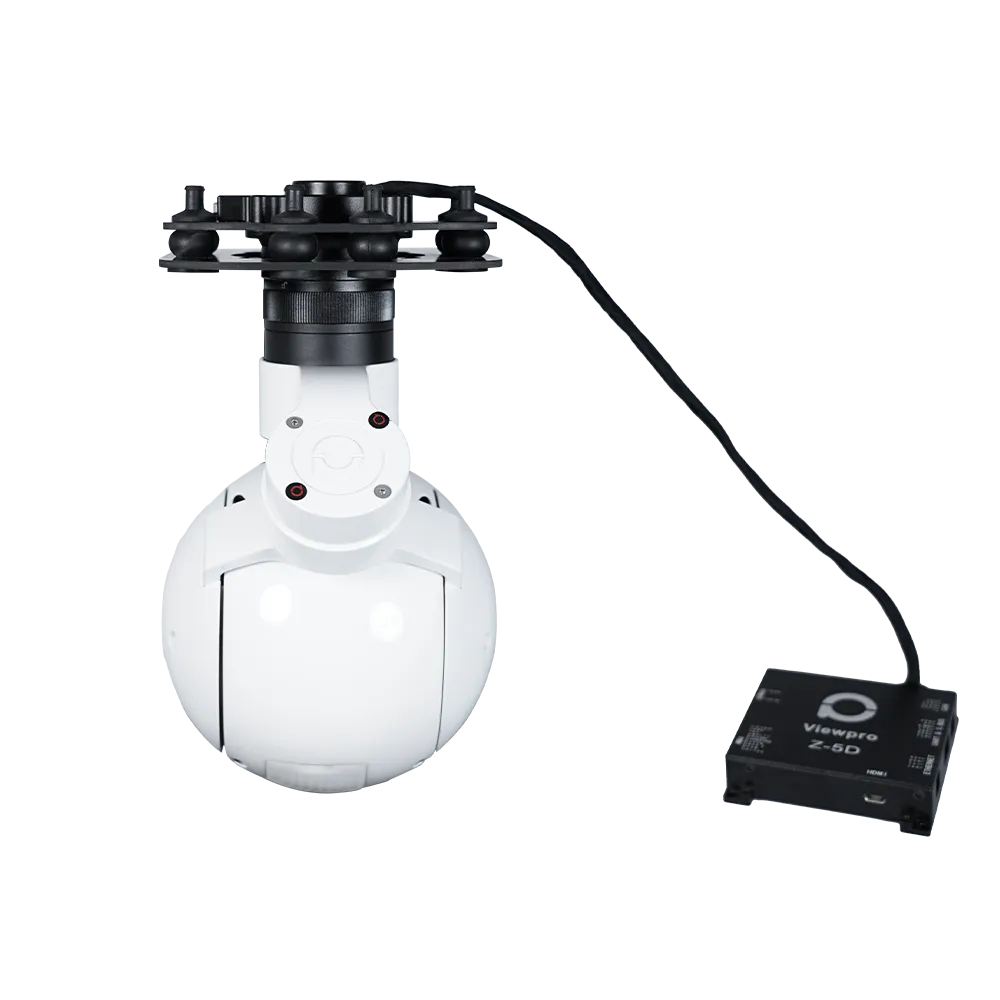

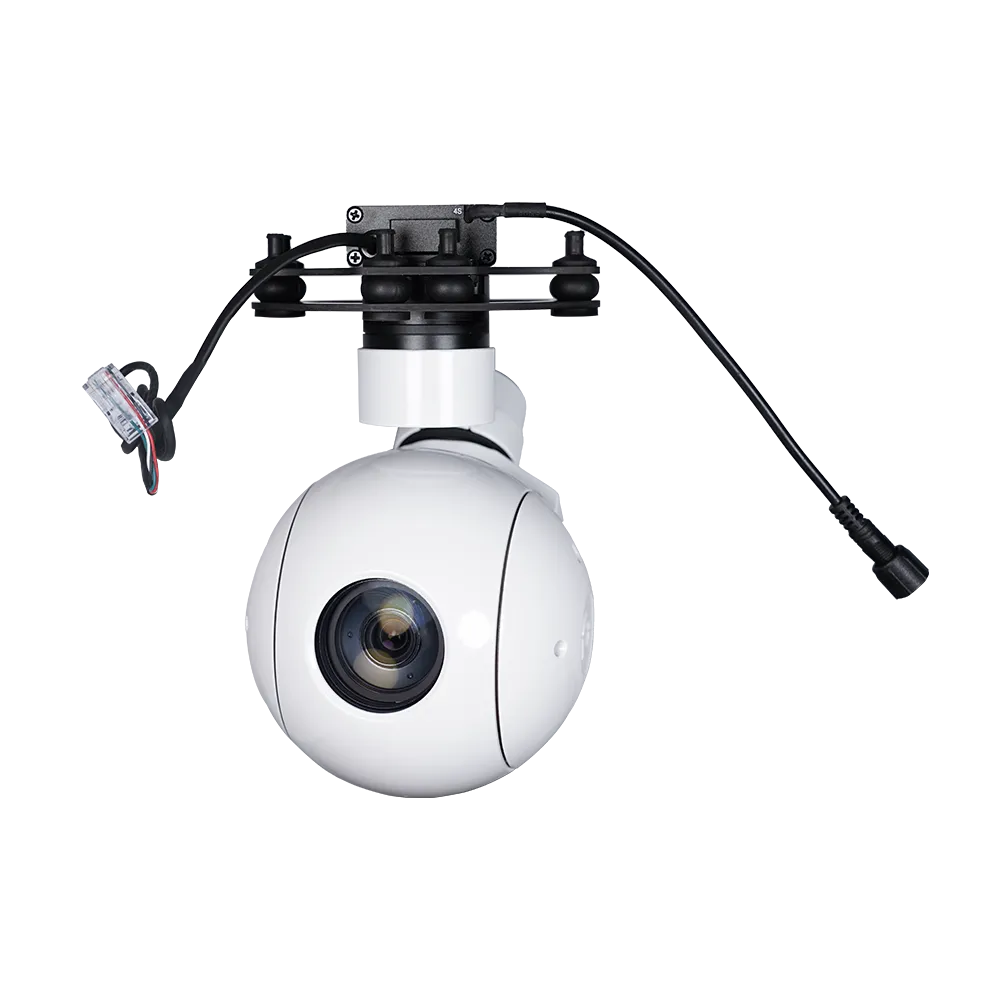

ViewPro Q30T Pro II 30x Optical Zoom Object Tracking Gimbal Camera for UAV Drone

Overview

The ViewPro Q30T Pro II is a cutting-edge gimbal camera designed for UAV drones, offering advanced stabilization and exceptional optical capabilities. Equipped with a 30x optical zoom lens and Sony 1/2.8" Exmor R CMOS sensor, this camera delivers Full HD 1080p video quality and precise tracking with its AI-powered object tracking system. With a 3-axis gimbal, vibration compensation accuracy of ±0.02°, and versatile output options including micro HDMI, IP (RTSP/UDP), and SDI, the Q30T Pro II ensures smooth operation for a wide range of professional applications. Its geotagging support and extensive local storage capacity of up to 512GB enhance mission efficiency, making it ideal for surveillance, inspections, and aerial photography.

Features

• High-Definition Imaging: Powered by a Sony 1/2.8" Exmor R CMOS sensor with 2.13MP resolution, delivering Full HD 1080p clarity for exceptional image quality.
• 30x Optical Zoom with 12x Digital Zoom: Offers a combined 360x zoom capability for capturing fine details from great distances.
• 3-Axis Stabilization: Advanced FOC-controlled gimbal ensures ±0.02° vibration accuracy for stable video and precise movements.
• AI Object Tracking: Real-time tracking of objects with minimal contrast (5%), ensuring high accuracy even in dynamic environments.
• Multi-Output Options: Supports HDMI (1080P), IP (RTSP/UDP), and SDI output for flexible integration into different systems.
• Low Light Performance: Minimum illumination of 0.01 lux enables clear imaging in low-light conditions, perfect for nighttime operations.
• Geotagging Enabled: Records time and GPS coordinates in image EXIF data for enhanced post-operation analysis.
• Weather Resistance: Operating temperature range of -20℃ to +60℃, ensuring reliability in harsh environments.

Specifications

Package

• Net Weight: 895g (Viewport version: 960g)
• Dimensions: 128.2×104.9×183.9mm (standard version)
• Accessories:
  • Gimbal camera device
  • Screws, damping balls, damping boards
  • Copper cylinders
  • USB to TTL cable
  • High-quality plastic box with foam cushion

Applications

• Aerial Surveillance: Ideal for public security, crowd monitoring, and patrols.
• Infrastructure Inspections: Perfect for inspecting pipelines, power lines, and industrial facilities.
• Search and Rescue Missions: Provides long-distance object identification and tracking for rescue operations.
• Environmental Monitoring: Enables wildlife tracking and thermal mapping for research.
• Event Coverage: High-definition zoom capabilities for live event streaming and documentation.

The ViewPro Q30T Pro II sets a new standard for UAV-mounted gimbal cameras, combining precision, versatility, and advanced AI capabilities to support a wide array of professional applications.

Q30T pro Ⅱ features a 30x optical zoom lens. It’s powered by SONY 1/2.8” “Exmor R” CMOS module, FHD 1080p video, fast auto-focus speed, designed for UAV aerial photography. A lightweight design combined with 3-axis gimbal makes the gimbal motors ultra-reactive. FOC solution can greatly compensate the vibration of UAV. Yaw axis could realize 360° continuous rotation with default SDI output. At the same time, Q30T pro can achieve target tracking. The image is stable even at 30 times optical zoom. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

SONY 30x Optical Zoom Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30T pro Ⅱ can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

Built-in Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

Multi Output Methods Optional

Q30T Ⅱ supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Multi Control Methods

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Control box signal interfaces:

Compatible with Viewport

Q30T pro Ⅱ is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

For more information about Viewport, please check below video instruction:

Dimensions

Applications

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties

ViewPro Q30T Pro II 30x Optical Zoom Object Tracking Gimbal Camera for UAV Drone offers precision zoom and stabilization
