Overview

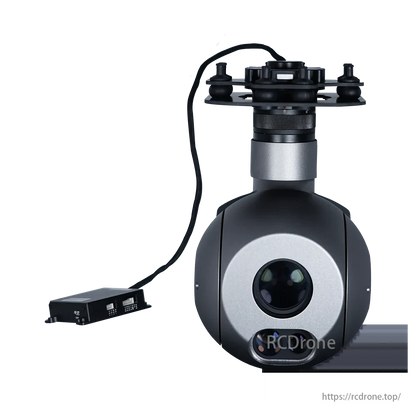

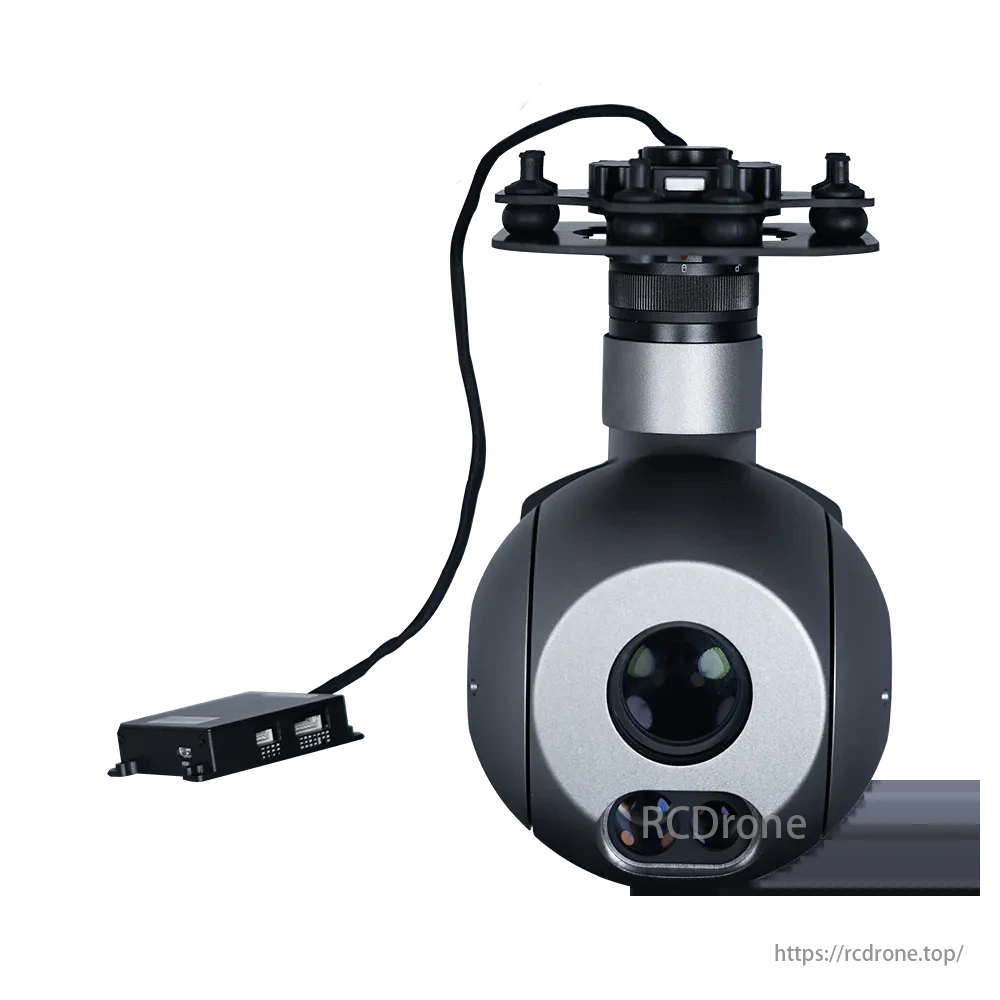

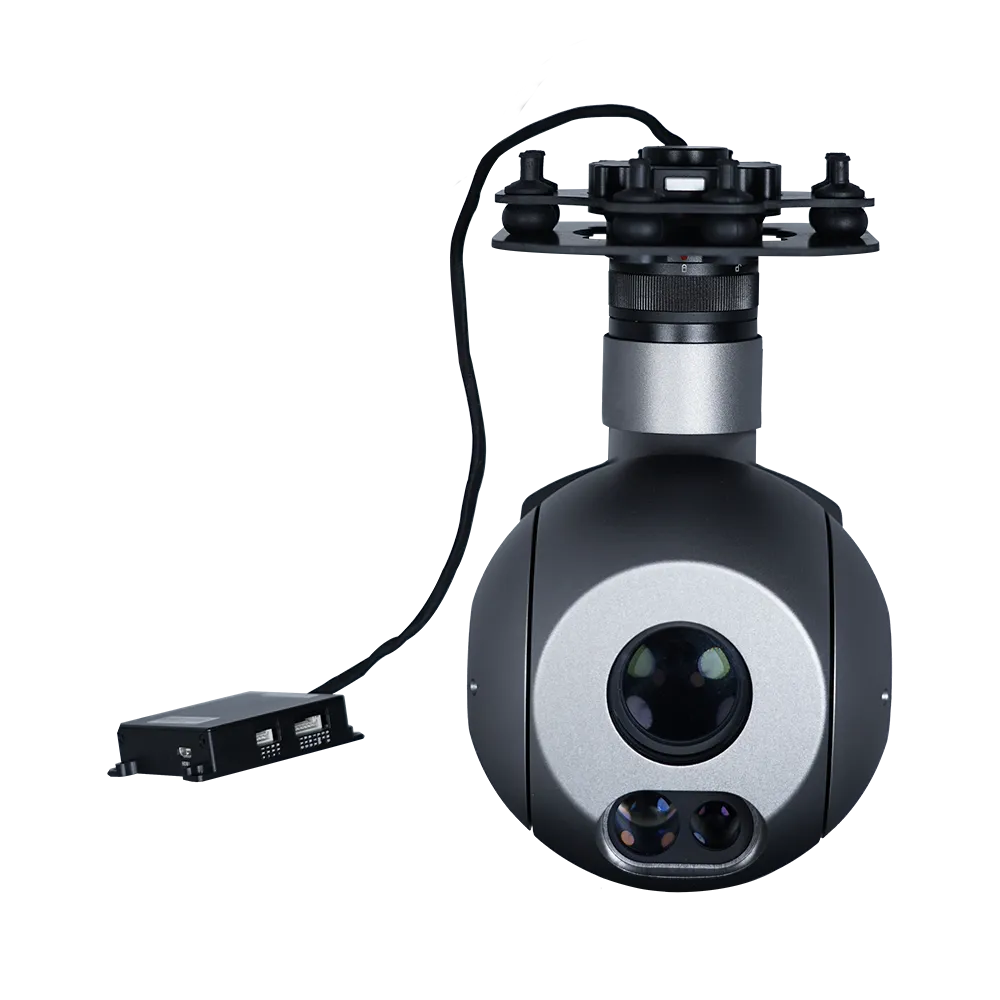

The ViewPro Q30TM is an advanced dual-sensor gimbal camera specifically designed for UAVs, combining 30x optical zoom with a 3KM laser rangefinder for unparalleled precision and performance. Powered by a Sony 1/2.8" Exmor R CMOS sensor, it delivers exceptional Full HD 1080p video and sharp imagery. The integrated 1550nm laser rangefinder ensures accurate distance measurements of up to 3,000 meters, complete with GPS coordinate tagging. Mounted on a 3-axis stabilized gimbal, the Q30TM offers smooth operation, even in dynamic flight conditions. Perfect for aerial inspections, surveillance, and search-and-rescue missions, the Q30TM is a top-tier solution for professionals seeking reliability and versatility.
Features
- 30x Optical Zoom with 12x Digital Zoom: Capture details with a combined 360x zoom capability, ranging from 63.7° wide-angle to a 2.3° telephoto view.
- 3KM Laser Rangefinder: Integrated 1550nm IR laser provides precise distance measurements, accurate to ±0.75m under optimal conditions.
- Dual Sensor System: Combines advanced imaging with precise distance measuring, making it ideal for critical applications.
- 3-Axis Stabilized Gimbal: Delivers vibration-free footage with an accuracy of ±0.02° for pitch, roll, and yaw.
- Exceptional Low-Light Performance: Minimum illumination of 0.01 lux ensures clear images in challenging lighting conditions.
- Dynamic Object Tracking: High-speed tracking with a 50Hz update rate and delay of only 5ms, ensuring real-time focus on moving targets.
- Flexible Control Options: Supports PWM, TTL, S.BUS, and DJI Pilot for seamless UAV integration.
- Rugged Design: Withstands harsh environments, operating at temperatures from -20°C to +60°C.
Specifications
Hardware Parameter | |
Working voltage | 12V |
Input voltage | 3S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 950~1100mA @ 12V |
Idle current | 950mA @ 12V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(HD output 1080P 25/30/50/60fps) IP(1080P/720P 25/30fps) |
Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Photo storage format | JPG(1920*1080 / 1280*720) |
Video storage format | MP4 (1080P/720P 25fps/30fps) |
Control method | PWM / TTL / S.BUS / TCP(IP output) /DJI Pilot |
Gimbal Spec | |
Mechanical Range | Pitch/Tilt: -60°~120°,Roll: ±35°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
Camera Spec | |
Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 30x, F=4.3~129mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Min illumination | Color 0.01lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
Shutter speed | 1/1s to 1/10,000s, 22 steps |
Backlight compensation | Yes |
Aperture control | 16 steps |
Defog | Yes |
OSD | Yes |
Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | 5ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | 32 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
IR Laser Rangefinder | |
Laser Wavelengths | 1550nm |
Optical aperture | Transmit 13mm / Receive17 mm |
Resolution | 0.75m |
Measure ability | 3000m (Typical value 1: · Object size: the target surface is larger than the laser spot area · Reflectivity: 60% · Accuracy rate: 90% · Visibility: 10 km · Environment temperature: 20℃ · Atmospheric pressure: 1013 mbar) |
Vehicle target measuring | 2300m (Typical value 2: · Object size: 2.3*2.3 m · Emissivity: 30% · Others same as Typcial value 1) |
Eye-safe | Class 1【Standard IEC 60825-1, Second Edition (2007-03)】 |
Laser beam angle (Typical value) | 1.0 mrad |
Accuracy (Typical value) | ± 0.75m |
Accuracy (In harsh condition) | ± 2m |
Measurement frequency | 2Hz |
Object resolution (Typical value) | 30m |
Packing Information | |
N.W. | 888g(Viewport Version) |
Product meas. | 112*129*203.9mm |
Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion |
Package
- Net Weight: 888g (Viewport version)
- Product Dimensions: 112 × 129 × 203.9mm
-
Included Accessories:
- 1x Gimbal camera device
- 16x screws, 4x copper cylinders, 12x damping balls, 4x damping boards
- High-quality plastic box with foam cushioning
Applications
- Aerial Surveillance: Monitor wide areas with precision zoom and GPS-enabled laser measurements.
- Infrastructure Inspection: Ideal for inspecting power lines, pipelines, and tall structures.
- Search and Rescue: Accurately locate and measure distances to objects or individuals in real-time.
- Environmental Monitoring: Conduct detailed observations and measurements of landscapes and wildlife.
- Law Enforcement and Security: Supports missions requiring enhanced tracking and long-distance measurement capabilities.
The ViewPro Q30TM delivers unmatched performance with its dual sensors, powerful optical zoom, and integrated laser rangefinder, making it the ultimate tool for professionals in inspection, surveillance, and rescue operations.
