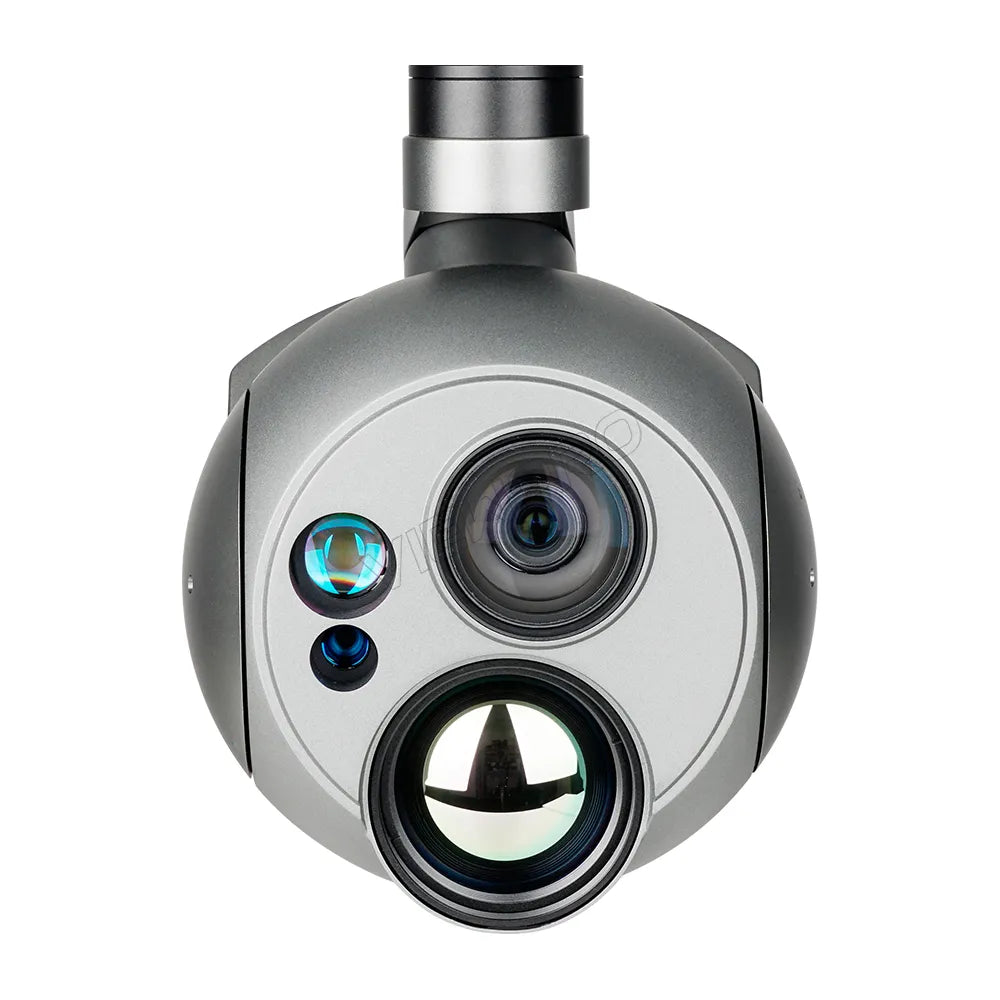

ViewPro Q40TIRM-HD Drone Gimbal Camera - 40X Optical Zoom EO, 1208x1024 Thermal, 5km LRF

Overview

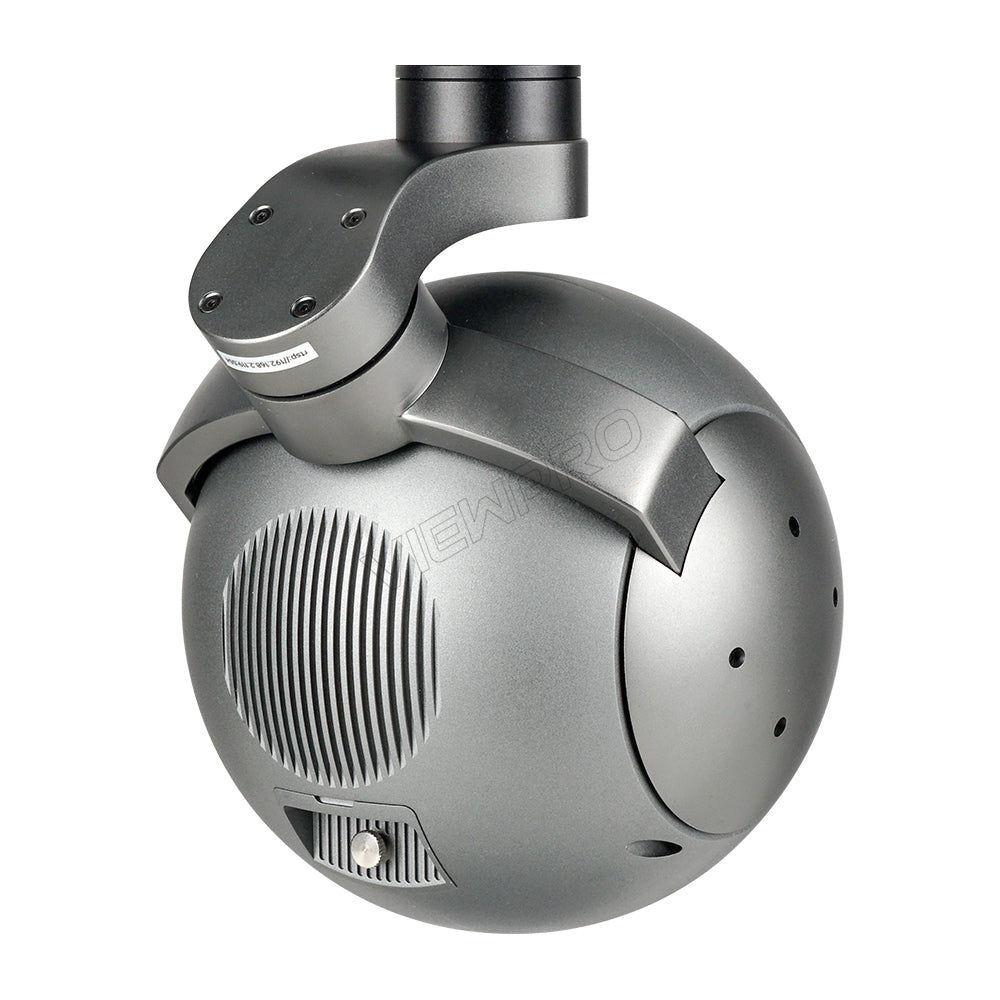

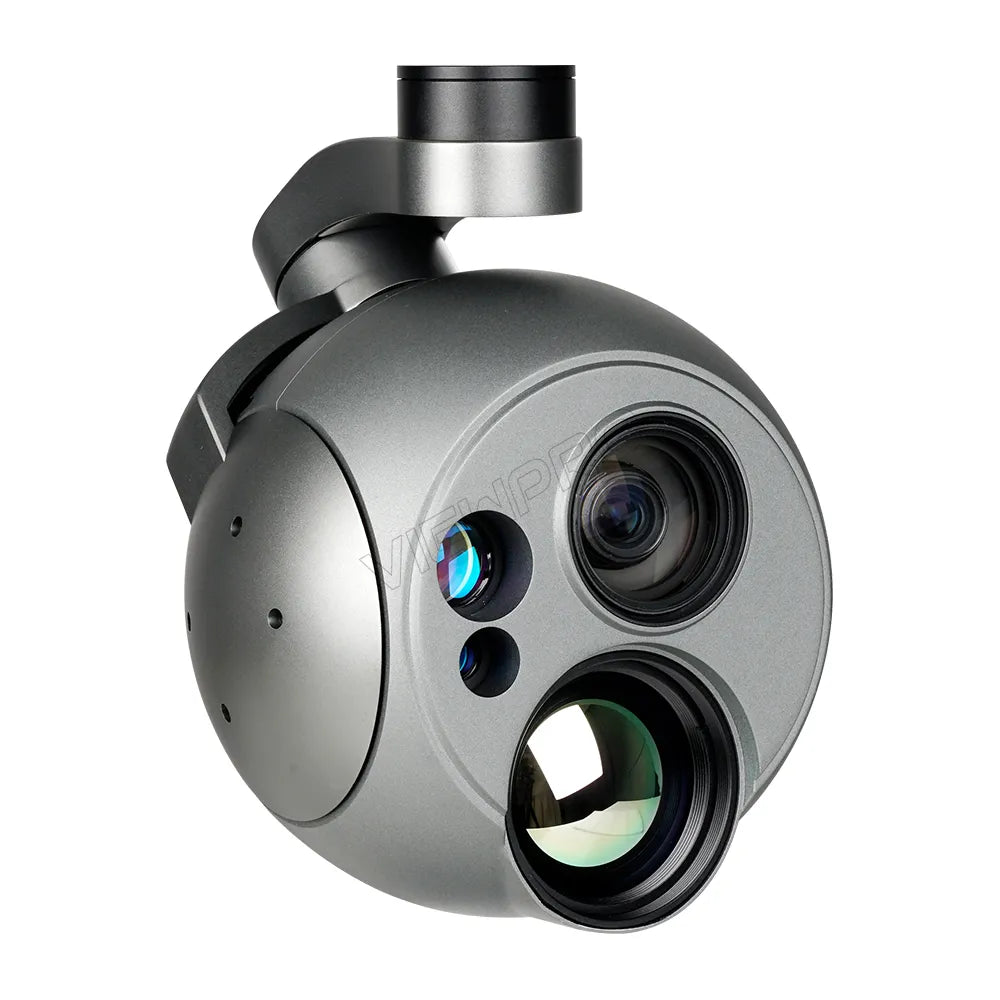

The ViewPro Q40TIRM-HD is an advanced gimbal camera system combining 40X optical zoom, 1280x1024 thermal resolution, and a 5km laser rangefinder (LRF) for unparalleled precision and versatility. Its 1/2.8” Sony CMOS sensor ensures Full HD image quality, while the IR thermal imaging capability enhances detection in challenging environments. With a 50mm thermal focus length, ±360° yaw range, and dual tracking modes, this camera excels in surveillance, search and rescue, industrial inspection, and more.

Key Features



• 40X Optical Zoom with Full HD Resolution: The EO camera provides clear visuals even at long distances, powered by a 2.13MP Sony CMOS sensor.
• Thermal Imaging: Achieves 1280x1024 resolution with a 50mm focus lens, detecting vehicles up to 6.4km and humans up to 2km.
• 5km Laser Rangefinder: Offers precise distance measurement with a deviation of ±1m and location resolution capabilities.
• 3-Axis Gimbal Stabilization: Ensures smooth footage with ±360° yaw, -45° to 125° pitch, and ±70° roll range.
• Advanced Tracking and Auto-Detection: Features EO/IR object tracking, real-time target stabilization, and auto-follow functionality.
• Rugged Durability: Operates in extreme temperatures (-20°C to 50°C) with IP44 water resistance and compact construction.

Specifications

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S (14.8V~25.2V)
Output voltage	5V (connect with PWM)
Dynamic current	800~1500mA @16V
Power consumption	Average 12.8W, Max 24W
Working environment temp.	-20℃ ~ +50℃
Output (optional)	IP (RTSP/UDP 720p/1080p  25fps/30fps H264/H265) / SDI (1080P 30fps)
Local-storage	TF card (Up to 512G,class 10, FAT32  format)
Picture storage format in TF card	JPG(1920*1080)
Video storage format in TF card	MP4(1080P 30fps)
Control method	PWM  / TTL / S.BUS / TCP / UDP
Gimbal Spec
Mechanical Range	Pitch/Tilt: -60°(Up)～130°(Down),   Roll: ±70°,  Yaw/Pan: ±360°*N
Controllable Range	Pitch/Tilt: -45°～125°,   Yaw/Pan: ±360°*N
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√
EO Camera spec
Imager Sensor	1/2.8" Sony  CMOS Sensor
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	40x, F=4.25~170mm
Digital zoom	Off / MAX x2 ~ x32
Min object distance	0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Angle of View (D, H, V)	Wide: 73.80° / 66.35° / 39.98°
	Tele: 2.16° / 1.90° / 1.11°
AF Mode	Auto / One Push / Manual
Iris	Close ~ F1.6
Shutter speed	1/1 ~ 1/30,000 sec
Sync system	Internal
S/N ratio	more than 50dB
Min illumination	Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux
	Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux
Exposure control	Auto / Iris. Priority / Shut. Priority / Manual
Gain Control(AGC)	0 ~ 10 steps
White balance	Auto / One Push / Manual / Indoor / Outdoor
Back Light	Off / BLC / HLC / WDR
Defog	Off / Manual / Auto
IR Thermal Imager Spec
Focus Length	50mm
Horizontal FOV	17.5°
Vertical FOV	14.0°
Detective Distance (Man: 1.8x0.5m)	2083 meters
Recognize Distance (Man: 1.8x0.5m)	521 meters
Verified Distance (Man: 1.8x0.5m)	260 meters
Detective Distance (Car: 4.2x1.8m)	6389 meters
Recognize Distance (Car: 4.2x1.8m)	1597 meters
Verified Distance (Car: 4.2x1.8m)	799 meters
Working mode	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	1280*1024
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤40mK@25℃,F #1.0
MRTD	≤400mK@25℃,F #1.0
Shutter	Bistable Shutter
Color palette	White, black, pseudo color
Digital zoom	1x ~ 4x
Thermometry type	Not supported
EO / IR Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel
IR Laser Rangefinder
Measure ability	≥5km for big target (eg. building) ≥3km for car（2.3m×2.3m ） ≥1.5km for people（1.75m×0.75m ） (Based on typical value: LOS visibiligy: ≥8km Diffuse reflection rate: ≥0.3 Humility: ≤80%)
Accuracy (Typical value)	≤ ±1m (RMS)
Wave length	1535nm pulse laser
Divergent Angle	≤ 0.5mrad
Measurement frequency	1~10HZ
Min measuring range	≤20m
Location Resolving	Latitude and longitude of target
Ranefinder	Measure the distance between the object at the center of screen and the laser rangefinder
Features
OSD	Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude or target ranging point GPS and altitude (choose one of them, and target ranging point GPS and altitude), date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	SMB read pictures or videos / HTTP read pictures or videos
KLV (UDP)	Card recording or Viewlink video playback
ArduPilot / PX4	Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature
Video stitching	EO+IR /IR+EO /EO /IR
Dual video stream output	Not support(EO and IR two stream output)
Packing Information
N.W.	1662±10g(Viewport version with Viewport)
Product meas.	146.9*145*228.8mm(Standard Version) / 146.9*145*237.8mm(Viewport version with Viewport)
Accessories	1pc gimbal camera device, screws, aluminum cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W.	About 3389g
Package meas.	350*300*250mm

Applications

The Q40TIRM-HD is ideal for:

• Surveillance: Monitor urban and industrial areas with precision.
• Pipeline Inspection: Detect leaks or damage over long distances.
• Search and Rescue: Locate individuals or vehicles in critical missions.
• Industrial Inspection: Thermal imaging for facility and equipment checks.



The ViewPro Q40TIRM-HD is a comprehensive solution for professionals seeking unmatched precision, reliability, and flexibility across various challenging environments.

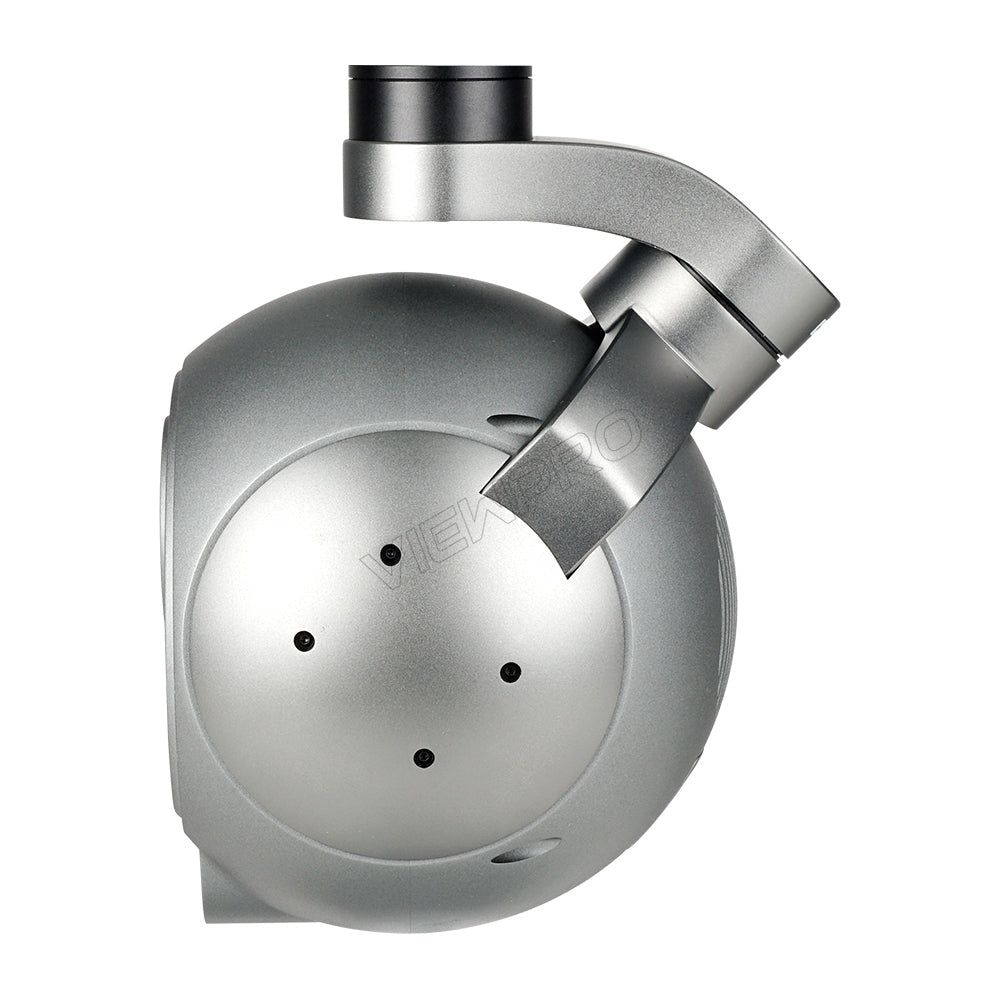

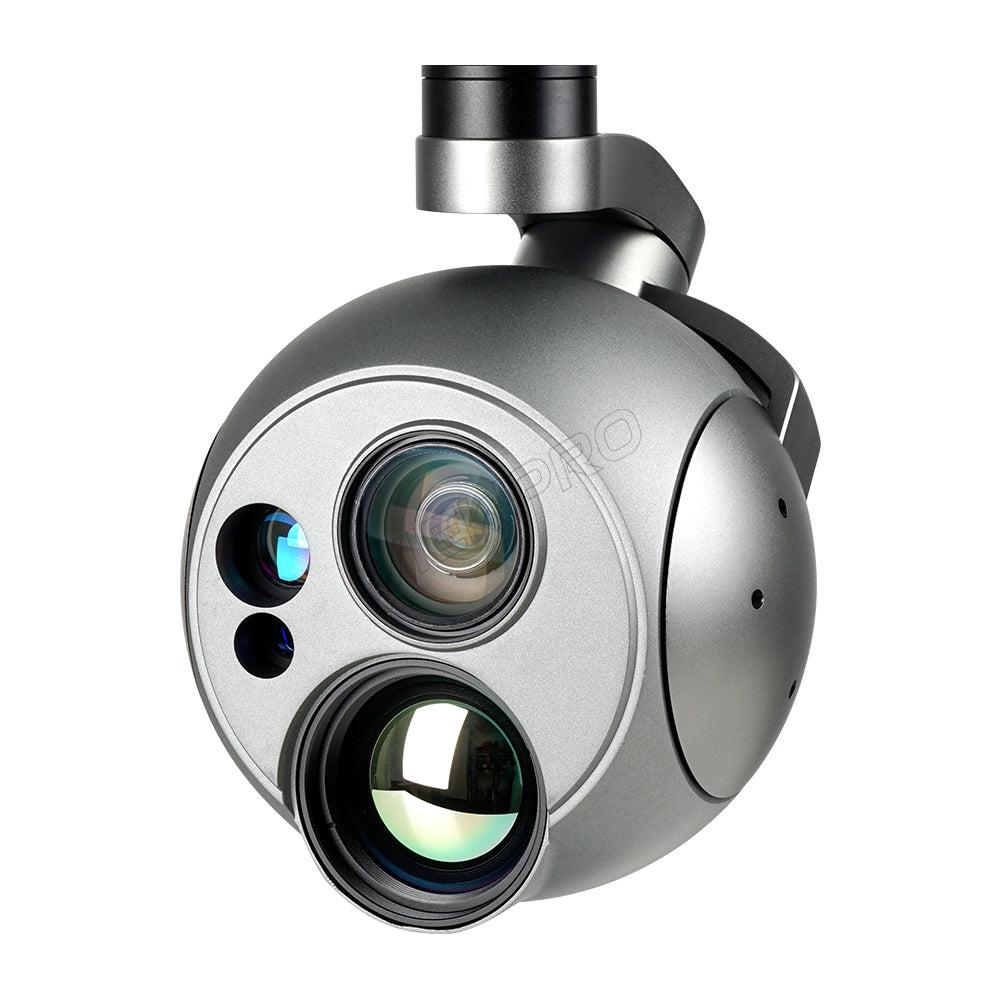

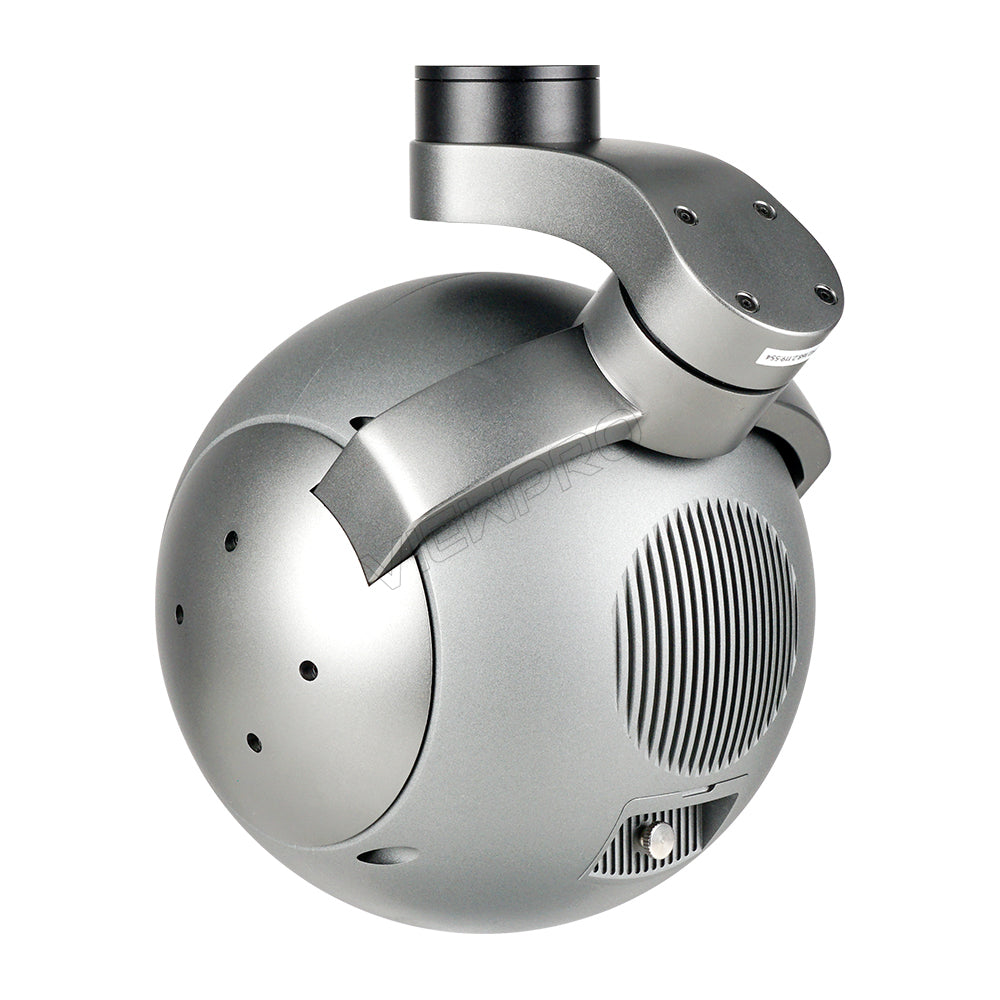

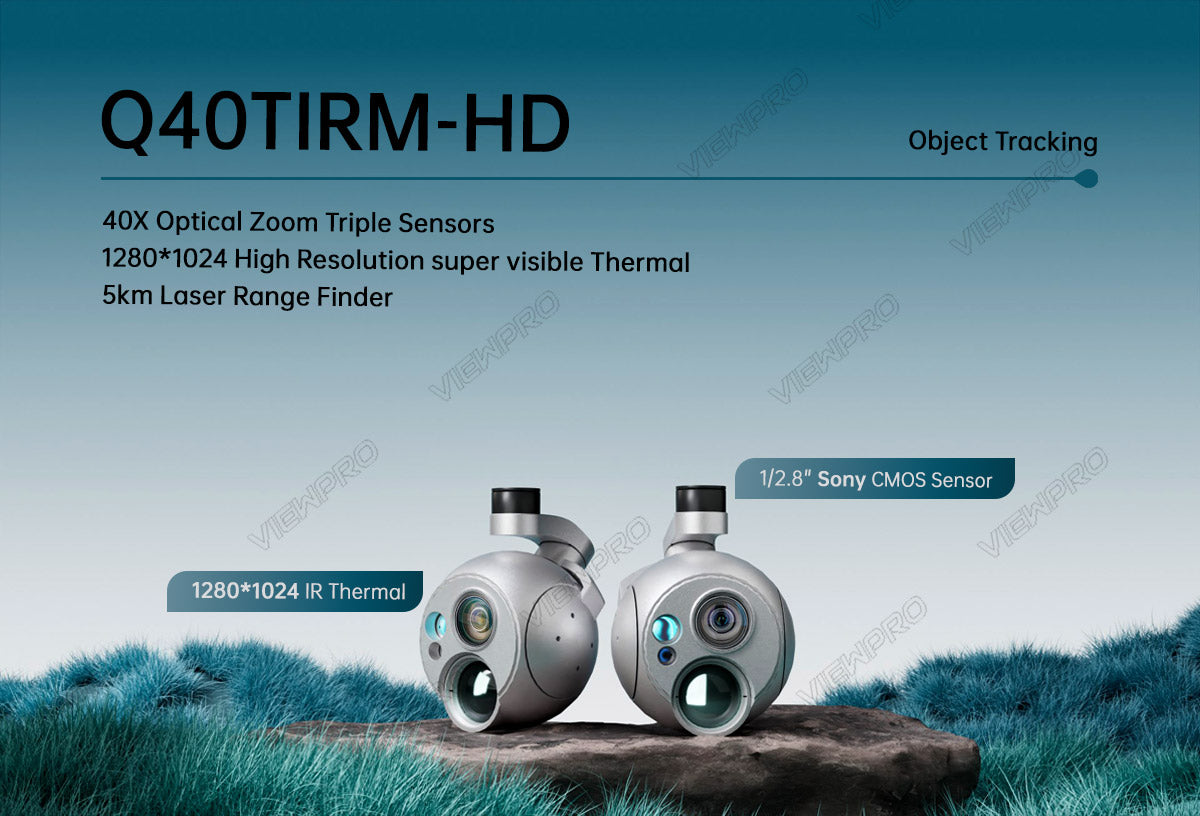

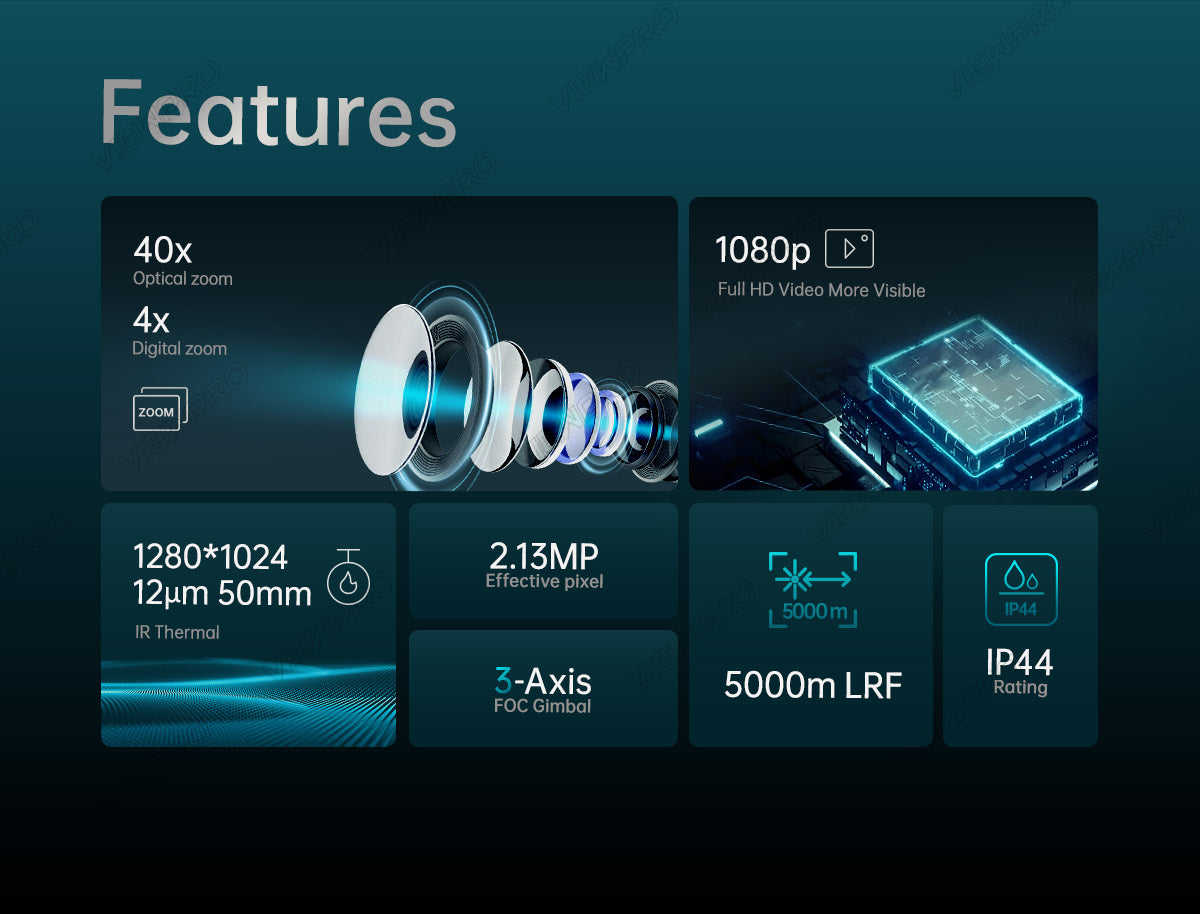

The ViewPro Q40TIRM-HD drone gimbal features object tracking, 40x optical zoom, triple sensors, and high-resolution 1280*1024 thermal imaging. It also includes a 1/2.8" Sony CMOS sensor and a SKM laser range finder.

Features include a 40x optical zoom, full HD video recording, and 4x digital zoom. The camera also captures high-quality images with a 2.13MP effective pixel resolution. Additionally, it features an infrared thermal sensor with an IP44 rating, as well as a 3-axis gimbal for stable shots.

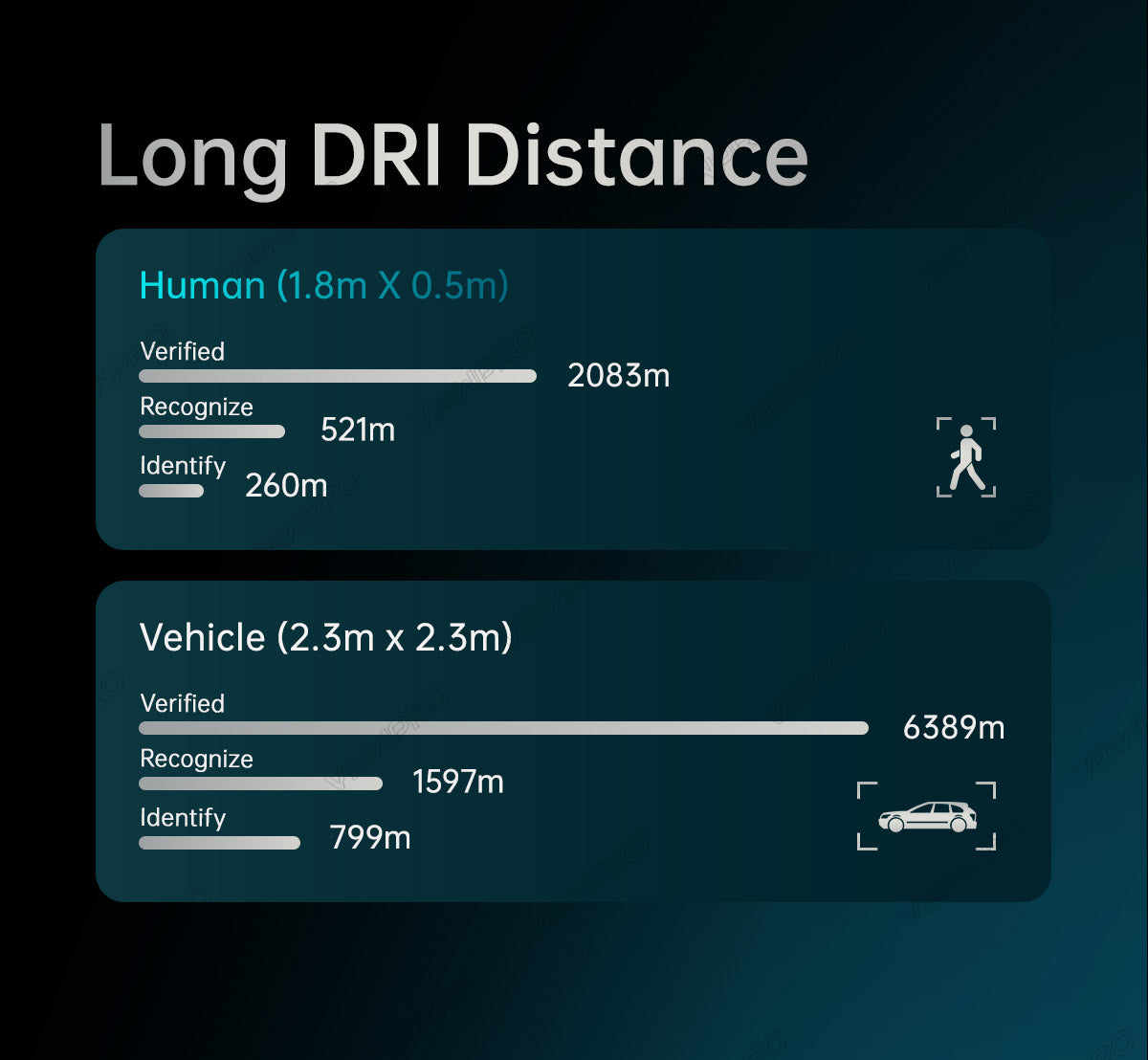

Long DRI distance: 1.8m x 0.5m, verified at 2083m. Recognized at 521m, identified at 260m. Vehicle size: 2.3m x 2.3m, verified at 6389m, recognized at 1597m and identified at 799m.

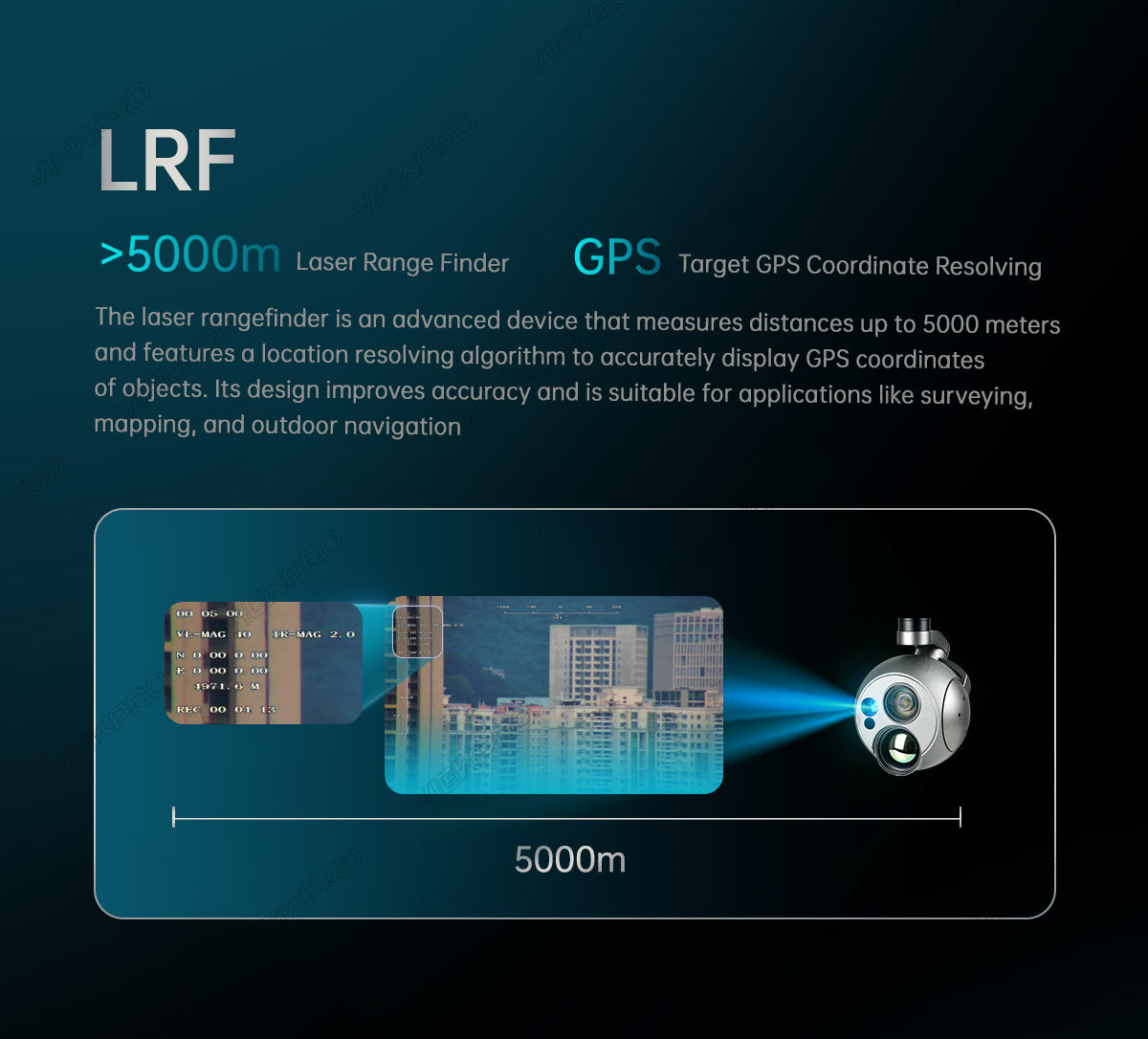

The ViewPro Q40TIRM-HD Drone Gimbal features a LRF laser range finder that measures distances up to 5000 meters, with a location resolving algorithm that accurately displays GPS coordinates of objects. This design improves accuracy and is suitable for applications like surveying, mapping, and outdoor navigation.

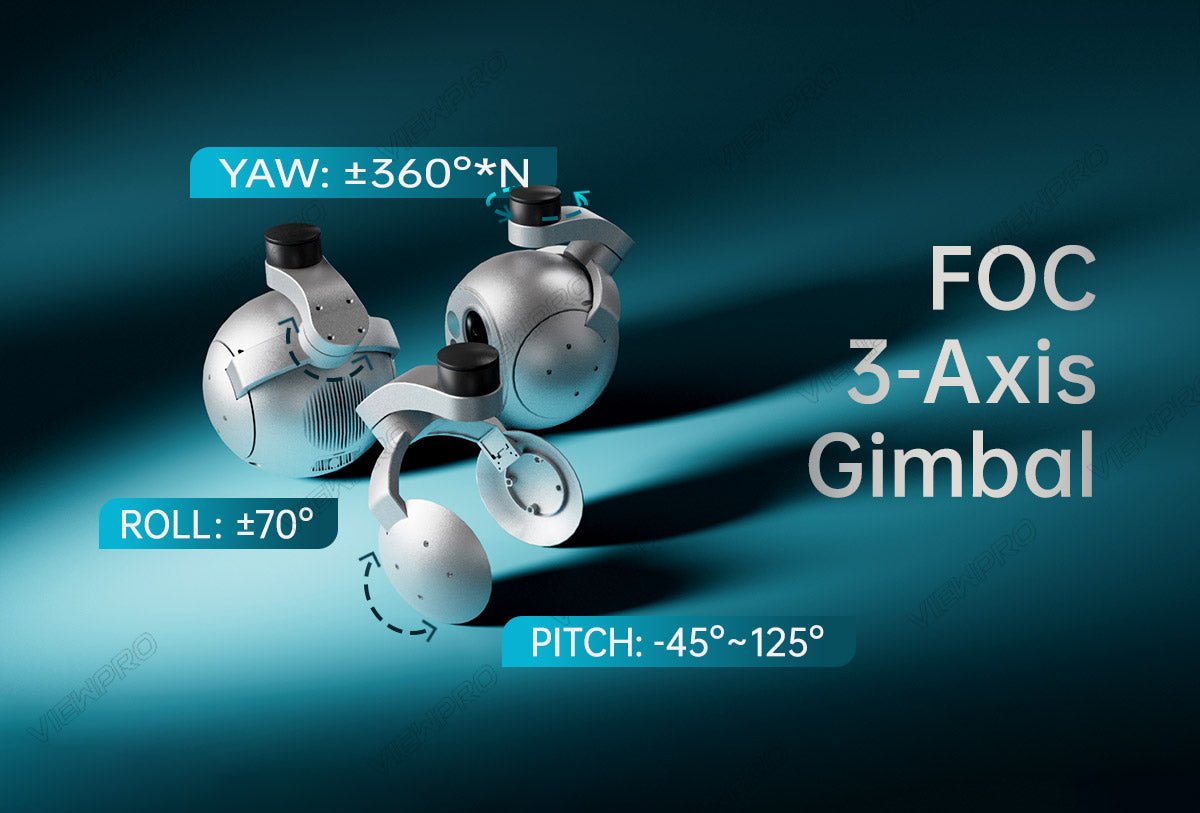

The ViewPro Q40TIRM-HD Drone Gimbal features a yaw range of plus 360 degrees, focusing on three-axis stabilization, with roll and pitch adjustments from plus 70 to minus 450 and up to 1250 respectively.

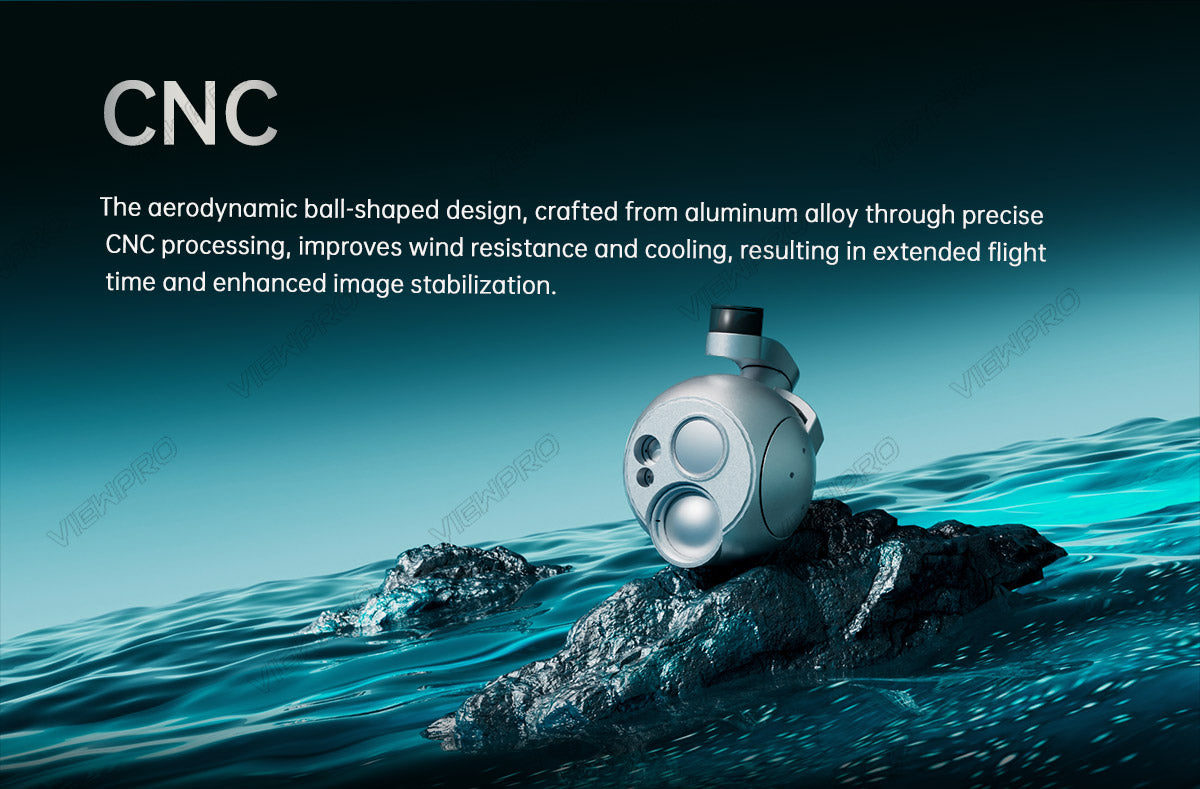

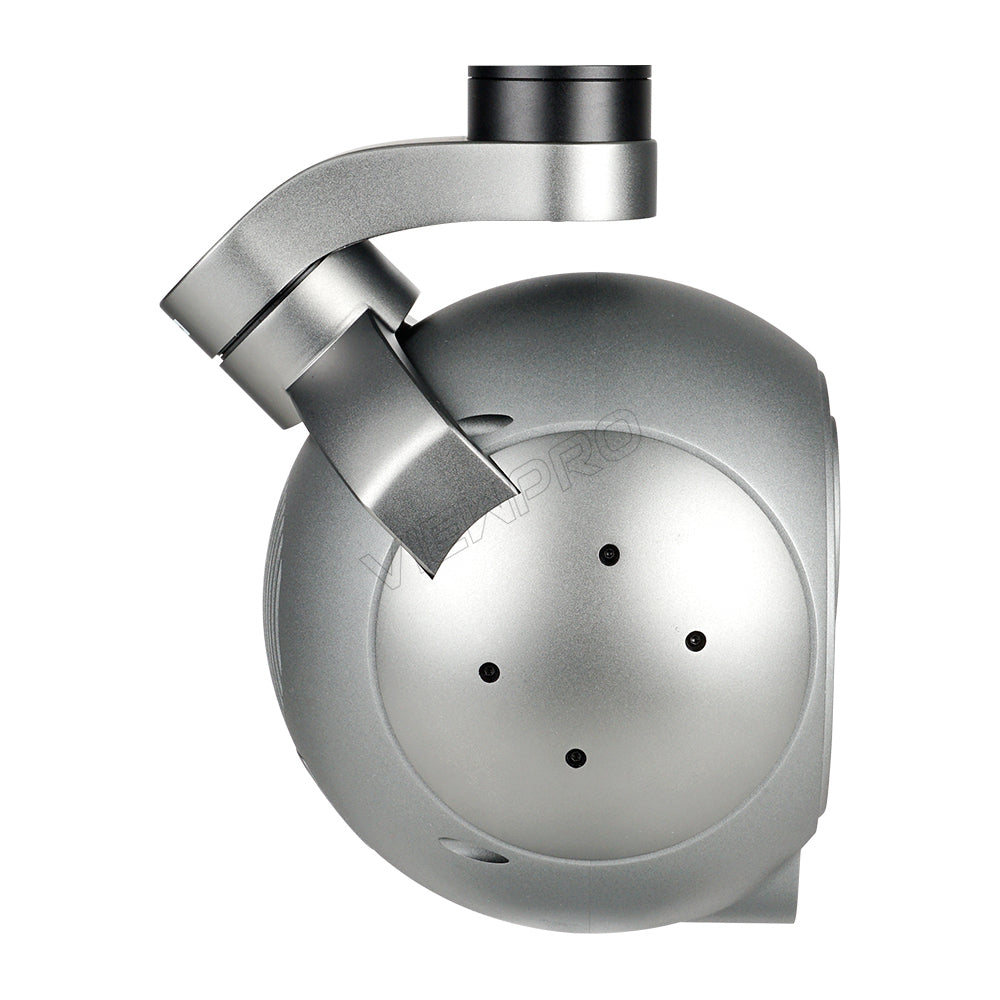

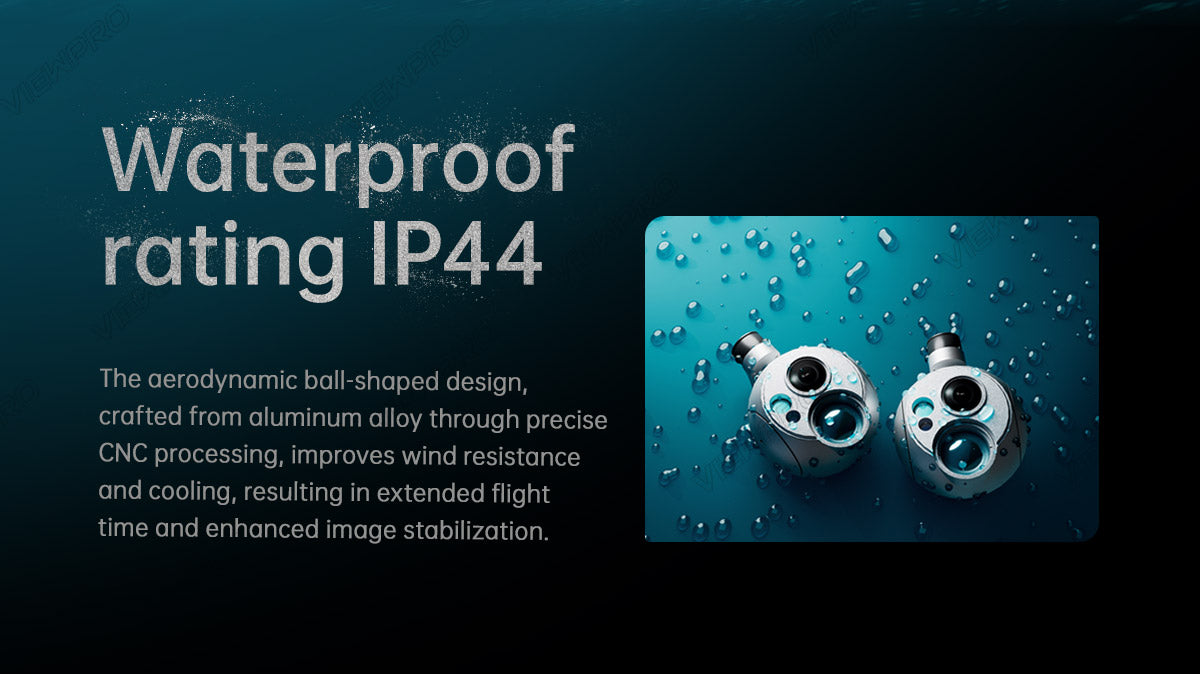

The aerodynamic ball-shaped design, crafted from aluminum alloy through precise CNC processing, improves wind resistance and cooling, resulting in extended flight time and enhanced image stabilization.

The aerodynamic ball-shaped design, made of aluminum with precise CNC processing, improves wind resistance and cooling for extended flight time and enhanced image stabilization.

The ViewPro Q40TIRM-HD Drone Gimbal features multiple video output and control methods. Control angles using PWM, S.Bus or IttL. The gimbal also has a yaw control output with IP (RTP/UDP) support for resolutions up to 720p at 25fps or H.264/H.265. Additionally, it offers SDI output at 1080p at 30fps.

The ViewPro Q40TIRM-HD drone gimbal offers more functions compatible with Mavlink, providing KLV metadata. It supports various platforms such as Viewlink, Vstation, MissionPlanner QGC, and SmartAP, allowing for video stream output via HTTP protocol and MAVLINK. This enables seamless integration with a range of systems.

ViewPro Q40TIRM HD drone gimbal has a 3-axis design with 360° rotation and 180° tilt for stabilized footage, recording up to 4K/30fps for various applications like surveillance and inspection.

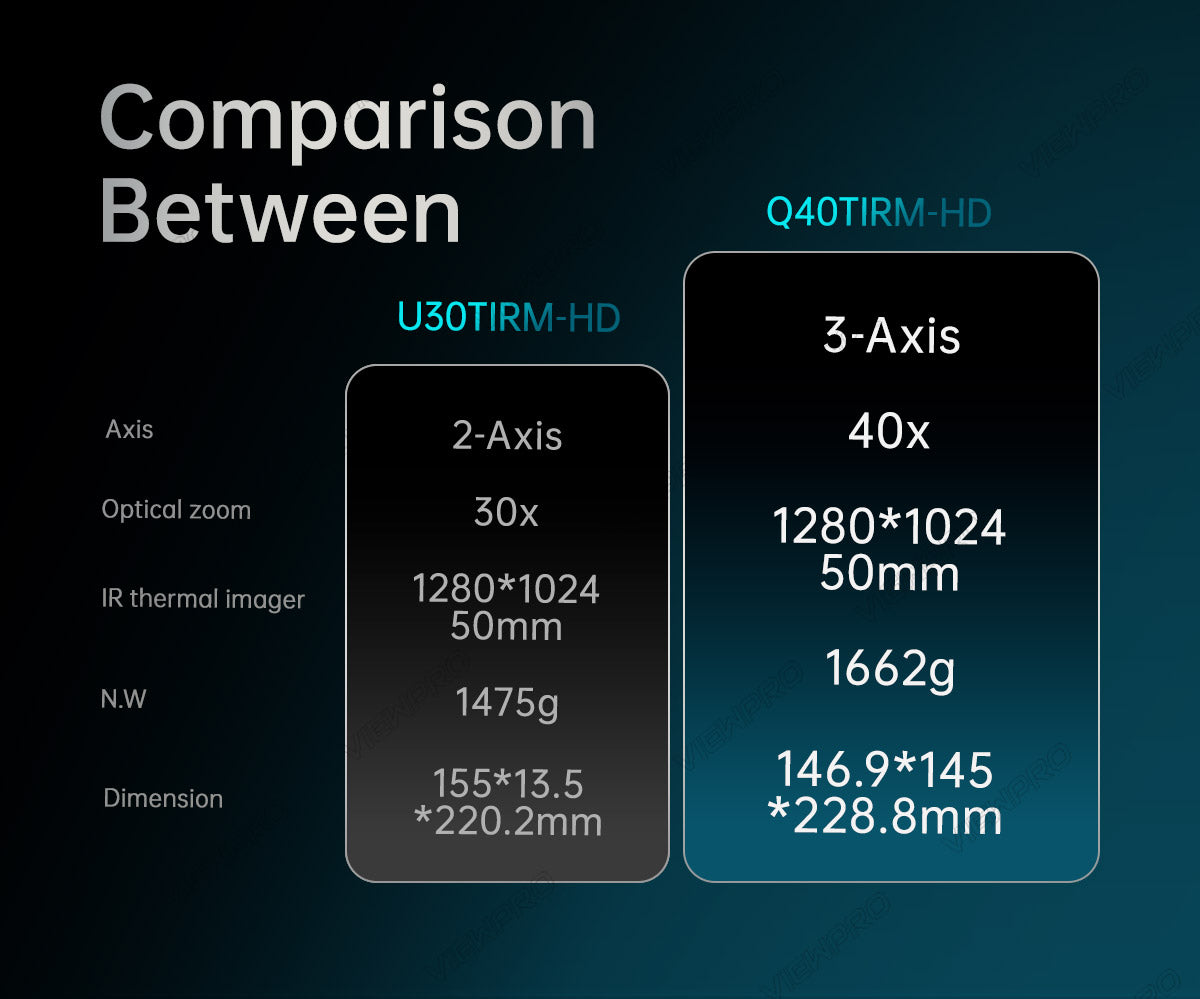

ViewPro Q40TIRM-HD Drone Gimbal: A comparison between Q4OTIRM-HD and U3OTIRM-HD, featuring a 3-axis or 2-axis gimbal with 40x optical zoom. The IR thermal imager provides high-quality images up to 1280*1024 resolution. Other specifications include 50mm lens, 1475g net weight, and dimensions of 155*13.5mm.

The ViewPro Q40TIRM-HD Drone Gimbal features a compact design with dimensions of 78mm (length) x 78mm (width) x 23.5mm (height). The outer case measures 345mm (length) x 225mm (width). The package includes a Pelican Case, an XL Viewport, a 32G micro-SD Card, and various components such as damping balls, aluminum cylinders, M3 screws, and TTL pin cables.
