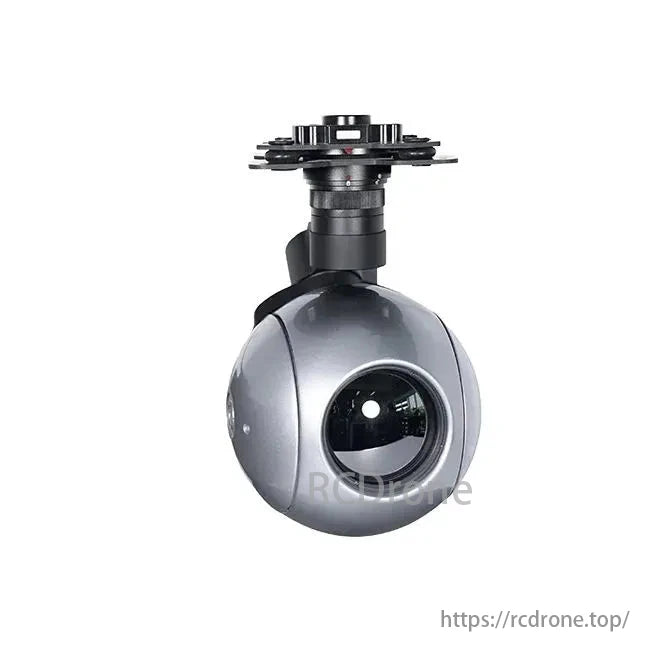

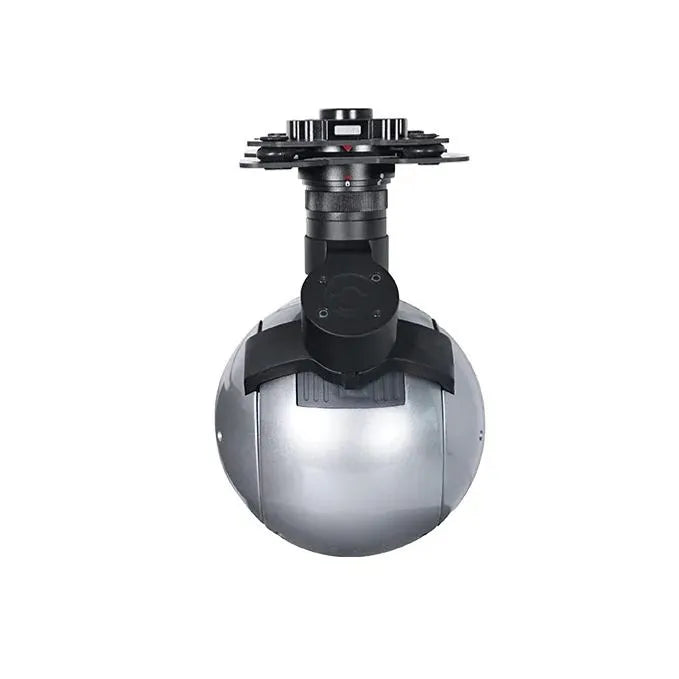

ViewPro QIR50T 50mm Drone Thermal Gimbal Camera
ViewPro QIR50T 50mm Drone Thermal Gimbal Camera
ViewPro
Couldn't load pickup availability
Overview
The ViewPro QIR50T 50mm Drone Thermal Gimbal Camera is an advanced thermal imaging solution designed for UAVs. Featuring a powerful 50mm athermal lens, high-resolution 640×480 thermal detector, and exceptional detection range, it delivers unmatched precision and performance for professional applications. With capabilities like geotagging, image enhancement, and thermal object tracking, the QIR50T excels in search-and-rescue, surveillance, and industrial inspections.
Features
- 50mm Athermal Lens: Delivers a narrow 12.4° horizontal field of view, enabling long-range detection and recognition of targets.
- High-Resolution Thermal Sensor: Equipped with a 640×480 thermal detector, offering precise imaging with 17μm pixel pitch.
- Exceptional Detection Range: Detects humans up to 1471 meters and vehicles up to 4510 meters, ensuring superior situational awareness.
- Advanced Thermal Tracking: Tracks objects with high accuracy at an update rate of 50Hz and minimal delay of 5ms.
- Temperature Measurement (Optional): Displays maximum, minimum, and center temperatures within the field of view, with alerts from 0℃ to 120℃.
- Multiple Video Outputs: Supports micro HDMI, IP, and SDI output options, delivering up to 1080P 60fps for versatile applications.
- Geotagging: Embeds time and GPS coordinates into images for accurate location referencing.
- Local Storage: Records video and images on SD cards up to 512GB.
Specifications
Hardware
- Working Voltage: 16V
- Power Consumption: ≤6W
- Storage: SD card (512GB max, FAT32 format)
- Control Methods: PWM / TTL / S.BUS / TCP (IP output)
Gimbal
- Stabilization Accuracy: ±0.02°
-
Mechanical Range:
- Pitch: -90° to 125°
- Yaw: ±300° / ±360° (IP/SDI output)
- Weight: 875g (Standard), 945g (Viewport version)
Thermal Imager
- Lens Size: 50mm
- Resolution: 640×480
-
Detection Range:
- Human: 1471m (detect), 368m (recognize)
- Vehicle: 4510m (detect), 1127m (recognize)
- NETD: ≤50mK
- Color Palette: White, black, pseudo color
Tracking
- Update Rate: 50Hz
- Tracking Speed: ±48 pixel/frame
- Object Memory: 100 frames (4 seconds)
Applications
- Search & Rescue: Locate individuals in low visibility environments using precise thermal imaging and tracking.
- Surveillance: Monitor perimeters and critical areas with long-range detection and high-definition imaging.
- Industrial Inspection: Conduct heat-based assessments of pipelines, power lines, and infrastructure.
- Disaster Management: Identify hotspots in forest fires and other emergencies with real-time temperature data.
The ViewPro QIR50T offers state-of-the-art technology and rugged performance, making it an essential tool for professionals seeking unparalleled thermal imaging capabilities for their drones.
Professional 3-axis High-precise FOC Program
The thermal imaging camera lens size of QIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. QIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. QIR50T supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control.
The speed of QIR50T gimbal is adjustable, low speed mode is used for large zoom range, the control will be more accurate. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.
Powerful 50mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8 μm ~14 μm ) with 50mm lens thermal image sensor, QIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Multi Output Methods Optional
QIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Control box signal interfaces:
Compatible with Viewport
QIR50T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
ViewPro QIR50T 50mm Drone Thermal Gimbal Camera for Police and Law Enforcement, Firefighting, Inspection, Enforcement, and Rescue Operations
