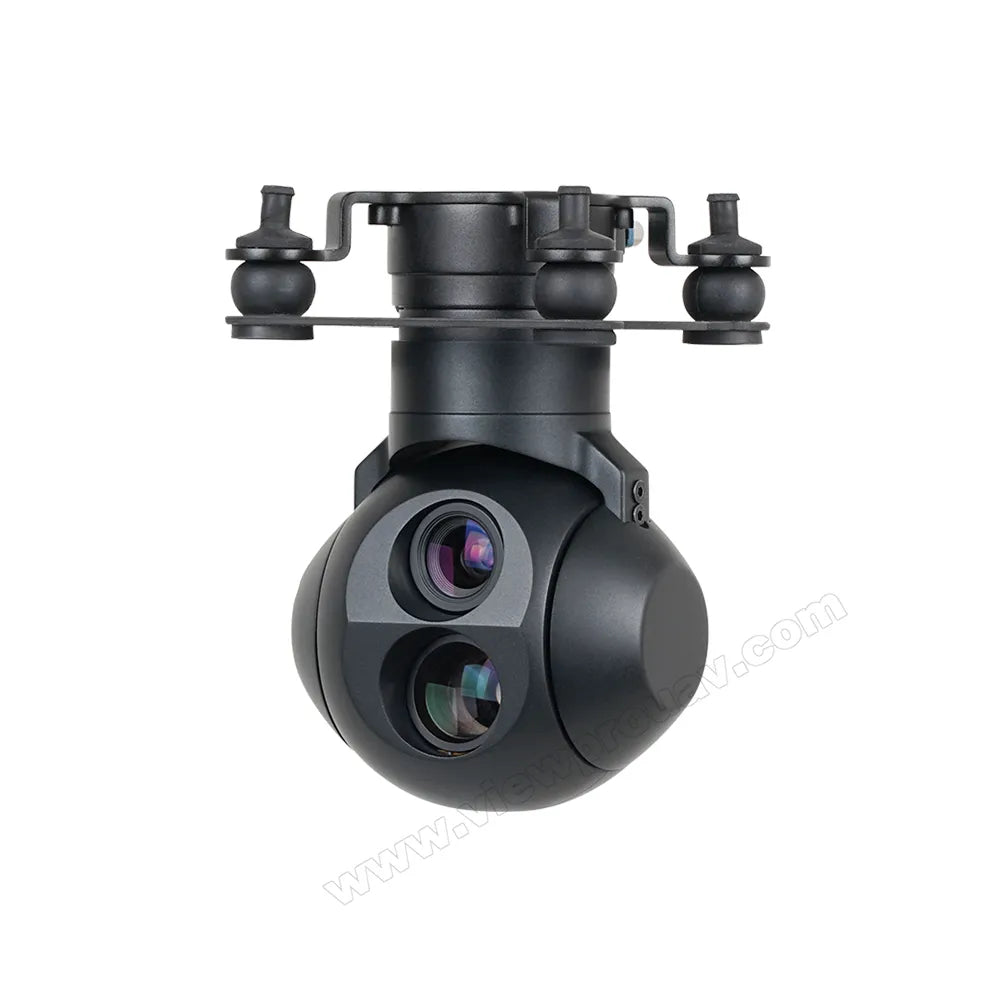

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone

Overview

The ViewPro U7DE Gimbal Camera is a dual-camera system designed for drones, offering a 1080p dual-lens configuration, ±360° continuous pan, and a lightweight build of only 230g. Equipped with advanced stabilization and tracking capabilities, it provides precise imaging with its 7.2mm and 25mm lenses for wide and narrow fields of view. Ideal for applications like surveillance, inspections, and aerial photography, the U7DE ensures sharp visuals and reliable performance in extreme environments.

Key Features

1. Dual-Lens Camera System

• Wide-Angle Camera (Lens 1):

  • Resolution: 1920x1080 @ 60fps
  • Field of View: 42.28° x 24.54°
  • Lens: 7.2mm, ideal for broad area coverage.

• Telephoto Camera (Lens 2):

  • Resolution: 1920x1080 @ 60fps
  • Field of View: 12.71° x 7.17°
  • Lens: 25mm, perfect for detailed zoomed-in inspections.

2. Precise Stabilization & Tracking

• Three-Axis Gimbal Stabilization:
  Provides ±0.02° vibration control, ensuring smooth and stable footage during operation.

• Advanced Object Tracking:

  • 60Hz deviation pixel update rate for real-time tracking.
  • Can track objects as small as 16x16 pixels or as large as 128x128 pixels with a memory time of up to 100 frames.

3. Lightweight and Compact Design

• Weighing only 230g, the U7DE is one of the most compact gimbal cameras in its class, minimizing the payload on your drone.
• Dimensions: 67.6 x 61.6 x 99.3mm, making it ideal for drones with size or weight limitations.

4. Versatile Connectivity

• Supports TTL, S.BUS, and TCP control methods for seamless integration.
• Outputs via IP RTSP at 1080p 30fps for easy video transmission.

5. Rugged and Reliable

• Operates in extreme temperatures from -20°C to +60°C, ensuring dependable performance in harsh environments.
• Built to last with high-quality materials and CNC processing.

Specifications

Hardware Parameters

Gimbal Specifications

Dual EO Cameras

Packaging

• Net Weight: 230g (with damping system)
• Dimensions: 67.6 x 61.6 x 99.3mm
• Package Includes:
  • 1x Gimbal Camera Device
  • Screws
  • USB-to-TTL Cable
  • High-Quality Plastic Box with Foam Cushion
• Gross Weight: 230g
• Package Dimensions: 167 x 158 x 120mm

Applications

1. Industrial Inspections

Effortlessly monitor infrastructure, pipelines, and equipment with dual-lens capabilities for wide and zoomed views.

2. Security and Surveillance

Track multiple objects with high accuracy and stability in real-time, ideal for public safety and perimeter monitoring.

3. Aerial Photography

Capture stunning high-definition footage with smooth gimbal stabilization and versatile control options.

The ViewPro U7DE Gimbal Camera combines lightweight design, advanced dual-lens functionality, and precise stabilization to deliver professional-grade performance across various drone applications. Its compact size and powerful capabilities make it the perfect choice for professionals in need of reliable aerial imaging.

ViewPro U7DE dual EO sensors gimbal camera designed for UAV drone surveillance, featuring micro prime lens and object tracking capabilities for high-quality infrared and optical imaging applications.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone, featuring dual EO/IR sensors with a 7.2mm lens and 640x512 resolution. It also has a thermal camera with 12um pixel size, capable of recording at 1920x1080 @ 60fps. The gimbal camera has a prime lens with a focal length of 25mm or 13mm.

The ViewPro U7DE dual EO sensors gimbal camera for UAV drone features 640x512 and 1920x1080 resolutions, with a tracking thermal imager and effective pixels. It also has digital zoom, 4x optical zoom, and an angle of view. Weighing only 285/540g, it is lightweight and easy to use.

Compact and lightweight design makes it suitable for small UAVs, offering a compact structure and small volume.

The ViewPro U7DE dual EO sensors gimbal camera for UAV drone features a CNC customized brushless motor with a precision-processed aluminum alloy housing, offering fast speed, excellent stability, and advantages such as better metal texture, high protection strength, anti-interference, and improved heat dissipation.

Dual EO Sensors Gimbal Camera for UAV Drone, featuring a 7.2mm prime lens with 1920x1080 resolution at 60FPS, and a 25mm prime lens with 1920x1080 resolution at 60FPS, capturing 42.289x24.540 and 12.719x7.1 footage respectively.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone features dual electro-optical sensors, a 13mm lens with 640x512 resolution and 12um pixel size. It also includes thermal imaging capabilities with 640x512 resolution and 12um pixel size. The camera has a prime lens and supports various focal lengths.

The ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone features a Thermal Camera with high-precision uncooled long wave thermal image sensor, capturing thermal images and visible images simultaneously in PIP format. The camera includes an IR thermal image sensor with 640x512 resolution, 12um thermal pixel pitch, and a wide angle of view.

More Functions Compatible with Mavlink, providing KLV metadata. Supports ViewLink, VStation, and MissionPlanner. Additionally, it offers QGroundControl (QGC) and SmartAP video stream output at 1 megapixel.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone features a control method via IP (RTSP, RTMP, UDP) UART/S.BUS and TCP/6T. Supports 4-axis stabilization with a powerful video output.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone features high-quality dual sensors and a compact gimbal design, ideal for aerial photography and videography applications.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV/Drone, standard dimension: 135.6mm x 95.9mm x 86.7mm.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drone: Compact dimension mm 99 x 67.6 x 61.6, ideal for small drones.

ViewPro U7DE Dual EO Sensors Gimbal Camera for UAV Drones features dual electro-optical sensors, gimbal stabilization, and IP67 weather resistance. It suitable for aerial photography, surveying, and mapping applications.

ViewPro U7DE dual EO sensors gimbal camera for UAV drone, includes standard version, Pelican case, micro-SD card, damping ball, M2 screws, and other accessories.
