ViewPro VO-120S 3D Oblique Camera - Mapping and Surveying with Geo Tagging for UAV Drone

ViewPro VO-120S 3D Oblique Camera Overview

The ViewPro VO-120S 3D Oblique Camera is a next-generation flagship aerial mapping and surveying camera designed for UAV drones. Featuring a 120MP total resolution across five APS-C CMOS sensors, it delivers stunning clarity and detail for 3D modeling and high-precision mapping. Its ultra-low dispersion aspheric lenses, lightweight design (650g), and 640GB onboard storage make it a compact yet powerful tool for professional surveyors. With advanced geo-tagging capabilities, the VO-120S ensures seamless data acquisition and post-processing for precise and efficient workflows.

ViewPro VO-120S 3D Oblique Camera Key Features

1. High-Performance 120MP Camera System

• Five-Lens Configuration:
  • 1 Orthographic Lens: 25.2mm focal length for vertical imaging.
  • 4 Oblique Lenses: 35.7mm focal length with a 45° angle, perfect for capturing side views in urban and complex terrains.
• APS-C CMOS Sensors (23.5x15.6mm):
  • Provides a resolution of 6000x4000 per lens, ensuring true-to-life color restoration and data accuracy.

2. Superior Image Quality

• Ultra-Low Dispersion Aspheric Lenses:
  Reduce dispersion, compensate for aberration, and improve sharpness to capture high-quality aerial photos.
• Advanced Internal Mirror Shutter:
  • Reduces camera module size and weight, enabling fast and reliable shutter speeds from 1/30 to 1/8000 seconds.
  • Ensures high-quality imagery with a minimum exposure time of 0.8s.

3. Advanced Geo-Tagging and Data Storage

• Geo-Tagging Support:
  Captures precise location and altitude data for every image, enhancing post-processing for 3D modeling and mapping accuracy.
• 640GB Onboard Storage:
  Supports up to five SD cards (128GB each) for long-duration missions, ensuring uninterrupted data recording.

4. Compact and Lightweight Design

• Lightweight at Only 650g:
  Minimizes payload on UAVs, improving flight efficiency and operational flexibility.
• Compact Dimensions:
  • Measures 129x129x85mm, ideal for easy integration into various drone platforms.

5. Flexible Parameter Adjustment

• Real-Time Adjustments:
  Operators can adjust camera settings using USB or a dedicated control interface to optimize performance based on weather conditions and project requirements.

ViewPro VO-120S 3D Oblique Camera Specifications

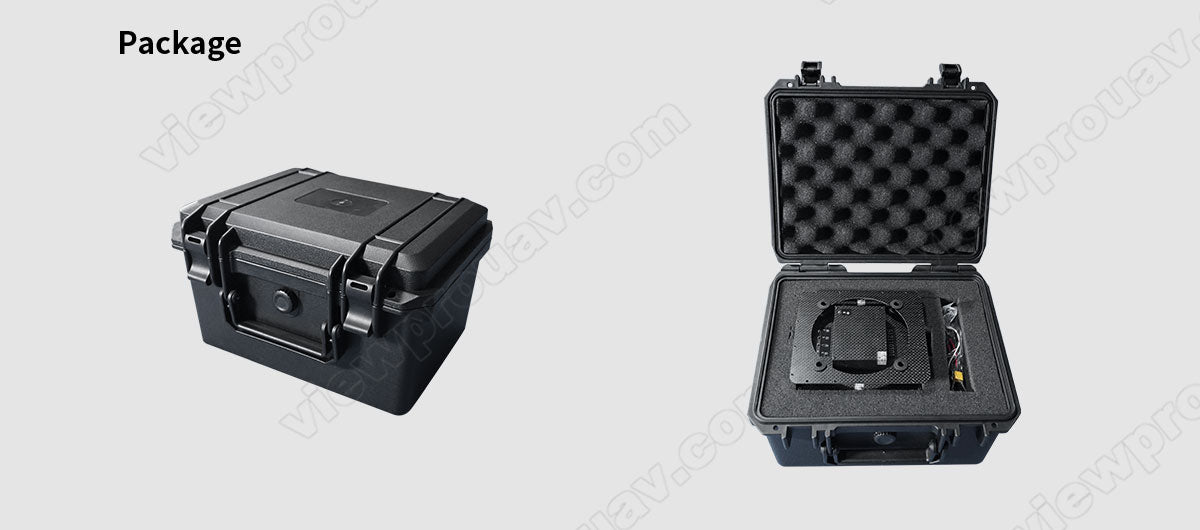

Packaging

• Net Weight: 650g
• Package Dimensions: 30x25x20cm

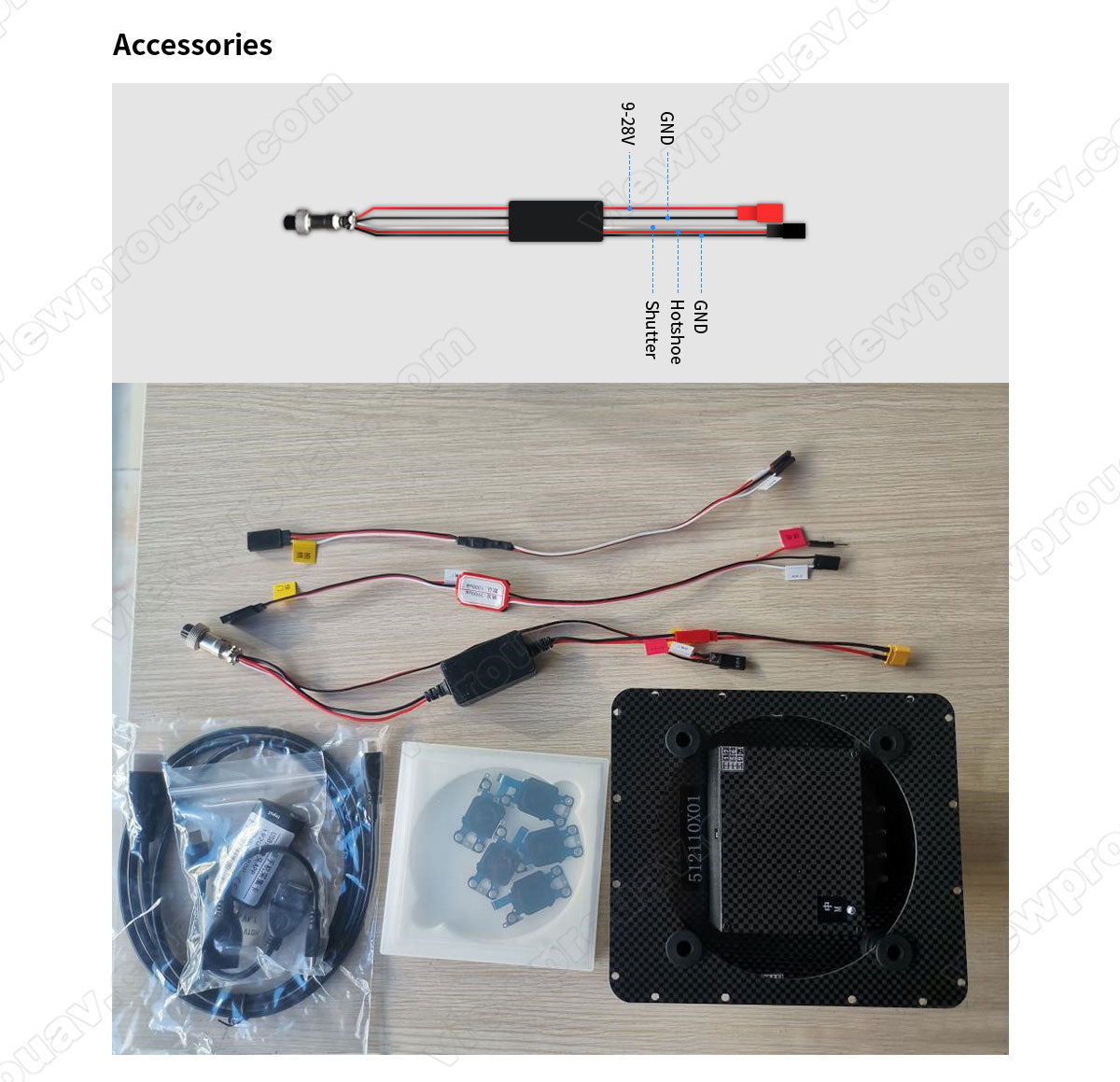

• Included Accessories:
  • 1x VO-120S Camera
  • USB cable
  • Mounting screws
  • High-quality foam-cushioned box for safe transport

Applications

1. High-Precision Mapping

• Capture detailed imagery for 2D maps and 3D models, suitable for urban planning, land surveys, and infrastructure monitoring.

2. Surveying and Inspections

• Use orthographic and oblique lenses for comprehensive area coverage and detailed inspections of buildings, bridges, and roads.

3. 3D Modeling and Reconstruction

• Achieve accurate and high-resolution 3D models for architectural design, digital twins, and industrial use.

The ViewPro VO-120S 3D Oblique Camera sets a new standard in UAV mapping and surveying with its unparalleled imaging capabilities, advanced features, and compact design. It’s the ideal choice for professionals who demand high-quality, efficient, and precise aerial imaging solutions.

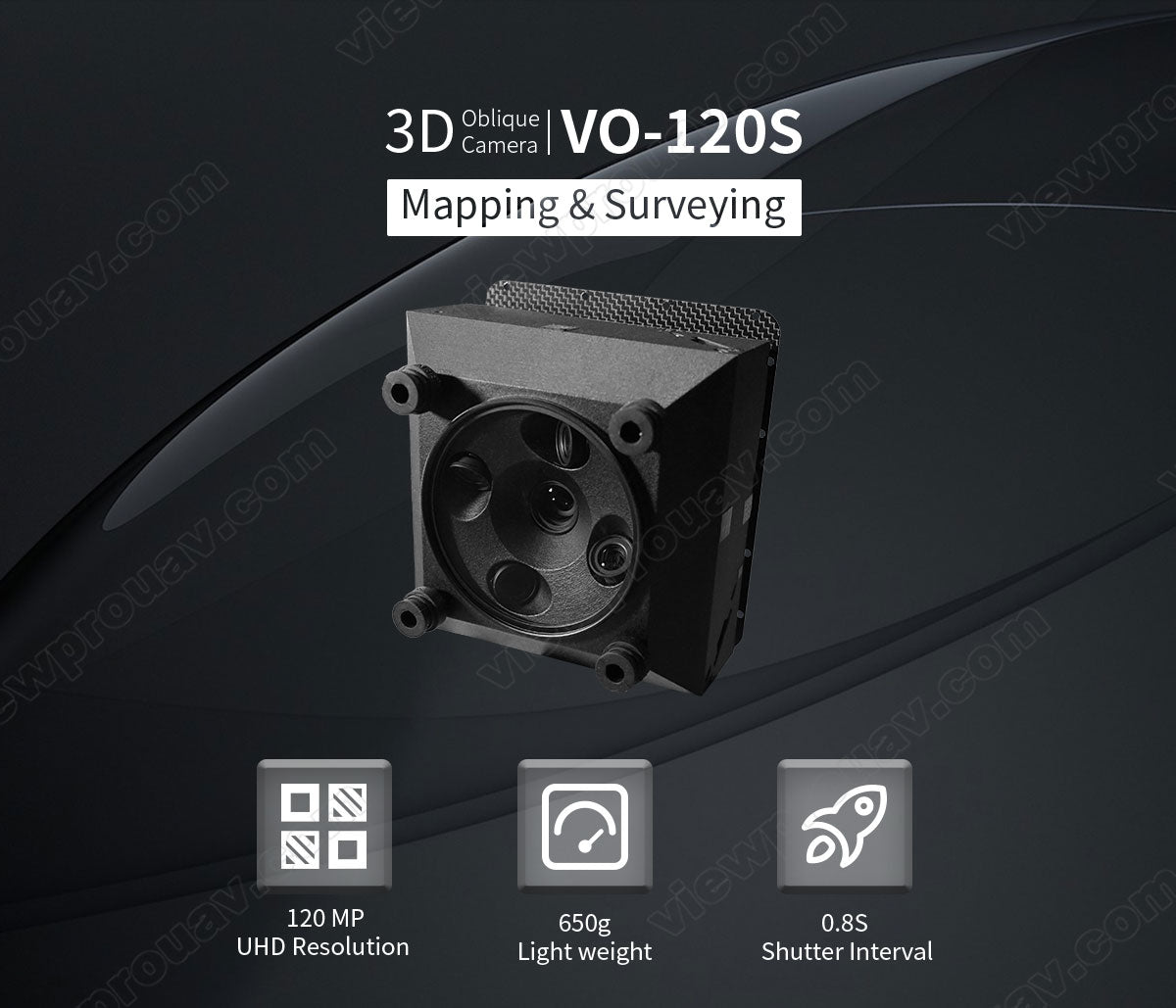

ViewPro VO-120S 3D Oblique Camera: Mapping & Surveying, 120MP, 650g, 0.85UHD resolution, lightweight, shutter interval control.

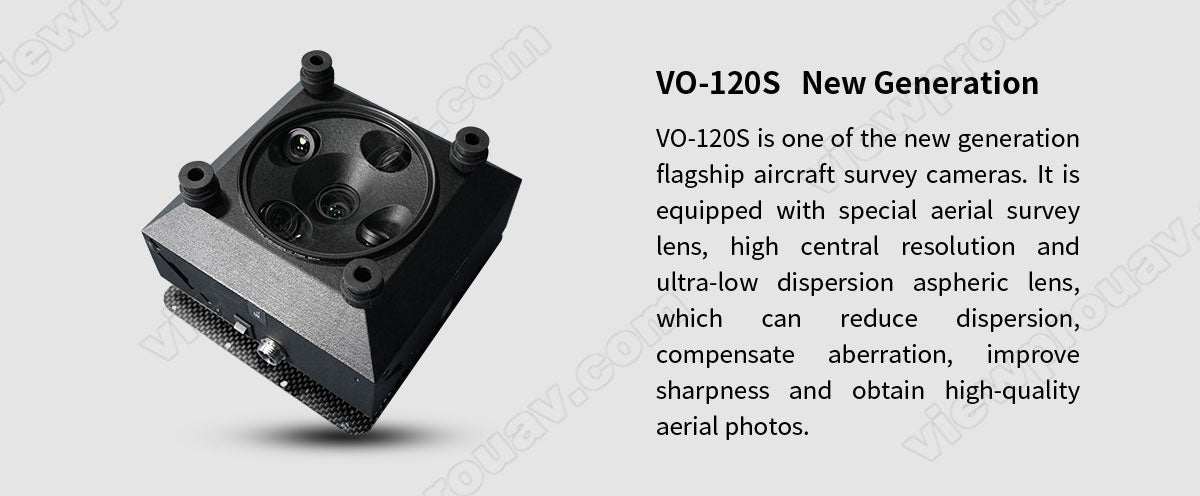

VO-120S New Generation VO-12OS is one of the new generation flagship aircraft survey cameras. Equipped with a special aerial survey lens, high central resolution, and ultra-low dispersion aspheric lens, it reduces dispersion, compensates aberration, improves sharpness, and obtains high-quality aerial photos.

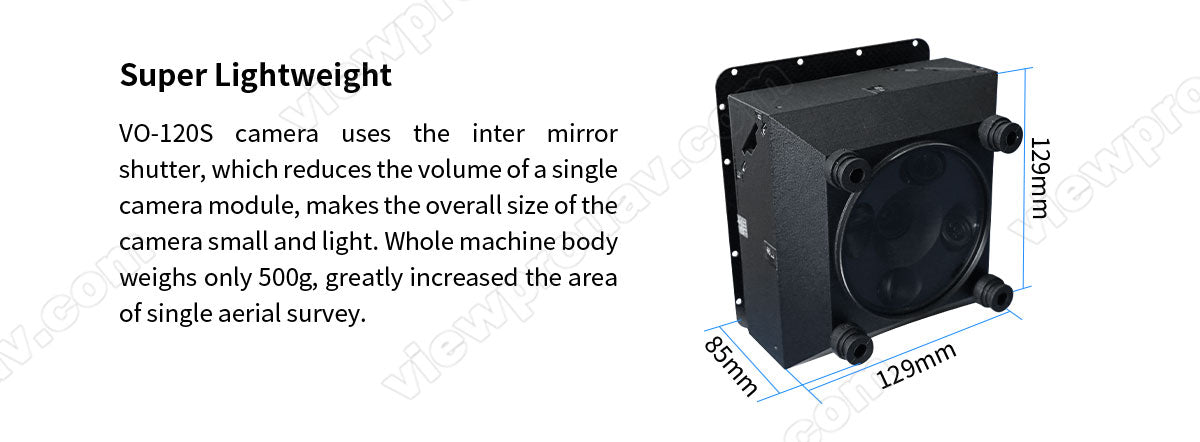

The Super Lightweight VO-120S camera employs an inter-mirror shutter design, reducing the volume of a single camera module and making it compact. Weighing only 500g, this lightweight camera allows for increased aerial survey areas.

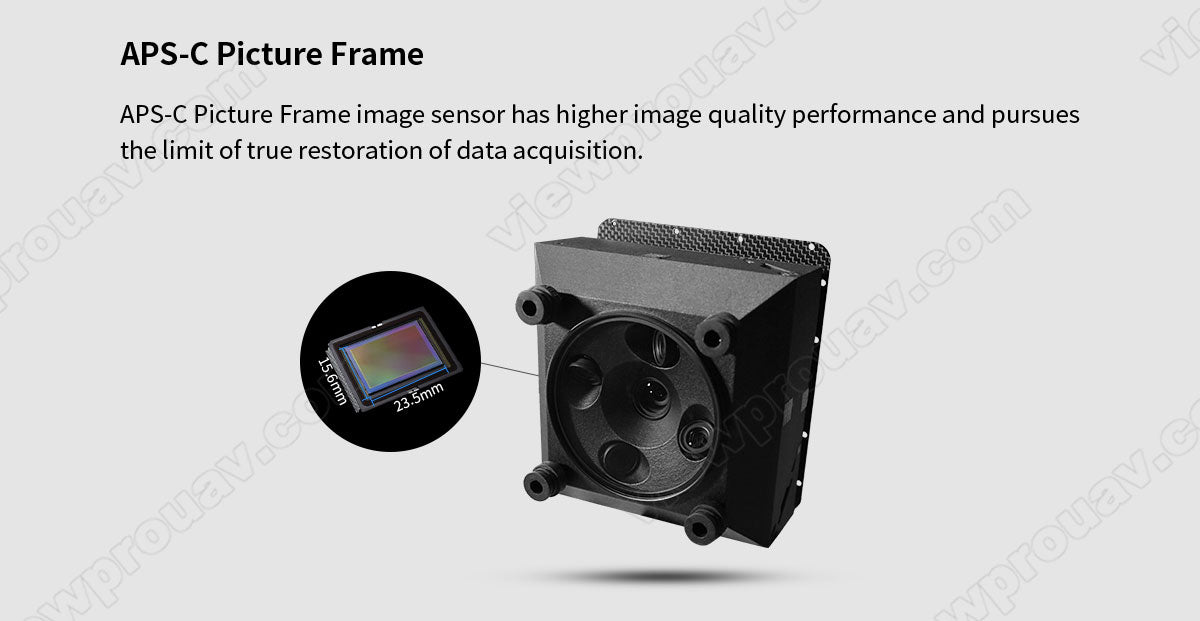

The ViewPro VO-120S 3D Oblique Camera features an APS-C picture frame image sensor, providing high-quality performance and pursuing optimal data restoration.

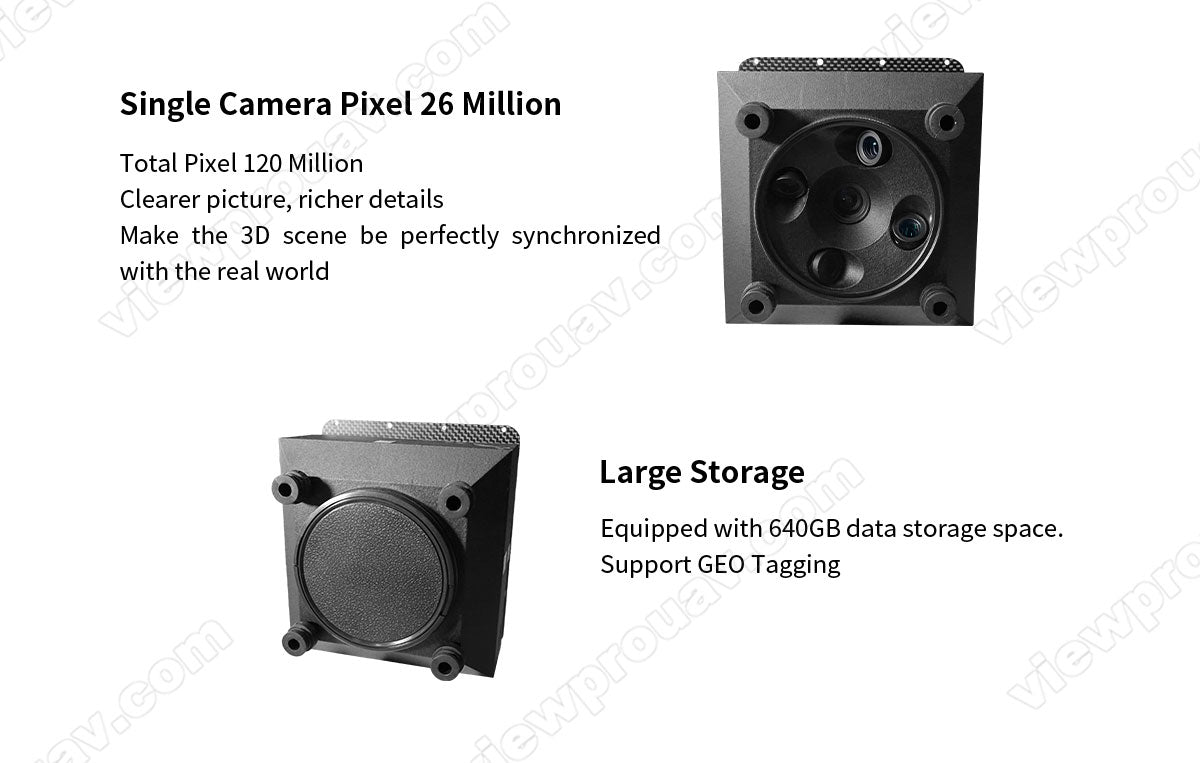

The ViewPro VO-120S 3D Oblique Camera features a single camera with 26 million pixels, and a total of 120 million pixels for clearer pictures and richer details. It can perfectly synchronize 3D scenes with the real world. The camera is equipped with 640GB data storage space and supports GEO tagging.

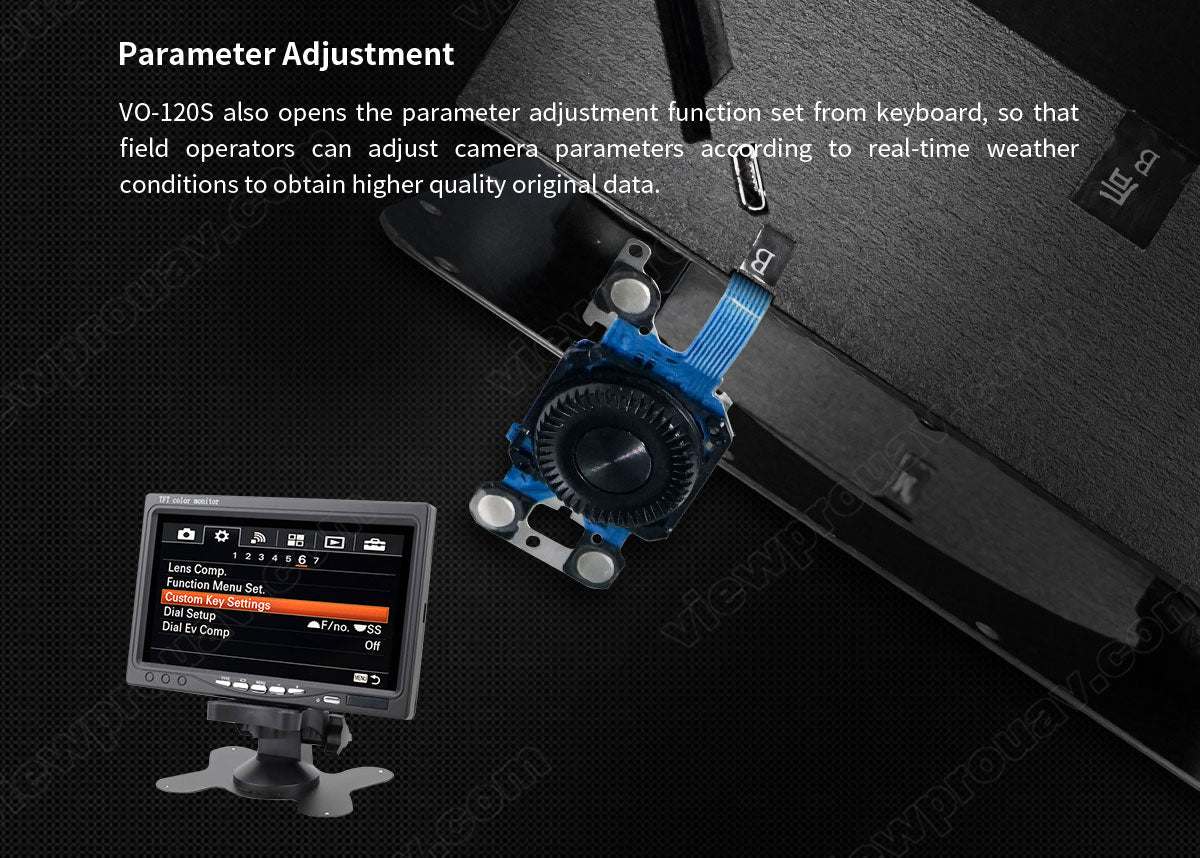

The ViewPro VO-120S 3D Oblique Camera features a parameter adjustment function that can be accessed from the keyboard. This allows field operators to adjust camera settings according to real-time weather and conditions, enabling them to capture higher quality original data. The camera menu system includes options for setting lens functions, such as aperture, shutter speed, and ISO.

The VO-120S 3D Oblique Camera is a great choice for high-precision mapping and surveying. With ultra-high resolution photos, you can output high-end 3D modeling pictures to satisfy professional clients.

ViewPro VO-120S 3D Oblique Camera. High-resolution imaging and accurate depth perception enable detailed surface analysis. Compact design and rugged construction make it suitable for various applications. Supports multiple interfaces and has a long-lasting battery life.

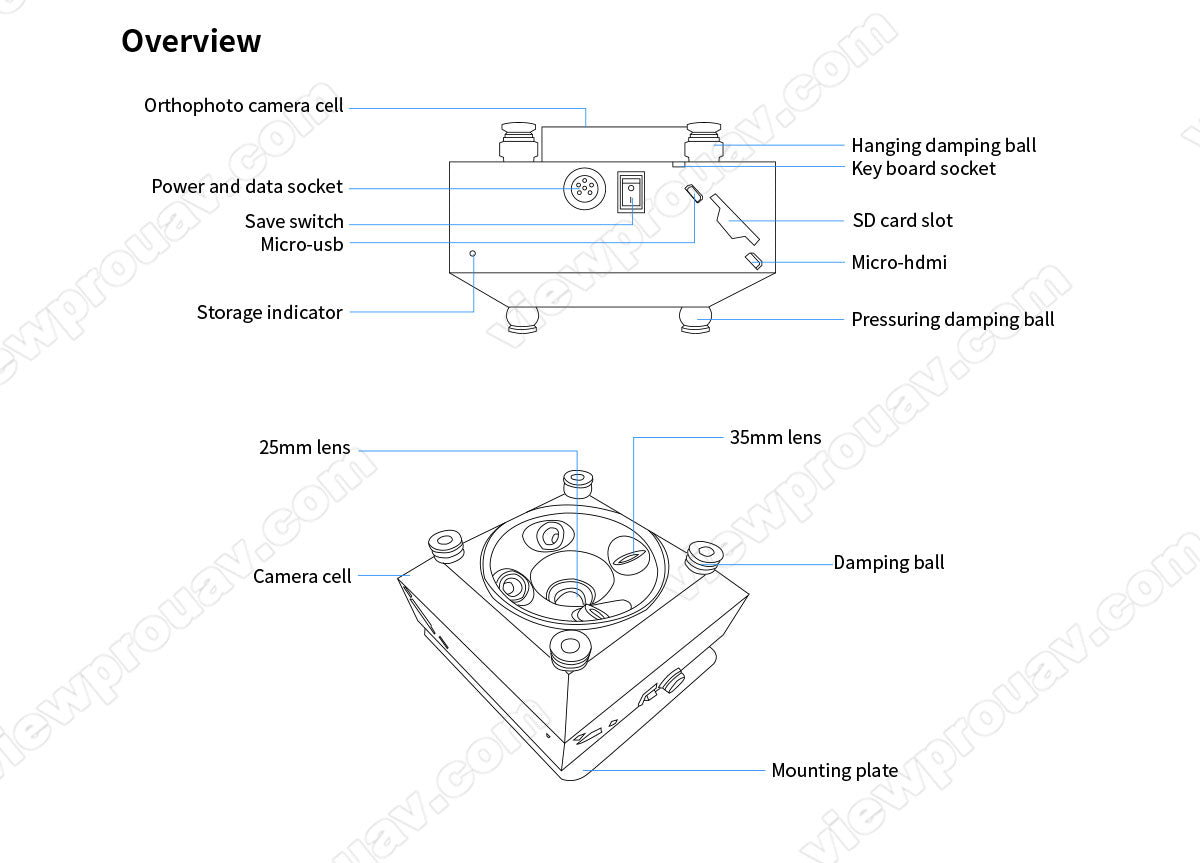

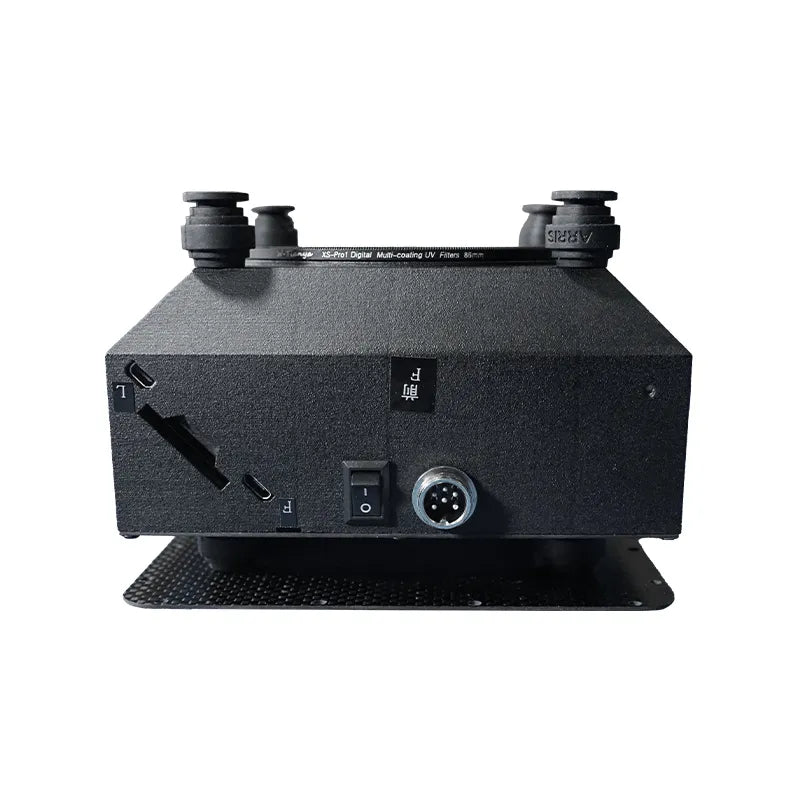

The ViewPro VO-120S 3D Oblique Camera features a overview orthophoto camera cell with hanging damping ball and board socket. It also includes power and data sockets, a save switch, an SD card slot, and a micro-USB and micro-HDMI port. A storage indicator and pressing damping ball are also included. The camera is equipped with 35mm and 25mm lenses, as well as a camera cell mounting plate and Vaeom key.

ViewPro VO-120S 3D Oblique Camera for capturing detailed images of small parts and products in various angles
