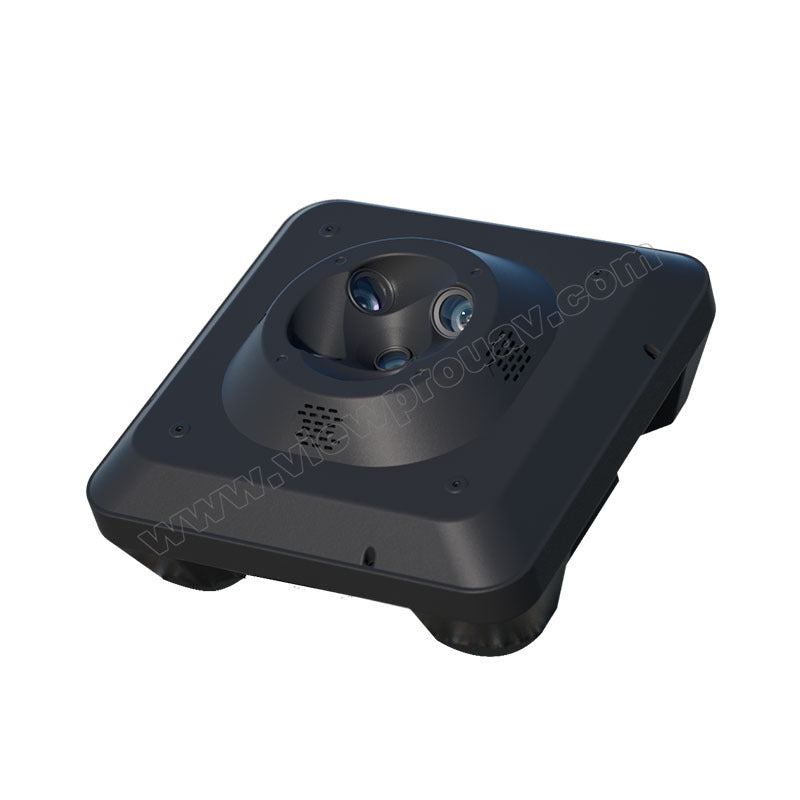

ViewPro VO305 3D Oblique Camera Overview
The ViewPro VO305 3D Oblique Camera is a state-of-the-art aerial photography system specifically designed for UAVs. Featuring five advanced 1” Full Frame Exmor R CMOS sensors with a total resolution of 305MP (61MP per lens), the VO305 captures unparalleled detail and clarity. It includes an integrated 1280GB high-speed data storage module, supporting read speeds of 300MB/s, ensuring smooth operations even for the most demanding tasks. Compatible with DJI Matrice and open-source UAVs, its intelligent heat control and active cooling system make it highly reliable in diverse environmental conditions. With precise 3D photogrammetry capabilities and POS support for all five lenses, this camera is the ultimate tool for aerial mapping, geological exploration, and 3D modeling.
ViewPro VO305 3D Oblique Camera Key Features
- 305MP Ultra High Definition: Five 61MP Full Frame Exmor R CMOS sensors ensure unmatched clarity and image quality.
- 1280GB High-Speed Storage: Capable of storing extensive data with a rapid read speed of 300MB/s for uninterrupted workflows.
- Scientific Lens Design: Equipped with a 40mm orthographic lens and four 56mm oblique lenses at a 45° angle for optimal aerial coverage and reduced distortion.
- Intelligent Heat Management: Features advanced cooling and active heat dissipation for efficient operation in challenging conditions.
- Seamless UAV Compatibility: Compatible with DJI Matrice drones and open-source platforms like Pixhawk and PX4.
- Wide Applications: Ideal for SFM photogrammetry, geological exploration, 3D modeling, city planning, and land resource registration.
ViewPro VO305 3D Oblique Camera Specifications
| Model No. | VO-305 |
|---|---|
| Total Pixel | 61MP * 5 = 305MP |
| Resolution | 9504 x 6336 |
| Sensor | Full Frame Exmor R CMOS (35.7 x 23.8 mm) |
| Lens Sizes | 40mm (Orthographic) + 56mm * 4 (Oblique) |
| Oblique Lens Angle | 45° |
| Data Storage | 1280GB (256GB x 5) |
| Interfaces | J30J-21 / Viewport |
| Power Supply | 10-50V, 60W |
| Heat Radiation | Active Cooling System |
| Dimensions | 200 x 200 x 112 mm |
| Weight | 1300 g |
| Operating Temp. | -10°C to 50°C |
Applications
- Aerial Mapping & Surveying: Provides ultra-detailed data for high-precision surveying projects.
- Geological Exploration: Captures critical terrain details for mining and natural resource management.
- City Planning: Creates detailed 3D models for infrastructure development and urban planning.
- Earthwork Calculations: Outputs dense point clouds for volume and area calculations.
- Information Management: Seamlessly integrates with mapping software for efficient data management.
Package Contents
- VO305 3D Oblique Camera x 1
- J30J-21 Interface Cable x 1
- High-Speed Data Storage Module x 1
- Foam-Protected Case x 1
The VO305 sets a new standard for aerial mapping and surveying, delivering professional-grade results for both commercial and industrial applications. Its cutting-edge design, superior imaging performance, and broad compatibility make it the perfect solution for your UAV missions.
ViewPro VO305 3D Oblique Camera Details

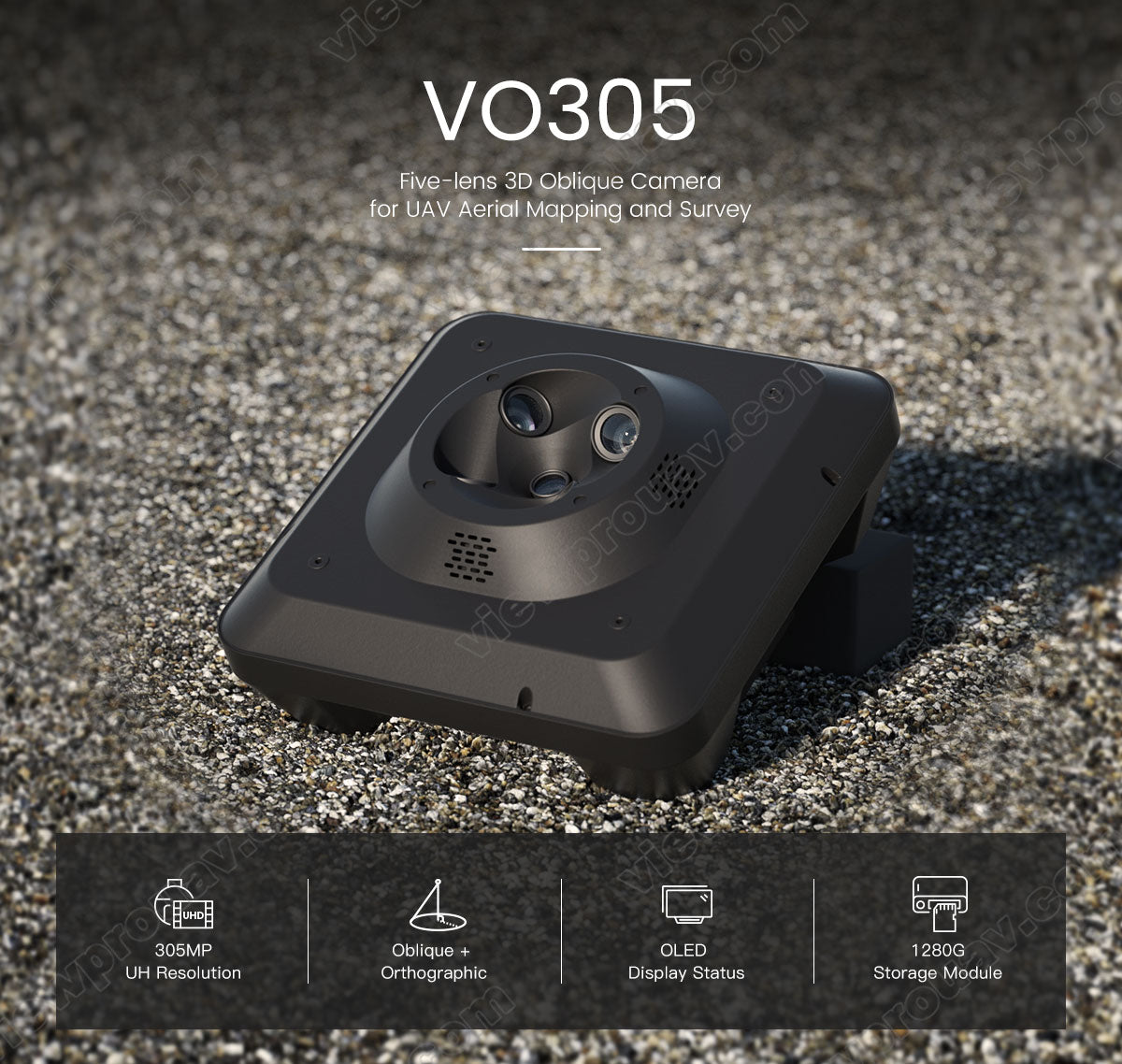

The ViewPro VO305 is a five-lens 3D oblique camera for UAV aerial mapping and survey, featuring UHD resolution, 1280G7 orthographic display, and status storage module.

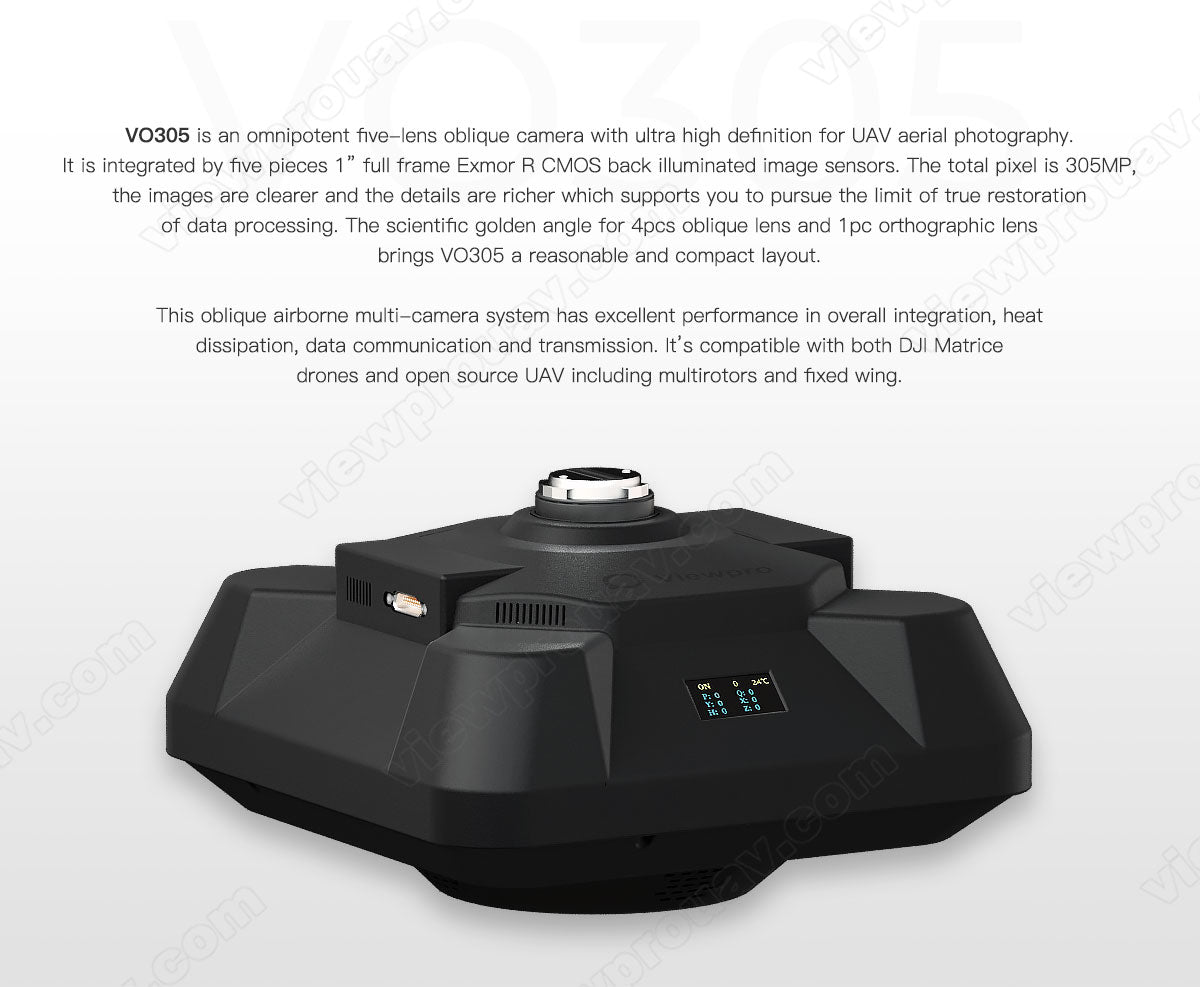

The ViewPro VO305 is a powerful, five-lens oblique camera designed for high-definition aerial photography. Equipped with one full-frame Exmor R CMOS back-illuminated image sensor, it offers an impressive 305MP total pixel count. This results in clearer images and richer details, making it ideal for pursuing optimal data processing. The scientific golden angle alignment of four oblique lenses and Ipc orthographic lens ensures a compact and reasonable layout. The VO305 boasts excellent performance in integration, heat dissipation, data communication, and transmission. It is compatible with DJI Matrice drones and open-source UAVs, including multi-rotors and fixed-wing aircraft.
ViewPro VO305 3D Oblique Camera features a side view of the camera, displaying an OLED screen with storage module information and card reader. The image shows a 1280G camera status and additional details include POCE, EENAB, and ProtanAE.

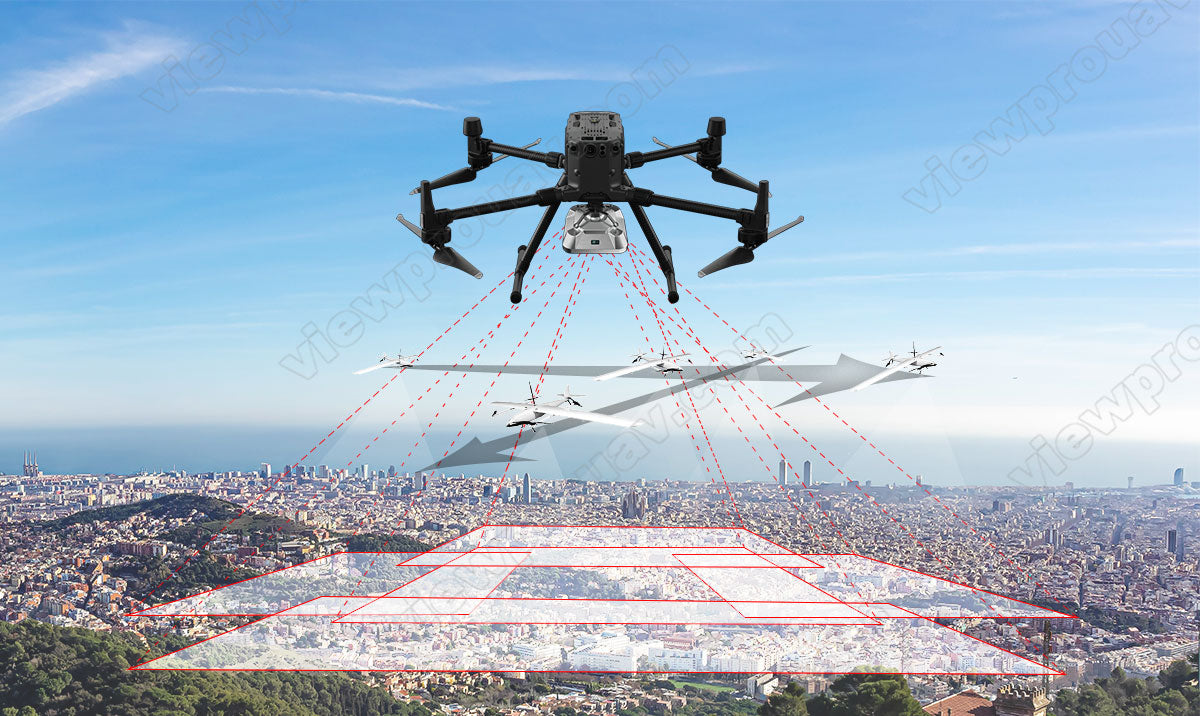

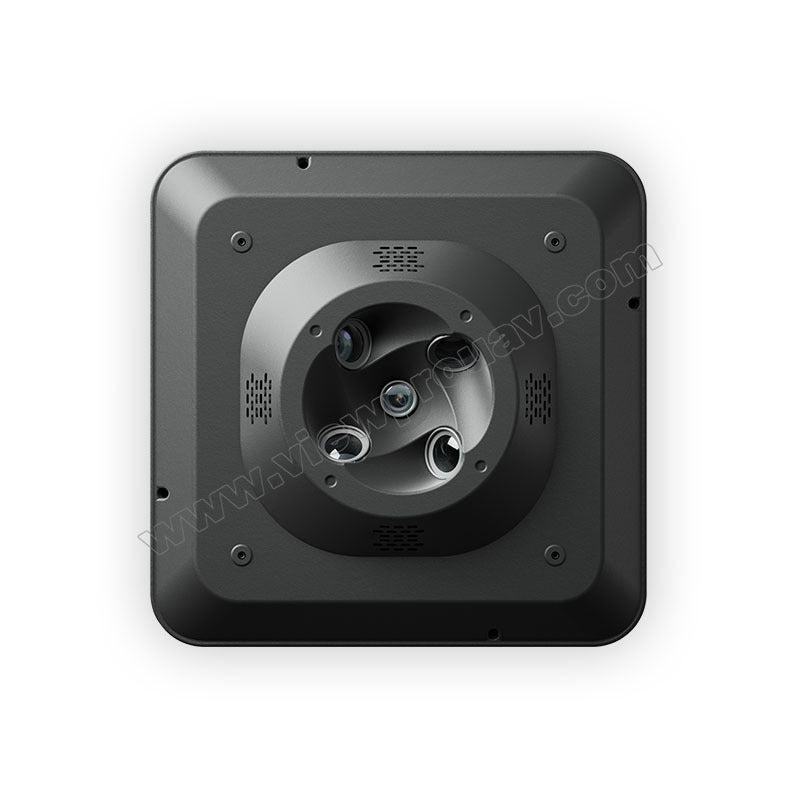

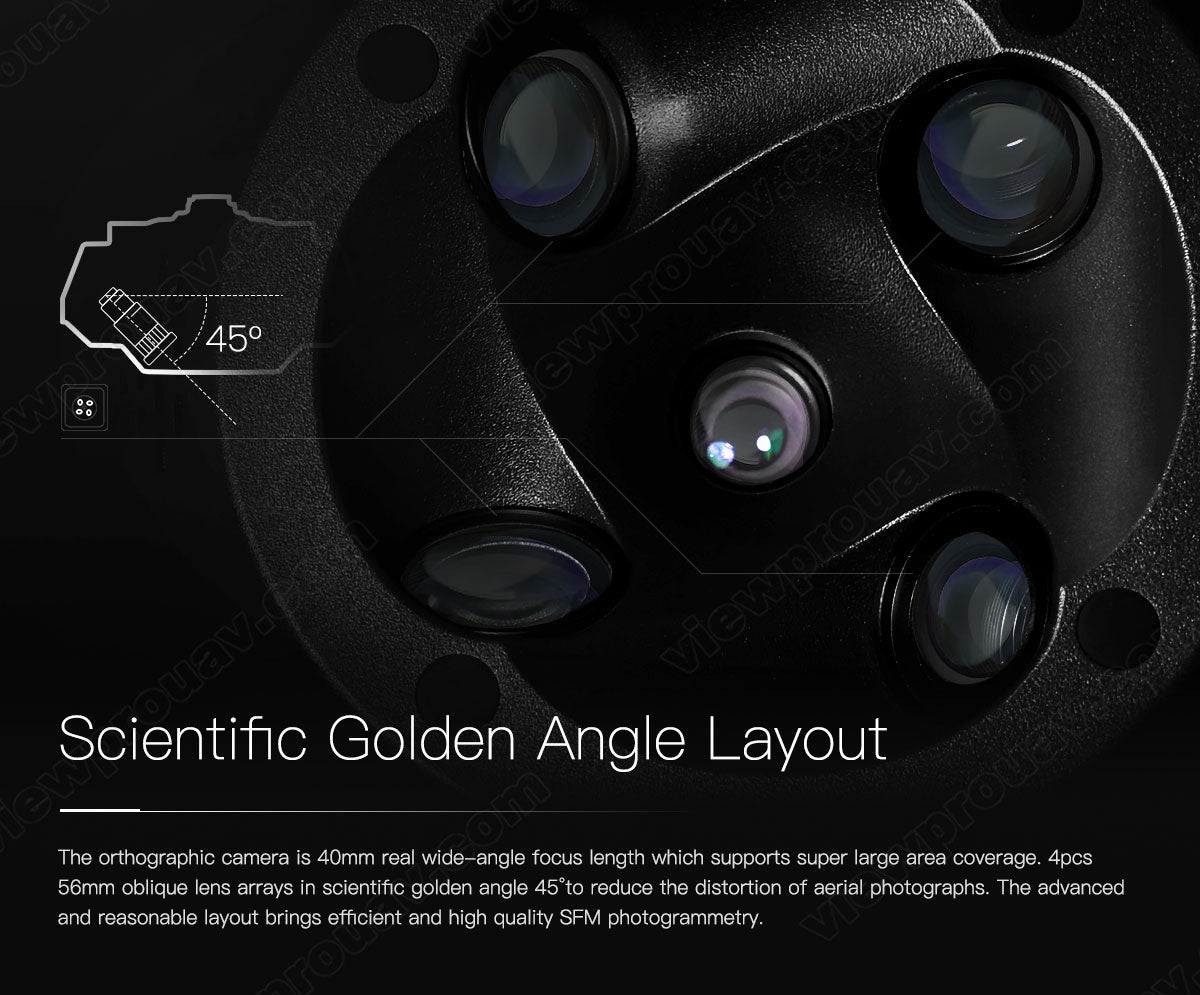

The ViewPro VO305 3D Oblique Camera features a scientific golden angle layout, with a real wide-angle focus length of 40mm and 4pcs 56mm oblique lens arrays. This design supports super large area coverage and reduces distortion in aerial photographs, making it ideal for efficient and high-quality Structure from Motion (SFM) photogrammetry.

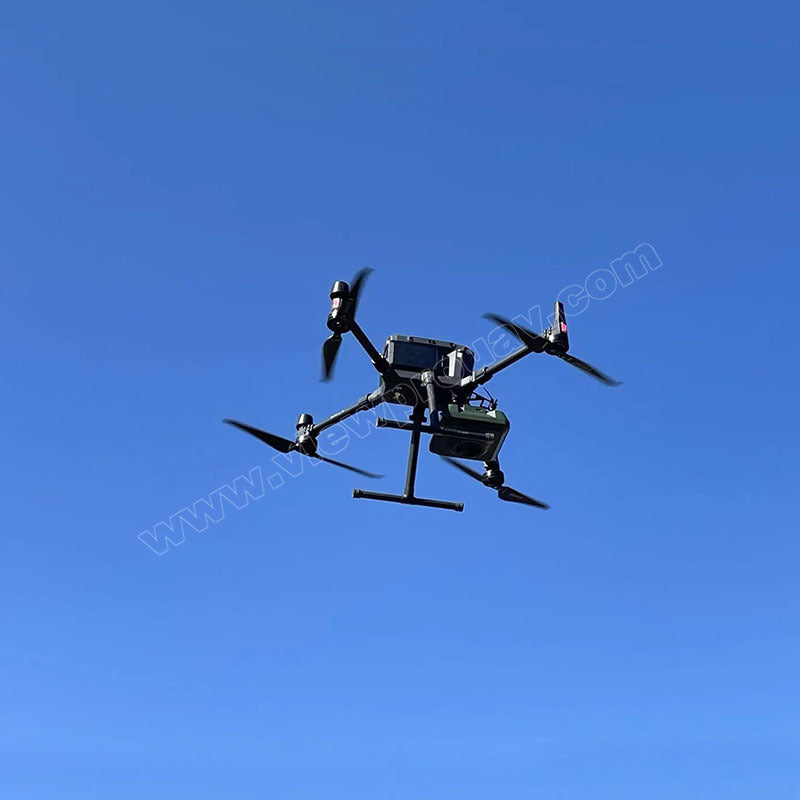

ViewPro VO305 3D Oblique Camera captures high-quality images and videos from a unique perspective.

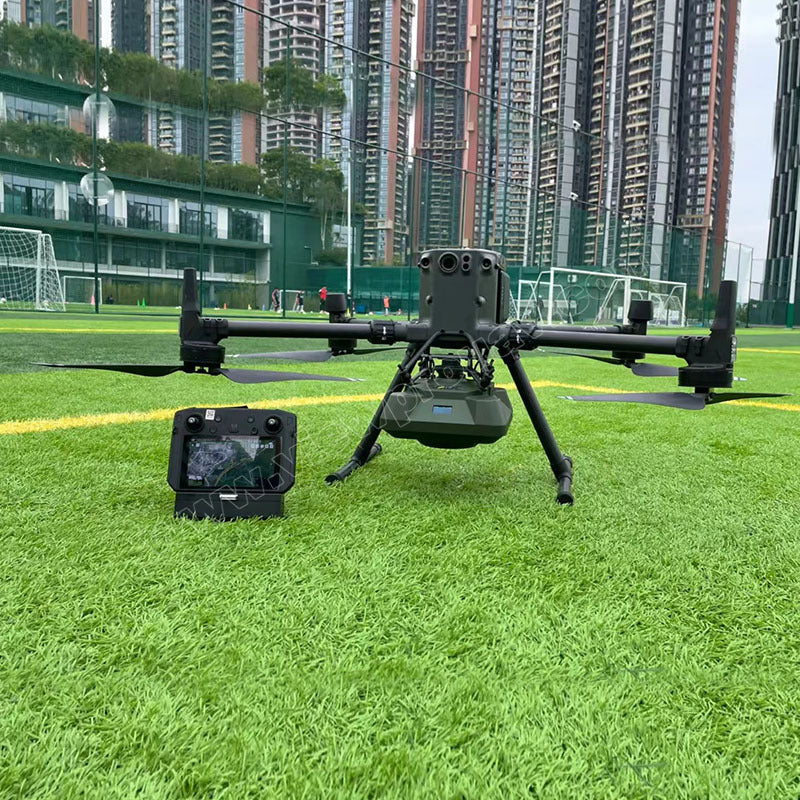

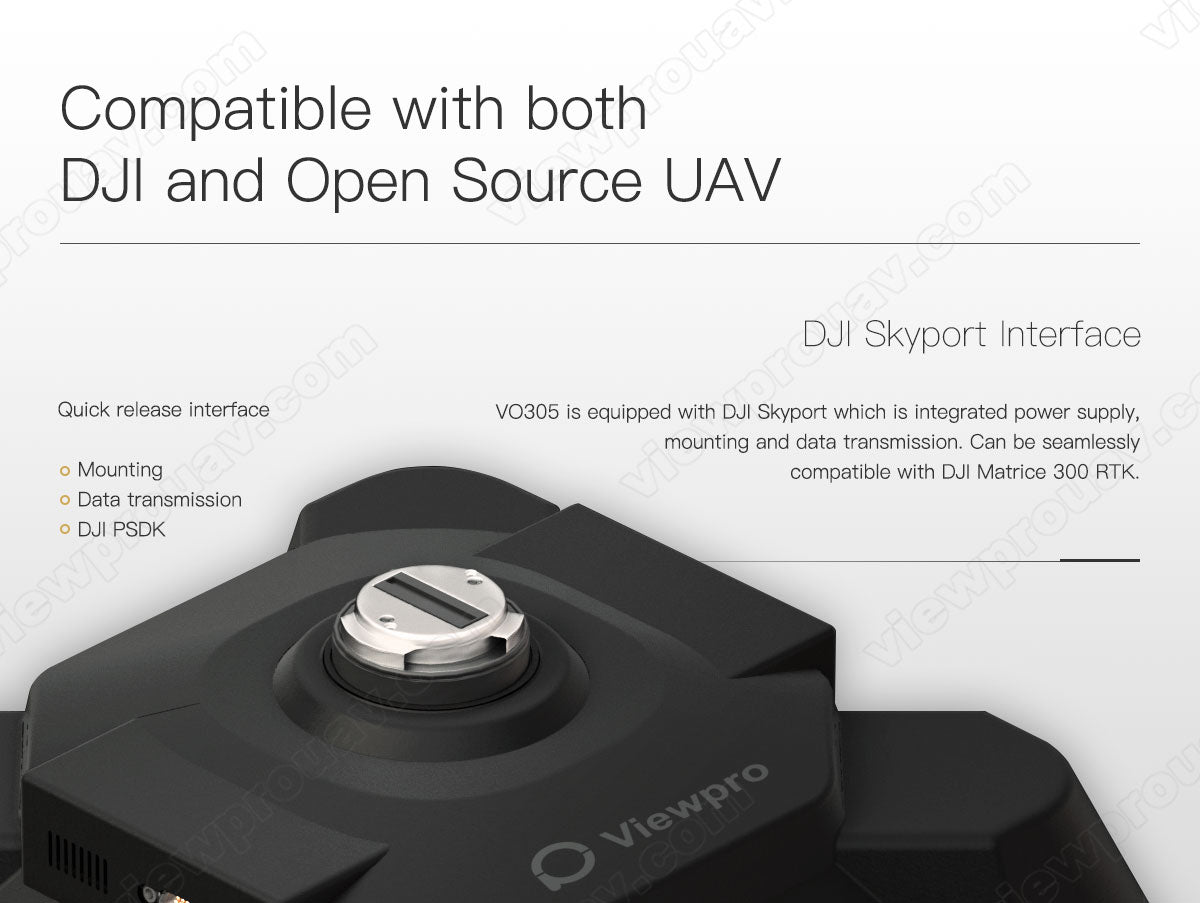

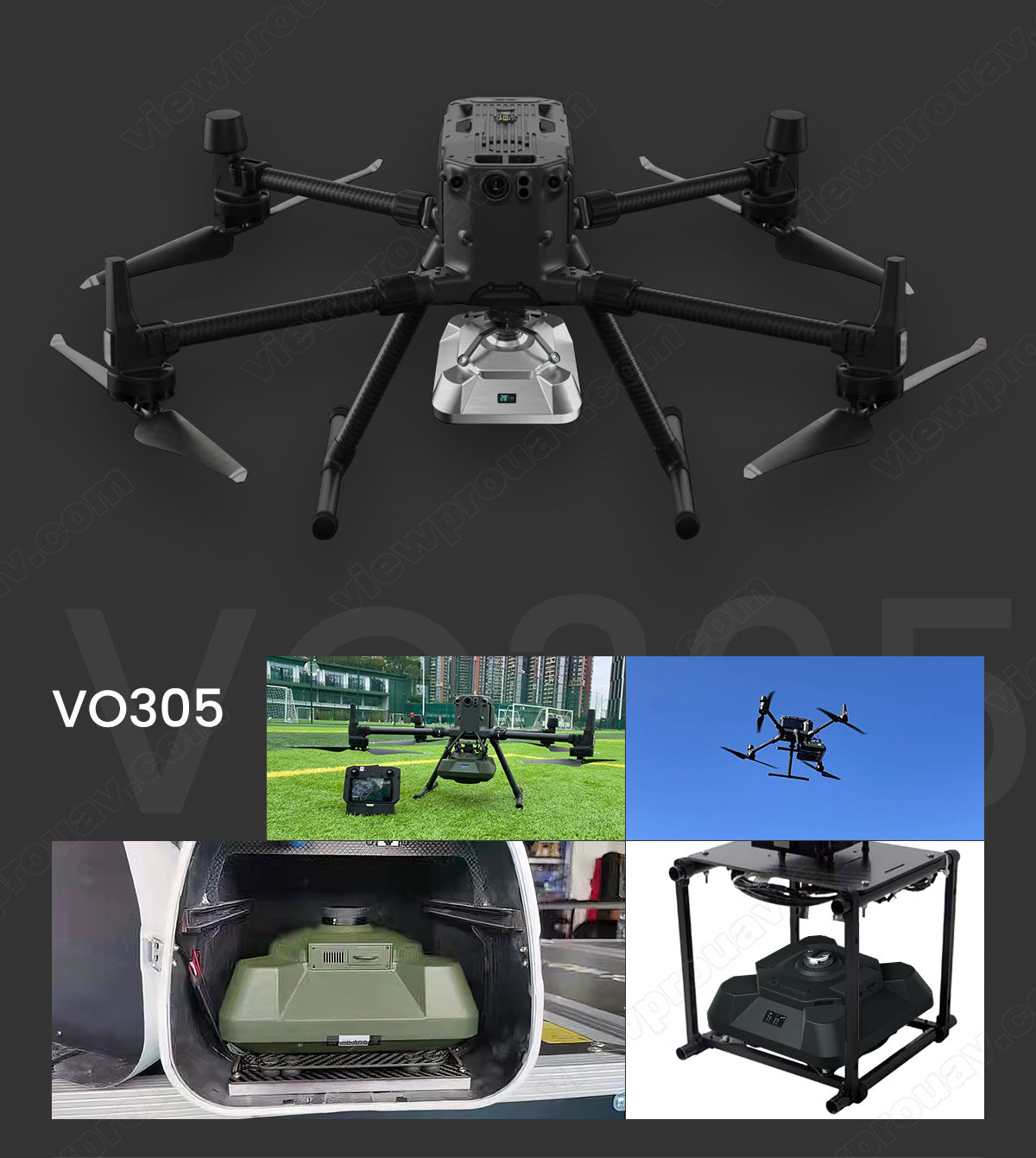

The Vo305 3D Oblique Camera is compatible with both DJI and Open Source UAVs. It features a DJI Skyport interface for quick release, integration of power supply, mounting, and data transmission. This allows seamless mounting with DJI Matrice 300 RTK and data transmission via DJI PSDK.

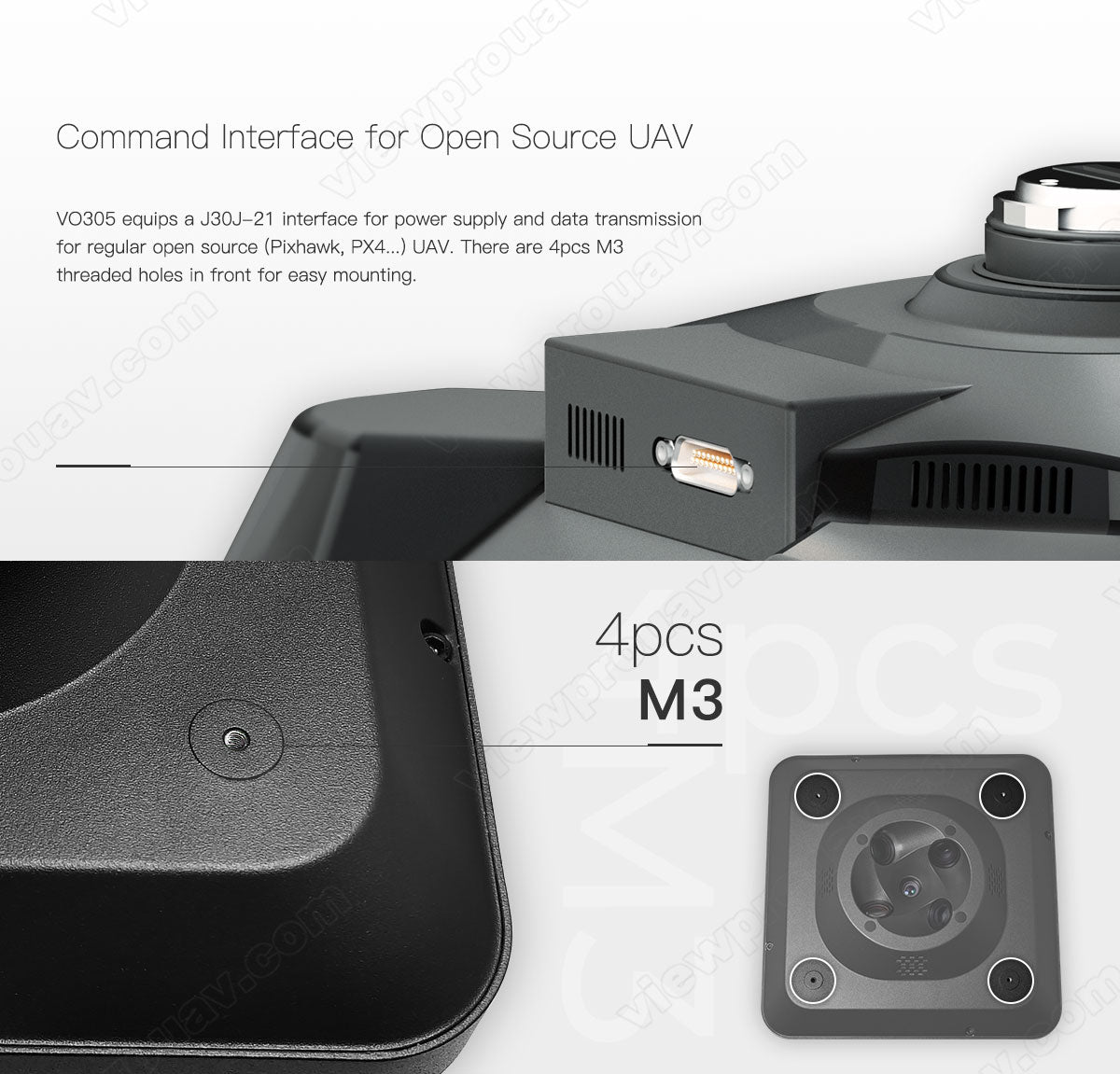

Command interface for open-source UAV VO305 equips a J30J-21 interface for power supply and data transmission, compatible with regular open-source UAVs like Pixhawk and PX4. The camera features four M3 threaded holes in front for easy mounting.

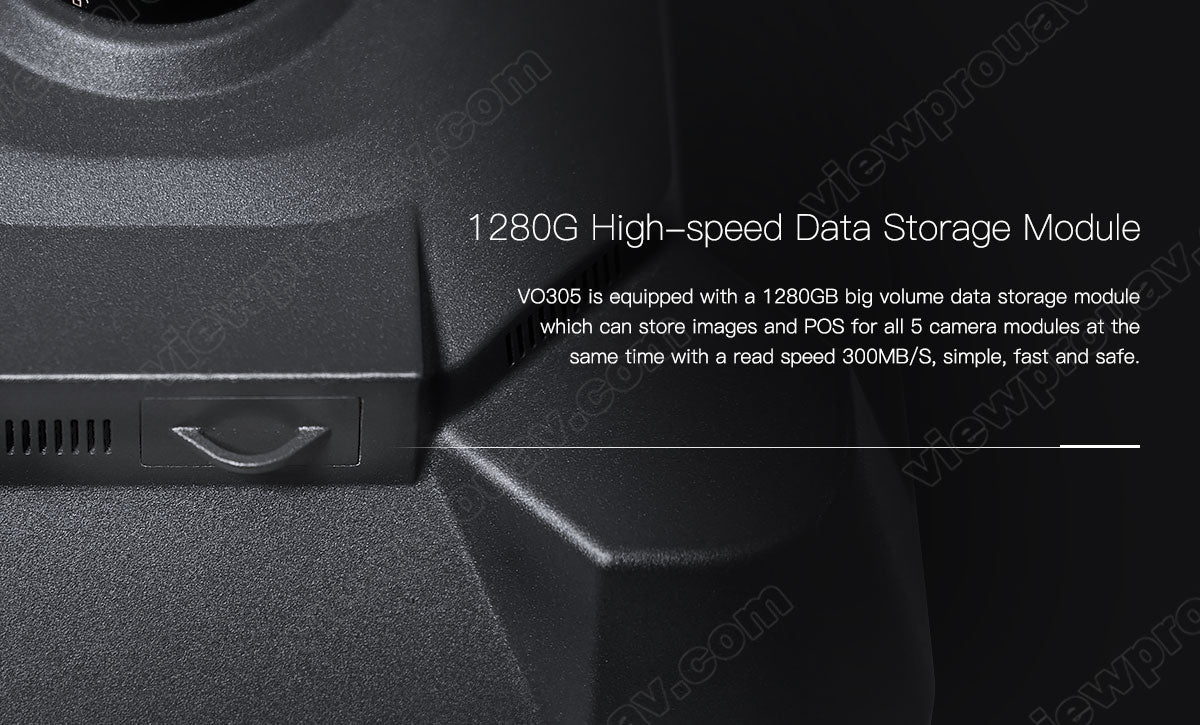

The ViewPro VO305 3D Oblique Camera features a high-speed data storage module capable of storing images and POS data for all five camera modules simultaneously, with a read speed of up to 30MB/S. This ensures seamless and safe data management.

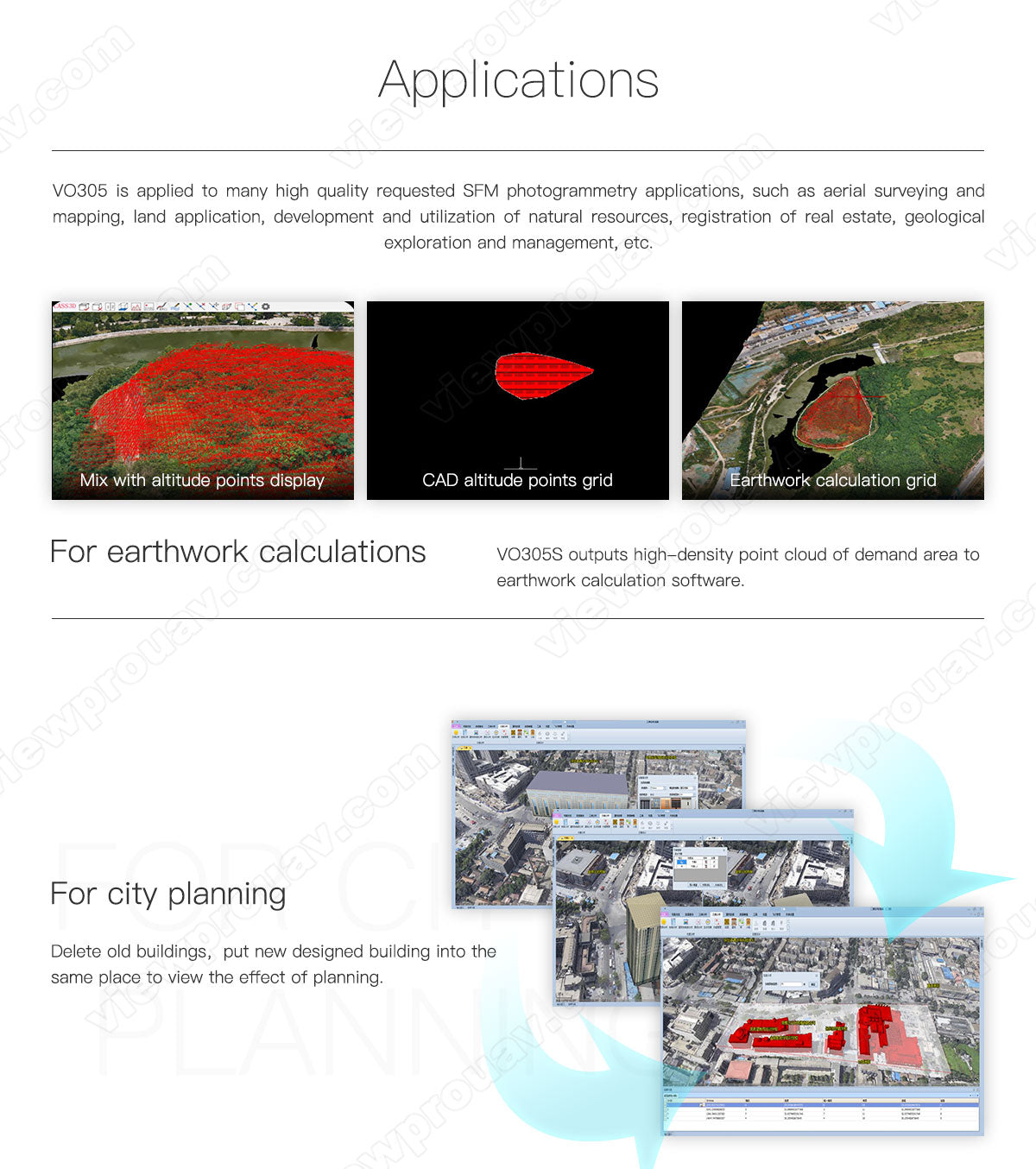

The ViewPro VO305 3D Oblique Camera is designed for various high-quality applications such as photogrammetry, aerial surveying and mapping, land development and utilization of natural resources, real estate registration, geological exploration and management. It outputs high-density point clouds for earthwork calculations and CAD altitude points with display of altitude points. Additionally, it can be used for city planning by deleting old buildings and placing new designed buildings in the same location to view the effect of planning.

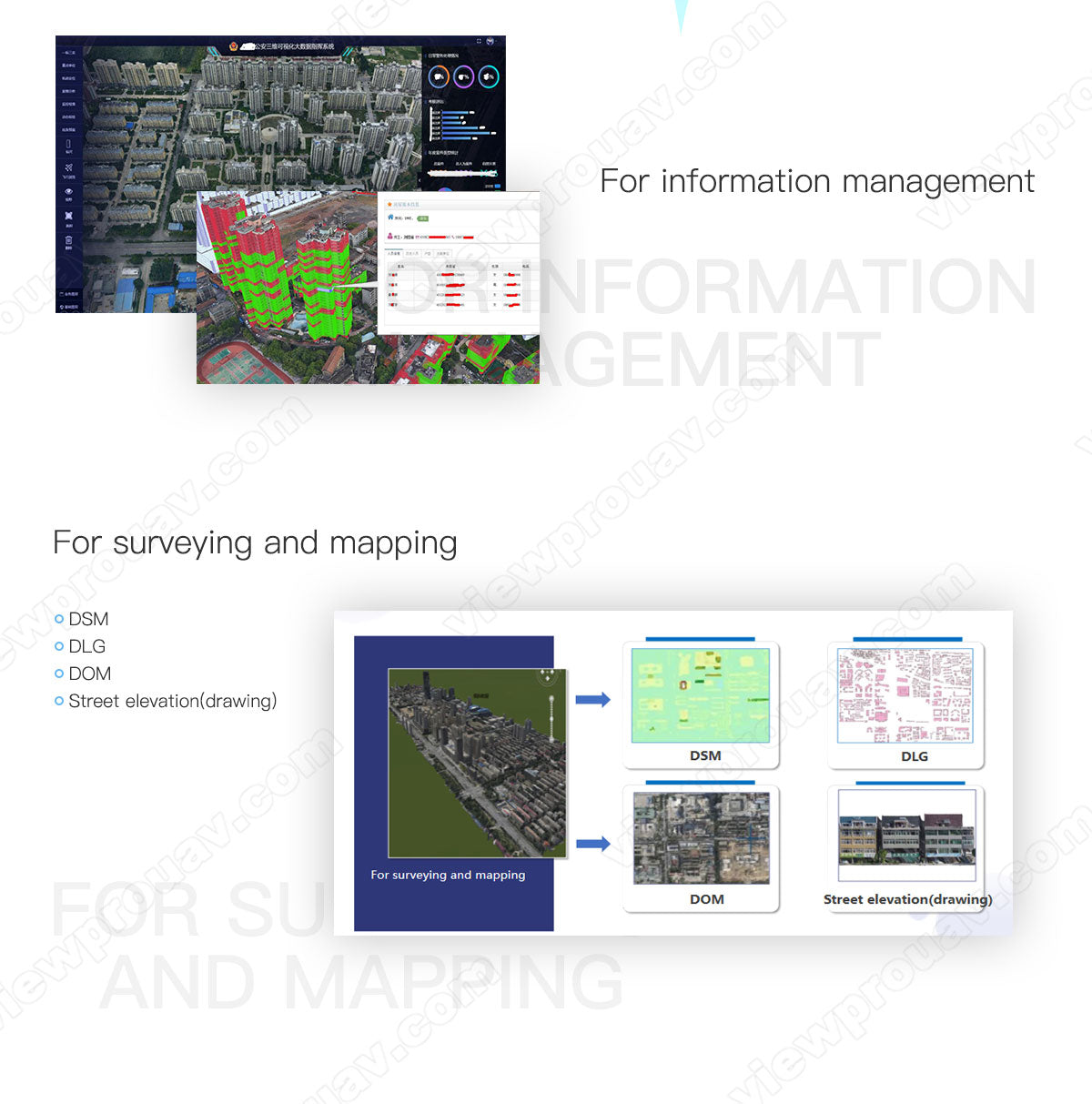

For information management, the ViewPro VO305 3D Oblique Camera provides NFORMATION for surveying and mapping, including DSM, DLG, and DOM street elevation drawings.
ViewPro VO305 3D Oblique Camera captures detailed images of various scenes with high accuracy and precision, suitable for surveying, mapping, and monitoring applications.
The ViewPro VO305 3D Oblique Camera has dimensions of 20mm x 20mm, with a lens depth of 37mm and overall height of 270mm. It features a compact design and a kit including two units.
