Overview
The ViewPro Z10F is a compact and lightweight 10x optical zoom gimbal camera designed for UAVs, delivering high-resolution imaging with 4MP effective pixels and versatile functionality. Equipped with advanced stabilization, precise controls, and optional object tracking, it ensures clear, steady visuals in diverse applications, including inspections, surveillance, and search-and-rescue missions.
Features
- 10x Optical Zoom: Capture detailed images with a focal range of 4.9mm to 49mm, offering horizontal viewing angles from 53.2° to 5.65°.
- High-Resolution Imaging: 4MP CMOS sensor delivers 2688×1520 effective pixels with a dynamic range of 65dB for vivid, detailed visuals.
- Advanced Stabilization: ±0.02° stabilization accuracy ensures smooth and steady video capture in dynamic environments.
- Multiple Output Options: Supports micro HDMI for 1080P 60fps HD output and standard analog CVBS for flexible video transmission.
- Low-Light Performance: Operates in conditions as low as 0.05 lux (F1.6), delivering exceptional clarity in low-light environments.
- Precise Control: Features PWM and TTL control methods with compatibility for PELCO-D, Hitachi, or VISCA protocols.
- Optional Object Tracking: Track objects with high accuracy, thanks to 50Hz deviation pixel updates and an output delay of less than 15ms.
- Compact & Lightweight Design: Weighing just 395g, it minimizes payload weight for extended UAV flight times.
Specifications
Hardware Parameter | |
Working voltage | 12V |
Input voltage | 3S ~ 4S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 320mA @ 12V |
Idle current | 240mA @ 12V |
Power consumption | 3.85W |
Working environment temp. | -20℃ ~ +50℃ |
Output | micro HDMI(HD output 1080P 60fps) / Analog |
Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |
Control method | PWM / TTL |
Gimbal Spec | |
Pitch/Tilt | ±90° |
Roll | ±45° |
Yaw/Pan | ±150° |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.03° |
One-key to center | √ |
Camera Spec | |
Imager Sensor | 1/3inch CMOS |
Total pixel | 4MP |
Effective pixel | 2688*1520 |
Dynamic range | 65dB |
Lens | 5MP |
Optical zoom | 10x, F=4.9~49mm |
Min object distance | 1.5M |
Viewing angle | Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end) |
Vertical: 39.8°(wide end) ~ 4.2°(tele end) | |
Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
Sync system | Progressive scanning |
Local video | 1080P 30fps local TF card |
HD output | 1080P/720/480P 60fps HDMI1.4 |
AV output | Standard CVBS 1Vp-p |
S/N ratio | 38dB |
Min illumination | Color 0.05lux@F1.6 |
Backlight compensation | Backlight compensation/strong light inhibition |
Gain | Auto |
White balance | Auto/Manual |
Shutter speed | Auto |
Control system | UART/IR/PWM |
Communication protocol | PELCO-D, Hitachi protocol or VISCA |
Focus | Auto/Manual/One-time automatic focus |
Focus speed | 2s |
Lens initialization | Built-in |
User presetting bit | 20 sets |
Image rotation | 180°, Horizontal/Vertical mirror image |
OSD | Not support |
Object Tracking(Optional) | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | <15ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 16*16 pixel |
Maximum object size | 160*160 pixel |
Tracking speed | ±32 pixel/frame |
Object memory time | 4s |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Packing Information | |
N.W. | 395g |
Product meas. | 86.2*108.3*113.3mm |
Accessories | 1pc gimbal camera device, 16pcs screws / Hight quality cardboard box with foam coushion |
Package meas. | 86.2*108.3*113.3mm |
Applications
- Infrastructure Inspections: Monitor bridges, buildings, and utility lines with precise zoom capabilities.
- Surveillance: Ideal for perimeter security, wildlife observation, and aerial monitoring.
- Search & Rescue: Identify and locate individuals in challenging environments with superior zoom and low-light performance.
- Industrial Operations: Enhance situational awareness in construction and logistics.
The ViewPro Z10F gimbal camera combines high-quality imaging, advanced stabilization, and intuitive control, making it the perfect tool for UAV operators seeking reliable and versatile aerial imaging solutions.

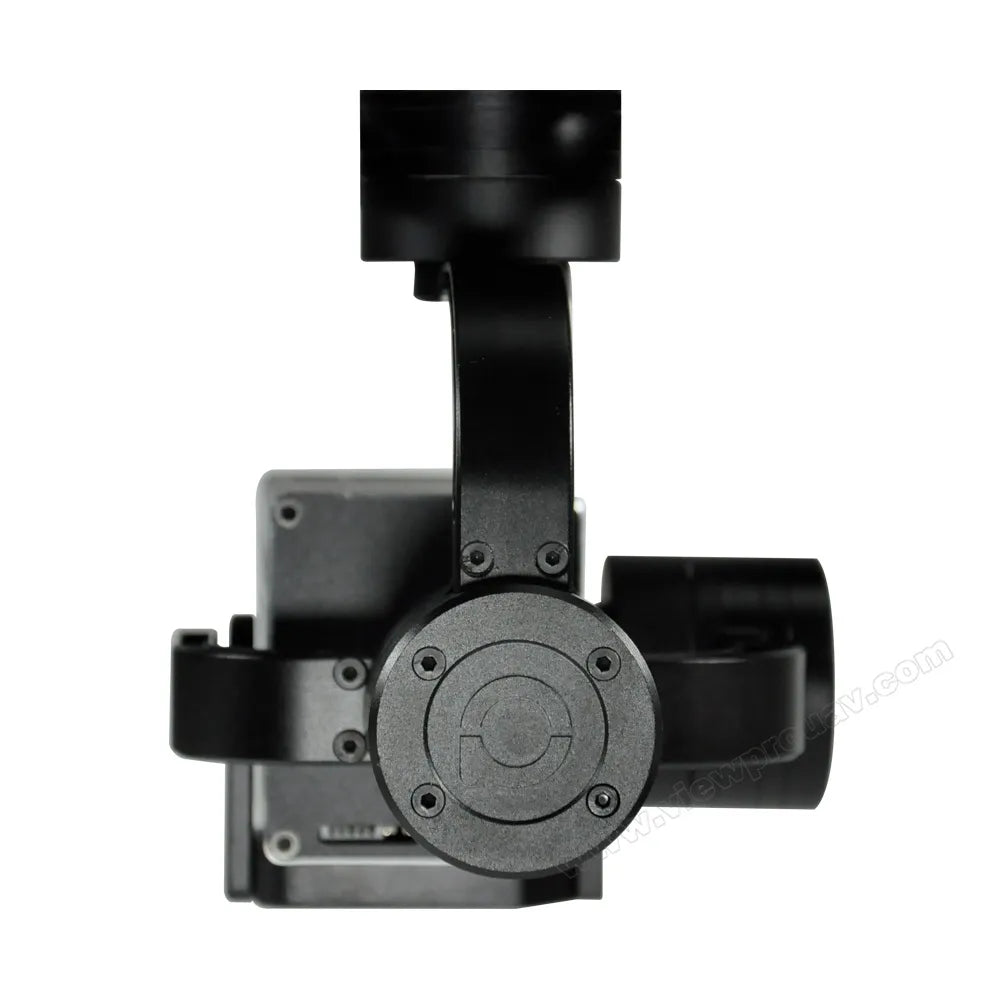

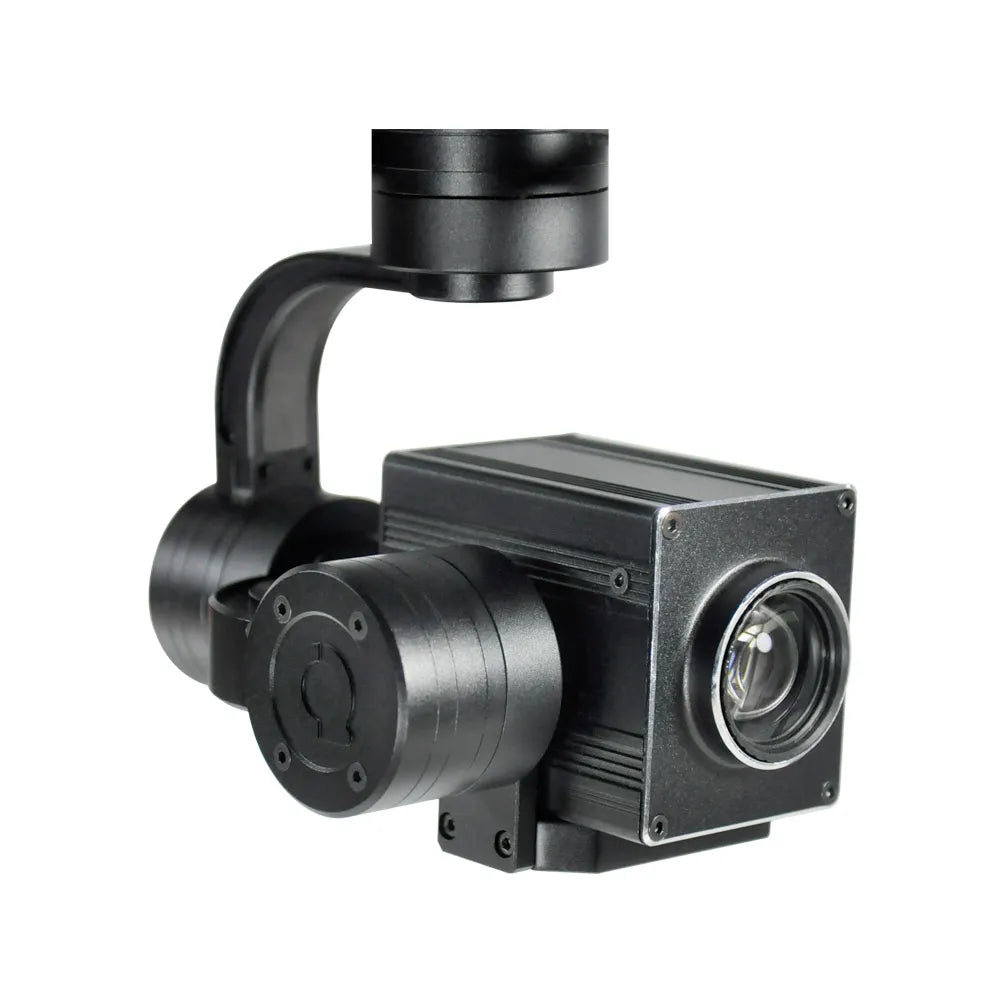

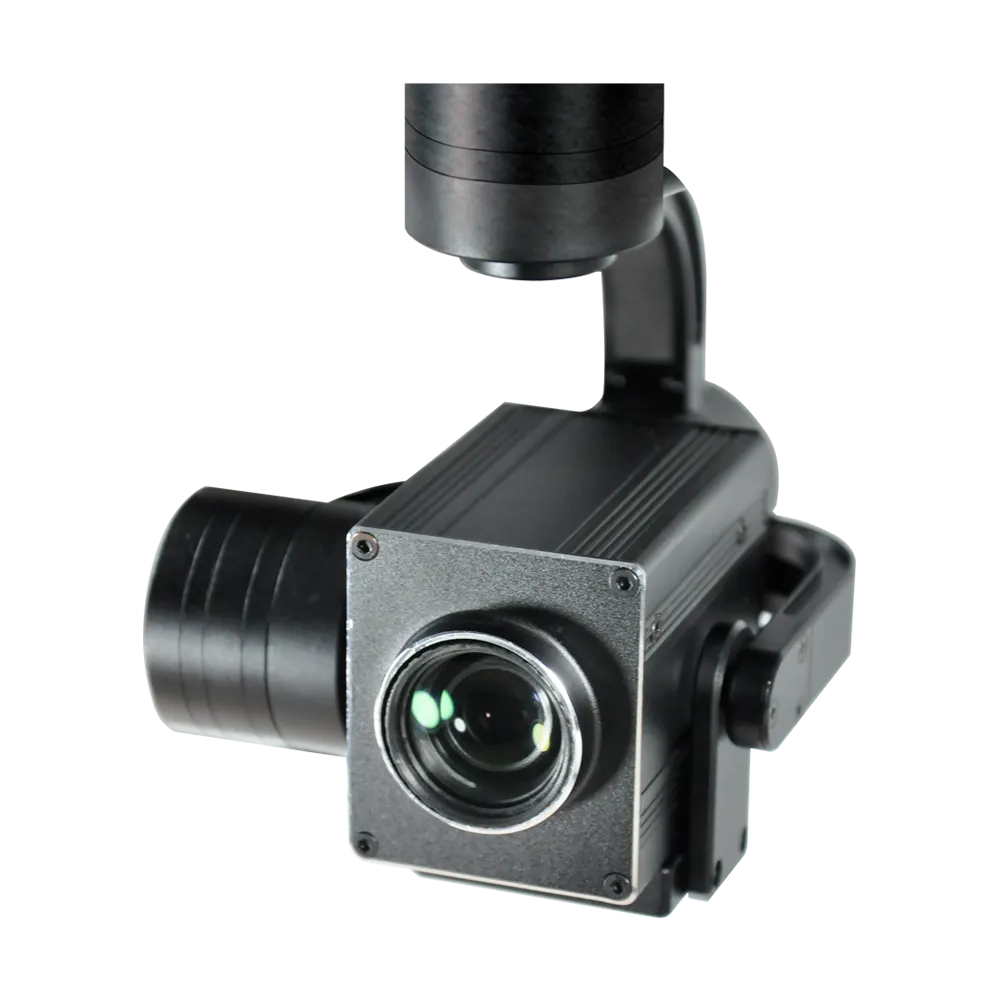

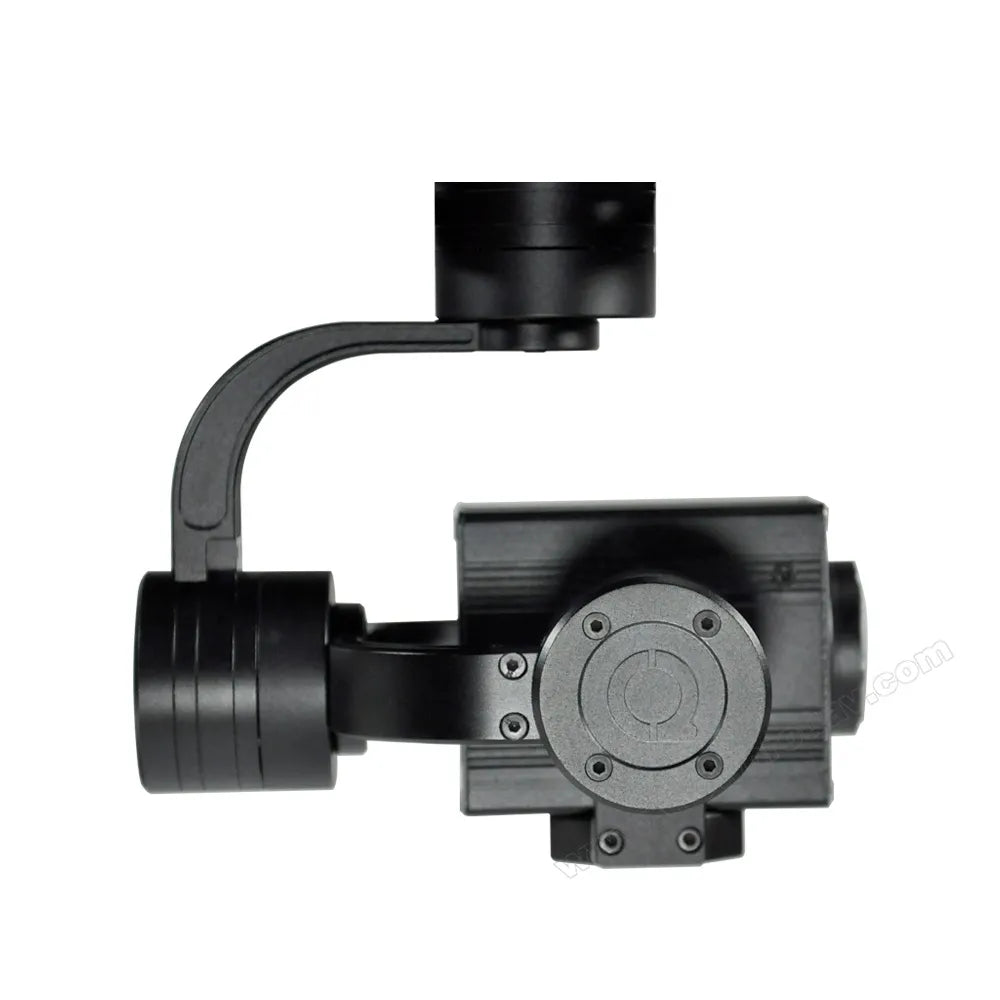

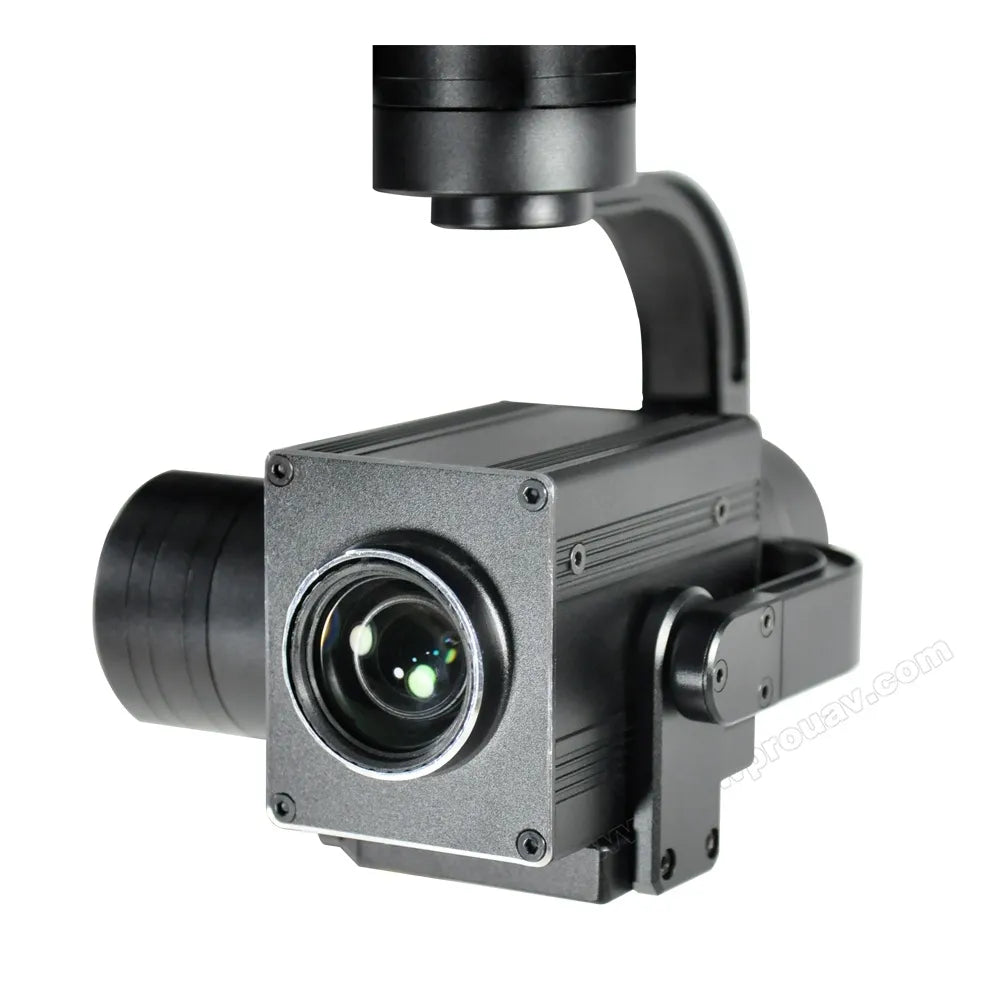

ViewPro Z10F Drone Gimbal Camera Details
Professional 3-axis High-precise FOC Program
The Z10F is a gimbal designed for 10X zoom camera for drone aerial inspection,surveillance,search and rescue mission.It consists of HD 10X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled via drone pilot or a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 10X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.
10x Optical Zoom Camera
Z10F gimbal and camera features an 10x optical zoom lens. It powered by 1/3 SENSOR CMOS module, supports approx.4 million effective pixels, with Color 0.05lux@F 1.6 ultra-low illumination, can still clearly display image features in the poor light environment, and has a wide dynamic range of 105dB. In the presence of backlight or strong light, the view of the over bright and over dark regions can sill be captured at the same time. Z10F has 4 Mega effective pixels, supports 10x optical qutofocus, and HD 1080P video recording. Design for UAV aerial photography, according to aerial characteristics, using fast focus algorithm, focus time <1s.
Multi Output Methods Optional
Multi Control Methods
Defualt PWM and Serial port TTL control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.
Control box signal interfaces:
Applications
Z10F have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
Compatible with Viewport
Z10F is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Dimensions
